IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

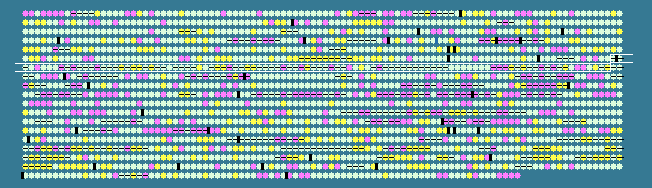

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
599	 37.21	0	561803..561931	-	42	33240050	-	Pro0599	-	hypothetical protein
600	 35.63	0	562473..562646	+	57	33240051	-	Pro0600	-	hypothetical protein
601	 38.49	0	562693..563157	+	154	33240052	-	Pro0601	-	hypothetical protein
602	 37.22	0	563477..563785	+	102	33240053	-	Pro0602	-	hypothetical protein
603	 30.33	-1	564321..564986	-	221	33240054	-	Pro0604	-	hypothetical protein
604	 39.88	0	565292..565459	+	55	33240055	-	Pro0605	-	hypothetical protein
605	 35.47	0	565465..566025	+	186	33240056	-	Pro0606	-	hypothetical protein
606	 37.13	0	566030..569587	+	1185	33240057	-	Pro0607	-	superfamily I DNA/RNA helicase
607	 31.37	-1	569926..570129	-	67	33240058	-	Pro0608	-	hypothetical protein
608	 38.12	0	570126..570731	-	201	33240059	-	Pro0609	-	hypothetical protein
609	 32.18	-1	571124..571642	+	172	33240060	-	Pro0610	-	hypothetical protein
610	 37.16	0	571662..571844	-	60	33240061	-	Pro0611	-	hypothetical protein
611	 36.01	0	571900..573318	-	472	33240062	-	Pro0612	-	retron-type reverse transcriptase
612	 37.59	0	573320..574963	-	547	33240063	-	Pro0613	-	hypothetical protein
613	 30.72	-1	574963..577755	-	930	33240064	-	Pro0614	-	hypothetical protein
614	 37.23	0	578131..579900	-	589	33240065	-	Pro0615	-	AbrB family trancriptional regulator
615	 34.92	0	580239..583571	-	1110	33240066	-	Pro0616	-	AbrB family trancriptional regulator
616	 34.90	0	584182..584373	+	63	33240067	-	Pro0617	-	hypothetical protein
617	 42.86	+1	584412..584621	+	69	33240068	-	Pro0618	-	hypothetical protein
618	 37.56	0	584688..584900	+	70	33240069	-	Pro0619	-	hypothetical protein
619	 40.51	0	584981..585217	+	78	33240070	-	Pro0620	-	hypothetical protein
620	 43.45	+1	585381..585884	-	167	33240071	-	Pro0621	-	hypothetical protein
621	 37.04	0	586080..586268	-	62	33240072	-	Pro0622	-	hypothetical protein
622	 43.26	+1	586261..586542	-	93	33240073	-	Pro0623	-	hypothetical protein
623	 37.65	0	586717..586878	+	53	33240074	-	Pro0624	-	hypothetical protein
624	 38.13	0	586958..587416	+	152	33240075	-	Pro0625	-	hypothetical protein
625	 40.45	0	587418..587993	+	191	33240076	-	Pro0626	-	hypothetical protein
626	 37.27	0	587984..588313	+	109	33240077	-	Pro0627	-	hypothetical protein
627	 35.53	0	588602..589783	-	393	33240078	-	Pro0628	-	hypothetical protein
628	 36.29	0	589776..591839	-	687	33240079	-	Pro0629	-	DNA helicase, restriction/modification system component, ortholog of BS_yeeB
629	 36.21	0	591847..594594	-	915	33240080	-	Pro0630	-	Type II restriction enzyme, methylase subunit
630	 41.29	+1	594914..595705	+	263	33240081	-	Pro0631	-	hypothetical protein
631	 37.47	0	595742..596104	+	120	33240082	-	Pro0632	-	hypothetical protein
632	 39.20	0	596166..596642	+	158	33240083	-	Pro0633	-	Zn-ribbon protein
633	 45.63	+2	596643..597008	-	121	33240084	-	Pro0634	-	hypothetical protein
634	 40.90	0	597305..597727	+	140	33240085	-	Pro0635	-	hypothetical protein
635	 31.88	-1	597918..598535	-	205	33240086	-	Pro0636	-	hypothetical protein
636	 40.00	0	599096..599215	+	39	33240087	-	Pro0637	-	hypothetical protein
637	 36.02	0	599278..599463	+	61	33240088	-	Pro0638	-	hypothetical protein
638	 44.17	+1	599677..599916	-	79	33240089	-	Pro0639	-	hypothetical protein
639	 42.08	+1	600113..600295	+	60	33240090	-	Pro0640	-	hypothetical protein
640	 35.24	0	600609..601028	+	139	33240091	-	Pro0641	-	hypothetical protein
641	 37.90	0	601045..601263	-	72	33240092	-	Pro0642	-	hypothetical protein
642	 39.33	0	601603..602019	+	138	33240093	-	Pro0643	-	hypothetical protein
643	 39.23	0	602429..602767	-	112	33240094	iscA	Pro0644	-	hypothetical protein
644	 32.26	-1	602932..603117	-	61	33240095	-	Pro0645	-	hypothetical protein
645	 39.78	0	603118..603303	-	61	33240096	-	Pro0646	-	hypothetical protein
646	 37.88	0	603394..603591	-	65	33240097	-	Pro0647	-	hypothetical protein
647	 31.92	-1	603905..604117	-	70	33240098	-	Pro0648	-	hypothetical protein
648	 41.49	+1	604253..604534	+	93	33240099	-	Pro0649	-	hypothetical protein
649	 39.05	0	604563..604772	+	69	33240100	-	Pro0650	-	hypothetical protein
650	 36.04	0	604975..605196	-	73	33240101	-	Pro0651	-	hypothetical protein
651	 35.29	0	605761..605964	+	67	33240102	-	Pro0652	-	hypothetical protein
652	 29.69	-1	605965..606156	+	63	33240103	-	Pro0653	-	hypothetical protein
653	 35.59	0	606274..606450	-	58	33240104	-	Pro0654	-	hypothetical protein
654	 40.14	0	606580..607020	+	146	33240105	-	Pro0655	-	hypothetical protein
655	 23.53	-2	607118..607219	+	33	33240106	-	Pro0656	-	hypothetical protein
656	 36.78	0	607247..607885	+	212	33240107	-	Pro0657	-	hypothetical protein
657	 42.12	+1	607985..608257	-	90	33240108	-	Pro0658	-	hypothetical protein
658	 36.86	0	608429..608797	-	122	33240109	-	Pro0659	-	hypothetical protein
659	 33.91	0	609021..609194	+	57	33240110	-	Pro0660	-	hypothetical protein
660	 32.64	-1	609841..610272	+	143	33240111	-	Pro0661	-	hypothetical protein
661	 39.15	0	610371..611435	-	354	33240112	-	Pro0662	-	NADPH-dependent reductase
662	 33.87	0	612367..612552	+	61	33240113	-	Pro0663	-	hypothetical protein
663	 40.25	0	612889..613047	-	52	33240114	-	Pro0664	-	hypothetical protein
664	 33.89	0	613294..613473	-	59	33240115	-	Pro0665	-	hypothetical protein
665	 34.60	0	614078..614473	+	131	33240116	-	Pro0666	-	hypothetical protein
666	 35.53	0	614554..614826	+	90	33240117	-	Pro0667	-	hypothetical protein
667	 36.41	0	615231..615425	+	64	33240118	-	Pro0668	-	hypothetical protein
668	 34.14	0	615718..616089	-	123	33240119	-	Pro0669	-	hypothetical protein
669	 36.36	0	616298..616528	+	76	33240120	-	Pro0670	-	hypothetical protein
670	 35.98	0	616559..616747	-	62	33240121	-	Pro0671	-	hypothetical protein
671	 34.90	0	617076..617714	+	212	33240122	-	Pro0672	-	hypothetical protein
672	 38.27	0	617834..618583	-	249	33240123	-	Pro0673	-	ABC-type polar amino acid transport system ATPase component
673	 35.98	0	618590..619609	-	339	33240124	-	Pro0674	-	ABC-type amino acid transport system permease component
674	 33.67	0	619627..620526	-	299	33240125	-	Pro0675	-	ABC-type amino acid transport system permease component
675	 38.27	0	620558..621610	-	350	33240126	-	Pro0676	-	amino acid ABC transporter periplasmic protein
676	 34.53	0	623197..623781	+	194	33240127	-	Pro0677	-	hypothetical protein
677	 39.52	0	623897..624106	+	69	33240128	-	Pro0678	-	hypothetical protein
678	 33.81	0	624259..626154	-	631	33240129	-	Pro0679	-	nucleotide-diphosphate-sugar epimerase, membrane associated
679	 29.37	-1	626255..627238	-	327	33240130	rfe	Pro0680	-	UDP-N-acetylmuramyl pentapeptide phosphotransferase/UDP-N-acetylglucosamine-1-phosphate transferase
680	 33.00	-1	627245..628147	-	300	33240131	-	Pro0681	-	nucleoside-diphosphate-sugar epimerase
681	 30.20	-1	628144..629292	-	382	33240132	rfaG	Pro0682	-	glycosyltransferase
682	 42.09	+1	629584..630120	-	178	33240133	-	Pro0683	-	hypothetical protein
683	 36.72	0	630215..630391	-	58	33240134	-	Pro0684	-	hypothetical protein
684	 43.94	+1	630559..630756	-	65	33240135	-	Pro0685	-	hypothetical protein
685	 38.18	0	630945..631109	+	54	33240136	-	Pro0686	-	hypothetical protein
686	 34.96	0	632104..632349	+	81	33240137	-	Pro0687	-	hypothetical protein
687	 32.34	-1	632352..632552	-	66	33240138	-	Pro0688	-	hypothetical protein
688	 35.88	0	633210..633563	-	117	33240139	-	Pro0689	-	hypothetical protein
689	 33.33	0	634024..634422	-	132	33240140	-	Pro0690	-	hypothetical protein
690	 36.72	0	634861..635037	-	58	33240141	-	Pro0691	-	hypothetical protein
691	 41.29	+1	635119..635319	-	66	33240142	-	Pro0692	-	hypothetical protein
692	 36.75	0	635488..635604	-	38	33240143	-	Pro0693	-	hypothetical protein
693	 32.34	-1	635829..636029	-	66	33240144	-	Pro0694	-	hypothetical protein
694	 33.33	0	636428..636811	+	127	33240145	-	Pro0695	-	hypothetical protein
695	 35.33	0	636868..637368	-	166	33240146	-	Pro0696	-	hypothetical protein
696	 41.11	+1	637643..637822	-	59	33240147	-	Pro0697	-	hypothetical protein
697	 38.49	0	638341..638922	+	193	33240148	-	Pro0698	-	hypothetical protein
698	 40.72	0	638919..640841	+	640	33240149	sdhA	Pro0699	-	succinate dehydrogenase flavoprotein subunit
37.01	MEAN

3.99	STD DEV
