IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

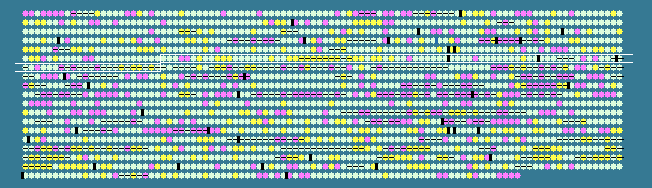

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
524	 35.23	0	500108..501268	-	386	33239975	-	Pro0524	-	XisA-like site specific recombinase
525	 37.41	0	501339..502514	+	391	33239976	hemH	Pro0525	-	ferrochelatase
526	 39.49	0	502652..504406	+	584	33239977	ilvB	Pro0526	-	acetolactate synthase 3 catalytic subunit
527	 32.79	-1	504447..504812	+	121	33239978	-	Pro0527	-	thermonuclease-like protein
528	 29.78	-1	504836..505624	-	262	33239979	-	Pro0528	-	hypothetical protein
529	 39.26	0	505639..506532	-	297	33239980	-	Pro0529	-	hypothetical protein
530	 40.99	0	506532..507785	-	417	33239981	rpsA	Pro0530	-	ribosomal protein S1
531	 40.05	0	507847..508680	+	277	33239982	-	Pro0531	-	creatininase
532	 36.41	0	508768..509481	+	237	33239983	-	Pro0532	-	hypothetical protein
533	 41.19	+1	509626..510669	+	347	33239984	-	Pro0533	-	dehydrogenase
534	 42.02	+1	510701..511690	+	329	33239985	accA	Pro0534	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
535	 40.82	0	511717..512424	+	235	33239986	fabG	Pro0535	-	short chain dehydrogenase
536	 33.96	0	512433..512591	+	52	33239987	-	Pro0536	-	hypothetical protein
537	 36.61	0	512610..513188	+	192	33239988	folE	Pro0537	-	GTP cyclohydrolase I
538	 36.21	0	513192..513851	-	219	33239989	trpF	Pro0538	-	phosphoribosylanthranilate isomerase
539	 36.49	0	513931..515196	+	421	33239990	spoIVFB	Pro0539	-	S2P family protease
540	 37.49	0	515103..515945	-	280	33239991	lplA	Pro0540	-	lipoate-protein ligase A
541	 40.00	0	516085..516189	+	34	33239992	psaM	Pro0541	-	photosystem I reaction center subunit XII
542	 41.01	+1	516255..516671	+	138	33239993	-	Pro0542	-	hypothetical protein
543	 40.39	0	516744..517763	+	339	33239994	por	Pro0543	-	protochlorophyllide oxidoreductase
544	 40.18	0	517788..518678	-	296	33239995	chlL	Pro0544	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
545	 40.55	0	518864..520456	-	530	33239996	chlB	Pro0545	-	light-independent protochlorophyllide reductase subunit B
546	 40.57	0	520461..521717	-	418	33239997	chlN	Pro0546	-	light-independent protochlorophyllide reductase subunit N
547	 42.74	+1	521869..522240	-	123	33239998	-	Pro0547	-	hypothetical protein
548	 44.70	+1	522339..523112	+	257	33239999	-	Pro0548	-	hypothetical protein
549	 40.51	0	523130..523714	-	194	33240000	-	Pro0549	-	HAM1 family protein
550	 51.28	+2	524074..524385	+	103	33240001	ccmK/csoS1	Pro0550	-	carboxysome shell protein CsoS1
551	 45.36	+2	524454..525866	+	470	33240002	rbcL	Pro0551	-	ribulose bisophosphate carboxylase
552	 45.32	+2	525970..526311	+	113	33240003	rbcS	Pro0552	-	ribulose bisphosphate carboxylase, small chain
553	 43.42	+1	526414..528792	+	792	33240004	csoS2	Pro0553	-	carboxysome shell protein CsoS2
554	 39.01	0	528800..530332	+	510	33240005	csoS3	Pro0554	-	carboxysome shell protein CsoS3
555	 43.12	+1	530334..530609	+	91	33240006	-	Pro0555	-	putative carboxysome peptide A
556	 43.25	+1	530609..530860	+	83	33240007	-	Pro0556	-	putative carboxysome peptide B
557	 42.94	+1	530906..531415	+	169	33240008	ccmK/csoS1	Pro0557	-	carboxysome shell peptide, CsoS1
558	 35.98	0	531488..531751	+	87	33240009	-	Pro0558	-	pterin-4 alpha-carbinolamine dehydratase-like protein
559	 46.67	+2	531759..531983	-	74	33240010	-	Pro0559	-	hypothetical protein
560	 41.10	+1	532072..532470	-	132	33240011	tdcF	Pro0560	-	putative translation initiation inhibitor
561	 35.96	0	532524..533285	-	253	33240012	gloB	Pro0561	-	metallo-beta-lactamase superfamily hydrolase
562	 41.51	+1	533335..533982	+	215	33240013	hisG	Pro0562	-	ATP phosphoribosyltransferase catalytic subunit
563	 35.12	0	533987..535780	+	597	33240014	mdlB	Pro0563	-	multidrug ABC transporter
564	 38.67	0	535799..536341	+	180	33240015	wecD	Pro0564	-	acetyltransferase
565	 31.93	-1	536360..537070	-	236	33240016	wcaA	Pro0565	-	glycosyltransferase
566	 37.52	0	537058..537702	-	214	33240017	-	Pro0566	-	hypothetical protein
567	 39.39	0	537957..539342	+	461	33240018	dnaA	Pro0567	-	chromosomal replication initiation protein
568	 38.37	0	539358..540608	-	416	33240019	gst	Pro0568	-	glutaredoxin-like domain-containing protein
569	 34.65	0	540650..542011	+	453	33240020	gor	Pro0569	-	glutathione reductase
570	 36.94	0	542066..543145	-	359	33240021	ECM27	Pro0570	-	putative CaCA family sodium/calcium exchanger
571	 37.04	0	543290..544369	+	359	33240022	pyrC	Pro0571	-	dihydroorotase
572	 35.02	0	544847..545083	+	78	33240023	-	Pro0572	-	inorganic carbon transport protein, IctA
573	 33.93	0	545087..545419	+	110	33240024	-	Pro0573	-	hypothetical protein
574	 37.69	0	545500..546303	+	267	33240025	trpA	Pro0574	-	tryptophan synthase subunit alpha
575	 38.06	0	546430..546789	-	119	33240026	-	Pro0575	-	transciptional regulator
576	 32.59	-1	546894..547163	+	89	33240027	-	Pro0576	-	YciI-like protein
577	 34.37	0	547139..547525	-	128	33240028	cccA	Pro0577	-	cytochrome C
578	 37.46	0	547554..547868	-	104	33240029	-	Pro0578	-	hypothetical protein
579	 40.44	0	547873..548238	-	121	33240030	-	Pro0579	-	hypothetical protein
580	 40.30	0	548286..549218	-	310	33240031	rpoD	Pro0580	-	putative type II alternative sigma factor, sigma70 family
581	 35.40	0	549417..549899	+	160	33240032	-	Pro0581	-	hypothetical protein
582	 36.86	0	549957..550637	-	226	33240033	hisI	Pro0582	-	phosphoribosyl-AMP cyclohydrolase
583	 35.60	0	550708..551193	+	161	33240034	-	Pro0583	-	6-pyruvoyl-tetrahydropterin synthase
584	 40.68	0	551225..552790	-	521	33240035	-	Pro0584	-	putative carotenoid isomerase
585	 38.31	0	552787..554193	-	468	33240036	gid	Pro0585	-	tRNA (uracil-5-)-methyltransferase Gid
586	 39.02	0	554236..554358	-	40	33240037	pbsY	Pro0586	-	photosystem II protein Y
587	 35.09	0	554663..555004	+	113	33240038	-	Pro0587	-	hypothetical protein
588	 38.30	0	555342..555683	+	113	33240039	-	Pro0588	-	hypothetical protein
589	 36.96	0	555785..556087	+	100	33240040	-	Pro0589	-	hypothetical protein
590	 36.67	0	556189..556368	-	59	33240041	rpsU	Pro0590	-	30S ribosomal protein S21
591	 39.61	0	556786..557040	-	84	33240042	-	Pro0591	-	hypothetical protein
592	 33.81	0	557128..557337	+	69	33240043	-	Pro0592	-	hypothetical protein
593	 36.18	0	557401..557751	+	116	33240044	-	Pro0593	-	hypothetical protein
594	 31.91	-1	557760..558110	-	116	33240045	-	Pro0594	-	hypothetical protein
595	 36.87	0	558478..558675	-	65	33240046	-	Pro0595	-	hypothetical protein
596	 33.45	0	558880..559701	-	273	33240047	pstB	Pro0596	-	phosphate ABC transporter ATP-binding protein
597	 36.94	0	559722..560636	-	304	33240048	pstA	Pro0597	-	phosphate ABC transporter phosphate-binding protein
598	 37.12	0	560650..561600	-	316	33240049	pstC	Pro0598	-	phosphate ABC transporter permease
599	 37.21	0	561803..561931	-	42	33240050	-	Pro0599	-	hypothetical protein
600	 35.63	0	562473..562646	+	57	33240051	-	Pro0600	-	hypothetical protein
601	 38.49	0	562693..563157	+	154	33240052	-	Pro0601	-	hypothetical protein
602	 37.22	0	563477..563785	+	102	33240053	-	Pro0602	-	hypothetical protein
603	 30.33	-1	564321..564986	-	221	33240054	-	Pro0604	-	hypothetical protein
604	 39.88	0	565292..565459	+	55	33240055	-	Pro0605	-	hypothetical protein
605	 35.47	0	565465..566025	+	186	33240056	-	Pro0606	-	hypothetical protein
606	 37.13	0	566030..569587	+	1185	33240057	-	Pro0607	-	superfamily I DNA/RNA helicase
607	 31.37	-1	569926..570129	-	67	33240058	-	Pro0608	-	hypothetical protein
608	 38.12	0	570126..570731	-	201	33240059	-	Pro0609	-	hypothetical protein
609	 32.18	-1	571124..571642	+	172	33240060	-	Pro0610	-	hypothetical protein
610	 37.16	0	571662..571844	-	60	33240061	-	Pro0611	-	hypothetical protein
611	 36.01	0	571900..573318	-	472	33240062	-	Pro0612	-	retron-type reverse transcriptase
612	 37.59	0	573320..574963	-	547	33240063	-	Pro0613	-	hypothetical protein
613	 30.72	-1	574963..577755	-	930	33240064	-	Pro0614	-	hypothetical protein
614	 37.23	0	578131..579900	-	589	33240065	-	Pro0615	-	AbrB family trancriptional regulator
615	 34.92	0	580239..583571	-	1110	33240066	-	Pro0616	-	AbrB family trancriptional regulator
616	 34.90	0	584182..584373	+	63	33240067	-	Pro0617	-	hypothetical protein
617	 42.86	+1	584412..584621	+	69	33240068	-	Pro0618	-	hypothetical protein
618	 37.56	0	584688..584900	+	70	33240069	-	Pro0619	-	hypothetical protein
619	 40.51	0	584981..585217	+	78	33240070	-	Pro0620	-	hypothetical protein
620	 43.45	+1	585381..585884	-	167	33240071	-	Pro0621	-	hypothetical protein
621	 37.04	0	586080..586268	-	62	33240072	-	Pro0622	-	hypothetical protein
622	 43.26	+1	586261..586542	-	93	33240073	-	Pro0623	-	hypothetical protein
623	 37.65	0	586717..586878	+	53	33240074	-	Pro0624	-	hypothetical protein
37.01	MEAN

3.99	STD DEV
