IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

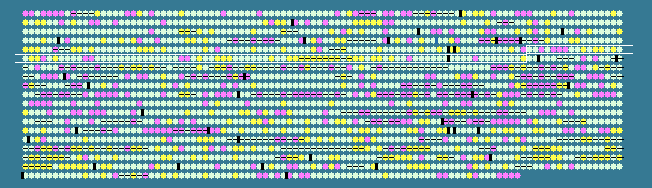

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
485	 36.70	0	461662..462285	+	207	33239936	-	Pro0485	-	hypothetical protein
486	 38.06	0	462410..463636	+	408	33239937	-	Pro0486	-	hypothetical protein
487	 32.52	-1	463633..464613	+	326	33239938	-	Pro0487	-	hypothetical protein
488	 37.90	0	464674..466206	-	510	33239939	thiP	Pro0488	-	putative iron ABC transporter
489	 33.52	0	466199..467275	-	358	33239940	-	Pro0489	-	G3E family GTPase
490	 32.65	-1	467312..467602	-	96	33239941	-	Pro0490	-	pterin-4a-carbinolamine dehydratase
491	 32.44	-1	467660..468220	-	186	33239942	-	Pro0491	-	hypothetical protein
492	 40.21	0	468584..470125	+	513	33239943	-	Pro0492	-	Zn-dependent carboxypeptidase
493	 37.93	0	470152..470739	+	195	33239944	ppa	Pro0493	-	putative inorganic pyrophosphatase
494	 41.14	+1	470762..471709	-	315	33239945	hemC	Pro0494	-	porphobilinogen deaminase
495	 38.57	0	471863..473179	-	438	33239946	rpoD	Pro0495	-	RNA polymerase sigma factor RpoD
496	 43.86	+1	473310..473480	+	56	33239947	-	Pro0496	-	hypothetical protein
497	 41.92	+1	473544..475802	+	752	33239948	priA	Pro0497	-	primosomal protein N'
498	 34.15	0	475827..476927	-	366	33239949	-	Pro0498	-	hypothetical protein
499	 40.87	0	476931..477845	-	304	33239950	argB	Pro0499	-	acetylglutamate kinase
500	 37.32	0	477849..478400	-	183	33239951	-	Pro0500	-	hypothetical protein
501	 39.78	0	478452..478637	+	61	33239952	-	Pro0501	-	hypothetical protein
502	 41.83	+1	478656..479114	-	152	33239953	ssb	Pro0502	-	single-stranded DNA-binding protein
503	 40.75	0	479143..479937	+	264	33239954	cobK	Pro0503	-	precorrin-6x reductase
504	 28.79	-2	479985..480314	+	109	33239955	cutA	Pro0504	-	hypothetical protein
505	 35.53	0	480311..481312	-	333	33239956	rbsK	Pro0505	-	ribokinase family sugar kinase
506	 40.64	0	481323..482636	-	437	33239957	purA	Pro0506	-	adenylosuccinate synthetase
507	 37.24	0	482726..483160	-	144	33239958	psb27	Pro0507	-	putative photosystem II reaction center Psb27 protein
508	 37.20	0	483185..484996	-	603	33239959	proS	Pro0508	-	prolyl-tRNA synthetase
509	 35.21	0	485140..485565	+	141	33239960	-	Pro0509	-	putative helix-turn-helix domain of resolvase
510	 39.92	0	485907..486437	+	176	33239961	ppa	Pro0510	-	inorganic pyrophosphatase
511	 29.54	-1	486486..486854	+	122	33239962	arsC	Pro0511	-	arsenate reductase related protein
512	 31.06	-1	486820..488313	-	497	33239963	-	Pro0512	-	hypothetical protein
513	 37.37	0	488450..489118	+	222	33239964	lepB	Pro0513	-	Signal peptidase I
514	 38.65	0	489111..490370	-	419	33239965	pyrC	Pro0514	-	dihydroorotase
515	 38.45	0	490376..491704	-	442	33239966	gpmB	Pro0515	-	putative alpha-ribazole-5'-P phosphatase
516	 38.04	0	491811..493169	+	452	33239967	-	Pro0516	-	metal-dependent membrane protease
517	 36.11	0	493254..493721	+	155	33239968	-	Pro0517	-	hypothetical protein
518	 39.10	0	493727..495529	+	600	33239969	ftsI	Pro0518	-	putative peptidoglycan synthetase (pbp transpeptidase domain)
519	 35.02	0	495609..496616	+	335	33239970	tal	Pro0519	-	transaldolase B
520	 38.30	0	496685..497812	-	375	33239971	fixC	Pro0520	-	NAD binding site
521	 34.79	0	497809..498357	-	182	33239972	frr	Pro0521	-	ribosome recycling factor
522	 39.64	0	498408..499121	-	237	33239973	pyrH	Pro0522	-	uridylate kinase
523	 36.22	0	499346..500038	-	230	33239974	ctuR	Pro0523	-	ATP:corrinoid adenosyltransferase
524	 35.23	0	500108..501268	-	386	33239975	-	Pro0524	-	XisA-like site specific recombinase
525	 37.41	0	501339..502514	+	391	33239976	hemH	Pro0525	-	ferrochelatase
526	 39.49	0	502652..504406	+	584	33239977	ilvB	Pro0526	-	acetolactate synthase 3 catalytic subunit
527	 32.79	-1	504447..504812	+	121	33239978	-	Pro0527	-	thermonuclease-like protein
528	 29.78	-1	504836..505624	-	262	33239979	-	Pro0528	-	hypothetical protein
529	 39.26	0	505639..506532	-	297	33239980	-	Pro0529	-	hypothetical protein
530	 40.99	0	506532..507785	-	417	33239981	rpsA	Pro0530	-	ribosomal protein S1
531	 40.05	0	507847..508680	+	277	33239982	-	Pro0531	-	creatininase
532	 36.41	0	508768..509481	+	237	33239983	-	Pro0532	-	hypothetical protein
533	 41.19	+1	509626..510669	+	347	33239984	-	Pro0533	-	dehydrogenase
534	 42.02	+1	510701..511690	+	329	33239985	accA	Pro0534	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
535	 40.82	0	511717..512424	+	235	33239986	fabG	Pro0535	-	short chain dehydrogenase
536	 33.96	0	512433..512591	+	52	33239987	-	Pro0536	-	hypothetical protein
537	 36.61	0	512610..513188	+	192	33239988	folE	Pro0537	-	GTP cyclohydrolase I
538	 36.21	0	513192..513851	-	219	33239989	trpF	Pro0538	-	phosphoribosylanthranilate isomerase
539	 36.49	0	513931..515196	+	421	33239990	spoIVFB	Pro0539	-	S2P family protease
540	 37.49	0	515103..515945	-	280	33239991	lplA	Pro0540	-	lipoate-protein ligase A
541	 40.00	0	516085..516189	+	34	33239992	psaM	Pro0541	-	photosystem I reaction center subunit XII
542	 41.01	+1	516255..516671	+	138	33239993	-	Pro0542	-	hypothetical protein
543	 40.39	0	516744..517763	+	339	33239994	por	Pro0543	-	protochlorophyllide oxidoreductase
544	 40.18	0	517788..518678	-	296	33239995	chlL	Pro0544	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
545	 40.55	0	518864..520456	-	530	33239996	chlB	Pro0545	-	light-independent protochlorophyllide reductase subunit B
546	 40.57	0	520461..521717	-	418	33239997	chlN	Pro0546	-	light-independent protochlorophyllide reductase subunit N
547	 42.74	+1	521869..522240	-	123	33239998	-	Pro0547	-	hypothetical protein
548	 44.70	+1	522339..523112	+	257	33239999	-	Pro0548	-	hypothetical protein
549	 40.51	0	523130..523714	-	194	33240000	-	Pro0549	-	HAM1 family protein
550	 51.28	+2	524074..524385	+	103	33240001	ccmK/csoS1	Pro0550	-	carboxysome shell protein CsoS1
551	 45.36	+2	524454..525866	+	470	33240002	rbcL	Pro0551	-	ribulose bisophosphate carboxylase
552	 45.32	+2	525970..526311	+	113	33240003	rbcS	Pro0552	-	ribulose bisphosphate carboxylase, small chain
553	 43.42	+1	526414..528792	+	792	33240004	csoS2	Pro0553	-	carboxysome shell protein CsoS2
554	 39.01	0	528800..530332	+	510	33240005	csoS3	Pro0554	-	carboxysome shell protein CsoS3
555	 43.12	+1	530334..530609	+	91	33240006	-	Pro0555	-	putative carboxysome peptide A
556	 43.25	+1	530609..530860	+	83	33240007	-	Pro0556	-	putative carboxysome peptide B
557	 42.94	+1	530906..531415	+	169	33240008	ccmK/csoS1	Pro0557	-	carboxysome shell peptide, CsoS1
558	 35.98	0	531488..531751	+	87	33240009	-	Pro0558	-	pterin-4 alpha-carbinolamine dehydratase-like protein
559	 46.67	+2	531759..531983	-	74	33240010	-	Pro0559	-	hypothetical protein
560	 41.10	+1	532072..532470	-	132	33240011	tdcF	Pro0560	-	putative translation initiation inhibitor
561	 35.96	0	532524..533285	-	253	33240012	gloB	Pro0561	-	metallo-beta-lactamase superfamily hydrolase
562	 41.51	+1	533335..533982	+	215	33240013	hisG	Pro0562	-	ATP phosphoribosyltransferase catalytic subunit
563	 35.12	0	533987..535780	+	597	33240014	mdlB	Pro0563	-	multidrug ABC transporter
564	 38.67	0	535799..536341	+	180	33240015	wecD	Pro0564	-	acetyltransferase
565	 31.93	-1	536360..537070	-	236	33240016	wcaA	Pro0565	-	glycosyltransferase
566	 37.52	0	537058..537702	-	214	33240017	-	Pro0566	-	hypothetical protein
567	 39.39	0	537957..539342	+	461	33240018	dnaA	Pro0567	-	chromosomal replication initiation protein
568	 38.37	0	539358..540608	-	416	33240019	gst	Pro0568	-	glutaredoxin-like domain-containing protein
569	 34.65	0	540650..542011	+	453	33240020	gor	Pro0569	-	glutathione reductase
570	 36.94	0	542066..543145	-	359	33240021	ECM27	Pro0570	-	putative CaCA family sodium/calcium exchanger
571	 37.04	0	543290..544369	+	359	33240022	pyrC	Pro0571	-	dihydroorotase
572	 35.02	0	544847..545083	+	78	33240023	-	Pro0572	-	inorganic carbon transport protein, IctA
573	 33.93	0	545087..545419	+	110	33240024	-	Pro0573	-	hypothetical protein
574	 37.69	0	545500..546303	+	267	33240025	trpA	Pro0574	-	tryptophan synthase subunit alpha
575	 38.06	0	546430..546789	-	119	33240026	-	Pro0575	-	transciptional regulator
576	 32.59	-1	546894..547163	+	89	33240027	-	Pro0576	-	YciI-like protein
577	 34.37	0	547139..547525	-	128	33240028	cccA	Pro0577	-	cytochrome C
578	 37.46	0	547554..547868	-	104	33240029	-	Pro0578	-	hypothetical protein
579	 40.44	0	547873..548238	-	121	33240030	-	Pro0579	-	hypothetical protein
580	 40.30	0	548286..549218	-	310	33240031	rpoD	Pro0580	-	putative type II alternative sigma factor, sigma70 family
581	 35.40	0	549417..549899	+	160	33240032	-	Pro0581	-	hypothetical protein
582	 36.86	0	549957..550637	-	226	33240033	hisI	Pro0582	-	phosphoribosyl-AMP cyclohydrolase
583	 35.60	0	550708..551193	+	161	33240034	-	Pro0583	-	6-pyruvoyl-tetrahydropterin synthase
584	 40.68	0	551225..552790	-	521	33240035	-	Pro0584	-	putative carotenoid isomerase
37.01	MEAN

3.99	STD DEV
