IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

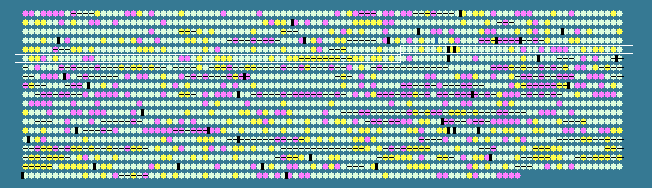

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
464	 33.97	0	444591..446306	-	571	33239915	-	Pro0464	-	RNA-binding protein
465	 36.04	0	446371..446925	+	184	33239916	gmk	Pro0465	-	guanylate kinase
466	 34.07	0	446939..447073	-	44	33239917	psaJ	Pro0466	-	photosystem I reaction center subunit IX
467	 43.30	+1	447133..447684	-	183	33239918	psaF	Pro0467	-	photosystem I PsaF protein (subunit III)
468	 39.87	0	447763..448833	+	356	33239919	QRI7	Pro0468	-	metal-dependent protease with chaperone activity
469	 33.88	0	448872..449054	+	60	33239920	hli9	Pro0469	-	high light inducible protein hli9
470	 42.52	+1	449249..450445	+	398	33239921	nhaP	Pro0470	-	putative Na+/H+ antiporter, CPA1 family
471	 36.69	0	450465..451895	-	476	33239922	gltX	Pro0471	-	glutamyl-tRNA synthetase
472	 45.50	+2	452157..452345	-	62	33239923	-	Pro0472	-	hypothetical protein
473	 43.89	+1	452517..452999	-	160	33239924	rplS	Pro0473	-	50S ribosomal protein L19
474	 38.25	0	453066..453248	+	60	33239925	-	Pro0474	-	hypothetical protein
475	 38.11	0	453442..454278	+	278	33239926	map	Pro0475	-	methionine aminopeptidase
476	 33.73	0	454301..455062	-	253	33239927	fabG	Pro0476	-	short chain dehydrogenase
477	 39.59	0	455240..456310	+	356	33239928	pta	Pro0477	-	phosphotransacetylase domain-containing protein
478	 39.69	0	456362..456880	+	172	33239929	-	Pro0478	-	hypothetical protein
479	 35.94	0	456999..457496	+	165	33239930	-	Pro0479	-	nucleotide-binding protein
480	 35.21	0	457554..457766	+	70	33239931	-	Pro0480	-	hypothetical protein
481	 38.52	0	457853..458662	+	269	33239932	hflC	Pro0481	-	Band 7 protein
482	 44.32	+1	458766..460067	-	433	33239933	hemL	Pro0482	-	glutamate-1-semialdehyde aminotransferase
483	 37.18	0	460386..461216	-	276	33239934	xthA	Pro0483	-	exonuclease III
484	 30.58	-1	461279..461605	+	108	33239935	-	Pro0484	-	hypothetical protein
485	 36.70	0	461662..462285	+	207	33239936	-	Pro0485	-	hypothetical protein
486	 38.06	0	462410..463636	+	408	33239937	-	Pro0486	-	hypothetical protein
487	 32.52	-1	463633..464613	+	326	33239938	-	Pro0487	-	hypothetical protein
488	 37.90	0	464674..466206	-	510	33239939	thiP	Pro0488	-	putative iron ABC transporter
489	 33.52	0	466199..467275	-	358	33239940	-	Pro0489	-	G3E family GTPase
490	 32.65	-1	467312..467602	-	96	33239941	-	Pro0490	-	pterin-4a-carbinolamine dehydratase
491	 32.44	-1	467660..468220	-	186	33239942	-	Pro0491	-	hypothetical protein
492	 40.21	0	468584..470125	+	513	33239943	-	Pro0492	-	Zn-dependent carboxypeptidase
493	 37.93	0	470152..470739	+	195	33239944	ppa	Pro0493	-	putative inorganic pyrophosphatase
494	 41.14	+1	470762..471709	-	315	33239945	hemC	Pro0494	-	porphobilinogen deaminase
495	 38.57	0	471863..473179	-	438	33239946	rpoD	Pro0495	-	RNA polymerase sigma factor RpoD
496	 43.86	+1	473310..473480	+	56	33239947	-	Pro0496	-	hypothetical protein
497	 41.92	+1	473544..475802	+	752	33239948	priA	Pro0497	-	primosomal protein N'
498	 34.15	0	475827..476927	-	366	33239949	-	Pro0498	-	hypothetical protein
499	 40.87	0	476931..477845	-	304	33239950	argB	Pro0499	-	acetylglutamate kinase
500	 37.32	0	477849..478400	-	183	33239951	-	Pro0500	-	hypothetical protein
501	 39.78	0	478452..478637	+	61	33239952	-	Pro0501	-	hypothetical protein
502	 41.83	+1	478656..479114	-	152	33239953	ssb	Pro0502	-	single-stranded DNA-binding protein
503	 40.75	0	479143..479937	+	264	33239954	cobK	Pro0503	-	precorrin-6x reductase
504	 28.79	-2	479985..480314	+	109	33239955	cutA	Pro0504	-	hypothetical protein
505	 35.53	0	480311..481312	-	333	33239956	rbsK	Pro0505	-	ribokinase family sugar kinase
506	 40.64	0	481323..482636	-	437	33239957	purA	Pro0506	-	adenylosuccinate synthetase
507	 37.24	0	482726..483160	-	144	33239958	psb27	Pro0507	-	putative photosystem II reaction center Psb27 protein
508	 37.20	0	483185..484996	-	603	33239959	proS	Pro0508	-	prolyl-tRNA synthetase
509	 35.21	0	485140..485565	+	141	33239960	-	Pro0509	-	putative helix-turn-helix domain of resolvase
510	 39.92	0	485907..486437	+	176	33239961	ppa	Pro0510	-	inorganic pyrophosphatase
511	 29.54	-1	486486..486854	+	122	33239962	arsC	Pro0511	-	arsenate reductase related protein
512	 31.06	-1	486820..488313	-	497	33239963	-	Pro0512	-	hypothetical protein
513	 37.37	0	488450..489118	+	222	33239964	lepB	Pro0513	-	Signal peptidase I
514	 38.65	0	489111..490370	-	419	33239965	pyrC	Pro0514	-	dihydroorotase
515	 38.45	0	490376..491704	-	442	33239966	gpmB	Pro0515	-	putative alpha-ribazole-5'-P phosphatase
516	 38.04	0	491811..493169	+	452	33239967	-	Pro0516	-	metal-dependent membrane protease
517	 36.11	0	493254..493721	+	155	33239968	-	Pro0517	-	hypothetical protein
518	 39.10	0	493727..495529	+	600	33239969	ftsI	Pro0518	-	putative peptidoglycan synthetase (pbp transpeptidase domain)
519	 35.02	0	495609..496616	+	335	33239970	tal	Pro0519	-	transaldolase B
520	 38.30	0	496685..497812	-	375	33239971	fixC	Pro0520	-	NAD binding site
521	 34.79	0	497809..498357	-	182	33239972	frr	Pro0521	-	ribosome recycling factor
522	 39.64	0	498408..499121	-	237	33239973	pyrH	Pro0522	-	uridylate kinase
523	 36.22	0	499346..500038	-	230	33239974	ctuR	Pro0523	-	ATP:corrinoid adenosyltransferase
524	 35.23	0	500108..501268	-	386	33239975	-	Pro0524	-	XisA-like site specific recombinase
525	 37.41	0	501339..502514	+	391	33239976	hemH	Pro0525	-	ferrochelatase
526	 39.49	0	502652..504406	+	584	33239977	ilvB	Pro0526	-	acetolactate synthase 3 catalytic subunit
527	 32.79	-1	504447..504812	+	121	33239978	-	Pro0527	-	thermonuclease-like protein
528	 29.78	-1	504836..505624	-	262	33239979	-	Pro0528	-	hypothetical protein
529	 39.26	0	505639..506532	-	297	33239980	-	Pro0529	-	hypothetical protein
530	 40.99	0	506532..507785	-	417	33239981	rpsA	Pro0530	-	ribosomal protein S1
531	 40.05	0	507847..508680	+	277	33239982	-	Pro0531	-	creatininase
532	 36.41	0	508768..509481	+	237	33239983	-	Pro0532	-	hypothetical protein
533	 41.19	+1	509626..510669	+	347	33239984	-	Pro0533	-	dehydrogenase
534	 42.02	+1	510701..511690	+	329	33239985	accA	Pro0534	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
535	 40.82	0	511717..512424	+	235	33239986	fabG	Pro0535	-	short chain dehydrogenase
536	 33.96	0	512433..512591	+	52	33239987	-	Pro0536	-	hypothetical protein
537	 36.61	0	512610..513188	+	192	33239988	folE	Pro0537	-	GTP cyclohydrolase I
538	 36.21	0	513192..513851	-	219	33239989	trpF	Pro0538	-	phosphoribosylanthranilate isomerase
539	 36.49	0	513931..515196	+	421	33239990	spoIVFB	Pro0539	-	S2P family protease
540	 37.49	0	515103..515945	-	280	33239991	lplA	Pro0540	-	lipoate-protein ligase A
541	 40.00	0	516085..516189	+	34	33239992	psaM	Pro0541	-	photosystem I reaction center subunit XII
542	 41.01	+1	516255..516671	+	138	33239993	-	Pro0542	-	hypothetical protein
543	 40.39	0	516744..517763	+	339	33239994	por	Pro0543	-	protochlorophyllide oxidoreductase
544	 40.18	0	517788..518678	-	296	33239995	chlL	Pro0544	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
545	 40.55	0	518864..520456	-	530	33239996	chlB	Pro0545	-	light-independent protochlorophyllide reductase subunit B
546	 40.57	0	520461..521717	-	418	33239997	chlN	Pro0546	-	light-independent protochlorophyllide reductase subunit N
547	 42.74	+1	521869..522240	-	123	33239998	-	Pro0547	-	hypothetical protein
548	 44.70	+1	522339..523112	+	257	33239999	-	Pro0548	-	hypothetical protein
549	 40.51	0	523130..523714	-	194	33240000	-	Pro0549	-	HAM1 family protein
550	 51.28	+2	524074..524385	+	103	33240001	ccmK/csoS1	Pro0550	-	carboxysome shell protein CsoS1
551	 45.36	+2	524454..525866	+	470	33240002	rbcL	Pro0551	-	ribulose bisophosphate carboxylase
552	 45.32	+2	525970..526311	+	113	33240003	rbcS	Pro0552	-	ribulose bisphosphate carboxylase, small chain
553	 43.42	+1	526414..528792	+	792	33240004	csoS2	Pro0553	-	carboxysome shell protein CsoS2
554	 39.01	0	528800..530332	+	510	33240005	csoS3	Pro0554	-	carboxysome shell protein CsoS3
555	 43.12	+1	530334..530609	+	91	33240006	-	Pro0555	-	putative carboxysome peptide A
556	 43.25	+1	530609..530860	+	83	33240007	-	Pro0556	-	putative carboxysome peptide B
557	 42.94	+1	530906..531415	+	169	33240008	ccmK/csoS1	Pro0557	-	carboxysome shell peptide, CsoS1
558	 35.98	0	531488..531751	+	87	33240009	-	Pro0558	-	pterin-4 alpha-carbinolamine dehydratase-like protein
559	 46.67	+2	531759..531983	-	74	33240010	-	Pro0559	-	hypothetical protein
560	 41.10	+1	532072..532470	-	132	33240011	tdcF	Pro0560	-	putative translation initiation inhibitor
561	 35.96	0	532524..533285	-	253	33240012	gloB	Pro0561	-	metallo-beta-lactamase superfamily hydrolase
562	 41.51	+1	533335..533982	+	215	33240013	hisG	Pro0562	-	ATP phosphoribosyltransferase catalytic subunit
563	 35.12	0	533987..535780	+	597	33240014	mdlB	Pro0563	-	multidrug ABC transporter
37.01	MEAN

3.99	STD DEV
