IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

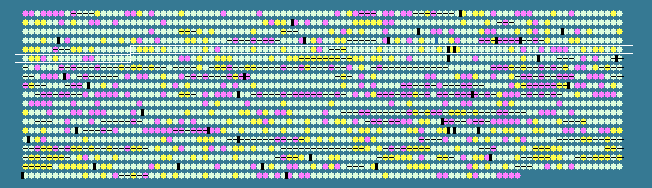

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
419	 38.42	0	400642..402450	+	602	33239871	lepA	Pro0419	-	GTP-binding protein LepA
420	 40.57	0	402761..403630	+	289	33239872	dppC	Pro0420	-	ABC-type peptide transporter permease component
421	 41.59	+1	403671..404360	-	229	33239873	spoU	Pro0421	-	tRNA/rRNA methyltransferase (SpoU)
422	 41.38	+1	404610..405926	+	438	33239874	sun	Pro0422	-	tRNA and rRNA cytosine-C5-methylase
423	 38.39	0	405968..407785	-	605	33239875	mrcB	Pro0423	-	membrane carboxypeptidase (penicillin-binding protein)
424	 41.22	+1	407785..408735	-	316	33239876	chlG	Pro0424	-	bacteriochlorophyll/chlorophyll a synthase
425	 37.18	0	408747..408980	-	77	33239877	-	Pro0425	-	hypothetical protein
426	 39.92	0	409032..409805	+	257	33239878	hisF	Pro0426	-	imidazoleglycerol-phosphate synthase
427	 37.75	0	409919..410620	+	233	33239879	ubiE/menG	Pro0427	-	methylase
428	 35.98	0	410622..411149	-	175	33239880	-	Pro0428	-	hypothetical protein
429	 38.85	0	411284..412045	+	253	33239881	cirA	Pro0429	-	putative biotin--acetyl-CoA-carboxylase ligase
430	 40.09	0	412061..412741	-	226	33239882	salX	Pro0430	-	ABC transporter ATPase
431	 41.46	+1	412751..414325	-	524	33239883	ndhB	Pro0431	-	NAD(P)H-quinone oxidoreductase subunit 2
432	 39.33	0	414514..417132	+	872	33239884	topA	Pro0432	-	DNA topoisomerase I
433	 32.44	-1	417167..417613	+	148	33239885	-	Pro0433	-	hypothetical protein
434	 40.32	0	417619..418305	+	228	33239886	-	Pro0434	-	hypothetical protein
435	 39.28	0	418302..419495	+	397	33239887	cobT	Pro0435	-	hypothetical protein
436	 38.49	0	419524..420531	+	335	33239888	-	Pro0436	-	periplasmic binding protein
437	 37.82	0	420520..421656	-	378	33239889	-	Pro0437	-	aldo/keto reductase family oxidoreductase
438	 36.47	0	421781..422449	+	222	33239890	ribC	Pro0438	-	riboflavin synthase subunit alpha
439	 43.12	+1	422496..422873	-	125	33239891	-	Pro0439	-	transciptional regulator
440	 40.30	0	422970..423572	-	200	33239892	cyoC	Pro0440	-	cytochrome c oxidase, subunit III
441	 40.45	0	423572..425230	-	552	33239893	cyoB	Pro0441	-	cytochrome c oxidase, subunit I
442	 39.33	0	425227..426060	-	277	33239894	cyoA	Pro0442	-	putative cytochrome c oxidase, subunit 2
443	 38.13	0	426296..427234	+	312	33239895	ctaA	Pro0443	-	hypothetical protein
444	 44.01	+1	427227..428228	+	333	33239896	cyoE	Pro0444	-	putative protoheme IX farnesyltransferase
445	 38.17	0	428321..429334	+	337	33239897	ccmA	Pro0445	-	multidrug ABC transporter
446	 36.15	0	429394..430245	+	283	33239898	-	Pro0446	-	multidrug ABC transporter
447	 37.48	0	430263..430769	+	168	33239899	-	Pro0447	-	hypothetical protein
448	 40.31	0	430833..432524	-	563	33239900	groEL	Pro0448	-	chaperonin GroEL
449	 41.95	+1	432666..432839	+	57	33239901	-	Pro0449	-	hypothetical protein
450	 32.84	-1	433289..433489	+	66	33239902	-	Pro0450	-	hypothetical protein
451	 34.81	0	433920..434324	-	134	33239903	-	Pro0451	-	hypothetical protein
452	 40.24	0	434454..435206	-	250	33239904	fabG	Pro0452	-	short-chain dehydrogenase/reductase family protein
453	 40.09	0	435322..436002	+	226	33239905	ispD	Pro0453	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
454	 42.08	+1	435983..436885	-	300	33239906	ldcA	Pro0454	-	hypothetical protein
455	 37.82	0	436888..437778	-	296	33239907	ubiA	Pro0455	-	prenyltransferase
456	 38.52	0	437834..439510	+	558	33239908	gppA	Pro0456	-	putative exopolyphosphatase
457	 36.65	0	439715..440467	-	250	33239909	cobM	Pro0457	-	precorrin-4 methylase
458	 34.98	0	440464..441375	-	303	33239910	lgt	Pro0458	-	prolipoprotein diacylglyceryl transferase
459	 36.87	0	441398..442330	-	310	33239911	petA	Pro0459	-	apocytochrome f
460	 43.76	+1	442387..442923	-	178	33239912	petC	Pro0460	-	cytochrome b6-f complex iron-sulfur subunit
461	 37.76	0	443074..443367	+	97	110645912	-	Pro0461	-	hypothetical protein
462	 36.79	0	443330..444082	-	250	33239913	tatC	Pro0462	-	protein secretion component, Tat family
463	 38.94	0	444251..444553	-	100	33239914	-	Pro0463	-	hypothetical protein
464	 33.97	0	444591..446306	-	571	33239915	-	Pro0464	-	RNA-binding protein
465	 36.04	0	446371..446925	+	184	33239916	gmk	Pro0465	-	guanylate kinase
466	 34.07	0	446939..447073	-	44	33239917	psaJ	Pro0466	-	photosystem I reaction center subunit IX
467	 43.30	+1	447133..447684	-	183	33239918	psaF	Pro0467	-	photosystem I PsaF protein (subunit III)
468	 39.87	0	447763..448833	+	356	33239919	QRI7	Pro0468	-	metal-dependent protease with chaperone activity
469	 33.88	0	448872..449054	+	60	33239920	hli9	Pro0469	-	high light inducible protein hli9
470	 42.52	+1	449249..450445	+	398	33239921	nhaP	Pro0470	-	putative Na+/H+ antiporter, CPA1 family
471	 36.69	0	450465..451895	-	476	33239922	gltX	Pro0471	-	glutamyl-tRNA synthetase
472	 45.50	+2	452157..452345	-	62	33239923	-	Pro0472	-	hypothetical protein
473	 43.89	+1	452517..452999	-	160	33239924	rplS	Pro0473	-	50S ribosomal protein L19
474	 38.25	0	453066..453248	+	60	33239925	-	Pro0474	-	hypothetical protein
475	 38.11	0	453442..454278	+	278	33239926	map	Pro0475	-	methionine aminopeptidase
476	 33.73	0	454301..455062	-	253	33239927	fabG	Pro0476	-	short chain dehydrogenase
477	 39.59	0	455240..456310	+	356	33239928	pta	Pro0477	-	phosphotransacetylase domain-containing protein
478	 39.69	0	456362..456880	+	172	33239929	-	Pro0478	-	hypothetical protein
479	 35.94	0	456999..457496	+	165	33239930	-	Pro0479	-	nucleotide-binding protein
480	 35.21	0	457554..457766	+	70	33239931	-	Pro0480	-	hypothetical protein
481	 38.52	0	457853..458662	+	269	33239932	hflC	Pro0481	-	Band 7 protein
482	 44.32	+1	458766..460067	-	433	33239933	hemL	Pro0482	-	glutamate-1-semialdehyde aminotransferase
483	 37.18	0	460386..461216	-	276	33239934	xthA	Pro0483	-	exonuclease III
484	 30.58	-1	461279..461605	+	108	33239935	-	Pro0484	-	hypothetical protein
485	 36.70	0	461662..462285	+	207	33239936	-	Pro0485	-	hypothetical protein
486	 38.06	0	462410..463636	+	408	33239937	-	Pro0486	-	hypothetical protein
487	 32.52	-1	463633..464613	+	326	33239938	-	Pro0487	-	hypothetical protein
488	 37.90	0	464674..466206	-	510	33239939	thiP	Pro0488	-	putative iron ABC transporter
489	 33.52	0	466199..467275	-	358	33239940	-	Pro0489	-	G3E family GTPase
490	 32.65	-1	467312..467602	-	96	33239941	-	Pro0490	-	pterin-4a-carbinolamine dehydratase
491	 32.44	-1	467660..468220	-	186	33239942	-	Pro0491	-	hypothetical protein
492	 40.21	0	468584..470125	+	513	33239943	-	Pro0492	-	Zn-dependent carboxypeptidase
493	 37.93	0	470152..470739	+	195	33239944	ppa	Pro0493	-	putative inorganic pyrophosphatase
494	 41.14	+1	470762..471709	-	315	33239945	hemC	Pro0494	-	porphobilinogen deaminase
495	 38.57	0	471863..473179	-	438	33239946	rpoD	Pro0495	-	RNA polymerase sigma factor RpoD
496	 43.86	+1	473310..473480	+	56	33239947	-	Pro0496	-	hypothetical protein
497	 41.92	+1	473544..475802	+	752	33239948	priA	Pro0497	-	primosomal protein N'
498	 34.15	0	475827..476927	-	366	33239949	-	Pro0498	-	hypothetical protein
499	 40.87	0	476931..477845	-	304	33239950	argB	Pro0499	-	acetylglutamate kinase
500	 37.32	0	477849..478400	-	183	33239951	-	Pro0500	-	hypothetical protein
501	 39.78	0	478452..478637	+	61	33239952	-	Pro0501	-	hypothetical protein
502	 41.83	+1	478656..479114	-	152	33239953	ssb	Pro0502	-	single-stranded DNA-binding protein
503	 40.75	0	479143..479937	+	264	33239954	cobK	Pro0503	-	precorrin-6x reductase
504	 28.79	-2	479985..480314	+	109	33239955	cutA	Pro0504	-	hypothetical protein
505	 35.53	0	480311..481312	-	333	33239956	rbsK	Pro0505	-	ribokinase family sugar kinase
506	 40.64	0	481323..482636	-	437	33239957	purA	Pro0506	-	adenylosuccinate synthetase
507	 37.24	0	482726..483160	-	144	33239958	psb27	Pro0507	-	putative photosystem II reaction center Psb27 protein
508	 37.20	0	483185..484996	-	603	33239959	proS	Pro0508	-	prolyl-tRNA synthetase
509	 35.21	0	485140..485565	+	141	33239960	-	Pro0509	-	putative helix-turn-helix domain of resolvase
510	 39.92	0	485907..486437	+	176	33239961	ppa	Pro0510	-	inorganic pyrophosphatase
511	 29.54	-1	486486..486854	+	122	33239962	arsC	Pro0511	-	arsenate reductase related protein
512	 31.06	-1	486820..488313	-	497	33239963	-	Pro0512	-	hypothetical protein
513	 37.37	0	488450..489118	+	222	33239964	lepB	Pro0513	-	Signal peptidase I
514	 38.65	0	489111..490370	-	419	33239965	pyrC	Pro0514	-	dihydroorotase
515	 38.45	0	490376..491704	-	442	33239966	gpmB	Pro0515	-	putative alpha-ribazole-5'-P phosphatase
516	 38.04	0	491811..493169	+	452	33239967	-	Pro0516	-	metal-dependent membrane protease
517	 36.11	0	493254..493721	+	155	33239968	-	Pro0517	-	hypothetical protein
518	 39.10	0	493727..495529	+	600	33239969	ftsI	Pro0518	-	putative peptidoglycan synthetase (pbp transpeptidase domain)
37.01	MEAN

3.99	STD DEV
