IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

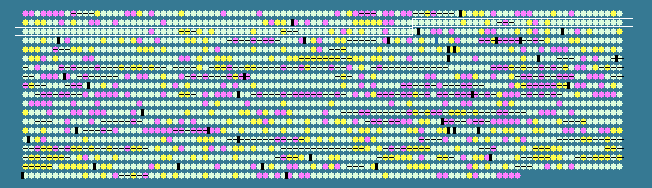

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
166	 37.50	0	165530..166441	-	303	33239618	crtB	Pro0166	-	squalene and phytoene synthase
167	 35.89	0	166480..167889	-	469	33239619	pds	Pro0167	-	phytoene dehydrogenase, phytoene desaturase
168	 37.07	0	167991..168338	+	115	33239620	-	Pro0168	-	NADH dehydrogenase I subunit M
169	 39.56	0	168335..168976	+	213	33239621	-	Pro0169	-	hypothetical protein
170	 39.31	0	168990..169943	-	317	33239622	rbcR	Pro0170	-	putative Rubisco transcriptional regulator
171	 37.80	0	170042..170779	+	245	33239623	-	Pro0171	-	hypothetical protein
172	 39.47	0	170814..172817	+	667	33239624	ndhF	Pro0172	-	NAD(P)H-quinone oxidoreductase subunit F
173	 37.99	0	172918..174591	+	557	33239625	ndhD	Pro0173	-	NAD(P)H-quinone oxidoreductase subunit 4
174	 41.13	+1	174835..175719	+	294	33239626	-	Pro0174	-	hypothetical protein
175	 38.46	0	175769..176938	+	389	33239627	GCD1	Pro0175	-	putative sugar-phosphate nucleotidyl transferase
176	 39.04	0	176919..177812	-	297	33239628	metF	Pro0176	-	methylenetetrahydrofolate reductase
177	 39.36	0	177893..178174	+	93	33239629	csgD	Pro0177	-	transcriptional regulator
178	 40.80	0	178128..178328	-	66	33239630	-	Pro0178	-	hypothetical protein
179	 35.53	0	178421..178921	-	166	33239631	-	Pro0179	-	hypothetical protein
180	 36.58	0	178921..179844	-	307	33239632	ppnK	Pro0180	-	inorganic polyphosphate/ATP-NAD kinase
181	 33.33	0	179861..180187	-	108	33239633	ndhE	Pro0181	-	NADH dehydrogenase subunit K
182	 36.65	0	180220..180822	-	200	33239634	ndhG	Pro0182	-	NADH dehydrogenase subunit J
183	 34.85	0	180819..181478	-	219	33239635	ndhI	Pro0183	-	NADH dehydrogenase subunit I
184	 36.54	0	181602..182756	-	384	33239636	ndhA	Pro0184	-	NADH dehydrogenase subunit H
185	 42.41	+1	182790..183968	-	392	33239637	gltA	Pro0185	-	methylcitrate synthase
186	 28.59	-2	184043..185644	-	533	33239638	-	Pro0186	-	hypothetical protein
187	 38.42	0	185719..186072	+	117	33239639	pspE	Pro0187	-	rhodanese-related sulfurtransferase
188	 43.25	+1	186094..187344	-	416	33239640	trpB	Pro0188	-	tryptophan synthase subunit beta
189	 38.89	0	187391..187714	+	107	33239641	SUI1	Pro0189	-	translation initiation factor SUI1
190	 36.14	0	187783..188388	+	201	33239642	cysC	Pro0190	-	adenylylsulfate kinase
191	 39.02	0	188395..188886	-	163	33239643	purE	Pro0191	-	phosphoribosylcarboxyaminoimidazole (NCAIR) mutase
192	 37.39	0	189010..190167	+	385	33239644	nagA	Pro0192	-	N-acetylglucosamine-6-phosphate deacetylase
193	 35.99	0	190196..190909	+	237	33239645	chlM	Pro0193	-	Mg-protoporphyrin IX methyl transferase
194	 38.55	0	190935..191663	-	242	33239646	-	Pro0194	-	two-component response regulator
195	 35.76	0	191750..192901	+	383	33239647	nifS	Pro0195	-	cysteine desulfurase
196	 36.71	0	192903..193820	-	305	33239648	-	Pro0196	-	S-adenosylmethionine-dependent methyltransferase
197	 39.58	0	193865..195049	+	394	33239649	ndhH	Pro0197	-	NAD(P)H-quinone oxidoreductase subunit H
198	 37.82	0	195055..195522	+	155	33239650	fcbC	Pro0198	-	thioesterase
199	 37.90	0	195496..196743	-	415	33239651	menE	Pro0199	-	putative O-succinylbenzoic acid--CoA ligase (OSB-CoA synthetase)
200	 38.58	0	196740..197711	-	323	33239652	menC	Pro0200	-	O-succinylbenzoate-CoA synthase
201	 40.06	0	197720..198685	-	321	33239653	menA	Pro0201	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
202	 40.08	0	198765..200186	+	473	33239654	menF	Pro0202	-	isochorismate synthase
203	 40.02	0	200150..201076	-	308	33239655	rimK	Pro0203	-	glutathione synthetase
204	 35.98	0	201082..201345	-	87	33239656	grxC	Pro0204	-	glutaredoxin
205	 39.31	0	201482..202552	+	356	33239657	prfB	Pro0205	-	peptide chain release factor 2
206	 35.42	0	202558..202749	+	63	33239658	-	Pro0206	-	hypothetical protein
207	 34.69	0	202749..203336	+	195	33239659	-	Pro0207	-	metal-dependent hydrolase
208	 35.71	0	203336..203797	+	153	33239660	dgkA	Pro0208	-	diacylglycerol kinase
209	 40.46	0	203810..204412	+	200	33239661	pabA	Pro0209	-	anthranilate/para-aminobenzoate synthase component II
210	 38.08	0	204427..205164	+	245	33239662	-	Pro0210	-	hypothetical protein
211	 36.42	0	205148..206281	-	377	33239663	hisC	Pro0211	-	histidinol-phosphate aminotransferase
212	 37.09	0	206281..208092	-	603	33239664	argS	Pro0212	-	arginyl-tRNA synthetase
213	 39.35	0	208099..208962	-	287	33239665	nadC	Pro0213	-	nicotinate-nucleotide pyrophosphorylase:quinolinate phosphoriobsyl transferase
214	 37.28	0	209078..210445	-	455	33239666	trmE	Pro0214	-	tRNA modification GTPase TrmE
215	 35.73	0	210522..210980	+	152	33239667	-	Pro0215	-	hypothetical protein
216	 37.66	0	211027..212529	-	500	33239668	-	Pro0216	-	hypothetical protein
217	 39.43	0	212585..214915	-	776	33239669	spoT	Pro0217	-	guanosine-3',5'-bis(diphosphate) 3'-diphosphatase, (ppGpp)ase
218	 38.63	0	214959..216581	+	540	33239670	-	Pro0218	-	ATPase components of various ABC-type transport systems
219	 39.71	0	216593..217549	-	318	33239671	rluA	Pro0219	-	putative pseudouridylate synthase specific to ribosomal large subunit
220	 38.43	0	217549..218412	-	287	33239672	rbgA	Pro0220	-	ribosomal biogenesis GTPase
221	 39.78	0	218921..220129	+	402	33239673	pgk	Pro0221	-	phosphoglycerate kinase
222	 32.81	-1	220171..220941	-	256	33239674	-	Pro0222	-	hypothetical protein
223	 38.27	0	220991..222064	+	357	33239675	murG	Pro0223	-	UDP-N-acetylglucosamine:LPS N-acetylglucosamine transferase
224	 37.83	0	222039..223172	-	377	33239676	hisC	Pro0224	-	histidinol-phosphate/aromatic aminotransferase related enzyme
225	 38.93	0	223163..224341	-	392	33239677	pyrD	Pro0225	-	dihydroorotate dehydrogenase 2
226	 38.55	0	224331..224828	-	165	33239678	rnhA	Pro0226	-	ribonuclease HI
227	 45.04	+2	224905..225297	-	130	33239679	rplL	Pro0227	-	50S ribosomal protein L7/L12
228	 42.05	+1	225357..225884	-	175	33239680	rplJ	Pro0228	-	50S ribosomal protein L10
229	 40.28	0	226123..226827	-	234	33239681	rplA	Pro0229	-	50S ribosomal protein L1
230	 43.43	+1	226918..227343	-	141	33239682	rplK	Pro0230	-	50S ribosomal protein L11
231	 40.30	0	227469..228128	-	219	33239683	nusG	Pro0231	-	transcription antitermination protein NusG
232	 43.21	+1	228175..228417	-	80	33239684	secE	Pro0232	-	preprotein translocase subunit SecE
233	 34.92	0	228501..231275	-	924	33239685	clpA	Pro0233	-	ATPase with chaperone activity, ATP-binding subunit
234	 38.06	0	231281..231682	-	133	33239686	gloA	Pro0234	-	lactoylglutathione lyase family protein
235	 39.41	0	231829..233127	+	432	33239687	eno	Pro0235	-	enolase
236	 36.13	0	233165..234844	-	559	33239688	aarF	Pro0236	-	putative kinase
237	 36.25	0	234841..235149	-	102	33239689	-	Pro0237	-	hypothetical protein
238	 36.86	0	235194..235760	-	188	33239690	-	Pro0238	-	hypothetical protein
239	 41.27	+1	236020..236976	+	318	33239691	trxB	Pro0239	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
240	 37.23	0	237032..237313	-	93	33239692	-	Pro0240	-	hypothetical protein
241	 37.25	0	237318..238313	-	331	33239693	-	Pro0241	-	permease
242	 40.10	0	238336..239991	-	551	33239694	SUL1	Pro0242	-	putative sulfate transporter
243	 38.61	0	240195..241199	+	334	33239695	hemB	Pro0243	-	delta-aminolevulinic acid dehydratase
244	 42.47	+1	241250..241654	+	134	33239696	-	Pro0244	-	lactoylglutathione lyase/catechol 2,3-dioxygenase related enzyme
245	 39.50	0	241674..244091	+	805	33239697	-	Pro0245	-	mismatch repair ATPase
246	 38.69	0	244212..245201	+	329	33239698	obgE	Pro0246	-	GTPase ObgE
247	 36.07	0	245284..245466	+	60	33239699	-	Pro0247	-	hypothetical protein
248	 40.18	0	245525..245743	-	72	33239700	-	Pro0248	-	hypothetical protein
249	 35.67	0	245950..246591	-	213	33239701	-	Pro0249	-	hypothetical protein
250	 37.73	0	246621..247598	-	325	33239702	ECM4	Pro0250	-	glutathione S-transferase
251	 36.90	0	247653..248576	+	307	33239703	aspA	Pro0251	-	aspartoacylase
252	 44.51	+1	248725..249807	+	360	33239704	psbA	Pro0252	-	photosystem II reaction center D1
253	 40.40	0	249977..251065	+	362	33239705	aroC	Pro0253	-	chorismate synthase
254	 32.32	-1	251069..251758	-	229	33239706	eda	Pro0254	-	2-keto-3-deoxy-6-phosphogluconate aldolase
255	 41.06	+1	251742..253541	-	599	33239707	ftsH	Pro0255	-	cell division protein FtsH2
256	 39.64	0	253642..254814	-	390	33239708	MET3	Pro0256	-	ATP-sulfurylase
257	 41.79	+1	254963..255754	-	263	33239709	psbO	Pro0257	-	photosystem II manganese-stabilizing protein
258	 38.93	0	255973..257259	-	428	33239710	dfp	Pro0258	-	phosphopantothenoylcysteine synthetase/decarboxylase
259	 37.33	0	257249..257473	-	74	33239711	-	Pro0259	-	hypothetical protein
260	 39.80	0	257725..257925	+	66	33239712	-	Pro0260	-	hypothetical protein
261	 29.76	-1	258008..258343	+	111	33239713	-	Pro0261	-	hypothetical protein
262	 38.54	0	258363..259379	-	338	33239714	pyrB	Pro0262	-	aspartate carbamoyltransferase catalytic subunit
263	 37.10	0	259376..260038	-	220	33239715	mpg	Pro0263	-	3-methyladenine DNA glycosylase
264	 39.83	0	260097..260897	+	266	33239716	-	Pro0264	-	amidase
265	 33.67	0	260894..261187	+	97	33239717	gatC	Pro0265	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
37.01	MEAN

3.99	STD DEV
