IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

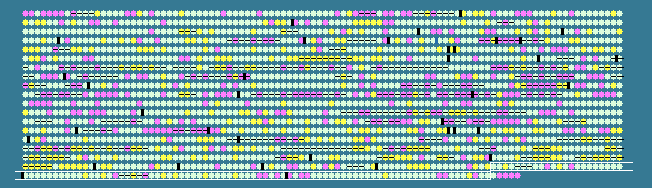

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1779	 36.31	0	1634977..1635480	-	167	33241230	-	Pro1781	-	hypothetical protein
1780	 36.41	0	1635477..1636223	-	248	33241231	mreC	Pro1782	-	cell shape-determining protein
1781	 42.45	+1	1636228..1637280	-	350	33241232	mreB	Pro1783	-	Actin-like ATPase
1782	 34.87	0	1637412..1637801	+	129	33241233	ssb	Pro1784	-	single-strand DNA-binding protein
1783	 35.46	0	1637798..1638454	-	218	33241234	dedA	Pro1785	-	hypothetical protein
1784	 37.04	0	1638488..1639918	-	476	33241235	SAM1	Pro1786	-	S-adenosyl-L-homocysteine hydrolase
1785	 36.09	0	1639954..1640460	+	168	33241236	-	Pro1787	-	P-loop hydrolase
1786	 40.22	0	1640409..1641425	-	338	33241237	rbsK	Pro1788	-	ribokinase family sugar kinase
1787	 35.41	0	1641463..1642665	-	400	33241238	mutY	Pro1789	-	A/G-specific DNA glycosylase
1788	 33.00	-1	1642645..1643556	+	303	33241239	mhpC	Pro1790	-	putative alpha/beta hydrolase superfamily
1789	 37.99	0	1643541..1644527	-	328	33241240	rpoD	Pro1791	-	DNA-directed RNA polymerase sigma subunit (sigma70/sigma32)
1790	 41.10	+1	1644650..1646065	-	471	33241241	mgtE	Pro1792	-	Mg2+/Co2+ transporter
1791	 33.60	0	1646098..1646472	-	124	33241242	crcB	Pro1793	-	hypothetical protein
1792	 29.01	-2	1646465..1646857	-	130	33241243	crcB	Pro1794	-	hypothetical protein
1793	 36.06	0	1646850..1647179	-	109	33241244	-	Pro1795	-	hypothetical protein
1794	 36.87	0	1647189..1649165	-	658	33241245	gyrB	Pro1796	-	DNA gyrase subunit B
1795	 34.67	0	1649336..1650235	+	299	33241246	miaA	Pro1797	-	tRNA delta-2-isopentenylpyrophosphate transferase
1796	 38.94	0	1650298..1650903	+	201	33241247	infC	Pro1798	-	translation initiation factor IF-3
1797	 39.41	0	1651060..1652046	+	328	33241248	-	Pro1799	-	transcriptional regulator
1798	 38.55	0	1652066..1652812	+	248	33241249	cysE	Pro1800	-	Serine acetyltransferase
1799	 37.49	0	1652820..1655660	-	946	33241250	secA	Pro1801	-	preprotein translocase subunit SecA
1800	 37.23	0	1655799..1656260	+	153	33241251	wecD	Pro1802	-	putative acetyltransferase, GNAT family
1801	 36.69	0	1656447..1656923	-	158	33241252	ribH	Pro1803	-	riboflavin synthase subunit beta
1802	 37.37	0	1656981..1657178	-	65	33241253	-	Pro1804	-	putative photosystem II reaction center protein Z
1803	 35.12	0	1657339..1660083	+	914	33241254	mutS	Pro1805	-	DNA mismatch repair protein
1804	 38.91	0	1660088..1660750	-	220	33241255	cobH	Pro1806	-	precorrin isomerase
1805	 34.32	0	1660814..1661830	+	338	33241256	holA	Pro1807	-	DNA polymerase III subunit delta
1806	 39.42	0	1661867..1663624	+	585	33241257	lysC	Pro1808	-	aspartate kinase
1807	 34.32	0	1663657..1665690	-	677	33241258	uvrB	Pro1809	-	excinuclease ABC subunit B
1808	 39.46	0	1665781..1666563	-	260	33241259	-	Pro1810	-	hypothetical protein
1809	 36.50	0	1666648..1667658	+	336	33241260	mesJ	Pro1811	-	ATPase
1810	 40.33	0	1667692..1669635	-	647	33241261	-	Pro1812	-	metallo-beta-lactamase superfamily hydrolase
1811	 41.25	+1	1669718..1670626	-	302	33241262	dapA	Pro1813	-	dihydrodipicolinate synthase
1812	 35.85	0	1670623..1671654	-	343	33241263	asd	Pro1814	-	aspartate-semialdehyde dehydrogenase
1813	 34.76	0	1671820..1673223	+	467	33241264	tig	Pro1815	-	trigger factor
1814	 41.32	+1	1673273..1673923	+	216	33241265	clpP	Pro1816	-	protease subunit of ATP-dependent Clp protease
1815	 36.95	0	1674037..1675389	+	450	33241266	clpX	Pro1817	-	ATP-dependent protease ATP-binding subunit
1816	 33.51	0	1675533..1677212	+	559	33241267	dnaX	Pro1818	-	DNA polymerase III gamma/tau subunit
1817	 36.45	0	1677223..1678536	-	437	33241268	-	Pro1819	-	glycosyl transferase, family 2
1818	 37.30	0	1678583..1680121	-	512	33241269	spoIID	Pro1820	-	putative amidase enhancer
1819	 45.96	+2	1680231..1680428	+	65	33241270	rpmI	Pro1821	-	50S ribosomal protein L35
1820	 38.22	0	1680493..1680840	+	115	33241271	rplT	Pro1822	-	50S ribosomal protein L20
1821	 30.29	-1	1680948..1681505	+	185	33241272	-	Pro1823	-	TPR repeat-containing protein
1822	 38.60	0	1681521..1682336	+	271	33241273	thiG	Pro1824	-	thiazole synthase
1823	 33.94	0	1682409..1682573	+	54	33241274	hli14	Pro1825	-	HLIP family protein
1824	 40.52	0	1682637..1683833	+	398	33241275	wcaG	Pro1826	-	sulfolipid (UDP-sulfoquinovose) biosynthesis protein
1825	 39.91	0	1683843..1684997	+	384	33241276	rfaG	Pro1827	-	SqdX
1826	 41.25	+1	1685012..1685314	-	100	33241277	-	Pro1828	-	hypothetical protein
1827	 37.13	0	1685403..1688297	-	964	33241278	gcvP	Pro1829	-	glycine dehydrogenase
1828	 37.69	0	1688331..1688720	-	129	33241279	gcvH	Pro1830	-	glycine cleavage system H protein
1829	 35.65	0	1688756..1690048	-	430	33241280	-	Pro1831	-	cystathionine beta-lyase family aluminum resistance protein
1830	 37.20	0	1690045..1690794	-	249	33241281	-	Pro1832	-	hypothetical protein
1831	 42.34	+1	1690865..1691797	+	310	33241282	OLE1	Pro1833	-	Fatty acid desaturase, type 1
1832	 39.00	0	1691866..1692324	+	152	33241283	rplI	Pro1834	-	50S ribosomal protein L9
1833	 38.84	0	1692385..1693800	+	471	33241284	dnaB	Pro1835	-	DnaB replicative helicase
1834	 37.38	0	1693840..1695843	+	667	33241285	gidA	Pro1836	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1835	 40.04	0	1695924..1696430	+	168	33241286	ubiC	Pro1837	-	chorismate lyase
1836	 41.47	+1	1696436..1696951	-	171	33241287	-	Pro1838	-	hypothetical protein
1837	 39.89	0	1697056..1697604	-	182	33241288	-	Pro1839	-	metal-dependent protease
1838	 39.01	0	1697731..1698153	+	140	33241289	-	Pro1840	-	hypothetical protein
1839	 36.10	0	1698178..1700235	+	685	33241290	ligA	Pro1841	-	NAD-dependent DNA ligase LigA
1840	 26.42	-2	1700240..1700398	+	52	33241291	-	Pro1842	-	hypothetical protein
1841	 30.27	-1	1700395..1701015	-	206	33241292	-	Pro1843	-	hypothetical protein
1842	 39.44	0	1701033..1703834	-	933	33241293	valS	Pro1844	-	valyl-tRNA synthetase
1843	 33.33	0	1703899..1704357	-	152	33241294	-	Pro1845	-	hypothetical protein
1844	 38.10	0	1704422..1704673	+	83	33241295	-	Pro1846	-	hypothetical protein
1845	 31.53	-1	1705247..1706077	+	276	33241296	-	Pro1847	-	pyrophosphatase
1846	 33.80	0	1706106..1706969	+	287	33241297	speE	Pro1848	-	spermidine synthase
1847	 33.33	0	1706966..1707877	+	303	33241298	speB	Pro1849	-	arginase
1848	 32.90	-1	1707913..1708143	-	76	33241299	-	Pro1850	-	metal-binding cluster containing protein
1849	 37.97	0	1708285..1709406	+	373	33241300	gcvT	Pro1851	-	glycine cleavage system aminomethyltransferase T
1850	 39.49	0	1709479..1711296	+	605	33241301	aspS	Pro1852	-	aspartyl-tRNA synthetase
1851	 38.71	0	1711409..1713064	+	551	33241302	pyrG	Pro1853	-	CTP synthetase
1852	 37.32	0	1713061..1713738	+	225	33241303	nrdG	Pro1854	-	putative organic radical activating protein
1853	 37.43	0	1713805..1714488	+	227	33241304	-	Pro1855	-	PP-loop superfamily ATPase
1854	 36.03	0	1714491..1715825	+	444	33241305	trpE	Pro1856	-	putative p-aminobenzoate synthetase
1855	 35.48	0	1715822..1716661	+	279	33241306	-	Pro1857	-	4-amino-4-deoxychorismate lyase related type IV aminotransferase
1856	 38.80	0	1716658..1717443	-	261	33241307	cysG	Pro1858	-	uroporphyrin-III c-methyltransferase
1857	 37.59	0	1717442..1718497	+	351	33241308	trpD	Pro1859	-	hypothetical protein
1858	 35.77	0	1718532..1719023	-	163	33241309	wecD	Pro1860	-	acetyltransferase
1859	 37.86	0	1719055..1720314	+	419	33241310	proP	Pro1861	-	major facilitator superfamily permease
1860	 33.66	0	1720403..1722514	+	703	33241311	ppk	Pro1862	-	polyphosphate kinase
1861	 40.88	0	1722731..1723750	+	339	33241312	rpoD	Pro1863	-	DNA-directed RNA polymerase sigma subunit
1862	 34.25	0	1723759..1724412	+	217	33241313	SEC59	Pro1864	-	dolichol kinase
1863	 37.43	0	1724418..1725491	-	357	33241314	aroG	Pro1865	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1864	 37.42	0	1725643..1728234	+	863	33241315	acnB	Pro1866	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1865	 38.68	0	1728235..1729638	+	467	33241316	eriC	Pro1867	-	chloride channel protein EriC
1866	 36.68	0	1729704..1731257	+	517	33241317	-	Pro1868	-	SAM radical enzyme
1867	 38.04	0	1731226..1732521	-	431	33241318	rfaL	Pro1869	-	Lipid A core O-antigen ligase related enzyme
1868	 36.10	0	1732706..1733788	+	360	33241319	-	Pro1870	-	FAD dependent oxidoreductase
1869	 38.12	0	1733789..1735690	-	633	33241320	dnaK	Pro1871	-	molecular chaperone DnaK2, heat shock protein hsp70-2
1870	 31.78	-1	1735798..1736700	+	300	33241321	aroE	Pro1872	-	shikimate 5-dehydrogenase
1871	 27.67	-2	1736705..1737163	+	152	33241322	-	Pro1873	-	hypothetical protein
1872	 34.44	0	1737245..1737877	+	210	33241323	rpsF	Pro1874	-	ribosomal protein S6
1873	 37.30	0	1737894..1739102	-	402	33241324	argG	Pro1875	-	argininosuccinate synthase
1874	 35.38	0	1739121..1739315	-	64	33241325	-	Pro1876	-	hypothetical protein
1875	 43.65	+1	1739373..1739624	+	83	33241326	-	Pro1877	-	hypothetical protein
1876	 30.37	-1	1739674..1740786	+	370	33241327	rfe	Pro1878	-	UDP-N-acetylmuramyl pentapeptide phosphotransferase/UDP-N-acetylglucosamine-1-phosphate transferase
1877	 34.85	0	1740809..1741072	+	87	33241328	-	Pro1879	-	hypothetical protein
1878	 35.99	0	1741024..1742418	-	464	33241329	rfaG	Pro1880	-	glycosyltransferase
37.01	MEAN

3.99	STD DEV
