IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

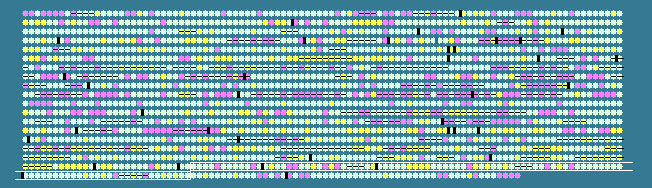

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1729	 35.17	0	1583809..1584954	-	381	33241180	-	Pro1731	-	hypothetical protein
1730	 38.87	0	1584958..1586475	-	505	33241181	trpE	Pro1732	-	anthranilate/para-aminobenzoate synthase component I
1731	 39.20	0	1586540..1586965	-	141	33241182	psaD	Pro1733	-	photosystem I protein PsaD
1732	 38.72	0	1587077..1588450	-	457	33241183	-	Pro1734	-	Signal transduction histidine kinase
1733	 32.71	-1	1588450..1589730	-	426	33241184	ftsW	Pro1735	-	cell division membrane protein
1734	 39.81	0	1589731..1590810	-	359	33241185	mrp	Pro1736	-	ATPase
1735	 39.83	0	1590897..1591928	+	343	33241186	hemF	Pro1737	-	coproporphyrinogen III oxidase
1736	 39.05	0	1591876..1592697	-	273	33241187	-	Pro1738	-	dehydrogenase
1737	 38.74	0	1592704..1593258	-	184	33241188	-	Pro1739	-	hypothetical protein
1738	 36.28	0	1593460..1594104	+	214	33241189	rnd	Pro1740	-	putative ribonuclease D
1739	 31.48	-1	1594101..1594370	-	89	33241190	-	Pro1741	-	hypothetical protein
1740	 39.59	0	1594423..1595700	-	425	33241191	-	Pro1742	-	Lipid A disaccharide synthetase related enzyme
1741	 35.76	0	1596595..1596759	-	54	33241192	-	Pro1743	-	Zn ribbon-like protein
1742	 42.19	+1	1596781..1597401	-	206	33241193	-	Pro1744	-	hypothetical protein
1743	 39.98	0	1597573..1598610	-	345	33241194	purM	Pro1745	-	phosphoribosylaminoimidazole synthetase
1744	 36.79	0	1598748..1600307	+	519	33241195	cmk	Pro1746	-	bifunctional pantoate ligase/cytidylate kinase
1745	 32.91	-1	1600300..1600770	-	156	33241196	wzb	Pro1747	-	protein-tyrosine-phosphatase
1746	 33.20	0	1600861..1601634	-	257	33241197	pebB	Pro1748	-	phycoerythrobilin:ferredoxin oxidoreductase
1747	 33.75	0	1601635..1602348	-	237	161407959	pebA	Pro1749	-	dihydrobiliverdin:ferredoxin oxidoreductase
1748	 34.17	0	1602445..1603158	-	237	33241199	ho1	Pro1750	-	Heme oxygenase
1749	 42.25	+1	1603248..1603673	-	141	33241200	-	Pro1751	-	hypothetical protein
1750	 36.63	0	1603833..1605257	+	474	33241201	icd	Pro1752	-	isocitrate dehydrogenase
1751	 32.38	-1	1605278..1606636	-	452	33241202	-	Pro1753	-	hypothetical protein
1752	 42.20	+1	1606671..1607843	-	390	33241203	lldD	Pro1754	-	L-lactate dehydrogenase (FMN-dependent) related enzyme
1753	 31.98	-1	1607961..1609661	-	566	33241204	dld	Pro1755	-	D-lactate dehydrogenase
1754	 34.73	0	1609784..1610641	-	285	33241205	galM	Pro1756	-	galactose mutarotase-like protein
1755	 39.29	0	1610658..1611563	-	301	33241206	mhpC	Pro1757	-	alpha/beta fold family hydrolase
1756	 40.03	0	1611686..1613059	-	457	33241207	kefB	Pro1758	-	Na+/H+ antiporter
1757	 37.38	0	1613224..1615746	+	840	33241208	glgP	Pro1759	-	phosphorylase
1758	 37.47	0	1615754..1616212	-	152	33241209	-	Pro1760	-	hypothetical protein
1759	 42.42	+1	1616283..1616579	-	98	33241210	-	Pro1761	-	hypothetical protein
1760	 36.80	0	1617217..1617966	+	249	33241211	rnc	Pro1762	-	dsRNA-specific ribonuclease/ribonuclease III
1761	 34.41	0	1617963..1618148	-	61	33241212	-	Pro1763	-	hypothetical protein
1762	 34.27	0	1618196..1618726	+	176	33241213	rimM	Pro1764	-	16S rRNA-processing protein
1763	 36.33	0	1618775..1620211	+	478	33241214	manC	Pro1765	-	mannose-1-phosphate guanylyltransferase
1764	 37.64	0	1620235..1622139	-	634	33241215	glmS	Pro1766	-	D-fructose-6-phosphate amidotransferase
1765	 46.75	+2	1622219..1622464	-	81	33241216	psaC	Pro1767	-	photosystem I subunit VII
1766	 44.44	+1	1622599..1622841	+	80	33241217	acpP	Pro1768	-	acyl carrier protein
1767	 43.03	+1	1622849..1624096	+	415	33241218	fabB	Pro1769	-	3-oxoacyl-[acyl-carrier-protein] synthase II
1768	 40.60	0	1624148..1626157	+	669	33241219	tktA	Pro1770	-	transketolase
1769	 39.09	0	1626184..1627590	-	468	33241220	thiC	Pro1771	-	thiamine biosynthesis protein ThiC
1770	 34.70	0	1627791..1628009	-	72	33241221	-	Pro1772	-	hypothetical protein
1771	 39.93	0	1628013..1629209	-	398	33241222	-	Pro1773	-	N-acyl-L-amino acid amidohydrolase
1772	 40.08	0	1629206..1629991	-	261	33241223	-	Pro1774	-	TPR repeat-containing protein
1773	 39.50	0	1629988..1631058	-	356	33241224	ruvB	Pro1775	-	Holliday junction DNA helicase B
1774	 34.34	0	1631109..1631606	+	165	33241225	smpB	Pro1776	-	SsrA-binding protein
1775	 33.33	0	1631651..1631881	+	76	33241226	-	Pro1777	-	hypothetical protein
1776	 49.24	+2	1632035..1632298	-	87	33241227	-	Pro1778	-	hypothetical protein
1777	 39.23	0	1632353..1633861	-	502	33241228	lysS	Pro1779	-	lysyl-tRNA synthetase
1778	 43.46	+1	1633934..1634743	-	269	33241229	-	Pro1780	-	two-component response regulator
1779	 36.31	0	1634977..1635480	-	167	33241230	-	Pro1781	-	hypothetical protein
1780	 36.41	0	1635477..1636223	-	248	33241231	mreC	Pro1782	-	cell shape-determining protein
1781	 42.45	+1	1636228..1637280	-	350	33241232	mreB	Pro1783	-	Actin-like ATPase
1782	 34.87	0	1637412..1637801	+	129	33241233	ssb	Pro1784	-	single-strand DNA-binding protein
1783	 35.46	0	1637798..1638454	-	218	33241234	dedA	Pro1785	-	hypothetical protein
1784	 37.04	0	1638488..1639918	-	476	33241235	SAM1	Pro1786	-	S-adenosyl-L-homocysteine hydrolase
1785	 36.09	0	1639954..1640460	+	168	33241236	-	Pro1787	-	P-loop hydrolase
1786	 40.22	0	1640409..1641425	-	338	33241237	rbsK	Pro1788	-	ribokinase family sugar kinase
1787	 35.41	0	1641463..1642665	-	400	33241238	mutY	Pro1789	-	A/G-specific DNA glycosylase
1788	 33.00	-1	1642645..1643556	+	303	33241239	mhpC	Pro1790	-	putative alpha/beta hydrolase superfamily
1789	 37.99	0	1643541..1644527	-	328	33241240	rpoD	Pro1791	-	DNA-directed RNA polymerase sigma subunit (sigma70/sigma32)
1790	 41.10	+1	1644650..1646065	-	471	33241241	mgtE	Pro1792	-	Mg2+/Co2+ transporter
1791	 33.60	0	1646098..1646472	-	124	33241242	crcB	Pro1793	-	hypothetical protein
1792	 29.01	-2	1646465..1646857	-	130	33241243	crcB	Pro1794	-	hypothetical protein
1793	 36.06	0	1646850..1647179	-	109	33241244	-	Pro1795	-	hypothetical protein
1794	 36.87	0	1647189..1649165	-	658	33241245	gyrB	Pro1796	-	DNA gyrase subunit B
1795	 34.67	0	1649336..1650235	+	299	33241246	miaA	Pro1797	-	tRNA delta-2-isopentenylpyrophosphate transferase
1796	 38.94	0	1650298..1650903	+	201	33241247	infC	Pro1798	-	translation initiation factor IF-3
1797	 39.41	0	1651060..1652046	+	328	33241248	-	Pro1799	-	transcriptional regulator
1798	 38.55	0	1652066..1652812	+	248	33241249	cysE	Pro1800	-	Serine acetyltransferase
1799	 37.49	0	1652820..1655660	-	946	33241250	secA	Pro1801	-	preprotein translocase subunit SecA
1800	 37.23	0	1655799..1656260	+	153	33241251	wecD	Pro1802	-	putative acetyltransferase, GNAT family
1801	 36.69	0	1656447..1656923	-	158	33241252	ribH	Pro1803	-	riboflavin synthase subunit beta
1802	 37.37	0	1656981..1657178	-	65	33241253	-	Pro1804	-	putative photosystem II reaction center protein Z
1803	 35.12	0	1657339..1660083	+	914	33241254	mutS	Pro1805	-	DNA mismatch repair protein
1804	 38.91	0	1660088..1660750	-	220	33241255	cobH	Pro1806	-	precorrin isomerase
1805	 34.32	0	1660814..1661830	+	338	33241256	holA	Pro1807	-	DNA polymerase III subunit delta
1806	 39.42	0	1661867..1663624	+	585	33241257	lysC	Pro1808	-	aspartate kinase
1807	 34.32	0	1663657..1665690	-	677	33241258	uvrB	Pro1809	-	excinuclease ABC subunit B
1808	 39.46	0	1665781..1666563	-	260	33241259	-	Pro1810	-	hypothetical protein
1809	 36.50	0	1666648..1667658	+	336	33241260	mesJ	Pro1811	-	ATPase
1810	 40.33	0	1667692..1669635	-	647	33241261	-	Pro1812	-	metallo-beta-lactamase superfamily hydrolase
1811	 41.25	+1	1669718..1670626	-	302	33241262	dapA	Pro1813	-	dihydrodipicolinate synthase
1812	 35.85	0	1670623..1671654	-	343	33241263	asd	Pro1814	-	aspartate-semialdehyde dehydrogenase
1813	 34.76	0	1671820..1673223	+	467	33241264	tig	Pro1815	-	trigger factor
1814	 41.32	+1	1673273..1673923	+	216	33241265	clpP	Pro1816	-	protease subunit of ATP-dependent Clp protease
1815	 36.95	0	1674037..1675389	+	450	33241266	clpX	Pro1817	-	ATP-dependent protease ATP-binding subunit
1816	 33.51	0	1675533..1677212	+	559	33241267	dnaX	Pro1818	-	DNA polymerase III gamma/tau subunit
1817	 36.45	0	1677223..1678536	-	437	33241268	-	Pro1819	-	glycosyl transferase, family 2
1818	 37.30	0	1678583..1680121	-	512	33241269	spoIID	Pro1820	-	putative amidase enhancer
1819	 45.96	+2	1680231..1680428	+	65	33241270	rpmI	Pro1821	-	50S ribosomal protein L35
1820	 38.22	0	1680493..1680840	+	115	33241271	rplT	Pro1822	-	50S ribosomal protein L20
1821	 30.29	-1	1680948..1681505	+	185	33241272	-	Pro1823	-	TPR repeat-containing protein
1822	 38.60	0	1681521..1682336	+	271	33241273	thiG	Pro1824	-	thiazole synthase
1823	 33.94	0	1682409..1682573	+	54	33241274	hli14	Pro1825	-	HLIP family protein
1824	 40.52	0	1682637..1683833	+	398	33241275	wcaG	Pro1826	-	sulfolipid (UDP-sulfoquinovose) biosynthesis protein
1825	 39.91	0	1683843..1684997	+	384	33241276	rfaG	Pro1827	-	SqdX
1826	 41.25	+1	1685012..1685314	-	100	33241277	-	Pro1828	-	hypothetical protein
1827	 37.13	0	1685403..1688297	-	964	33241278	gcvP	Pro1829	-	glycine dehydrogenase
1828	 37.69	0	1688331..1688720	-	129	33241279	gcvH	Pro1830	-	glycine cleavage system H protein
37.01	MEAN

3.99	STD DEV
