IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

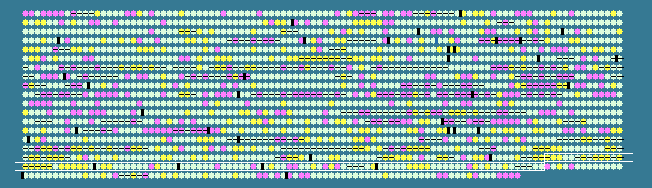

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1688	 47.07	+2	1553076..1553468	-	130	33241139	rpsK	Pro1690	-	30S ribosomal protein S11
1689	 45.90	+2	1553538..1553903	-	121	33241140	rpsM	Pro1691	-	30S ribosomal protein S13
1690	 46.15	+2	1554020..1554136	-	38	33241141	rpmJ	Pro1692	-	50S ribosomal protein L36
1691	 35.52	0	1554183..1554731	-	182	33241142	adk	Pro1693	-	adenylate kinase
1692	 38.11	0	1554763..1556082	-	439	33241143	secY	Pro1694	-	preprotein translocase subunit SecY
1693	 39.25	0	1556149..1556604	-	151	33241144	rplO	Pro1695	-	50S ribosomal protein L15
1694	 43.55	+1	1556611..1557246	-	211	33241145	rpsE	Pro1696	-	30S ribosomal protein S5
1695	 40.11	0	1557263..1557631	-	122	33241146	rplR	Pro1697	-	50S ribosomal protein L18
1696	 41.48	+1	1557666..1558205	-	179	33241147	rplF	Pro1698	-	50S ribosomal protein L6
1697	 42.54	+1	1558218..1558619	-	133	33241148	rpsH	Pro1699	-	30S ribosomal protein S8
1698	 40.56	0	1558624..1559163	-	179	33241149	rplE	Pro1700	-	50S ribosomal protein L5
1699	 36.13	0	1559248..1559604	-	118	33241150	rplX	Pro1701	-	50S ribosomal protein L24
1700	 40.98	0	1559605..1559970	-	121	33241151	rplN	Pro1702	-	50S ribosomal protein L14
1701	 41.57	+1	1559967..1560233	-	88	33241152	rpsQ	Pro1703	-	ribosomal protein S17
1702	 43.48	+1	1560254..1560460	-	68	33241153	rpmC	Pro1704	-	ribosomal protein L29
1703	 45.17	+2	1560464..1561012	-	182	33241154	rplP	Pro1705	-	50S ribosomal protein L16
1704	 42.62	+1	1561025..1561756	-	243	33241155	rpsC	Pro1706	-	30S ribosomal protein S3
1705	 42.67	+1	1561756..1562130	-	124	33241156	rplV	Pro1707	-	50S ribosomal protein L22
1706	 40.22	0	1562133..1562408	-	91	33241157	rpsS	Pro1708	-	30S ribosomal protein S19
1707	 46.30	+2	1562444..1563307	-	287	33241158	rplB	Pro1709	-	50S ribosomal protein L2
1708	 40.78	0	1563310..1563618	-	102	33241159	rplW	Pro1710	-	50S ribosomal protein L23
1709	 41.04	+1	1563611..1564246	-	211	33241160	rplD	Pro1711	-	50S ribosomal protein L4
1710	 41.67	+1	1564246..1564905	-	219	33241161	rplC	Pro1712	-	50S ribosomal protein L3
1711	 40.96	0	1565298..1565756	+	152	33241162	-	Pro1713	-	NADH dehydrogenase I subunit N
1712	 37.45	0	1565810..1566805	+	331	33241163	hycB	Pro1714	-	Fe-S cluster containing protein
1713	 39.77	0	1567044..1567820	+	258	33241164	-	Pro1715	-	HAD family phosphatase
1714	 42.11	+1	1567932..1569071	+	379	33241165	recA	Pro1716	-	recombinase A
1715	 41.67	+1	1569088..1569339	-	83	33241166	-	Pro1717	-	hypothetical protein
1716	 39.69	0	1569396..1570826	-	476	33241167	dinG	Pro1718	-	Rad3-related DNA helicase
1717	 37.49	0	1570909..1571775	+	288	33241168	tyrA	Pro1719	-	arogenate dehydrogenase
1718	 38.80	0	1571764..1573263	-	499	33241169	-	Pro1720	-	phytoene dehydrogenase/carotenoid isomerase
1719	 36.70	0	1573302..1574192	+	296	33241170	-	Pro1721	-	fructosamine/homoserine kinase family protein
1720	 40.44	0	1574201..1574566	-	121	33241171	-	Pro1722	-	hypothetical protein
1721	 34.28	0	1574688..1575215	+	175	33241172	-	Pro1723	-	metal-dependent protease
1722	 32.63	-1	1575228..1576367	+	379	33241173	thiF	Pro1724	-	dinucleotide-utilizing protein
1723	 42.76	+1	1576382..1577590	-	402	33241174	ctuR	Pro1725	-	hypothetical protein
1724	 36.48	0	1577671..1578528	+	285	33241175	-	Pro1726	-	PP family ATPase
1725	 39.74	0	1578571..1579038	-	155	33241176	speD	Pro1727	-	S-adenosylmethionine decarboxylase proenzyme
1726	 40.45	0	1579064..1580131	-	355	33241177	recF	Pro1728	-	recombinational DNA repair ATPase (RecF pathway)
1727	 35.32	0	1580351..1580803	-	150	33241178	-	Pro1729	-	hypothetical protein
1728	 39.39	0	1580807..1583812	-	1001	33241179	ppc	Pro1730	-	phosphoenolpyruvate carboxylase
1729	 35.17	0	1583809..1584954	-	381	33241180	-	Pro1731	-	hypothetical protein
1730	 38.87	0	1584958..1586475	-	505	33241181	trpE	Pro1732	-	anthranilate/para-aminobenzoate synthase component I
1731	 39.20	0	1586540..1586965	-	141	33241182	psaD	Pro1733	-	photosystem I protein PsaD
1732	 38.72	0	1587077..1588450	-	457	33241183	-	Pro1734	-	Signal transduction histidine kinase
1733	 32.71	-1	1588450..1589730	-	426	33241184	ftsW	Pro1735	-	cell division membrane protein
1734	 39.81	0	1589731..1590810	-	359	33241185	mrp	Pro1736	-	ATPase
1735	 39.83	0	1590897..1591928	+	343	33241186	hemF	Pro1737	-	coproporphyrinogen III oxidase
1736	 39.05	0	1591876..1592697	-	273	33241187	-	Pro1738	-	dehydrogenase
1737	 38.74	0	1592704..1593258	-	184	33241188	-	Pro1739	-	hypothetical protein
1738	 36.28	0	1593460..1594104	+	214	33241189	rnd	Pro1740	-	putative ribonuclease D
1739	 31.48	-1	1594101..1594370	-	89	33241190	-	Pro1741	-	hypothetical protein
1740	 39.59	0	1594423..1595700	-	425	33241191	-	Pro1742	-	Lipid A disaccharide synthetase related enzyme
1741	 35.76	0	1596595..1596759	-	54	33241192	-	Pro1743	-	Zn ribbon-like protein
1742	 42.19	+1	1596781..1597401	-	206	33241193	-	Pro1744	-	hypothetical protein
1743	 39.98	0	1597573..1598610	-	345	33241194	purM	Pro1745	-	phosphoribosylaminoimidazole synthetase
1744	 36.79	0	1598748..1600307	+	519	33241195	cmk	Pro1746	-	bifunctional pantoate ligase/cytidylate kinase
1745	 32.91	-1	1600300..1600770	-	156	33241196	wzb	Pro1747	-	protein-tyrosine-phosphatase
1746	 33.20	0	1600861..1601634	-	257	33241197	pebB	Pro1748	-	phycoerythrobilin:ferredoxin oxidoreductase
1747	 33.75	0	1601635..1602348	-	237	161407959	pebA	Pro1749	-	dihydrobiliverdin:ferredoxin oxidoreductase
1748	 34.17	0	1602445..1603158	-	237	33241199	ho1	Pro1750	-	Heme oxygenase
1749	 42.25	+1	1603248..1603673	-	141	33241200	-	Pro1751	-	hypothetical protein
1750	 36.63	0	1603833..1605257	+	474	33241201	icd	Pro1752	-	isocitrate dehydrogenase
1751	 32.38	-1	1605278..1606636	-	452	33241202	-	Pro1753	-	hypothetical protein
1752	 42.20	+1	1606671..1607843	-	390	33241203	lldD	Pro1754	-	L-lactate dehydrogenase (FMN-dependent) related enzyme
1753	 31.98	-1	1607961..1609661	-	566	33241204	dld	Pro1755	-	D-lactate dehydrogenase
1754	 34.73	0	1609784..1610641	-	285	33241205	galM	Pro1756	-	galactose mutarotase-like protein
1755	 39.29	0	1610658..1611563	-	301	33241206	mhpC	Pro1757	-	alpha/beta fold family hydrolase
1756	 40.03	0	1611686..1613059	-	457	33241207	kefB	Pro1758	-	Na+/H+ antiporter
1757	 37.38	0	1613224..1615746	+	840	33241208	glgP	Pro1759	-	phosphorylase
1758	 37.47	0	1615754..1616212	-	152	33241209	-	Pro1760	-	hypothetical protein
1759	 42.42	+1	1616283..1616579	-	98	33241210	-	Pro1761	-	hypothetical protein
1760	 36.80	0	1617217..1617966	+	249	33241211	rnc	Pro1762	-	dsRNA-specific ribonuclease/ribonuclease III
1761	 34.41	0	1617963..1618148	-	61	33241212	-	Pro1763	-	hypothetical protein
1762	 34.27	0	1618196..1618726	+	176	33241213	rimM	Pro1764	-	16S rRNA-processing protein
1763	 36.33	0	1618775..1620211	+	478	33241214	manC	Pro1765	-	mannose-1-phosphate guanylyltransferase
1764	 37.64	0	1620235..1622139	-	634	33241215	glmS	Pro1766	-	D-fructose-6-phosphate amidotransferase
1765	 46.75	+2	1622219..1622464	-	81	33241216	psaC	Pro1767	-	photosystem I subunit VII
1766	 44.44	+1	1622599..1622841	+	80	33241217	acpP	Pro1768	-	acyl carrier protein
1767	 43.03	+1	1622849..1624096	+	415	33241218	fabB	Pro1769	-	3-oxoacyl-[acyl-carrier-protein] synthase II
1768	 40.60	0	1624148..1626157	+	669	33241219	tktA	Pro1770	-	transketolase
1769	 39.09	0	1626184..1627590	-	468	33241220	thiC	Pro1771	-	thiamine biosynthesis protein ThiC
1770	 34.70	0	1627791..1628009	-	72	33241221	-	Pro1772	-	hypothetical protein
1771	 39.93	0	1628013..1629209	-	398	33241222	-	Pro1773	-	N-acyl-L-amino acid amidohydrolase
1772	 40.08	0	1629206..1629991	-	261	33241223	-	Pro1774	-	TPR repeat-containing protein
1773	 39.50	0	1629988..1631058	-	356	33241224	ruvB	Pro1775	-	Holliday junction DNA helicase B
1774	 34.34	0	1631109..1631606	+	165	33241225	smpB	Pro1776	-	SsrA-binding protein
1775	 33.33	0	1631651..1631881	+	76	33241226	-	Pro1777	-	hypothetical protein
1776	 49.24	+2	1632035..1632298	-	87	33241227	-	Pro1778	-	hypothetical protein
1777	 39.23	0	1632353..1633861	-	502	33241228	lysS	Pro1779	-	lysyl-tRNA synthetase
1778	 43.46	+1	1633934..1634743	-	269	33241229	-	Pro1780	-	two-component response regulator
1779	 36.31	0	1634977..1635480	-	167	33241230	-	Pro1781	-	hypothetical protein
1780	 36.41	0	1635477..1636223	-	248	33241231	mreC	Pro1782	-	cell shape-determining protein
1781	 42.45	+1	1636228..1637280	-	350	33241232	mreB	Pro1783	-	Actin-like ATPase
1782	 34.87	0	1637412..1637801	+	129	33241233	ssb	Pro1784	-	single-strand DNA-binding protein
1783	 35.46	0	1637798..1638454	-	218	33241234	dedA	Pro1785	-	hypothetical protein
1784	 37.04	0	1638488..1639918	-	476	33241235	SAM1	Pro1786	-	S-adenosyl-L-homocysteine hydrolase
1785	 36.09	0	1639954..1640460	+	168	33241236	-	Pro1787	-	P-loop hydrolase
1786	 40.22	0	1640409..1641425	-	338	33241237	rbsK	Pro1788	-	ribokinase family sugar kinase
1787	 35.41	0	1641463..1642665	-	400	33241238	mutY	Pro1789	-	A/G-specific DNA glycosylase
37.01	MEAN

3.99	STD DEV
