IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

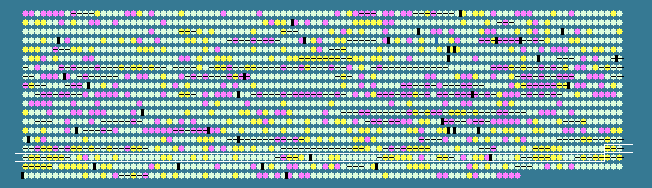

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1598	 43.25	+1	1457063..1458202	+	379	33241049	ald	Pro1600	-	alanine dehydrogenase
1599	 40.96	0	1458214..1459314	-	366	33241050	-	Pro1601	-	hypothetical protein
1600	 35.90	0	1459319..1459513	-	64	33241051	-	Pro1602	-	hypothetical protein
1601	 39.85	0	1459545..1460495	-	316	33241052	atpG	Pro1603	-	F0F1 ATP synthase subunit gamma
1602	 41.57	+1	1460526..1462043	-	505	33241053	atpA	Pro1604	-	F0F1 ATP synthase subunit alpha
1603	 41.67	+1	1462111..1462662	-	183	33241054	atpH	Pro1605	-	F0F1 ATP synthase subunit delta
1604	 38.76	0	1462659..1463174	-	171	33241055	atpF	Pro1606	-	F0F1 ATP synthase subunit B
1605	 42.21	+1	1463171..1463632	-	153	33241056	atpF	Pro1607	-	F0F1 ATP synthase subunit B'
1606	 51.41	+2	1463765..1464013	-	82	33241057	atpE	Pro1608	-	F0F1 ATP synthase subunit C
1607	 41.74	+1	1464186..1464911	-	241	33241058	atpB	Pro1609	-	F0F1 ATP synthase subunit A
1608	 39.38	0	1464995..1465474	-	159	33241059	-	Pro1610	-	hypothetical protein
1609	 37.37	0	1465888..1467126	+	412	33241060	ftsW	Pro1611	-	cell division protein FtsW
1610	 41.44	+1	1467225..1467878	+	217	33241061	ccdA	Pro1612	-	putative c-type cytochrome biogenesis protein CcdA
1611	 32.64	-1	1467883..1469172	+	429	33241062	resB	Pro1613	-	putative c-type cytochrome biogenesis protein Ccs1
1612	 35.05	0	1469169..1469576	-	135	33241063	-	Pro1614	-	GTP cyclohydrolase I family protein
1613	 40.79	0	1469770..1469997	+	75	33241064	-	Pro1615	-	hypothetical protein
1614	 38.35	0	1470040..1470378	+	112	33241065	glnK	Pro1616	-	nitrogen regulatory protein P-II
1615	 38.99	0	1470367..1471179	-	270	33241066	-	Pro1617	-	rRNA methylase
1616	 40.85	0	1471233..1471538	+	101	33241067	-	Pro1618	-	hypothetical protein
1617	 39.35	0	1471589..1472884	+	431	33241068	purB	Pro1619	-	adenylosuccinate lyase
1618	 39.34	0	1472949..1474346	+	465	33241069	fumC	Pro1620	-	fumarate hydratase
1619	 39.63	0	1474361..1477138	-	925	33241070	-	Pro1621	-	superfamily II RNA helicase
1620	 39.53	0	1477252..1478397	+	381	33241071	cioF	Pro1622	-	putative 8-amino-7-oxononanoate synthase
1621	 35.29	0	1478394..1479107	+	237	33241072	-	Pro1623	-	Alpha/beta hydrolase family protein
1622	 38.23	0	1479107..1479862	+	251	33241073	-	Pro1624	-	SAM dependent methyltransferase
1623	 39.55	0	1479859..1480518	+	219	33241074	cioD	Pro1625	-	dethiobiotin synthetase
1624	 41.38	+1	1480761..1482065	+	434	33241075	cioA	Pro1626	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
1625	 43.45	+1	1482070..1482336	-	88	33241076	-	Pro1627	-	hypothetical protein
1626	 37.20	0	1482278..1482820	-	180	33241077	cbpA	Pro1628	-	DnaJ-class molecular chaperone
1627	 36.61	0	1482894..1483655	+	253	33241078	gidB	Pro1629	-	phosphoribulokinase
1628	 38.40	0	1483634..1484857	-	407	33241079	-	Pro1630	-	aldo/keto reductase family protein
1629	 42.78	+1	1484873..1485232	-	119	33241080	fer	Pro1631	-	ferredoxin
1630	 39.44	0	1485245..1485637	-	130	33241081	-	Pro1632	-	hypothetical protein
1631	 41.43	+1	1485637..1485846	-	69	33241082	-	Pro1633	-	hypothetical protein
1632	 39.88	0	1485933..1486742	-	269	33241083	-	Pro1634	-	HEAT repeat-containing protein
1633	 40.14	0	1486955..1488718	-	587	33241084	putP	Pro1635	-	Na+/proline symporter
1634	 37.34	0	1488769..1489815	-	348	33241085	-	Pro1636	-	putative Fe-S-cluster redox protein
1635	 37.25	0	1489827..1489979	-	50	33241086	hli2	Pro1637	-	putative high light inducible protein
1636	 41.06	+1	1490023..1494126	-	1367	33241087	rpoC	Pro1638	-	DNA-directed RNA polymerase subunit beta'
1637	 38.69	0	1494174..1496078	-	634	33241088	rpoC	Pro1639	-	DNA-directed RNA polymerase subunit gamma
1638	 39.29	0	1496129..1499419	-	1096	33241089	rpoB	Pro1640	-	DNA-directed RNA polymerase subunit beta
1639	 39.54	0	1499696..1500484	-	262	33241090	tatD	Pro1641	-	putative deoxyribonuclease, TatD family
1640	 39.00	0	1500568..1500867	-	99	33241091	rpsT	Pro1642	-	30S ribosomal protein S20
1641	 38.62	0	1501001..1502323	+	440	33241092	hisD	Pro1643	-	histidinol dehydrogenase
1642	 39.50	0	1502301..1503014	-	237	33241093	rpi	Pro1644	-	ribose 5-phosphate isomerase
1643	 39.16	0	1503055..1504170	-	371	33241094	degQ	Pro1645	-	trypsin-like serine protease
1644	 33.33	0	1504390..1504857	+	155	33241095	-	Pro1646	-	hypothetical protein
1645	 41.30	+1	1504905..1506323	+	472	33241096	nusA	Pro1647	-	transcription elongation factor NusA
1646	 40.86	0	1506320..1506598	+	92	33241097	-	Pro1648	-	nucleic-acid-binding protein implicated in transcription termination
1647	 42.58	+1	1506662..1510066	+	1134	33241098	infB	Pro1649	-	translation initiation factor IF-2
1648	 36.71	0	1510153..1510389	-	78	33241099	-	Pro1650	-	hypothetical protein
1649	 35.00	0	1511302..1511661	-	119	33241100	-	Pro1651	-	hypothetical protein
1650	 37.76	0	1511883..1513508	+	541	33241101	-	Pro1652	-	Fe-S oxidoreductase
1651	 37.92	0	1513430..1514344	-	304	33241102	-	Pro1653	-	metal-dependent membrane protease
1652	 44.55	+1	1514341..1514652	-	103	33241103	clpS	Pro1654	-	ATP-dependent Clp protease adaptor protein ClpS
1653	 40.59	0	1514714..1515940	-	408	33241104	-	Pro1655	-	L,L-diaminopimelate aminotransferase
1654	 38.10	0	1516036..1518720	+	894	33241105	-	Pro1656	-	SAM radical enzyme
1655	 34.53	0	1518963..1520798	+	611	33241106	cafA	Pro1657	-	ribonuclease G/E
1656	 38.54	0	1520802..1521377	+	191	33241107	rnhB	Pro1658	-	ribonuclease HII
1657	 38.18	0	1521397..1521933	-	178	33241108	-	Pro1659	-	hypothetical protein
1658	 37.37	0	1521967..1522809	+	280	33241109	pheA	Pro1660	-	chorismate mutase-prephenate dehydratase
1659	 33.76	0	1522811..1523740	-	309	33241110	-	Pro1661	-	ubiE/COQ5 family methyltransferase
1660	 39.82	0	1523740..1524402	-	220	33241111	-	Pro1662	-	ATP-dependent protease La (LON) domain
1661	 40.81	0	1524466..1524786	-	106	33241112	rpsJ	Pro1663	-	30S ribosomal protein S10
1662	 43.33	+1	1524921..1526120	-	399	33241113	tuf	Pro1664	-	elongation factor Tu
1663	 40.94	0	1526167..1528242	-	691	33241114	fusA	Pro1665	-	elongation factor G
1664	 42.68	+1	1528335..1528805	-	156	33241115	rpsG	Pro1666	-	30S ribosomal protein S7
1665	 46.93	+2	1528848..1529222	-	124	33241116	rpsL	Pro1667	-	30S ribosomal protein S12
1666	 38.14	0	1529478..1534052	+	1524	33241117	glsF	Pro1668	-	ferredoxin-dependent glutamate synthase
1667	 32.73	-1	1534067..1534399	+	110	33241118	-	Pro1669	-	hypothetical protein
1668	 37.74	0	1534377..1535261	-	294	33241119	lipA	Pro1670	-	lipoyl synthase
1669	 39.68	0	1535300..1537063	-	587	33241120	cobJ	Pro1671	-	precorrin-3B methylase
1670	 44.70	+1	1537494..1539815	+	773	33241121	psaA	Pro1672	-	photosystem I P700 chlorophyll a apoprotein A1
1671	 42.96	+1	1539838..1542081	+	747	33241122	psaB	Pro1673	-	photosystem I P700 chlorophyll a apoprotein A2
1672	 37.38	0	1542127..1543041	-	304	33241123	-	Pro1674	-	hypothetical protein
1673	 35.19	0	1543060..1543812	+	250	33241124	spr	Pro1675	-	cell wall-associated hydrolase
1674	 33.44	0	1543842..1544792	+	316	33241125	wcaA	Pro1676	-	glycosyltransferase
1675	 37.39	0	1544762..1545229	-	155	33241126	-	Pro1677	-	hypothetical protein
1676	 52.14	+2	1545356..1545472	+	38	33241127	psaI	Pro1678	-	photosystem I reaction center subunit VIII
1677	 43.17	+1	1545518..1546117	+	199	33241128	psaL	Pro1679	-	photosystem I reaction center protein subunit XI
1678	 26.24	-2	1546214..1546354	+	46	33241129	-	Pro1680	-	hypothetical protein
1679	 39.97	0	1546581..1547741	-	386	33241130	alr	Pro1681	-	alanine racemase
1680	 38.21	0	1547801..1548313	+	170	33241131	mcrA	Pro1682	-	HNH endonuclease family protein
1681	 40.35	0	1548317..1549414	-	365	33241132	prfA	Pro1683	-	peptide chain release factor 1
1682	 39.65	0	1549450..1549734	-	94	33241133	rpmE	Pro1684	-	50S ribosomal protein L31
1683	 41.36	+1	1549778..1550188	-	136	33241134	rpsI	Pro1685	-	30S ribosomal protein S9
1684	 39.51	0	1550185..1550637	-	150	33241135	rplM	Pro1686	-	50S ribosomal protein L13
1685	 37.13	0	1550793..1551662	-	289	33241136	truA	Pro1687	-	tRNA pseudouridine synthase A
1686	 41.31	+1	1551687..1552037	-	116	33241137	rplQ	Pro1688	-	50S ribosomal protein L17
1687	 42.81	+1	1552074..1553012	-	312	33241138	rpoA	Pro1689	-	DNA-directed RNA polymerase subunit alpha
1688	 47.07	+2	1553076..1553468	-	130	33241139	rpsK	Pro1690	-	30S ribosomal protein S11
1689	 45.90	+2	1553538..1553903	-	121	33241140	rpsM	Pro1691	-	30S ribosomal protein S13
1690	 46.15	+2	1554020..1554136	-	38	33241141	rpmJ	Pro1692	-	50S ribosomal protein L36
1691	 35.52	0	1554183..1554731	-	182	33241142	adk	Pro1693	-	adenylate kinase
1692	 38.11	0	1554763..1556082	-	439	33241143	secY	Pro1694	-	preprotein translocase subunit SecY
1693	 39.25	0	1556149..1556604	-	151	33241144	rplO	Pro1695	-	50S ribosomal protein L15
1694	 43.55	+1	1556611..1557246	-	211	33241145	rpsE	Pro1696	-	30S ribosomal protein S5
1695	 40.11	0	1557263..1557631	-	122	33241146	rplR	Pro1697	-	50S ribosomal protein L18
1696	 41.48	+1	1557666..1558205	-	179	33241147	rplF	Pro1698	-	50S ribosomal protein L6
1697	 42.54	+1	1558218..1558619	-	133	33241148	rpsH	Pro1699	-	30S ribosomal protein S8
37.01	MEAN

3.99	STD DEV
