IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

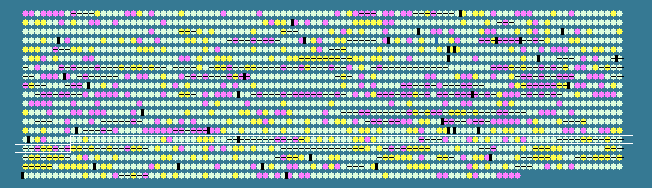

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1409	 34.89	0	1310635..1310955	-	106	33240860	-	Pro1411	-	hypothetical protein
1410	 35.66	0	1311115..1311717	+	200	33240861	-	Pro1412	-	hypothetical protein
1411	 40.58	0	1311756..1313246	+	496	33240862	pepB	Pro1413	-	leucyl aminopeptidase
1412	 34.27	0	1313262..1313900	-	212	33240863	msrA	Pro1414	-	peptide methionine sulfoxide reductase
1413	 37.08	0	1313900..1315072	-	390	33240864	lpxB	Pro1415	-	lipid-A-disaccharide synthase
1414	 39.53	0	1315075..1315929	-	284	33240865	lpxA	Pro1416	-	UDP-N-acetylglucosamine acyltransferase
1415	 39.04	0	1315934..1316389	-	151	33240866	fabZ	Pro1417	-	(3R)-hydroxymyristoyl-ACP dehydratase
1416	 40.25	0	1316382..1317248	-	288	33240867	lpxC	Pro1418	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1417	 36.18	0	1317250..1319742	-	830	33240868	-	Pro1419	-	import-associated channel, chloroplast protein IAP75
1418	 35.92	0	1319802..1320536	-	244	33240869	purC	Pro1420	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1419	 38.42	0	1320693..1322030	+	445	33240870	purD	Pro1421	-	phosphoribosylamine--glycine ligase
1420	 35.46	0	1322037..1324109	+	690	33240871	-	Pro1422	-	two-component sensor histidine kinase
1421	 38.18	0	1324116..1325621	-	501	33240872	kaiC	Pro1423	-	circadian clock protein KaiC
1422	 39.55	0	1325722..1326075	-	117	33240873	kaiB	Pro1424	-	circadian clock protein KaiB
1423	 35.95	0	1326239..1326697	+	152	33240874	rplU	Pro1425	-	ribosomal protein L21
1424	 40.91	0	1326721..1326984	+	87	33240875	rpmA	Pro1426	-	50S ribosomal protein L27
1425	 33.47	0	1326981..1327739	-	252	33240876	-	Pro1427	-	SAM-dependent methyltransferase
1426	 36.41	0	1327826..1328767	+	313	33240877	truB	Pro1428	-	pseudouridine synthase
1427	 34.37	0	1328787..1330046	-	419	33240878	spoIID	Pro1429	-	SpoIID protein
1428	 39.88	0	1330159..1331121	+	320	33240879	elaC	Pro1430	-	metallo-beta-lactamase superfamily protein
1429	 38.92	0	1331190..1331744	+	184	33240880	-	Pro1431	-	pentapeptide repeat-containing protein
1430	 45.64	+2	1331835..1332029	-	64	33240881	-	Pro1432	-	hypothetical protein
1431	 42.21	+1	1332225..1332686	-	153	33240882	-	Pro1433	-	hypothetical protein
1432	 43.67	+1	1332720..1333019	-	99	33240883	fdx	Pro1434	-	ferredoxin
1433	 37.27	0	1333186..1334100	-	304	33240884	prmA	Pro1435	-	ribosomal protein L11 methylase
1434	 40.08	0	1334126..1335712	-	528	33240885	serA	Pro1436	-	putative D-3-phosphoglycerate dehydrogenase (PGDH)
1435	 37.23	0	1335813..1336376	+	187	33240886	-	Pro1437	-	hypothetical protein
1436	 35.87	0	1336373..1337161	+	262	33240887	-	Pro1438	-	RNA-binding protein
1437	 36.09	0	1337319..1338731	+	470	33240888	murD	Pro1439	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1438	 33.97	0	1338872..1339186	+	104	33240889	-	Pro1440	-	hypothetical protein
1439	 33.63	0	1339217..1339555	-	112	33240890	-	Pro1441	-	hypothetical protein
1440	 37.16	0	1339696..1339878	+	60	33240891	-	Pro1442	-	hypothetical protein
1441	 39.88	0	1340096..1340263	+	55	33240892	-	Pro1443	-	hypothetical protein
1442	 38.79	0	1340376..1340540	-	54	33240893	-	Pro1444	-	hypothetical protein
1443	 32.76	-1	1340747..1341265	+	172	33240894	apt	Pro1445	-	adenine phosphoribosyltransferase
1444	 29.25	-1	1341579..1341872	+	97	33240895	-	Pro1446	-	hypothetical protein
1445	 33.64	0	1342211..1342858	-	215	33240896	smtA	Pro1447	-	SAM-dependent methyltransferase
1446	 29.19	-1	1342960..1343442	-	160	33240897	-	Pro1448	-	hypothetical protein
1447	 41.10	+1	1343929..1344147	-	72	33240898	-	Pro1449	-	hypothetical protein
1448	 43.00	+1	1344165..1345250	-	361	33240899	pcbE	Pro1450	-	chlorophyll a/b binding light harvesting protein PcbE
1449	 38.00	0	1345466..1346194	-	242	33240900	guaA	Pro1451	-	GMP synthase glutamine amidotransferase subunit
1450	 40.69	0	1346303..1347634	-	443	33240901	-	Pro1452	-	SNF family Na(+)-dependent transporter
1451	 33.68	0	1347811..1348098	-	95	33240902	-	Pro1453	-	hypothetical protein
1452	 42.53	+1	1348751..1348924	-	57	33240903	-	Pro1454	-	hypothetical protein
1453	 35.86	0	1349413..1349610	+	65	33240904	-	Pro1455	-	hypothetical protein
1454	 33.75	0	1349704..1350894	+	396	33240905	wecE	Pro1456	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
1455	 36.59	0	1351142..1351417	+	91	33240906	-	Pro1457	-	hypothetical protein
1456	 43.72	+1	1351770..1351952	+	60	33240907	-	Pro1458	-	hypothetical protein
1457	 41.74	+1	1352512..1352868	-	118	33240908	-	Pro1459	-	transciptional regulator
1458	 31.54	-1	1353842..1354342	-	166	33240909	-	Pro1460	-	hypothetical protein
1459	 40.52	0	1355770..1355922	-	50	33240910	-	Pro1461	-	hypothetical protein
1460	 40.42	0	1356227..1357129	+	300	33240911	gloB	Pro1462	-	metallo-beta-lactamase superfamily hydrolase
1461	 37.86	0	1357134..1357751	+	205	33240912	-	Pro1463	-	SAM-dependent methyltransferase
1462	 36.00	0	1357861..1358010	+	49	33240913	-	Pro1464	-	hypothetical protein
1463	 37.53	0	1358173..1358577	-	134	33240914	-	Pro1465	-	hypothetical protein
1464	 37.82	0	1359048..1359560	-	170	33240915	-	Pro1466	-	hypothetical protein
1465	 34.75	0	1360473..1360754	+	93	33240916	-	Pro1467	-	hypothetical protein
1466	 34.17	0	1360831..1361190	-	119	33240917	-	Pro1468	-	hypothetical protein
1467	 25.49	-2	1361334..1361486	+	50	33240918	-	Pro1469	-	hypothetical protein
1468	 35.15	0	1361592..1361756	+	54	33240919	-	Pro1470	-	hypothetical protein
1469	 37.19	0	1362033..1362758	+	241	33240920	-	Pro1471	-	hypothetical protein
1470	 34.41	0	1362868..1363053	-	61	33240921	-	Pro1472	-	hypothetical protein
1471	 33.01	-1	1363484..1363789	+	101	33240922	-	Pro1473	-	hypothetical protein
1472	 36.26	0	1363871..1364041	+	56	33240923	-	Pro1474	-	hypothetical protein
1473	 34.50	0	1364098..1364268	+	56	33240924	-	Pro1475	-	hypothetical protein
1474	 35.00	0	1364365..1364904	+	179	33240925	-	Pro1476	-	hypothetical protein
1475	 33.04	0	1364916..1365590	-	224	33240926	rhaT	Pro1477	-	DMT family permease
1476	 41.52	+1	1365865..1366206	-	113	33240927	-	Pro1478	-	hypothetical protein
1477	 38.81	0	1366361..1366561	-	66	33240928	-	Pro1479	-	hypothetical protein
1478	 41.38	+1	1366724..1367245	-	173	33240929	abrB	Pro1480	-	hypothetical protein
1479	 36.84	0	1367464..1367691	+	75	33240930	-	Pro1481	-	hypothetical protein
1480	 38.79	0	1368037..1368201	-	54	33240931	-	Pro1482	-	hypothetical protein
1481	 32.82	-1	1368430..1368624	-	64	33240932	-	Pro1483	-	hypothetical protein
1482	 34.44	0	1368694..1368873	-	59	33240933	-	Pro1484	-	hypothetical protein
1483	 45.24	+2	1369029..1369196	+	55	33240934	-	Pro1485	-	hypothetical protein
1484	 28.30	-2	1369386..1369544	+	52	33240935	-	Pro1486	-	hypothetical protein
1485	 37.06	0	1369651..1370079	-	142	33240936	-	Pro1487	-	hypothetical protein
1486	 37.75	0	1370461..1370958	+	165	33240937	-	Pro1488	-	hypothetical protein
1487	 34.91	0	1370977..1371420	+	147	33240938	-	Pro1489	-	pyrimidine dimer DNA glycosylase/endonuclease V
1488	 34.03	0	1371586..1371729	-	47	33240939	-	Pro1490	-	hypothetical protein
1489	 40.43	0	1371971..1372252	-	93	33240940	-	Pro1491	-	hypothetical protein
1490	 36.72	0	1372352..1372528	-	58	33240941	-	Pro1492	-	hypothetical protein
1491	 34.48	0	1373189..1373797	+	202	33240942	-	Pro1493	-	hypothetical protein
1492	 35.74	0	1373904..1374194	-	96	33240943	-	Pro1494	-	cytochrome b559 subunit beta
1493	 39.58	0	1374888..1375127	+	79	33240944	-	Pro1495	-	hypothetical protein
1494	 43.97	+1	1375179..1375460	-	93	33240945	-	Pro1496	-	hypothetical protein
1495	 40.80	0	1375405..1375578	+	57	33240946	-	Pro1497	-	hypothetical protein
1496	 40.00	0	1375611..1375865	+	84	33240947	-	Pro1498	-	hypothetical protein
1497	 34.47	0	1376001..1376264	-	87	33240948	-	Pro1499	-	hypothetical protein
1498	 41.53	+1	1376732..1376914	-	60	33240949	-	Pro1500	-	hypothetical protein
1499	 37.75	0	1377714..1378505	-	263	33240950	znuB	Pro1501	-	manganese ABC transporter
1500	 38.73	0	1378553..1378960	+	135	33240951	fur	Pro1502	-	ferric uptake regulator family
1501	 38.46	0	1378977..1379678	-	233	33240952	znuC	Pro1503	-	ABC transporter ATP-binding protein
1502	 37.66	0	1379762..1381264	+	500	33240953	lraI	Pro1504	-	ABC-type metal ion transport system periplasmic component
1503	 30.97	-1	1381308..1381646	+	112	33240954	-	Pro1505	-	hypothetical protein
1504	 43.96	+1	1381643..1383025	+	460	33240955	-	Pro1506	-	G3E family GTPase
1505	 45.62	+2	1383013..1384086	+	357	33240956	-	Pro1507	-	WD-40 repeat-containing protein
1506	 31.13	-1	1384141..1385229	+	362	33240957	-	Pro1508	-	G3E family GTPase
1507	 36.36	0	1385685..1385849	+	54	33240958	-	Pro1509	-	hypothetical protein
1508	 32.69	-1	1385984..1386139	-	51	33240959	-	Pro1510	-	hypothetical protein
37.01	MEAN

3.99	STD DEV
