IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

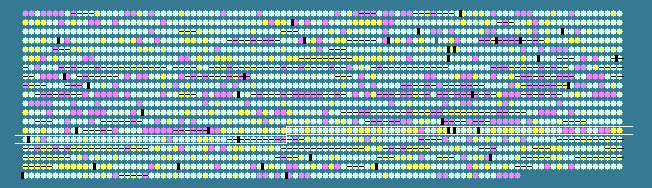

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1345	 38.34	0	1250700..1251617	+	305	33240796	ribF	Pro1347	-	putative riboflavin kinase/FAD synthase
1346	 35.25	0	1251780..1252820	+	346	33240797	thiE	Pro1348	-	thiamine-phosphate pyrophosphorylase
1347	 34.74	0	1252817..1253029	+	70	33240798	thiS	Pro1349	-	sulfur transfer protein
1348	 41.67	+1	1253279..1253446	+	55	33240799	-	Pro1350	-	hypothetical protein
1349	 39.26	0	1253515..1253649	+	44	33240800	-	Pro1351	-	hypothetical protein
1350	 40.48	0	1253660..1254331	-	223	33240801	-	Pro1352	-	circadian phase modifier CpmA-like protein
1351	 34.44	0	1254328..1254777	-	149	33240802	-	Pro1353	-	hypothetical protein
1352	 39.54	0	1254780..1256003	-	407	33240803	trmD/ispF	Pro1354	-	tRNA-(guanine-N1)-methyltransferase fused to 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1353	 38.41	0	1256009..1256953	-	314	33240804	era	Pro1355	-	GTP-binding protein Era
1354	 37.38	0	1257003..1257521	+	172	33240805	-	Pro1356	-	hypothetical protein
1355	 41.06	+1	1257588..1258325	-	245	33240806	-	Pro1357	-	integral membrane protein, interacts with FtsH
1356	 40.02	0	1258398..1259369	-	323	33240807	phoH	Pro1358	-	phosphate starvation-inducible protein PhoH
1357	 42.42	+1	1259377..1259772	-	131	33240808	rpsP	Pro1359	-	30S ribosomal protein S16
1358	 42.87	+1	1259847..1261304	-	485	33240809	ffh	Pro1360	-	signal recognition particle protein
1359	 36.98	0	1261377..1263434	-	685	33240810	-	Pro1361	-	cell division protein Ftn2
1360	 41.64	+1	1263536..1264630	+	364	33240811	acoA	Pro1362	-	pyruvate dehydrogenase E1 alpha subunit
1361	 39.17	0	1264686..1265627	-	313	33240812	rpoD	Pro1363	-	DNA-directed RNA polymerase sigma subunit (sigma70/sigma32)
1362	 38.65	0	1265759..1267318	-	519	33240813	-	Pro1364	-	fused sugar kinase/uncharacterized domain-containing protein
1363	 38.57	0	1267363..1268583	+	406	33240814	trmU	Pro1365	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1364	 40.27	0	1268586..1270070	-	494	33240815	lnt	Pro1366	-	putative apolipoprotein n-acyltransferase
1365	 41.58	+1	1270179..1270772	+	197	33240816	fkpA	Pro1367	-	FKBP-type peptidyl-prolyl cis-trans isomerase (PPIase)
1366	 40.93	0	1270861..1271334	+	157	33240817	-	Pro1368	-	putative nickel-containing superoxide dismutase precursor (NISOD)
1367	 29.92	-1	1271423..1271686	+	87	33240818	-	Pro1369	-	Signal peptidase I
1368	 39.16	0	1271704..1272372	-	222	33240819	-	Pro1370	-	hydrogenase accessory protein
1369	 37.07	0	1272471..1273352	-	293	33240820	trpC	Pro1371	-	indole-3-glycerol-phosphate synthase
1370	 40.80	0	1273375..1274820	-	481	33240821	lpd	Pro1372	-	dihydrolipoamide dehydrogenase
1371	 40.88	0	1274836..1275630	-	264	33240822	spoU	Pro1373	-	rRNA methylase
1372	 39.59	0	1276078..1277451	+	457	33240823	murA	Pro1374	-	UDP-N-acetylglucosamine enolpyruvyl transferase
1373	 37.04	0	1277574..1278761	+	395	33240824	argD	Pro1375	-	acetylornithine aminotransferase
1374	 35.52	0	1278758..1279993	+	411	33240825	folC	Pro1376	-	folylpolyglutamate synthase
1375	 38.40	0	1279998..1281338	-	446	33240826	glcD	Pro1377	-	FAD/FMN-containing dehydrogenase
1376	 38.88	0	1281331..1282629	-	432	33240827	ssnA	Pro1378	-	putative cytosine deaminase
1377	 37.04	0	1282845..1284245	+	466	33240828	miaB	Pro1379	-	2-methylthioadenine synthetase
1378	 36.27	0	1284301..1285356	+	351	33240829	ddlA	Pro1380	-	D-alanine-D-alanine ligase and related ATP-grasp enzyme
1379	 44.28	+1	1285410..1285820	+	136	33240830	-	Pro1381	-	hypothetical protein
1380	 34.92	0	1285778..1286596	+	272	33240831	ftsQ	Pro1382	-	cell division protein FtsQ
1381	 44.18	+1	1286755..1287870	+	371	33240832	ftsZ	Pro1383	-	cell division protein FtsZ
1382	 41.25	+1	1288028..1288798	+	256	33240833	panB	Pro1384	-	ketopantoate hydroxymethyltransferase
1383	 35.89	0	1288767..1290017	-	416	33240834	hemN	Pro1385	-	putative oxygen-independent coproporphyrinogen III oxidase
1384	 36.49	0	1290126..1291235	+	369	33240835	-	Pro1386	-	hypothetical protein
1385	 39.64	0	1291274..1291939	+	221	33240836	clpP	Pro1387	-	ATP-dependent Clp protease-like protein
1386	 40.96	0	1291982..1292584	+	200	33240837	clpP	Pro1388	-	ATP-dependent Clp protease proteolytic subunit
1387	 40.96	0	1292746..1293741	+	331	33240838	ilvC	Pro1389	-	ketol-acid reductoisomerase
1388	 34.47	0	1293786..1294754	+	322	33240839	cbiB	Pro1390	-	cobalamin biosynthesis protein CobD/CbiB
1389	 35.91	0	1294762..1295499	-	245	33240840	wcaJ	Pro1391	-	sugar transferase
1390	 37.71	0	1295550..1296761	-	403	33240841	rfaG	Pro1392	-	glycosyltransferase
1391	 31.08	-1	1296804..1297247	-	147	33240842	-	Pro1393	-	NAD(P)H-quinone oxidoreductase NdhF subunit, fragment
1392	 24.24	-2	1297539..1297703	+	54	33240843	-	Pro1394	-	hypothetical protein
1393	 34.46	0	1297722..1297988	+	88	33240844	hli6	Pro1395	-	high light inducible protein hli6
1394	 31.37	-1	1298052..1298255	+	67	33240845	-	Pro1396	-	hypothetical protein
1395	 35.77	0	1298276..1298521	-	81	33240846	-	Pro1397	-	hypothetical protein
1396	 36.70	0	1299121..1299417	-	98	33240847	-	Pro1398	-	hypothetical protein
1397	 28.93	-2	1299542..1299904	-	120	33240848	-	Pro1399	-	hypothetical protein
1398	 32.91	-1	1299901..1300851	-	316	33240849	glnS	Pro1400	-	glutamyl/glutaminyl-tRNA synthetase
1399	 43.84	+1	1300942..1301217	-	91	33240850	himA	Pro1401	-	histone-like DNA-binding protein
1400	 40.72	0	1301377..1302012	-	211	33240851	gloB	Pro1402	-	metallo-beta-lactamase superfamily hydrolase
1401	 35.94	0	1302061..1304166	+	701	33240852	pulA	Pro1403	-	putative isoamylase
1402	 39.22	0	1304392..1305750	+	452	33240853	melB	Pro1404	-	putative GPH family sugar transporter
1403	 41.50	+1	1305747..1306493	+	248	33240854	ttg2B	Pro1405	-	putative transporter, membrane component
1404	 32.60	-1	1306499..1306906	+	135	33240855	-	Pro1406	-	hypothetical protein
1405	 36.91	0	1306946..1307980	+	344	33240856	-	Pro1407	-	hypothetical protein
1406	 36.08	0	1307980..1308597	+	205	33240857	-	Pro1408	-	hypothetical protein
1407	 37.07	0	1308589..1309311	-	240	33240858	pyrF	Pro1409	-	orotidine-5'-phosphate decarboxylase
1408	 37.57	0	1309332..1310582	-	416	33240859	tyrS	Pro1410	-	tyrosyl-tRNA synthetase
1409	 34.89	0	1310635..1310955	-	106	33240860	-	Pro1411	-	hypothetical protein
1410	 35.66	0	1311115..1311717	+	200	33240861	-	Pro1412	-	hypothetical protein
1411	 40.58	0	1311756..1313246	+	496	33240862	pepB	Pro1413	-	leucyl aminopeptidase
1412	 34.27	0	1313262..1313900	-	212	33240863	msrA	Pro1414	-	peptide methionine sulfoxide reductase
1413	 37.08	0	1313900..1315072	-	390	33240864	lpxB	Pro1415	-	lipid-A-disaccharide synthase
1414	 39.53	0	1315075..1315929	-	284	33240865	lpxA	Pro1416	-	UDP-N-acetylglucosamine acyltransferase
1415	 39.04	0	1315934..1316389	-	151	33240866	fabZ	Pro1417	-	(3R)-hydroxymyristoyl-ACP dehydratase
1416	 40.25	0	1316382..1317248	-	288	33240867	lpxC	Pro1418	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1417	 36.18	0	1317250..1319742	-	830	33240868	-	Pro1419	-	import-associated channel, chloroplast protein IAP75
1418	 35.92	0	1319802..1320536	-	244	33240869	purC	Pro1420	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1419	 38.42	0	1320693..1322030	+	445	33240870	purD	Pro1421	-	phosphoribosylamine--glycine ligase
1420	 35.46	0	1322037..1324109	+	690	33240871	-	Pro1422	-	two-component sensor histidine kinase
1421	 38.18	0	1324116..1325621	-	501	33240872	kaiC	Pro1423	-	circadian clock protein KaiC
1422	 39.55	0	1325722..1326075	-	117	33240873	kaiB	Pro1424	-	circadian clock protein KaiB
1423	 35.95	0	1326239..1326697	+	152	33240874	rplU	Pro1425	-	ribosomal protein L21
1424	 40.91	0	1326721..1326984	+	87	33240875	rpmA	Pro1426	-	50S ribosomal protein L27
1425	 33.47	0	1326981..1327739	-	252	33240876	-	Pro1427	-	SAM-dependent methyltransferase
1426	 36.41	0	1327826..1328767	+	313	33240877	truB	Pro1428	-	pseudouridine synthase
1427	 34.37	0	1328787..1330046	-	419	33240878	spoIID	Pro1429	-	SpoIID protein
1428	 39.88	0	1330159..1331121	+	320	33240879	elaC	Pro1430	-	metallo-beta-lactamase superfamily protein
1429	 38.92	0	1331190..1331744	+	184	33240880	-	Pro1431	-	pentapeptide repeat-containing protein
1430	 45.64	+2	1331835..1332029	-	64	33240881	-	Pro1432	-	hypothetical protein
1431	 42.21	+1	1332225..1332686	-	153	33240882	-	Pro1433	-	hypothetical protein
1432	 43.67	+1	1332720..1333019	-	99	33240883	fdx	Pro1434	-	ferredoxin
1433	 37.27	0	1333186..1334100	-	304	33240884	prmA	Pro1435	-	ribosomal protein L11 methylase
1434	 40.08	0	1334126..1335712	-	528	33240885	serA	Pro1436	-	putative D-3-phosphoglycerate dehydrogenase (PGDH)
1435	 37.23	0	1335813..1336376	+	187	33240886	-	Pro1437	-	hypothetical protein
1436	 35.87	0	1336373..1337161	+	262	33240887	-	Pro1438	-	RNA-binding protein
1437	 36.09	0	1337319..1338731	+	470	33240888	murD	Pro1439	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1438	 33.97	0	1338872..1339186	+	104	33240889	-	Pro1440	-	hypothetical protein
1439	 33.63	0	1339217..1339555	-	112	33240890	-	Pro1441	-	hypothetical protein
1440	 37.16	0	1339696..1339878	+	60	33240891	-	Pro1442	-	hypothetical protein
1441	 39.88	0	1340096..1340263	+	55	33240892	-	Pro1443	-	hypothetical protein
1442	 38.79	0	1340376..1340540	-	54	33240893	-	Pro1444	-	hypothetical protein
1443	 32.76	-1	1340747..1341265	+	172	33240894	apt	Pro1445	-	adenine phosphoribosyltransferase
1444	 29.25	-1	1341579..1341872	+	97	33240895	-	Pro1446	-	hypothetical protein
37.01	MEAN

3.99	STD DEV
