IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

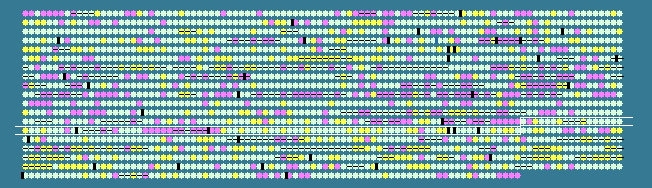

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1284	 35.76	0	1185806..1186918	+	370	33240735	glf	Pro1286	-	UDP-galactopyranose mutase
1285	 28.26	-2	1186958..1188259	+	433	33240736	-	Pro1287	-	hypothetical protein
1286	 42.25	+1	1188562..1189626	+	354	33240737	pcbF	Pro1288	-	chlorophyll a/b binding light harvesting protein PcbF
1287	 37.56	0	1189952..1190803	-	283	33240738	-	Pro1289	-	hypothetical protein
1288	 38.21	0	1190861..1191823	-	320	33240739	-	Pro1290	-	hypothetical protein
1289	 40.31	0	1191765..1192997	-	410	33240740	-	Pro1291	-	adhesin-like protein
1290	 40.56	0	1193100..1193279	-	59	33240741	-	Pro1292	-	hypothetical protein
1291	 34.21	0	1193707..1195527	-	606	33240742	arnT	Pro1293	-	glycosyl transferase family protein
1292	 39.21	0	1195563..1196651	-	362	33240743	rfaG	Pro1294	-	glycosyltransferase
1293	 38.21	0	1196648..1197610	-	320	33240744	rhaT	Pro1295	-	DMT family permease
1294	 41.73	+1	1197664..1198473	+	269	33240745	sppA	Pro1296	-	signal peptide peptidase SppA (protease IV)
1295	 39.94	0	1198498..1198860	+	120	33240746	aroH	Pro1297	-	chorismate mutase
1296	 35.56	0	1198942..1199526	+	194	33240747	-	Pro1298	-	hypothetical protein
1297	 39.86	0	1199583..1199720	+	45	33240748	rpmH	Pro1299	-	50S ribosomal protein L34
1298	 34.90	0	1199779..1200162	+	127	33240749	rnpA	Pro1300	-	ribonuclease P protein component
1299	 39.05	0	1200162..1200563	+	133	33240750	-	Pro1301	-	hypothetical protein
1300	 38.82	0	1200654..1201802	+	382	33240751	yidC	Pro1302	-	putative inner membrane protein translocase component YidC
1301	 40.57	0	1201885..1203363	+	492	33240752	spoVK	Pro1303	-	AAA family ATPase
1302	 37.40	0	1203372..1204649	+	425	33240753	serS	Pro1304	-	seryl-tRNA synthetase
1303	 36.20	0	1204654..1205736	+	360	33240754	-	Pro1305	-	membrane-associated Zn-dependent protease
1304	 41.67	+1	1205795..1206094	+	99	33240755	rpsN	Pro1306	-	30S ribosomal protein S14
1305	 40.30	0	1206287..1208455	+	722	33240756	pnp	Pro1307	-	polynucleotide phosphorylase/polyadenylase
1306	 39.34	0	1208471..1209385	-	304	33240757	cysQ	Pro1308	-	3'-phosphoadenosine 5'-phosphosulfate 3'-phosphatase
1307	 37.36	0	1209387..1210304	+	305	33240758	-	Pro1309	-	tetrapyrrole methylase family protein
1308	 32.07	-1	1210325..1210561	+	78	33240759	-	Pro1310	-	hypothetical protein
1309	 35.40	0	1210574..1211299	-	241	33240760	-	Pro1311	-	hypothetical protein
1310	 34.32	0	1212167..1213582	-	471	33240761	ugd	Pro1312	-	UDP-glucose 6-dehydrogenase
1311	 35.82	0	1213586..1214509	-	307	33240762	wcaG	Pro1313	-	NAD dependent epimerase/dehydratase
1312	 35.63	0	1214631..1215674	-	347	33240763	galE	Pro1314	-	UDP-glucose 4-epimerase
1313	 35.19	0	1215866..1216891	-	341	33240764	wcaG	Pro1315	-	NAD dependent epimerase/dehydratase
1314	 33.09	0	1217122..1218336	+	404	33240765	wza	Pro1316	-	polysaccharide export-related periplasmic protein
1315	 35.07	0	1218351..1219040	-	229	33240766	-	Pro1317	-	protein distantly related to SAM-dependent methyltransferase
1316	 32.27	-1	1219466..1220125	+	219	33240767	hisB	Pro1318	-	HAD family phosphatase
1317	 34.15	0	1220127..1221353	+	408	33240768	-	Pro1319	-	FAD dependent oxidoreductase
1318	 35.25	0	1221358..1222086	+	242	33240769	GCD1	Pro1320	-	nucleotidyl transferase family enzyme
1319	 34.35	0	1222089..1222679	+	196	33240770	gmhA	Pro1321	-	phosphoheptose isomerase
1320	 34.85	0	1222693..1224207	+	504	33240771	rfaE	Pro1322	-	ADP-heptose synthase
1321	 33.23	0	1224296..1225243	+	315	33240772	wcaG	Pro1323	-	NAD dependent epimerase/dehydratase
1322	 27.75	-2	1225302..1226018	+	238	33240773	-	Pro1324	-	SAM-dependent methyltransferase
1323	 31.19	-1	1226040..1226924	+	294	33240774	wcaA	Pro1325	-	glycosyltransferase
1324	 29.69	-1	1226928..1227887	+	319	33240775	wcaA	Pro1326	-	glycosyltransferase
1325	 33.15	0	1227921..1229027	+	368	33240776	rfaG	Pro1327	-	glycosyltransferase
1326	 30.28	-1	1229035..1230018	+	327	33240777	wcaA	Pro1328	-	glycosyltransferase
1327	 29.22	-1	1230051..1231217	+	388	33240778	rfaG	Pro1329	-	glycosyltransferase
1328	 34.24	0	1231308..1233065	+	585	33240779	gumC	Pro1330	-	hypothetical protein
1329	 31.23	-1	1233124..1234359	+	411	33240780	-	Pro1331	-	hypothetical protein
1330	 32.55	-1	1234364..1236145	-	593	33240781	mdlB	Pro1332	-	ABC-type multidrug transport system ATPase and permease components
1331	 29.51	-1	1236299..1237162	-	287	33240782	smtA	Pro1333	-	SAM-dependent methyltransferase
1332	 30.52	-1	1237463..1238422	+	319	33240783	-	Pro1334	-	beta-1,4-N-acetylglucosaminyltransferase
1333	 31.65	-1	1238448..1240286	-	612	33240784	-	Pro1335	-	hypothetical protein
1334	 42.36	+1	1240339..1240947	-	202	33240785	lexA	Pro1336	-	SOS function regulatory protein, LexA repressor
1335	 38.77	0	1241014..1241970	-	318	33240786	argF	Pro1337	-	ornithine carbamoyltransferase
1336	 39.07	0	1242030..1243895	-	621	33240787	ftsH	Pro1338	-	cell division protein FtsH3
1337	 40.58	0	1243991..1245094	-	367	33240788	ribD	Pro1339	-	pyrimidine reductase
1338	 33.90	0	1245084..1245614	-	176	33240789	-	Pro1340	-	hypothetical protein
1339	 40.07	0	1245607..1245873	-	88	33240790	-	Pro1341	-	hypothetical protein
1340	 36.02	0	1245934..1247238	+	434	33240791	cobL	Pro1342	-	precorrin-6B methylase 2
1341	 43.89	+1	1247256..1248164	-	302	33240792	ppnK	Pro1343	-	inorganic polyphosphate/ATP-NAD kinase
1342	 38.49	0	1248203..1249210	-	335	33240793	pheS	Pro1344	-	phenylalanyl-tRNA synthetase alpha chain
1343	 40.18	0	1249282..1250070	+	262	33240794	surE	Pro1345	-	survival protein SurE
1344	 42.91	+1	1250076..1250639	-	187	33240795	-	Pro1346	-	hypothetical protein
1345	 38.34	0	1250700..1251617	+	305	33240796	ribF	Pro1347	-	putative riboflavin kinase/FAD synthase
1346	 35.25	0	1251780..1252820	+	346	33240797	thiE	Pro1348	-	thiamine-phosphate pyrophosphorylase
1347	 34.74	0	1252817..1253029	+	70	33240798	thiS	Pro1349	-	sulfur transfer protein
1348	 41.67	+1	1253279..1253446	+	55	33240799	-	Pro1350	-	hypothetical protein
1349	 39.26	0	1253515..1253649	+	44	33240800	-	Pro1351	-	hypothetical protein
1350	 40.48	0	1253660..1254331	-	223	33240801	-	Pro1352	-	circadian phase modifier CpmA-like protein
1351	 34.44	0	1254328..1254777	-	149	33240802	-	Pro1353	-	hypothetical protein
1352	 39.54	0	1254780..1256003	-	407	33240803	trmD/ispF	Pro1354	-	tRNA-(guanine-N1)-methyltransferase fused to 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1353	 38.41	0	1256009..1256953	-	314	33240804	era	Pro1355	-	GTP-binding protein Era
1354	 37.38	0	1257003..1257521	+	172	33240805	-	Pro1356	-	hypothetical protein
1355	 41.06	+1	1257588..1258325	-	245	33240806	-	Pro1357	-	integral membrane protein, interacts with FtsH
1356	 40.02	0	1258398..1259369	-	323	33240807	phoH	Pro1358	-	phosphate starvation-inducible protein PhoH
1357	 42.42	+1	1259377..1259772	-	131	33240808	rpsP	Pro1359	-	30S ribosomal protein S16
1358	 42.87	+1	1259847..1261304	-	485	33240809	ffh	Pro1360	-	signal recognition particle protein
1359	 36.98	0	1261377..1263434	-	685	33240810	-	Pro1361	-	cell division protein Ftn2
1360	 41.64	+1	1263536..1264630	+	364	33240811	acoA	Pro1362	-	pyruvate dehydrogenase E1 alpha subunit
1361	 39.17	0	1264686..1265627	-	313	33240812	rpoD	Pro1363	-	DNA-directed RNA polymerase sigma subunit (sigma70/sigma32)
1362	 38.65	0	1265759..1267318	-	519	33240813	-	Pro1364	-	fused sugar kinase/uncharacterized domain-containing protein
1363	 38.57	0	1267363..1268583	+	406	33240814	trmU	Pro1365	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1364	 40.27	0	1268586..1270070	-	494	33240815	lnt	Pro1366	-	putative apolipoprotein n-acyltransferase
1365	 41.58	+1	1270179..1270772	+	197	33240816	fkpA	Pro1367	-	FKBP-type peptidyl-prolyl cis-trans isomerase (PPIase)
1366	 40.93	0	1270861..1271334	+	157	33240817	-	Pro1368	-	putative nickel-containing superoxide dismutase precursor (NISOD)
1367	 29.92	-1	1271423..1271686	+	87	33240818	-	Pro1369	-	Signal peptidase I
1368	 39.16	0	1271704..1272372	-	222	33240819	-	Pro1370	-	hydrogenase accessory protein
1369	 37.07	0	1272471..1273352	-	293	33240820	trpC	Pro1371	-	indole-3-glycerol-phosphate synthase
1370	 40.80	0	1273375..1274820	-	481	33240821	lpd	Pro1372	-	dihydrolipoamide dehydrogenase
1371	 40.88	0	1274836..1275630	-	264	33240822	spoU	Pro1373	-	rRNA methylase
1372	 39.59	0	1276078..1277451	+	457	33240823	murA	Pro1374	-	UDP-N-acetylglucosamine enolpyruvyl transferase
1373	 37.04	0	1277574..1278761	+	395	33240824	argD	Pro1375	-	acetylornithine aminotransferase
1374	 35.52	0	1278758..1279993	+	411	33240825	folC	Pro1376	-	folylpolyglutamate synthase
1375	 38.40	0	1279998..1281338	-	446	33240826	glcD	Pro1377	-	FAD/FMN-containing dehydrogenase
1376	 38.88	0	1281331..1282629	-	432	33240827	ssnA	Pro1378	-	putative cytosine deaminase
1377	 37.04	0	1282845..1284245	+	466	33240828	miaB	Pro1379	-	2-methylthioadenine synthetase
1378	 36.27	0	1284301..1285356	+	351	33240829	ddlA	Pro1380	-	D-alanine-D-alanine ligase and related ATP-grasp enzyme
1379	 44.28	+1	1285410..1285820	+	136	33240830	-	Pro1381	-	hypothetical protein
1380	 34.92	0	1285778..1286596	+	272	33240831	ftsQ	Pro1382	-	cell division protein FtsQ
1381	 44.18	+1	1286755..1287870	+	371	33240832	ftsZ	Pro1383	-	cell division protein FtsZ
1382	 41.25	+1	1288028..1288798	+	256	33240833	panB	Pro1384	-	ketopantoate hydroxymethyltransferase
1383	 35.89	0	1288767..1290017	-	416	33240834	hemN	Pro1385	-	putative oxygen-independent coproporphyrinogen III oxidase
37.01	MEAN

3.99	STD DEV
