IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

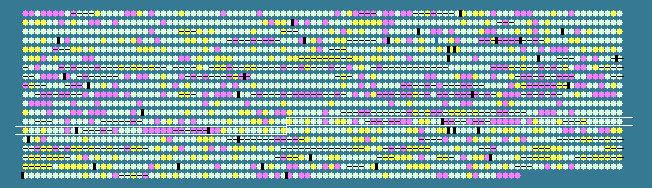

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1245	 44.68	+1	1149118..1149399	-	93	33240696	infA	Pro1246	-	translation initiation factor IF-1
1246	 34.72	0	1149471..1149686	-	71	33240697	-	Pro1247	-	hypothetical protein
1247	 38.63	0	1149747..1150709	-	320	33240698	-	Pro1248	-	putative chaperon-like protein for quinone binding in photosystem II
1248	 48.48	+2	1150769..1150867	-	32	33240699	petM	Pro1249	-	cytochrome b6-f complex subunit PetM
1249	 36.62	0	1151116..1152090	+	324	33240700	mhpC	Pro1250	-	alpha/beta fold family hydrolase
1250	 40.04	0	1152087..1152593	+	168	33240701	ilvH	Pro1251	-	acetolactate synthase 3 regulatory subunit
1251	 28.77	-2	1152648..1153349	-	233	33240702	ppiB	Pro1252	-	peptidyl-prolyl cis-trans isomerase
1252	 36.43	0	1153349..1153930	-	193	33240703	-	Pro1253	-	photosystem I assembly protein Ycf4
1253	 44.48	+1	1154108..1155184	+	358	33240704	psbD	Pro1254	-	photosystem II reaction center D2
1254	 43.46	+1	1155168..1156550	+	460	33240705	psbC	Pro1255	-	photosystem II PsbC protein (CP43)
1255	 33.81	0	1156646..1157272	-	208	33240706	maf	Pro1257	-	nucleotide-binding protein implicated in inhibition of septum formation
1256	 29.90	-1	1157248..1157655	+	135	33240707	-	Pro1258	-	hypothetical protein
1257	 37.47	0	1157652..1159175	+	507	33240708	cobQ	Pro1259	-	cobyric acid synthase
1258	 37.40	0	1159172..1159417	+	81	33240709	fdx	Pro1260	-	hypothetical protein
1259	 32.49	-1	1159507..1160925	-	472	33240710	-	Pro1261	-	Zn-dependent hydrolase of the beta-lactamase fold, partial
1260	 31.04	-1	1160963..1163053	-	696	33240711	-	Pro1262	-	membrane associated acyltransferase
1261	 34.99	0	1163358..1163720	-	120	33240712	-	Pro1263	-	hypothetical protein
1262	 29.77	-1	1163872..1164573	+	233	33240713	-	Pro1264	-	hypothetical protein
1263	 30.20	-1	1164742..1167198	+	818	33240714	-	Pro1265	-	hypothetical protein
1264	 29.11	-1	1167199..1167885	+	228	33240715	-	Pro1266	-	hypothetical protein
1265	 27.10	-2	1167975..1168856	+	293	33240716	-	Pro1267	-	calcineurin family phosphoesterase
1266	 37.60	0	1168897..1169787	+	296	33240717	glyQ	Pro1268	-	glycyl-tRNA synthetase subunit alpha
1267	 44.40	+1	1169899..1171452	+	517	33240718	-	Pro1269	-	porin-like protein
1268	 42.39	+1	1171620..1171862	-	80	33240719	-	Pro1270	-	hypothetical protein
1269	 36.19	0	1171958..1172623	-	221	33240720	piuC	Pro1271	-	putative hydroxylase
1270	 37.71	0	1172770..1173798	+	342	33240721	afuA	Pro1272	-	ABC-type Fe3+ transport system periplasmic component
1271	 28.16	-2	1174268..1174828	-	186	33240722	-	Pro1273	-	hypothetical protein
1272	 32.04	-1	1174866..1176800	+	644	33240723	-	Pro1274	-	DNA helicase
1273	 36.78	0	1177065..1177238	-	57	33240724	-	Pro1275	-	hypothetical protein
1274	 33.70	0	1177675..1178226	+	183	33240725	-	Pro1276	-	hypothetical protein
1275	 31.75	-1	1178442..1179323	+	293	33240726	smtA	Pro1277	-	SAM-dependent methyltransferase
1276	 31.97	-1	1179653..1180312	+	219	33240727	-	Pro1278	-	HAD superfamily hydrolase
1277	 30.30	-1	1180290..1181246	+	318	33240728	-	Pro1279	-	HAD superfamily hydrolase
1278	 34.32	0	1181185..1181991	+	268	33240729	-	Pro1280	-	transketolase
1279	 33.44	0	1182001..1182927	+	308	33240730	-	Pro1281	-	1-deoxy-xylulose 5-phosphate synthase
1280	 32.41	-1	1182924..1183790	+	288	33240731	wcaG	Pro1282	-	NAD dependent epimerase/dehydratase
1281	 31.15	-1	1183902..1184678	+	258	33240732	-	Pro1283	-	2OG-Fe(II) dioxygenase superfamily protein
1282	 31.18	-1	1184675..1185091	+	138	33240733	-	Pro1284	-	hypothetical protein
1283	 33.33	0	1185095..1185754	+	219	33240734	smtA	Pro1285	-	SAM-dependent methyltransferase
1284	 35.76	0	1185806..1186918	+	370	33240735	glf	Pro1286	-	UDP-galactopyranose mutase
1285	 28.26	-2	1186958..1188259	+	433	33240736	-	Pro1287	-	hypothetical protein
1286	 42.25	+1	1188562..1189626	+	354	33240737	pcbF	Pro1288	-	chlorophyll a/b binding light harvesting protein PcbF
1287	 37.56	0	1189952..1190803	-	283	33240738	-	Pro1289	-	hypothetical protein
1288	 38.21	0	1190861..1191823	-	320	33240739	-	Pro1290	-	hypothetical protein
1289	 40.31	0	1191765..1192997	-	410	33240740	-	Pro1291	-	adhesin-like protein
1290	 40.56	0	1193100..1193279	-	59	33240741	-	Pro1292	-	hypothetical protein
1291	 34.21	0	1193707..1195527	-	606	33240742	arnT	Pro1293	-	glycosyl transferase family protein
1292	 39.21	0	1195563..1196651	-	362	33240743	rfaG	Pro1294	-	glycosyltransferase
1293	 38.21	0	1196648..1197610	-	320	33240744	rhaT	Pro1295	-	DMT family permease
1294	 41.73	+1	1197664..1198473	+	269	33240745	sppA	Pro1296	-	signal peptide peptidase SppA (protease IV)
1295	 39.94	0	1198498..1198860	+	120	33240746	aroH	Pro1297	-	chorismate mutase
1296	 35.56	0	1198942..1199526	+	194	33240747	-	Pro1298	-	hypothetical protein
1297	 39.86	0	1199583..1199720	+	45	33240748	rpmH	Pro1299	-	50S ribosomal protein L34
1298	 34.90	0	1199779..1200162	+	127	33240749	rnpA	Pro1300	-	ribonuclease P protein component
1299	 39.05	0	1200162..1200563	+	133	33240750	-	Pro1301	-	hypothetical protein
1300	 38.82	0	1200654..1201802	+	382	33240751	yidC	Pro1302	-	putative inner membrane protein translocase component YidC
1301	 40.57	0	1201885..1203363	+	492	33240752	spoVK	Pro1303	-	AAA family ATPase
1302	 37.40	0	1203372..1204649	+	425	33240753	serS	Pro1304	-	seryl-tRNA synthetase
1303	 36.20	0	1204654..1205736	+	360	33240754	-	Pro1305	-	membrane-associated Zn-dependent protease
1304	 41.67	+1	1205795..1206094	+	99	33240755	rpsN	Pro1306	-	30S ribosomal protein S14
1305	 40.30	0	1206287..1208455	+	722	33240756	pnp	Pro1307	-	polynucleotide phosphorylase/polyadenylase
1306	 39.34	0	1208471..1209385	-	304	33240757	cysQ	Pro1308	-	3'-phosphoadenosine 5'-phosphosulfate 3'-phosphatase
1307	 37.36	0	1209387..1210304	+	305	33240758	-	Pro1309	-	tetrapyrrole methylase family protein
1308	 32.07	-1	1210325..1210561	+	78	33240759	-	Pro1310	-	hypothetical protein
1309	 35.40	0	1210574..1211299	-	241	33240760	-	Pro1311	-	hypothetical protein
1310	 34.32	0	1212167..1213582	-	471	33240761	ugd	Pro1312	-	UDP-glucose 6-dehydrogenase
1311	 35.82	0	1213586..1214509	-	307	33240762	wcaG	Pro1313	-	NAD dependent epimerase/dehydratase
1312	 35.63	0	1214631..1215674	-	347	33240763	galE	Pro1314	-	UDP-glucose 4-epimerase
1313	 35.19	0	1215866..1216891	-	341	33240764	wcaG	Pro1315	-	NAD dependent epimerase/dehydratase
1314	 33.09	0	1217122..1218336	+	404	33240765	wza	Pro1316	-	polysaccharide export-related periplasmic protein
1315	 35.07	0	1218351..1219040	-	229	33240766	-	Pro1317	-	protein distantly related to SAM-dependent methyltransferase
1316	 32.27	-1	1219466..1220125	+	219	33240767	hisB	Pro1318	-	HAD family phosphatase
1317	 34.15	0	1220127..1221353	+	408	33240768	-	Pro1319	-	FAD dependent oxidoreductase
1318	 35.25	0	1221358..1222086	+	242	33240769	GCD1	Pro1320	-	nucleotidyl transferase family enzyme
1319	 34.35	0	1222089..1222679	+	196	33240770	gmhA	Pro1321	-	phosphoheptose isomerase
1320	 34.85	0	1222693..1224207	+	504	33240771	rfaE	Pro1322	-	ADP-heptose synthase
1321	 33.23	0	1224296..1225243	+	315	33240772	wcaG	Pro1323	-	NAD dependent epimerase/dehydratase
1322	 27.75	-2	1225302..1226018	+	238	33240773	-	Pro1324	-	SAM-dependent methyltransferase
1323	 31.19	-1	1226040..1226924	+	294	33240774	wcaA	Pro1325	-	glycosyltransferase
1324	 29.69	-1	1226928..1227887	+	319	33240775	wcaA	Pro1326	-	glycosyltransferase
1325	 33.15	0	1227921..1229027	+	368	33240776	rfaG	Pro1327	-	glycosyltransferase
1326	 30.28	-1	1229035..1230018	+	327	33240777	wcaA	Pro1328	-	glycosyltransferase
1327	 29.22	-1	1230051..1231217	+	388	33240778	rfaG	Pro1329	-	glycosyltransferase
1328	 34.24	0	1231308..1233065	+	585	33240779	gumC	Pro1330	-	hypothetical protein
1329	 31.23	-1	1233124..1234359	+	411	33240780	-	Pro1331	-	hypothetical protein
1330	 32.55	-1	1234364..1236145	-	593	33240781	mdlB	Pro1332	-	ABC-type multidrug transport system ATPase and permease components
1331	 29.51	-1	1236299..1237162	-	287	33240782	smtA	Pro1333	-	SAM-dependent methyltransferase
1332	 30.52	-1	1237463..1238422	+	319	33240783	-	Pro1334	-	beta-1,4-N-acetylglucosaminyltransferase
1333	 31.65	-1	1238448..1240286	-	612	33240784	-	Pro1335	-	hypothetical protein
1334	 42.36	+1	1240339..1240947	-	202	33240785	lexA	Pro1336	-	SOS function regulatory protein, LexA repressor
1335	 38.77	0	1241014..1241970	-	318	33240786	argF	Pro1337	-	ornithine carbamoyltransferase
1336	 39.07	0	1242030..1243895	-	621	33240787	ftsH	Pro1338	-	cell division protein FtsH3
1337	 40.58	0	1243991..1245094	-	367	33240788	ribD	Pro1339	-	pyrimidine reductase
1338	 33.90	0	1245084..1245614	-	176	33240789	-	Pro1340	-	hypothetical protein
1339	 40.07	0	1245607..1245873	-	88	33240790	-	Pro1341	-	hypothetical protein
1340	 36.02	0	1245934..1247238	+	434	33240791	cobL	Pro1342	-	precorrin-6B methylase 2
1341	 43.89	+1	1247256..1248164	-	302	33240792	ppnK	Pro1343	-	inorganic polyphosphate/ATP-NAD kinase
1342	 38.49	0	1248203..1249210	-	335	33240793	pheS	Pro1344	-	phenylalanyl-tRNA synthetase alpha chain
1343	 40.18	0	1249282..1250070	+	262	33240794	surE	Pro1345	-	survival protein SurE
1344	 42.91	+1	1250076..1250639	-	187	33240795	-	Pro1346	-	hypothetical protein
37.01	MEAN

3.99	STD DEV
