IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

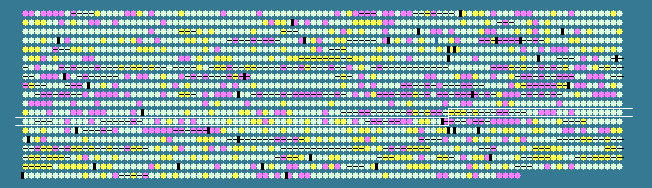

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1172	 41.67	+1	1095606..1095773	+	55	33240623	-	Pro1173	-	hypothetical protein
1173	 42.12	+1	1095893..1096951	-	352	33240624	pcbH	Pro1174	-	chlorophyll a/b binding light harvesting protein PcbH
1174	 45.37	+2	1097458..1097565	+	35	33240625	hli8	Pro1175	-	high light inducible protein hli8
1175	 39.05	0	1097580..1097789	+	69	33240626	hli7	Pro1176	-	high light inducible protein hli7
1176	 40.74	0	1098074..1098397	+	107	33240627	-	Pro1177	-	hypothetical protein
1177	 36.36	0	1098837..1099067	+	76	33240628	-	Pro1178	-	hypothetical protein
1178	 36.11	0	1099132..1099347	-	71	33240629	-	Pro1179	-	hypothetical protein
1179	 34.83	0	1099484..1099750	-	88	33240630	hugZ	Pro1180	-	putative heme iron utilization protein
1180	 31.83	-1	1099793..1100455	-	220	33240631	-	Pro1181	-	hypothetical protein
1181	 27.94	-2	1100638..1100841	+	67	33240632	-	Pro1182	-	hypothetical protein
1182	 36.11	0	1100854..1101069	-	71	33240633	-	Pro1183	-	hypothetical protein
1183	 34.52	0	1101411..1102592	+	393	33240634	purT	Pro1184	-	phosphoribosylglycinamide formyltransferase 2
1184	 37.29	0	1102737..1103039	+	100	33240635	-	Pro1185	-	hypothetical protein
1185	 37.50	0	1103247..1103366	+	39	33240636	-	Pro1186	-	hypothetical protein
1186	 36.27	0	1103408..1104157	-	249	33240637	-	Pro1187	-	hypothetical protein
1187	 28.49	-2	1104450..1104635	+	61	33240638	-	Pro1188	-	hypothetical protein
1188	 28.63	-2	1104601..1104834	+	77	33240639	-	Pro1189	-	hypothetical protein
1189	 32.77	-1	1104944..1105120	-	58	33240640	-	Pro1190	-	hypothetical protein
1190	 35.22	0	1105175..1105651	-	158	33240641	-	Pro1191	-	hypothetical protein
1191	 36.67	0	1105916..1106875	+	319	33240642	tas	Pro1192	-	oxidoreductase
1192	 31.52	-1	1106880..1107155	-	91	33240643	-	Pro1193	-	hypothetical protein
1193	 33.91	0	1107344..1107517	-	57	33240644	-	Pro1194	-	hypothetical protein
1194	 37.42	0	1107661..1107978	+	105	33240645	-	Pro1195	-	hypothetical protein
1195	 35.71	0	1108136..1110067	+	643	33240646	uup	Pro1196	-	ABC transporter ATPase
1196	 40.40	0	1110206..1110502	-	98	33240647	-	Pro1197	-	RNA-binding protein
1197	 33.80	0	1110734..1111165	+	143	33240648	-	Pro1198	-	hypothetical protein
1198	 35.71	0	1111490..1111699	+	69	33240649	-	Pro1199	-	hypothetical protein
1199	 37.91	0	1111747..1112379	+	210	33240650	-	Pro1200	-	dioxygenase
1200	 34.31	0	1112424..1113344	+	306	33240651	-	Pro1201	-	permease
1201	 36.18	0	1113529..1113774	+	81	33240652	-	Pro1202	-	hypothetical protein
1202	 37.16	0	1113963..1115270	+	435	33240653	mntH	Pro1203	-	Mn2+/Fe2+ transporter
1203	 37.17	0	1115324..1115662	-	112	33240654	-	Pro1204	-	MIF/phenylpyruvate tautomerase family protein
1204	 37.15	0	1115755..1116147	-	130	33240655	-	Pro1205	-	hypothetical protein
1205	 40.17	0	1116150..1116266	-	38	33240656	-	Pro1206	-	hypothetical protein
1206	 34.48	0	1116464..1116724	-	86	33240657	-	Pro1207	-	hypothetical protein
1207	 36.21	0	1116904..1118016	-	370	33240658	desA	Pro1208	-	Fatty acid desaturase
1208	 32.13	-1	1118372..1118620	-	82	33240659	-	Pro1209	-	hypothetical protein
1209	 39.35	0	1119024..1119488	-	154	33240660	-	Pro1210	-	nucleoside 2-deoxyribosyltransferase
1210	 39.28	0	1119493..1119879	-	128	33240661	-	Pro1211	-	phosphoribosyltransferase
1211	 33.74	0	1119968..1120459	-	163	33240662	-	Pro1212	-	hypothetical protein
1212	 32.90	-1	1120744..1120974	-	76	33240663	-	Pro1213	-	hypothetical protein
1213	 39.57	0	1121144..1122250	-	368	33240664	desA	Pro1214	-	Fatty acid desaturase
1214	 33.78	0	1122633..1122854	+	73	33240665	-	Pro1215	-	hypothetical protein
1215	 36.34	0	1122990..1123322	-	110	33240666	-	Pro1216	-	hypothetical protein
1216	 39.39	0	1123812..1124009	+	65	33240667	-	Pro1217	-	hypothetical protein
1217	 37.55	0	1124543..1124803	+	86	33240668	-	Pro1218	-	hypothetical protein
1218	 38.10	0	1124867..1125454	+	195	33240669	-	Pro1219	-	hypothetical protein
1219	 33.16	0	1125517..1126104	-	195	33240670	glpG	Pro1220	-	rhomboid family membrane serine protease
1220	 36.88	0	1126114..1126593	-	159	33240671	ctuE	Pro1221	-	glutathione peroxidase
1221	 33.95	0	1126677..1126838	+	53	33240672	-	Pro1222	-	hypothetical protein
1222	 37.31	0	1127426..1127827	+	133	33240673	-	Pro1223	-	hypothetical protein
1223	 33.33	0	1127972..1128268	-	98	33240674	-	Pro1224	-	hypothetical protein
1224	 35.19	0	1128356..1128787	+	143	33240675	prfB	Pro1225	-	hypothetical protein
1225	 40.62	0	1129473..1129760	-	95	33240676	-	Pro1226	-	hypothetical protein
1226	 39.31	0	1130027..1130746	-	239	33240677	kch	Pro1227	-	Kef-type K+ transporter NAD-binding component
1227	 33.33	0	1130800..1131051	-	83	33240678	-	Pro1228	-	hypothetical protein
1228	 36.57	0	1131357..1132253	+	298	33240679	mmsB	Pro1229	-	3-hydroxyisobutyrate dehydrogenase
1229	 32.56	-1	1132446..1132703	+	85	33240680	tatA	Pro1230	-	Sec-independent protein secretion pathway component TatA
1230	 35.11	0	1133344..1133961	+	205	33240681	-	Pro1231	-	hypothetical protein
1231	 37.73	0	1134012..1135103	-	363	33240682	-	Pro1232	-	translation-associated GTPase
1232	 36.53	0	1135226..1136287	+	353	33240683	acrA	Pro1233	-	HlyD family secretion protein
1233	 37.56	0	1136320..1139277	+	985	33240684	polA	Pro1234	-	DNA polymerase I
1234	 37.73	0	1139321..1140820	+	499	33240685	cysS	Pro1235	-	cysteinyl-tRNA synthetase
1235	 41.32	+1	1140924..1142162	+	412	33240686	dxr	Pro1236	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1236	 38.66	0	1142159..1142515	+	118	33240687	-	Pro1237	-	ferredoxin
1237	 37.29	0	1142495..1143607	-	370	33240688	-	Pro1238	-	alpha/beta fold family hydrolase
1238	 40.28	0	1143594..1145033	-	479	33240689	pntB	Pro1239	-	putative nicotinamide nucleotide transhydrogenase, subunit beta
1239	 41.16	+1	1145046..1145339	-	97	33240690	pntA	Pro1240	-	putative nicotinamide nucleotide transhydrogenase, subunit alpha 2 (A2)
1240	 40.86	0	1145339..1146481	-	380	33240691	pntA	Pro1241	-	putative nicotinamide nucleotide transhydrogenase, subunit alpha 1 (A1)
1241	 31.71	-1	1146508..1146630	-	40	33240692	-	Pro1242	-	hypothetical protein
1242	 41.24	+1	1146615..1147196	+	193	33240693	-	Pro1243	-	hypothetical protein
1243	 33.74	0	1147398..1147640	+	80	33240694	-	Pro1244	-	hypothetical protein
1244	 37.75	0	1147746..1149104	+	452	33240695	trxB	Pro1245	-	thioredoxin reductase
1245	 44.68	+1	1149118..1149399	-	93	33240696	infA	Pro1246	-	translation initiation factor IF-1
1246	 34.72	0	1149471..1149686	-	71	33240697	-	Pro1247	-	hypothetical protein
1247	 38.63	0	1149747..1150709	-	320	33240698	-	Pro1248	-	putative chaperon-like protein for quinone binding in photosystem II
1248	 48.48	+2	1150769..1150867	-	32	33240699	petM	Pro1249	-	cytochrome b6-f complex subunit PetM
1249	 36.62	0	1151116..1152090	+	324	33240700	mhpC	Pro1250	-	alpha/beta fold family hydrolase
1250	 40.04	0	1152087..1152593	+	168	33240701	ilvH	Pro1251	-	acetolactate synthase 3 regulatory subunit
1251	 28.77	-2	1152648..1153349	-	233	33240702	ppiB	Pro1252	-	peptidyl-prolyl cis-trans isomerase
1252	 36.43	0	1153349..1153930	-	193	33240703	-	Pro1253	-	photosystem I assembly protein Ycf4
1253	 44.48	+1	1154108..1155184	+	358	33240704	psbD	Pro1254	-	photosystem II reaction center D2
1254	 43.46	+1	1155168..1156550	+	460	33240705	psbC	Pro1255	-	photosystem II PsbC protein (CP43)
1255	 33.81	0	1156646..1157272	-	208	33240706	maf	Pro1257	-	nucleotide-binding protein implicated in inhibition of septum formation
1256	 29.90	-1	1157248..1157655	+	135	33240707	-	Pro1258	-	hypothetical protein
1257	 37.47	0	1157652..1159175	+	507	33240708	cobQ	Pro1259	-	cobyric acid synthase
1258	 37.40	0	1159172..1159417	+	81	33240709	fdx	Pro1260	-	hypothetical protein
1259	 32.49	-1	1159507..1160925	-	472	33240710	-	Pro1261	-	Zn-dependent hydrolase of the beta-lactamase fold, partial
1260	 31.04	-1	1160963..1163053	-	696	33240711	-	Pro1262	-	membrane associated acyltransferase
1261	 34.99	0	1163358..1163720	-	120	33240712	-	Pro1263	-	hypothetical protein
1262	 29.77	-1	1163872..1164573	+	233	33240713	-	Pro1264	-	hypothetical protein
1263	 30.20	-1	1164742..1167198	+	818	33240714	-	Pro1265	-	hypothetical protein
1264	 29.11	-1	1167199..1167885	+	228	33240715	-	Pro1266	-	hypothetical protein
1265	 27.10	-2	1167975..1168856	+	293	33240716	-	Pro1267	-	calcineurin family phosphoesterase
1266	 37.60	0	1168897..1169787	+	296	33240717	glyQ	Pro1268	-	glycyl-tRNA synthetase subunit alpha
1267	 44.40	+1	1169899..1171452	+	517	33240718	-	Pro1269	-	porin-like protein
1268	 42.39	+1	1171620..1171862	-	80	33240719	-	Pro1270	-	hypothetical protein
1269	 36.19	0	1171958..1172623	-	221	33240720	piuC	Pro1271	-	putative hydroxylase
1270	 37.71	0	1172770..1173798	+	342	33240721	afuA	Pro1272	-	ABC-type Fe3+ transport system periplasmic component
1271	 28.16	-2	1174268..1174828	-	186	33240722	-	Pro1273	-	hypothetical protein
37.01	MEAN

3.99	STD DEV
