IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

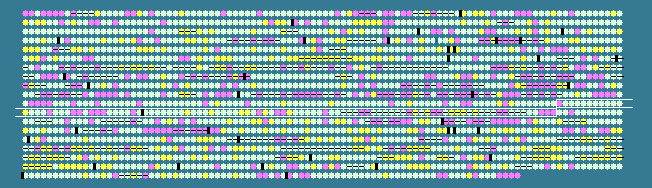

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1090	 30.73	-1	1014078..1014614	+	178	33240541	STE14	Pro1091	-	S-isoprenylcysteine O-methyltransferase related enzyme
1091	 36.62	0	1014658..1018428	+	1256	33240542	recB	Pro1092	-	ATP-dependent exoDNAse beta subunit
1092	 34.57	0	1018431..1020125	+	564	33240543	recD	Pro1093	-	ATP-dependent exoDNAse alpha subunit
1093	 37.91	0	1020284..1022095	+	603	33240544	srmB	Pro1094	-	superfamily II DNA/RNA helicase
1094	 34.68	0	1022105..1022401	+	98	33240545	-	Pro1095	-	hypothetical protein
1095	 35.35	0	1022433..1024214	+	593	33240546	mdlB	Pro1096	-	ABC-type multidrug transport system ATPase and permease components
1096	 36.38	0	1024233..1024790	-	185	33240547	psbP	Pro1097	-	photosystem II oxygen evolving complex protein PsbP
1097	 37.84	0	1024995..1025504	+	169	33240548	recR	Pro1098	-	recombinational DNA repair protein
1098	 38.40	0	1025520..1026446	+	308	33240549	lipA	Pro1099	-	lipoyl synthase
1099	 38.86	0	1026443..1026967	-	174	33240550	-	Pro1100	-	hypothetical protein
1100	 37.58	0	1026964..1027929	-	321	33240551	-	Pro1101	-	sulfurtransferase
1101	 40.74	0	1027922..1028920	-	332	33240552	cioB	Pro1102	-	biotin synthase
1102	 39.33	0	1028932..1029732	-	266	33240553	uppS	Pro1103	-	undecaprenyl pyrophosphate synthase
1103	 38.38	0	1029745..1030635	-	296	33240554	-	Pro1104	-	hypothetical protein
1104	 36.99	0	1030664..1032031	-	455	33240555	lysA	Pro1105	-	diaminopimelate decarboxylase
1105	 32.68	-1	1032104..1032565	+	153	33240556	rimI	Pro1106	-	acetyltransferase
1106	 37.07	0	1032758..1035328	+	856	33240557	clpA	Pro1107	-	Clp protease ATP-binding subunit
1107	 34.30	0	1035363..1036496	+	377	33240558	gldA	Pro1108	-	glycerol dehydrogenase family protein
1108	 36.05	0	1036509..1037390	+	293	33240559	-	Pro1109	-	alpha/beta fold family hydrolase
1109	 26.45	-2	1037394..1038032	+	212	33240560	-	Pro1110	-	hypothetical protein
1110	 33.45	0	1038029..1038919	-	296	33240561	cdsA	Pro1111	-	CDP-diglyceride synthetase
1111	 38.32	0	1038919..1040241	-	440	33240562	ldcC	Pro1112	-	lysine decarboxylase
1112	 32.12	-1	1040409..1042055	+	548	33240563	aarF	Pro1113	-	protein kinase
1113	 31.23	-1	1042125..1042838	+	237	33240564	rsuA	Pro1114	-	16S rRNA pseudouridylate synthase
1114	 30.51	-1	1042850..1043344	+	164	33240565	-	Pro1115	-	hypothetical protein
1115	 36.75	0	1043407..1044957	-	516	33240566	malQ	Pro1116	-	putative 4-alpha-glucanotransferase
1116	 37.00	0	1045272..1045817	-	181	33240567	-	Pro1117	-	hypothetical protein
1117	 37.91	0	1045915..1046898	+	327	33240568	prsA	Pro1118	-	ribose-phosphate pyrophosphokinase
1118	 36.32	0	1046909..1047343	-	144	33240569	-	Pro1119	-	hypothetical protein
1119	 31.35	-1	1047452..1048006	-	184	33240570	-	Pro1120	-	hypothetical protein
1120	 37.70	0	1048119..1049264	+	381	33240571	-	Pro1121	-	adaptive-response sensory kinase
1121	 35.06	0	1049395..1049916	-	173	33240572	-	Pro1122	-	oligoketide cyclase family protein
1122	 38.54	0	1050143..1051237	+	364	33240573	petH	Pro1123	-	ferredoxin-NADP oxidoreductase (FNR)
1123	 39.84	0	1051431..1052951	+	506	33240574	zwf	Pro1124	-	glucose-6-phosphate 1-dehydrogenase
1124	 39.80	0	1052991..1054304	+	437	33240575	-	Pro1125	-	putative glucose 6-phosphate dehydrogenase effector OpcA
1125	 36.10	0	1054324..1055733	+	469	33240576	cobB	Pro1126	-	cobyrinic acid a,c-diamide synthase
1126	 37.01	0	1055744..1057183	-	479	33240577	-	Pro1127	-	DNA helicase related to phage enzyme
1127	 39.34	0	1057180..1057695	-	171	33240578	-	Pro1128	-	hypothetical protein
1128	 40.86	0	1057692..1058594	-	300	33240579	ispA	Pro1129	-	polyprenyl synthetase
1129	 38.50	0	1058637..1059545	-	302	33240580	folD	Pro1130	-	5,10-methylene-tetrahydrofolate dehydrogenase/Methenyl tetrahydrofolate cyclohydrolase
1130	 37.34	0	1059598..1061718	+	706	33240581	-	Pro1131	-	HD superfamily hydrolase
1131	 36.39	0	1061781..1062173	-	130	33240582	-	Pro1132	-	hypothetical protein
1132	 40.51	0	1062277..1062513	-	78	33240583	-	Pro1133	-	hypothetical protein
1133	 40.04	0	1062576..1064186	-	536	33240584	leuA	Pro1134	-	2-isopropylmalate synthase
1134	 35.95	0	1064271..1065836	+	521	33240585	-	Pro1135	-	hypothetical protein
1135	 36.50	0	1065842..1067071	-	409	33240586	lcyB	Pro1136	-	lycopene beta cyclase related dehydrogenase
1136	 37.86	0	1067068..1069695	-	875	33240587	gyrA	Pro1137	-	DNA gyrase subunit A
1137	 41.49	+1	1070538..1071701	+	387	33240588	guaB	Pro1138	-	inositol-5-monophosphate dehydrogenase
1138	 43.52	+1	1071876..1072199	+	107	33240589	trxA	Pro1139	-	thioredoxin family protein
1139	 34.42	0	1072230..1072871	+	213	33240590	hisH	Pro1140	-	glutamine amidotransferase
1140	 33.17	0	1072868..1073470	+	200	33240591	-	Pro1141	-	N6-adenine-specific methylase
1141	 44.17	+1	1073451..1073570	-	39	33240592	petG	Pro1142	-	cytochrome b6-f complex subunit PetG
1142	 36.21	0	1073603..1074019	+	138	33240593	cccA	Pro1143	-	cytochrome C
1143	 33.06	0	1074016..1074756	+	246	33240594	lasT	Pro1144	-	rRNA methylase
1144	 33.24	0	1074790..1075827	+	345	33240595	penP	Pro1145	-	Beta-lactamase class A
1145	 42.06	+1	1075942..1077030	+	362	33240596	chlI	Pro1146	-	protoporphyrin IX magnesium chelatase subunit ChlI
1146	 38.46	0	1077035..1077502	+	155	33240597	ruvC	Pro1147	-	Holliday junction resolvasome endonuclease subunit
1147	 33.86	0	1077541..1078107	+	188	33240598	-	Pro1148	-	5-formyltetrahydrofolate cyclo-ligase
1148	 35.14	0	1078158..1078601	+	147	33240599	-	Pro1149	-	SufE protein
1149	 37.50	0	1078642..1079961	+	439	33240600	thrA	Pro1150	-	homoserine dehydrogenase
1150	 38.31	0	1080082..1080282	+	66	33240601	-	Pro1151	-	hypothetical protein
1151	 32.77	-1	1080330..1081931	+	533	33240602	ddpA	Pro1152	-	ABC transporter substrate-binding protein
1152	 37.84	0	1081924..1082943	+	339	33240603	dppB	Pro1153	-	ABC-type oligopeptide transport system permease
1153	 35.42	0	1082940..1084571	-	543	33240604	-	Pro1154	-	serine peptidase
1154	 34.59	0	1084544..1085818	+	424	33240605	proP	Pro1155	-	major facilitator superfamily permease
1155	 36.36	0	1085824..1086120	-	98	33240606	-	Pro1156	-	hypothetical protein
1156	 40.48	0	1086518..1087342	+	274	33240607	rbsK	Pro1157	-	ribokinase family sugar kinase
1157	 19.61	-2	1087360..1087563	+	67	33240608	-	Pro1158	-	hypothetical protein
1158	 33.33	0	1087742..1088026	-	94	33240609	-	Pro1159	-	hypothetical protein
1159	 35.38	0	1088118..1088312	-	64	33240610	-	Pro1160	-	hypothetical protein
1160	 39.86	0	1088437..1088988	-	183	33240611	-	Pro1161	-	pentapeptide repeat-containing protein
1161	 35.52	0	1089113..1089295	-	60	33240612	-	Pro1162	-	hypothetical protein
1162	 34.80	0	1089611..1089814	+	67	33240613	-	Pro1163	-	hypothetical protein
1163	 39.46	0	1089871..1090392	-	173	33240614	isiB	Pro1164	-	flavodoxin FldA
1164	 35.58	0	1090497..1090763	-	88	33240615	-	Pro1165	-	hypothetical protein
1165	 32.64	-1	1090875..1091018	-	47	33240616	-	Pro1166	-	hypothetical protein
1166	 42.45	+1	1091282..1092367	-	361	33240617	pcbD	Pro1167	-	chlorophyll a/b-binding light-harvesting protein PcbD
1167	 39.35	0	1092962..1093177	+	71	33240618	-	Pro1168	-	hypothetical protein
1168	 43.62	+1	1093355..1094404	-	349	33240619	pcbB	Pro1169	-	chlorophyll a/b binding light harvesting protein PcbB
1169	 31.37	-1	1094438..1094743	+	101	33240620	-	Pro1170	-	hypothetical protein
1170	 33.33	0	1094967..1095203	+	78	33240621	-	Pro1171	-	hypothetical protein
1171	 38.68	0	1095230..1095472	+	80	33240622	-	Pro1172	-	hypothetical protein
1172	 41.67	+1	1095606..1095773	+	55	33240623	-	Pro1173	-	hypothetical protein
1173	 42.12	+1	1095893..1096951	-	352	33240624	pcbH	Pro1174	-	chlorophyll a/b binding light harvesting protein PcbH
1174	 45.37	+2	1097458..1097565	+	35	33240625	hli8	Pro1175	-	high light inducible protein hli8
1175	 39.05	0	1097580..1097789	+	69	33240626	hli7	Pro1176	-	high light inducible protein hli7
1176	 40.74	0	1098074..1098397	+	107	33240627	-	Pro1177	-	hypothetical protein
1177	 36.36	0	1098837..1099067	+	76	33240628	-	Pro1178	-	hypothetical protein
1178	 36.11	0	1099132..1099347	-	71	33240629	-	Pro1179	-	hypothetical protein
1179	 34.83	0	1099484..1099750	-	88	33240630	hugZ	Pro1180	-	putative heme iron utilization protein
1180	 31.83	-1	1099793..1100455	-	220	33240631	-	Pro1181	-	hypothetical protein
1181	 27.94	-2	1100638..1100841	+	67	33240632	-	Pro1182	-	hypothetical protein
1182	 36.11	0	1100854..1101069	-	71	33240633	-	Pro1183	-	hypothetical protein
1183	 34.52	0	1101411..1102592	+	393	33240634	purT	Pro1184	-	phosphoribosylglycinamide formyltransferase 2
1184	 37.29	0	1102737..1103039	+	100	33240635	-	Pro1185	-	hypothetical protein
1185	 37.50	0	1103247..1103366	+	39	33240636	-	Pro1186	-	hypothetical protein
1186	 36.27	0	1103408..1104157	-	249	33240637	-	Pro1187	-	hypothetical protein
1187	 28.49	-2	1104450..1104635	+	61	33240638	-	Pro1188	-	hypothetical protein
1188	 28.63	-2	1104601..1104834	+	77	33240639	-	Pro1189	-	hypothetical protein
1189	 32.77	-1	1104944..1105120	-	58	33240640	-	Pro1190	-	hypothetical protein
37.01	MEAN

3.99	STD DEV
