IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

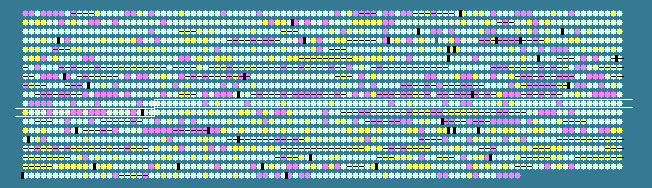

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1023	 34.77	0	940663..941427	-	254	33240474	-	Pro1024	-	hypothetical protein
1024	 37.88	0	941420..941881	-	153	33240475	-	Pro1025	-	hypothetical protein
1025	 36.19	0	941991..942620	+	209	33240476	cbiO	Pro1026	-	ABC transporter ATP-binding protein
1026	 36.75	0	942628..943533	+	301	33240477	-	Pro1027	-	disulfide bond chaperone
1027	 36.77	0	943544..944242	-	232	33240478	-	Pro1028	-	chaperone
1028	 38.25	0	944297..945964	-	555	33240479	prfC	Pro1029	-	peptide chain release factor 3
1029	 38.53	0	945965..946195	-	76	33240480	-	Pro1030	-	hypothetical protein
1030	 35.38	0	946328..946912	+	194	33240481	cioY	Pro1031	-	hypothetical protein
1031	 27.39	-2	946909..947379	+	156	33240482	lspA	Pro1032	-	lipoprotein signal peptidase
1032	 36.47	0	947426..948988	+	520	33240483	-	Pro1033	-	membrane associated GTPase
1033	 41.07	+1	948912..949079	-	55	33240484	-	Pro1034	-	hypothetical protein
1034	 38.08	0	949087..950454	-	455	33240485	gadB	Pro1035	-	pyridoxal-dependent decarboxylase family protein
1035	 37.78	0	950547..951041	+	164	33240486	cumB	Pro1036	-	cytosine/adenosine deaminase
1036	 39.59	0	951036..952202	-	388	33240487	-	Pro1037	-	serine:pyruvate/alanine:glyoxylate aminotransferase
1037	 39.73	0	952441..953862	+	473	33240488	glnA	Pro1038	-	glutamine synthetase, glutamate--ammonia ligase
1038	 23.23	-2	953966..954262	+	98	33240489	-	Pro1039	-	hypothetical protein
1039	 34.55	0	954354..955421	+	355	33240490	-	Pro1040	-	SAM (and some other nucleotide) binding motif:Generic methyl-transferase
1040	 39.71	0	955620..957596	-	658	33240491	acs	Pro1041	-	Acyl-coenzyme A synthetase
1041	 37.55	0	957870..958841	-	323	33240492	crtE	Pro1042	-	polyprenyl synthetase; solanesyl diphosphate synthase (sds)
1042	 35.70	0	958864..959667	-	267	33240493	murI	Pro1043	-	glutamate racemase
1043	 33.70	0	959664..960755	-	363	33240494	amiC	Pro1044	-	cell wall hydrolase/autolysin
1044	 41.12	+1	960760..961581	-	273	33240495	-	Pro1045	-	putative nitrilase
1045	 38.52	0	961612..962343	-	243	33240496	-	Pro1046	-	2-phosphosulfolactate phosphatase
1046	 39.14	0	962406..963971	+	521	33240497	ubiD	Pro1047	-	3-polyprenyl-4-hydroxybenzoate decarboxylase elated enzyme
1047	 39.93	0	964037..965371	+	444	33240498	aroA	Pro1048	-	3-phosphoshikimate 1-carboxyvinyltransferase
1048	 34.81	0	965352..966299	+	315	33240499	-	Pro1049	-	SAM-dependent methyltransferase
1049	 36.57	0	966333..967691	+	452	33240500	glmU	Pro1050	-	N-acetylglucosamine-1-phosphate uridyltransferase
1050	 36.62	0	967688..969088	-	466	33240501	murF	Pro1051	-	UDP-N-acetylmuramyl pentapeptide synthase
1051	 40.44	0	969133..970638	-	501	33240502	glgA	Pro1052	-	glycogen synthase
1052	 40.73	0	970687..971565	-	292	33240503	menB	Pro1053	-	naphthoate synthase
1053	 35.30	0	971612..973336	-	574	33240504	menD	Pro1054	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylate synthase
1054	 36.04	0	973448..974038	+	196	33240505	lepB	Pro1055	-	leader peptidase I
1055	 37.89	0	974080..974430	+	116	33240506	-	Pro1056	-	hypothetical protein
1056	 35.76	0	974420..975616	-	398	33240507	-	Pro1057	-	hypothetical protein
1057	 34.36	0	975619..976494	-	291	33240508	znuB	Pro1058	-	ABC-type Mn2+/Zn2+ transport system permease components
1058	 38.42	0	976491..977276	-	261	33240509	znuC	Pro1059	-	ABC transporter ATP-binding protein
1059	 37.46	0	977289..978161	-	290	33240510	znuA	Pro1060	-	ABC-type Mn2+/Zn2+ transport system periplasmic component
1060	 38.68	0	978296..979642	-	448	33240511	-	Pro1061	-	hypothetical protein
1061	 39.47	0	979891..980460	+	189	33240512	-	Pro1062	-	hypothetical protein
1062	 31.67	-1	980466..981485	+	339	33240513	trpS	Pro1063	-	tryptophanyl-tRNA synthetase
1063	 33.64	0	981485..983416	+	643	33240514	thrS	Pro1064	-	threonyl-tRNA synthetase
1064	 35.05	0	983438..984484	+	348	33240515	glk	Pro1065	-	glucokinase
1065	 41.14	+1	984498..985445	+	315	33240516	thrB	Pro1066	-	homoserine kinase
1066	 35.81	0	985503..987074	+	523	33240517	ndhD	Pro1067	-	NAD(P)H-quinone oxidoreductase subunit 4
1067	 36.15	0	987084..989210	+	708	33240518	dcp	Pro1068	-	peptidase family M3
1068	 35.74	0	989172..989795	-	207	33240519	lipA	Pro1069	-	alpha/beta fold family lipase
1069	 34.64	0	989799..990182	-	127	33240520	folB	Pro1070	-	dihydroneopterin aldolase
1070	 38.52	0	990188..991498	-	436	33240521	proA	Pro1071	-	gamma-glutamyl phosphate reductase
1071	 31.43	-1	991574..991993	-	139	33240522	nagC	Pro1072	-	sugar kinase
1072	 35.17	0	991996..995925	-	1309	33240523	-	Pro1073	-	hypothetical protein
1073	 39.23	0	996048..996641	+	197	33240524	-	Pro1074	-	hypothetical protein
1074	 31.49	-1	996619..997053	+	144	33240525	-	Pro1075	-	hypothetical protein
1075	 27.34	-2	997118..997384	+	88	33240526	-	Pro1076	-	hypothetical protein
1076	 39.24	0	997399..999006	+	535	33240527	-	Pro1077	-	alpha/beta fold family hydrolase
1077	 38.40	0	999042..1001309	+	755	33240528	glgB	Pro1078	-	glycogen branching enzyme
1078	 38.73	0	1001451..1002506	+	351	33240529	hemE	Pro1079	-	uroporphyrinogen decarboxylase
1079	 35.09	0	1002503..1003525	+	340	33240530	wcaG	Pro1080	-	NAD dependent epimerase/dehydratase
1080	 44.17	+1	1003534..1003893	+	119	33240531	petE	Pro1081	-	plastocyanin
1081	 32.64	-1	1004268..1006862	+	864	33240532	clpA	Pro1082	-	ATPase with chaperone activity ATP-binding subunit
1082	 45.93	+2	1006867..1007628	-	253	33240533	ompR	Pro1083	-	two-component response regulator
1083	 34.07	0	1007703..1007975	+	90	33240534	-	Pro1084	-	hypothetical protein
1084	 35.80	0	1007980..1008303	-	107	33240535	-	Pro1085	-	glutaredoxin-like protein
1085	 39.39	0	1008319..1008549	-	76	33240536	colA	Pro1086	-	BolA-like protein
1086	 35.40	0	1008601..1009131	-	176	33240537	-	Pro1087	-	hypothetical protein
1087	 39.47	0	1009168..1009851	-	227	33240538	plsC	Pro1088	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1088	 38.33	0	1010005..1010745	+	246	33240539	pdxJ	Pro1089	-	pyridoxal phosphate biosynthetic protein PdxJ
1089	 35.69	0	1010770..1014081	+	1103	33240540	recC	Pro1090	-	exonuclease V gamma subunit
1090	 30.73	-1	1014078..1014614	+	178	33240541	STE14	Pro1091	-	S-isoprenylcysteine O-methyltransferase related enzyme
1091	 36.62	0	1014658..1018428	+	1256	33240542	recB	Pro1092	-	ATP-dependent exoDNAse beta subunit
1092	 34.57	0	1018431..1020125	+	564	33240543	recD	Pro1093	-	ATP-dependent exoDNAse alpha subunit
1093	 37.91	0	1020284..1022095	+	603	33240544	srmB	Pro1094	-	superfamily II DNA/RNA helicase
1094	 34.68	0	1022105..1022401	+	98	33240545	-	Pro1095	-	hypothetical protein
1095	 35.35	0	1022433..1024214	+	593	33240546	mdlB	Pro1096	-	ABC-type multidrug transport system ATPase and permease components
1096	 36.38	0	1024233..1024790	-	185	33240547	psbP	Pro1097	-	photosystem II oxygen evolving complex protein PsbP
1097	 37.84	0	1024995..1025504	+	169	33240548	recR	Pro1098	-	recombinational DNA repair protein
1098	 38.40	0	1025520..1026446	+	308	33240549	lipA	Pro1099	-	lipoyl synthase
1099	 38.86	0	1026443..1026967	-	174	33240550	-	Pro1100	-	hypothetical protein
1100	 37.58	0	1026964..1027929	-	321	33240551	-	Pro1101	-	sulfurtransferase
1101	 40.74	0	1027922..1028920	-	332	33240552	cioB	Pro1102	-	biotin synthase
1102	 39.33	0	1028932..1029732	-	266	33240553	uppS	Pro1103	-	undecaprenyl pyrophosphate synthase
1103	 38.38	0	1029745..1030635	-	296	33240554	-	Pro1104	-	hypothetical protein
1104	 36.99	0	1030664..1032031	-	455	33240555	lysA	Pro1105	-	diaminopimelate decarboxylase
1105	 32.68	-1	1032104..1032565	+	153	33240556	rimI	Pro1106	-	acetyltransferase
1106	 37.07	0	1032758..1035328	+	856	33240557	clpA	Pro1107	-	Clp protease ATP-binding subunit
1107	 34.30	0	1035363..1036496	+	377	33240558	gldA	Pro1108	-	glycerol dehydrogenase family protein
1108	 36.05	0	1036509..1037390	+	293	33240559	-	Pro1109	-	alpha/beta fold family hydrolase
1109	 26.45	-2	1037394..1038032	+	212	33240560	-	Pro1110	-	hypothetical protein
1110	 33.45	0	1038029..1038919	-	296	33240561	cdsA	Pro1111	-	CDP-diglyceride synthetase
1111	 38.32	0	1038919..1040241	-	440	33240562	ldcC	Pro1112	-	lysine decarboxylase
1112	 32.12	-1	1040409..1042055	+	548	33240563	aarF	Pro1113	-	protein kinase
1113	 31.23	-1	1042125..1042838	+	237	33240564	rsuA	Pro1114	-	16S rRNA pseudouridylate synthase
1114	 30.51	-1	1042850..1043344	+	164	33240565	-	Pro1115	-	hypothetical protein
1115	 36.75	0	1043407..1044957	-	516	33240566	malQ	Pro1116	-	putative 4-alpha-glucanotransferase
1116	 37.00	0	1045272..1045817	-	181	33240567	-	Pro1117	-	hypothetical protein
1117	 37.91	0	1045915..1046898	+	327	33240568	prsA	Pro1118	-	ribose-phosphate pyrophosphokinase
1118	 36.32	0	1046909..1047343	-	144	33240569	-	Pro1119	-	hypothetical protein
1119	 31.35	-1	1047452..1048006	-	184	33240570	-	Pro1120	-	hypothetical protein
1120	 37.70	0	1048119..1049264	+	381	33240571	-	Pro1121	-	adaptive-response sensory kinase
1121	 35.06	0	1049395..1049916	-	173	33240572	-	Pro1122	-	oligoketide cyclase family protein
1122	 38.54	0	1050143..1051237	+	364	33240573	petH	Pro1123	-	ferredoxin-NADP oxidoreductase (FNR)
37.01	MEAN

3.99	STD DEV
