IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

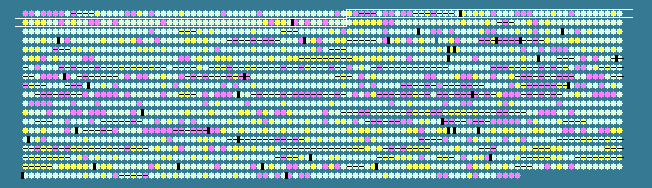

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
55	 42.34	+1	60286..60918	+	210	33239507	hupE	Pro0055	-	hydrogenase accessory membrane protein
56	 32.46	-1	61067..62899	-	610	33239508	mdlB	Pro0056	-	ABC-type multidrug transport system ATPase and permease components
57	 31.05	-1	63339..64562	+	407	33239509	rfaG	Pro0057	-	glycosyltransferase
58	 31.25	-1	64567..66531	-	654	33239510	asnB	Pro0058	-	asparagine synthetase
59	 30.21	-1	66592..68190	+	532	33239511	arnT	Pro0059	-	glycosyl transferase family protein
60	 34.27	0	68269..69663	+	464	33239512	wcaA	Pro0060	-	glycosyltransferase
61	 31.32	-1	69664..70605	+	313	33239513	-	Pro0061	-	hypothetical protein
62	 29.96	-1	70715..73054	+	779	33239514	arnT	Pro0062	-	glycosyl transferase family protein
63	 38.83	0	73141..74268	+	375	33239515	gmd	Pro0063	-	GDP-D-mannose dehydratase
64	 32.15	-1	74274..75287	+	337	33239516	wcaG	Pro0064	-	NAD dependent epimerase/dehydratase
65	 33.25	0	75660..76808	+	382	33239517	-	Pro0065	-	putative RNA methylase
66	 33.85	0	76805..77191	-	128	33239518	-	Pro0066	-	hypothetical protein
67	 39.78	0	77192..77656	-	154	33239519	-	Pro0067	-	hypothetical protein
68	 43.94	+1	77901..78032	+	43	33239520	-	Pro0068	-	hypothetical protein
69	 26.57	-2	78177..78383	+	68	33239521	-	Pro0069	-	hypothetical protein
70	 40.42	0	78441..78821	+	126	33239522	-	Pro0070	-	hypothetical protein
71	 36.88	0	78939..82493	+	1184	33239523	smc	Pro0071	-	chromosome segregation ATPase
72	 37.24	0	82558..83631	+	357	33239524	-	Pro0072	-	PRC-barrel domain-containing protein
73	 35.96	0	83662..84957	-	431	33239525	-	Pro0073	-	hypothetical protein
74	 40.81	0	85161..86510	+	449	33239526	accC	Pro0074	-	acetyl-CoA carboxylase biotin carboxylase subunit
75	 34.89	0	86523..86843	-	106	33239527	-	Pro0075	-	YGGT family membrane protein
76	 47.62	+2	86930..87097	+	55	33239528	psbX	Pro0076	-	photosystem II protein X PsbX
77	 40.79	0	87184..88242	+	352	33239529	-	Pro0077	-	hypothetical protein
78	 38.96	0	88280..88528	-	82	33239530	hli5	Pro0078	-	high light inducible protein hli5
79	 33.03	0	88537..90525	-	662	33239531	-	Pro0079	-	ABC transporter ATP-binding protein
80	 36.26	0	90732..91073	-	113	33239532	hit	Pro0080	-	HIT family hydrolase
81	 36.76	0	91268..91879	-	203	33239533	def	Pro0081	-	peptide deformylase
82	 33.84	0	91942..93900	+	652	33239534	DAP2	Pro0082	-	dipeptidyl aminopeptidase family protein
83	 32.93	-1	93897..95150	-	417	33239535	csdB	Pro0083	-	selenocysteine lyase
84	 29.80	-1	95159..96376	-	405	33239536	sufB	Pro0084	-	ABC-type transport system involved in Fe-S cluster assembly permease component
85	 32.58	-1	96384..97175	-	263	33239537	sufC	Pro0085	-	ABC-type transport system involved in Fe-S cluster assembly ATPase component
86	 33.89	0	97172..98614	-	480	33239538	sufB	Pro0086	-	cysteine desulfurase activator complex subunit SufB
87	 36.77	0	98697..99074	+	125	33239539	-	Pro0087	-	hypothetical protein
88	 39.16	0	99371..100468	+	365	33239540	-	Pro0088	-	hypothetical protein
89	 40.94	0	100490..100660	+	56	33239541	-	Pro0089	-	hypothetical protein
90	 39.06	0	100718..102376	+	552	33239542	pgm	Pro0090	-	phosphoglucomutase
91	 38.93	0	102410..103750	+	446	33239543	mGS1	Pro0091	-	recombination factor protein RarA
92	 31.35	-1	103816..104472	-	218	33239544	-	Pro0092	-	putative 4'-phosphopantetheinyl transferase family protein
93	 35.26	0	104471..104938	+	155	33239545	ccp	Pro0093	-	peroxiredoxin
94	 38.46	0	104886..105626	-	246	33239546	-	Pro0094	-	transcriptional regulator
95	 36.86	0	105629..106393	-	254	33239547	cysH	Pro0095	-	phosphoadenosine phosphosulfate reductase
96	 35.78	0	106440..107624	+	394	33239548	ndh	Pro0096	-	NADH dehydrogenase, FAD-containing subunit
97	 39.70	0	107726..109546	+	606	33239549	citT	Pro0097	-	putative sodium/sulfate transporter, DASS family
98	 37.46	0	109600..111003	+	467	33239550	trkG	Pro0098	-	putative sodium transporter, Trk family
99	 40.71	0	111000..111731	+	243	33239551	trkA	Pro0099	-	putative potassium channel, VIC family
100	 38.01	0	111732..112865	+	377	33239552	anmK	Pro0100	-	anhydro-N-acetylmuramic acid kinase
101	 42.67	+1	112874..113173	-	99	33239553	-	Pro0101	-	hypothetical protein
102	 39.34	0	113338..113703	+	121	33239554	-	Pro0102	-	hypothetical protein
103	 42.42	+1	113736..113966	+	76	33239555	-	Pro0103	-	hypothetical protein
104	 40.56	0	113950..114129	-	59	33239556	-	Pro0104	-	hypothetical protein
105	 34.33	0	114223..115932	+	569	33239557	uup	Pro0105	-	ABC transporter ATP-binding protein
106	 34.27	0	115973..117148	-	391	33239558	degQ	Pro0106	-	periplasmic trypsin-like serine protease
107	 26.55	-2	117173..117349	+	58	33239559	-	Pro0107	-	hypothetical protein
108	 38.58	0	117397..117663	+	88	33239560	-	Pro0108	-	hypothetical protein
109	 41.93	+1	117721..118104	+	127	33239561	-	Pro0109	-	hypothetical protein
110	 37.33	0	118186..118335	+	49	33239562	hli4	Pro0110	-	high light inducible protein hli4
111	 36.97	0	118373..119527	+	384	33239563	xseA	Pro0111	-	exonuclease VII, large subunit
112	 25.26	-2	119561..119845	+	94	33239564	xseB	Pro0112	-	exodeoxyribonuclease VII small subunit
113	 30.91	-1	119846..120175	-	109	33239565	-	Pro0113	-	hypothetical protein
114	 35.03	0	120179..121120	-	313	33239566	rbn	Pro0114	-	serum resistance locus BrkB-like protein
115	 34.56	0	121260..122072	-	270	33239567	-	Pro0115	-	inositol monophosphate family protein
116	 29.27	-1	122083..123708	-	541	33239568	tolC	Pro0116	-	Outer membrane efflux protein
117	 37.20	0	123683..125080	-	465	33239569	-	Pro0117	-	putative Fe-S oxidoreductase
118	 39.70	0	125392..126051	+	219	33239570	-	Pro0118	-	hypothetical protein
119	 39.72	0	126070..127728	+	552	33239571	nadB	Pro0119	-	L-aspartate oxidase
120	 34.39	0	127743..128684	-	313	33239572	-	Pro0120	-	hypothetical protein
121	 37.47	0	128876..130180	+	434	33239573	miaB	Pro0121	-	2-methylthioadenine synthetase
122	 35.48	0	130282..130374	-	30	161407961	petL	Pro0122	-	cytochrome b6-f complex subunit PetL
123	 36.87	0	130443..130838	-	131	33239575	folP	Pro0123	-	hypothetical protein
124	 21.93	-2	130998..131225	-	75	33239576	-	Pro0124	-	hypothetical protein
125	 34.69	0	131248..132423	-	391	33239577	-	Pro0125	-	hypothetical protein
126	 37.05	0	132420..133091	-	223	33239578	ribD	Pro0126	-	pyrimidine reductase
127	 37.73	0	133098..134006	-	302	33239579	-	Pro0127	-	6-pyruvoyl tetrahydropterin synthase
128	 36.82	0	134061..134633	+	190	33239580	aroK	Pro0128	-	shikimate kinase
129	 35.98	0	134614..134877	-	87	33239581	-	Pro0129	-	hypothetical protein
130	 37.05	0	134889..135614	-	241	33239582	gst	Pro0130	-	putative glutathione S-transferase
131	 35.75	0	135674..135880	+	68	33239583	-	Pro0131	-	hypothetical protein
132	 38.17	0	135883..136275	+	130	33239584	rbfA	Pro0132	-	ribosome-binding factor A
133	 38.36	0	136278..137927	+	549	33239585	cglX	Pro0133	-	Beta-glucosidase-related glycosidase
134	 34.95	0	137961..138764	+	267	33239586	hemD	Pro0134	-	putative uroporphyrinogen III synthase
135	 33.98	0	138772..139233	-	153	33239587	-	Pro0135	-	putative integral membrane protein
136	 38.88	0	139235..140695	-	486	33239588	crtQ	Pro0136	-	zeta-carotene desaturase
137	 39.90	0	140806..141201	+	131	33239589	iscA	Pro0137	-	hypothetical protein
138	 36.67	0	141244..141663	+	139	33239590	-	Pro0138	-	hypothetical protein
139	 39.48	0	141665..142867	+	400	33239591	-	Pro0139	-	hypothetical protein
140	 39.72	0	142902..143840	-	312	33239592	-	Pro0140	-	putative cell division inhibitor
141	 41.00	0	143921..144181	+	86	33239593	-	Pro0141	-	hypothetical protein
142	 33.18	0	144198..144854	-	218	33239594	cbpA	Pro0142	-	putative heat shock protein DnaJ
143	 41.38	+1	144878..145846	-	322	33239595	cysK	Pro0143	-	cysteine synthase
144	 41.67	+1	145956..146219	+	87	33239596	-	Pro0144	-	hypothetical protein
145	 38.34	0	146225..146923	+	232	33239597	cbiO	Pro0145	-	ABC-type cobalt transport system ATPase component
146	 32.30	-1	147584..147970	-	128	33239598	-	Pro0146	-	hypothetical protein
147	 34.44	0	148013..148735	-	240	33239599	-	Pro0147	-	hypothetical protein
148	 27.60	-2	148813..149457	-	214	33239600	-	Pro0148	-	hypothetical protein
149	 34.94	0	149466..150461	-	331	33239601	-	Pro0149	-	membrane protease family stomatin/prohibitin-like protein
150	 38.67	0	150619..151386	+	255	33239602	ompR	Pro0150	-	two-component response regulator
151	 29.97	-1	151418..152368	-	316	33239603	holB	Pro0151	-	DNA polymerase III subunit delta'
152	 34.69	0	152355..153017	-	220	33239604	tmk	Pro0152	-	thymidylate kinase
153	 35.61	0	153014..155338	-	774	33239605	zntA	Pro0153	-	putative P-type ATPase transporter for copper
154	 36.97	0	155480..156001	+	173	33239606	-	Pro0154	-	photosystem I assembly protein Ycf3
37.01	MEAN

3.99	STD DEV
