IslandPath Analysis: Propionibacterium acnes KPA171202

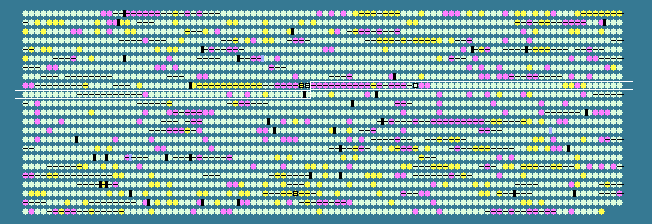

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
849	 51.01	-2	936198..938810	+	870	50842345	-	PPA0859	-	putative lanthionine biosynthesis protein
850	 55.56	-1	938791..939744	+	317	50842346	-	PPA0860	-	putative lanthionine biosynthesis protein
851	 51.25	-2	939741..940823	+	360	50842347	-	PPA0861	-	hypothetical protein
852	 53.26	-2	940823..942142	+	439	50842348	-	PPA0862	-	hypothetical protein
853	 54.65	-1	942173..942763	+	196	50842349	-	PPA0863	-	hypothetical protein
854	 52.90	-2	942787..944355	+	522	50842350	-	PPA0864	-	hypothetical protein
855	 53.84	-1	944352..945068	+	238	50842351	-	PPA0865	-	hypothetical protein
856	 51.22	-2	945258..945503	+	81	50842352	-	PPA0866	-	hypothetical protein
857	 48.72	-2	946094..946366	-	90	50842353	-	PPA0867	-	hypothetical protein
858	 56.49	-1	946715..946999	-	94	50842354	-	PPA2400	-	hypothetical protein
859	 65.96	+1	947043..947327	-	94	50842355	-	PPA2355	-	hypothetical protein
860	 54.44	-1	947633..948139	-	168	50842356	-	PPA0869	-	transcriptional regulator
861	 58.97	0	948169..948480	-	103	50842357	-	PPA0870	-	hypothetical protein
862	 51.11	-2	948499..948768	-	89	50842358	-	PPA0871	-	hypothetical protein
863	 53.97	-1	948738..948926	-	62	50842359	-	PPA0873	-	hypothetical protein
864	 56.42	-1	949031..949723	-	230	50842360	-	PPA0874	-	hypothetical protein
865	 58.32	0	949848..951236	+	462	50842361	-	PPA0875	-	GntR family regulatory protein
866	 62.08	0	951486..951725	+	79	50842362	-	PPA0876	-	putative transposase subunit
867	 56.45	-1	952257..954596	-	779	50842363	-	PPA0877	-	UvrA-like ABC transporter
868	 53.15	-2	954589..955017	-	142	50842364	-	PPA2399	-	transcriptional repressor, MarR family
869	 60.74	0	955443..956387	-	314	50842365	-	PPA0878	-	SorC family transcriptional regulator
870	 59.92	0	956567..957559	+	330	50842366	-	PPA0879	-	putative phosphotriesterase
871	 62.39	0	957565..958218	+	217	50842367	ulaD	PPA0880	-	3-keto-L-gulonate-6-phosphate decarboxylase
872	 61.60	0	958215..959102	+	295	50842368	-	PPA0881	-	L-xylulose 5-phosphate 3-epimerase
873	 59.04	0	959190..959858	+	222	50842369	-	PPA0882	-	L-ribulose-5-phosphate 4-epimerase
874	 59.62	0	959855..960805	+	316	50842370	-	PPA0883	-	2-keto-3-deoxygluconate kinase
875	 56.73	-1	960840..962198	+	452	50842371	-	PPA0884	-	sugar transporter, permease protein
876	 62.88	0	962597..963625	+	342	50842372	-	PPA0885	-	hydroxyethylthiazole kinase
877	 63.35	+1	963450..964262	+	270	50842373	-	PPA0886	-	thiamin-phosphate pyrophosphorylase
878	 60.06	0	964375..965343	+	322	50842374	-	PPA0887	-	L-lactate dehydrogenase
879	 59.70	0	965386..967092	+	568	50842375	-	PPA0888	-	malate dehydrogenase
880	 60.90	0	967162..967716	-	184	50842376	-	PPA0889	-	putative glucoamylase S1/S2 precursor
881	 58.65	0	967856..968878	+	340	50842377	-	PPA0891	-	hypothetical protein
882	 62.23	0	968888..969946	-	352	50842378	-	PPA0892	-	mebrane associated protein, DUF125
883	 59.77	0	969866..972346	+	826	50842379	leuS	PPA0893	-	leucyl-tRNA synthetase
884	 61.85	0	972470..973321	+	283	50842380	-	PPA0894	-	ComE operon protein 1
885	 61.91	0	973308..975662	+	784	50842381	-	PPA0895	-	putative ComE operon protein 3
886	 62.57	0	975792..977501	+	569	50842382	-	PPA0896	-	putative RNA helicase
887	 59.42	0	977948..978913	+	321	50842383	-	PPA0897	-	DNA polymerase III, delta subunit
888	 61.42	0	979041..979307	-	88	50842384	-	PPA0898	-	30S ribosomal protein S20
889	 57.84	0	981470..983305	+	611	50842385	-	PPA0901	-	GTP-binding protein LepA
890	 63.00	0	983302..984309	+	335	50842386	-	PPA0902	-	O-succinylbenzoate synthase
891	 66.91	+2	984221..985837	+	538	50842387	-	PPA0903	-	menaquinone biosynthesis protein
892	 66.22	+1	985810..987165	-	451	50842388	-	PPA0904	-	isochorismate synthetase, enterochelin biosynthesis
893	 55.21	-1	987216..987407	-	63	50842389	-	PPA0905	-	hypothetical protein
894	 70.34	+2	987629..988879	-	416	50842390	-	PPA0906	-	O-succinylbenzoic acid-CoA ligase
895	 63.03	0	988821..989810	-	329	50842391	-	PPA0907	-	naphthoate synthase
896	 59.50	0	989835..990587	-	250	50842392	-	PPA0908	-	hypothetical protein
897	 56.95	0	990927..991595	+	222	50842393	-	PPA0909	-	acetyl-coenzyme A synthetase
898	 62.37	0	991632..991817	+	61	50842394	-	PPA0910	-	acetyl-CoA synthetase
899	 60.07	0	992396..993577	+	393	50842395	-	PPA0911	-	coproporphyrinogen III oxidase
900	 57.89	0	993629..994528	+	299	50842396	-	PPA0912	-	hypothetical protein
901	 58.79	0	994525..995286	+	253	50842397	-	PPA0913	-	inositol monophosphatase family protein
902	 60.46	0	995305..996093	-	262	50842398	-	PPA0914	-	putative metallo-beta-lactamase
903	 61.86	0	996120..997139	+	339	50842399	hrcA	PPA0915	-	heat-inducible transcription repressor
904	 59.54	0	997143..998321	+	392	50842400	-	PPA0916	-	chaperone protein DnaJ2
905	 61.67	0	998318..999058	+	246	50842401	-	PPA0917	-	hypothetical protein
906	 59.03	0	999077..1000123	-	348	50842402	-	PPA0918	-	putative zinc-binding sorbitol dehydrogenase
907	 59.70	0	1000152..1002059	-	635	50842403	-	PPA0919	-	PTS system, mannitol-specific IIABC component
908	 60.70	0	1002250..1002651	-	133	50842404	-	PPA0920	-	hypothetical protein
909	 61.92	0	1002813..1004963	-	716	50842405	-	PPA0921	-	ATP-dependent DNA helicase
910	 60.02	0	1005046..1006263	-	405	50842406	-	PPA0922	-	putative UDP-N-acetylglucosamine pyrophosphorylase
911	 62.38	0	1006306..1007145	-	279	50842407	-	PPA0923	-	hypothetical protein
912	 61.27	0	1007244..1008485	+	413	50842408	-	PPA0924	-	queuine/archaeosine tRNA-ribosyltransferase
913	 62.37	0	1008533..1009882	+	449	50842409	-	PPA0925	-	putative two-component system sensor kinase
914	 63.17	0	1009882..1010538	+	218	50842410	-	PPA0926	-	putative two-component response regulator
915	 62.00	0	1010623..1011543	+	306	50842411	-	PPA0927	-	ABC transporter, ATP-binding protein
916	 57.94	0	1011540..1012307	+	255	50842412	-	PPA0928	-	putative ABC transporter
917	 58.39	0	1012329..1012751	+	140	50842413	-	PPA0929	-	putative ABC transporter permease protein
918	 57.41	0	1012748..1012963	+	71	50842414	-	PPA0930	-	hypothetical protein
919	 57.88	0	1012933..1013751	-	272	50842415	-	PPA0931	-	hypothetical protein
920	 60.71	0	1013723..1014646	+	307	50842416	-	PPA0932	-	proline iminopeptidase
921	 47.10	-2	1015023..1015298	-	91	50842417	-	PPA0933	-	hypothetical protein
922	 58.51	0	1015295..1016017	-	240	50842418	-	PPA0934	-	hypothetical protein
923	 60.09	0	1016060..1016485	-	141	50842419	-	PPA0935	-	hypothetical protein
924	 59.12	0	1016522..1017541	+	339	50842420	-	PPA0936	-	PhoH-like protein
925	 58.33	0	1017538..1018005	+	155	50842421	-	PPA0937	-	putative metalloprotease
926	 58.74	0	1018002..1019300	+	432	50842422	-	PPA0938	-	putative hemolysin
927	 58.75	0	1019293..1020315	+	340	50842423	era	PPA0939	-	GTP-binding protein Era
928	 62.51	0	1020344..1021834	-	496	50842424	-	PPA0940	-	putative metal-dependent hydrolase
929	 59.10	0	1022078..1023781	+	567	161621797	-	PPA0941	-	2-isopropylmalate synthase
930	 61.09	0	1023790..1024596	-	268	50842426	-	PPA0942	-	undecaprenyl pyrophosphate synthetase
931	 57.66	0	1024698..1025363	-	221	50842427	-	PPA0943	-	hypothetical protein
932	 61.27	0	1025484..1026224	+	246	50842428	recO	PPA0944	-	DNA repair protein RecO
933	 56.79	-1	1026322..1027485	-	387	50842429	-	PPA0945	-	putative histidine kinase
934	 56.77	-1	1027539..1027730	-	63	50842430	-	PPA0946	-	hypothetical protein
935	 55.21	-1	1028068..1028739	+	223	50842431	-	PPA0947	-	two-component system response regulator
936	 57.00	0	1028740..1029153	-	137	50842432	-	PPA0948	-	metal uptake regulation protein
937	 57.59	0	1029249..1030769	+	506	50842433	-	PPA0949	-	glycyl-tRNA synthetase
938	 56.42	-1	1030909..1031679	+	256	50842434	-	PPA0950	-	putative succinate dehydrogenase subunit C
939	 61.46	0	1031676..1033808	+	710	50842435	sdhA	PPA0951	-	succinate dehydrogenase flavoprotein subunit
940	 60.47	0	1033805..1034563	+	252	50842436	-	PPA0952	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
941	 65.99	+1	1034762..1036528	-	588	50842437	-	PPA0953	-	phosphoribosyltransferase
942	 61.25	0	1036576..1037811	+	411	50842438	-	PPA0954	-	NifR3 family TIM-barrel protein
943	 59.82	0	1037869..1038978	+	369	50842439	-	PPA0955	-	deoxyguanosinetriphosphate triphosphohydrolase
944	 60.17	0	1038998..1039720	-	240	50842440	-	PPA0956	-	hypothetical protein
945	 59.46	0	1039796..1041667	+	623	50842441	dnaG	PPA0957	-	DNA primase
946	 58.67	0	1041754..1042566	+	270	50842442	-	PPA0958	-	RNA polymerase sigma factor
947	 60.16	0	1042580..1043086	+	168	50842443	-	PPA0959	-	hypothetical protein
948	 61.26	0	1043400..1044380	-	326	50842444	-	PPA0960	-	putative luciferase-like monooxygenase
60.05	MEAN

3.20	STD DEV
