IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

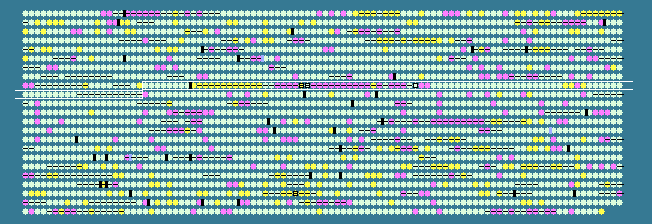

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
821	 61.08	0	911231..911839	+	202	50842317	-	PPA0831	-	TetR family transcriptional regulator
822	 60.15	0	911934..913697	+	587	50842318	-	PPA0832	-	major facilitator superfamily permease
823	 62.12	0	913800..915317	+	505	50842319	obgE	PPA0833	-	GTPase ObgE
824	 62.86	0	915250..916485	+	411	50842320	-	PPA0834	-	gamma-glutamyl kinase
825	 60.02	0	916534..917781	+	415	50842321	-	PPA0835	-	gamma-glutamyl phosphate reductase
826	 60.37	0	917747..918619	+	290	50842322	nadD	PPA0836	-	nicotinic acid mononucleotide adenylyltransferase
827	 57.78	0	918616..919020	+	134	50842323	-	PPA0837	-	hypothetical protein
828	 61.39	0	919101..919688	+	195	50842324	-	PPA0838	-	phosphoglycerate mutase/fructose-2,6-bisphosphatase
829	 67.95	+2	919867..921351	-	494	50842325	-	PPA0839	-	putative N-acetylmuramoyl-L-alanine amidase
830	 65.05	+1	921750..922058	+	102	50842326	-	PPA0840	-	hypothetical protein
831	 68.97	+2	922028..922375	+	115	50842327	-	PPA0841	-	hypothetical protein
832	 69.20	+2	922490..922726	+	78	50842328	-	PPA0842	-	hypothetical protein
833	 68.69	+2	923204..923599	-	131	50842329	-	PPA0843	-	ABC transporter ATP-binding protein fragment
834	 66.17	+1	923606..924205	-	199	50842330	-	PPA0844	-	ABC transporter ATP-binding protein fragment
835	 64.98	+1	924060..924593	-	177	50842331	-	PPA0845	-	ABC transporter ATP-binding protein fragment
836	 64.05	+1	924721..925026	+	101	50842332	-	PPA0846	-	conjugal transfer protein (TraA-like protein) fragment
837	 63.70	+1	924900..925169	+	89	50842333	-	PPA0847	-	conjugal transfer protein (TraA-like protein) fragment
838	 68.00	+2	925182..925556	+	124	50842334	-	PPA0848	-	conjugal transfer protein (TraA-like protein) fragment
839	 67.97	+2	925604..927295	+	563	50842335	-	PPA0849	-	transfer protein homolog TraA
840	 66.27	+1	927480..927977	-	165	50842336	-	PPA0850	-	putative DNA processing Smf-family protein
841	 59.95	0	928266..929873	+	535	50842337	-	PPA0851	-	hypothetical protein
842	 56.60	-1	929874..931562	+	562	50842338	-	PPA0852	-	putative ATP-dependent DNA helicase PcrA
843	 47.18	-2	932989..933183	-	64	50842339	-	PPA0853	-	hypothetical protein
844	 47.77	-2	933340..933630	-	96	50842340	-	PPA0854	-	hypothetical protein
845	 48.26	-2	933712..933912	+	66	50842341	-	PPA0855	-	hypothetical protein
846	 50.00	-2	934056..934355	-	99	50842342	-	PPA0856	-	hypothetical protein
847	 65.96	+1	935053..935337	+	94	50842343	-	PPA2354	-	putative transposase
848	 61.14	0	935472..935996	+	174	50842344	-	PPA0858	-	putative transposase subunit
849	 51.01	-2	936198..938810	+	870	50842345	-	PPA0859	-	putative lanthionine biosynthesis protein
850	 55.56	-1	938791..939744	+	317	50842346	-	PPA0860	-	putative lanthionine biosynthesis protein
851	 51.25	-2	939741..940823	+	360	50842347	-	PPA0861	-	hypothetical protein
852	 53.26	-2	940823..942142	+	439	50842348	-	PPA0862	-	hypothetical protein
853	 54.65	-1	942173..942763	+	196	50842349	-	PPA0863	-	hypothetical protein
854	 52.90	-2	942787..944355	+	522	50842350	-	PPA0864	-	hypothetical protein
855	 53.84	-1	944352..945068	+	238	50842351	-	PPA0865	-	hypothetical protein
856	 51.22	-2	945258..945503	+	81	50842352	-	PPA0866	-	hypothetical protein
857	 48.72	-2	946094..946366	-	90	50842353	-	PPA0867	-	hypothetical protein
858	 56.49	-1	946715..946999	-	94	50842354	-	PPA2400	-	hypothetical protein
859	 65.96	+1	947043..947327	-	94	50842355	-	PPA2355	-	hypothetical protein
860	 54.44	-1	947633..948139	-	168	50842356	-	PPA0869	-	transcriptional regulator
861	 58.97	0	948169..948480	-	103	50842357	-	PPA0870	-	hypothetical protein
862	 51.11	-2	948499..948768	-	89	50842358	-	PPA0871	-	hypothetical protein
863	 53.97	-1	948738..948926	-	62	50842359	-	PPA0873	-	hypothetical protein
864	 56.42	-1	949031..949723	-	230	50842360	-	PPA0874	-	hypothetical protein
865	 58.32	0	949848..951236	+	462	50842361	-	PPA0875	-	GntR family regulatory protein
866	 62.08	0	951486..951725	+	79	50842362	-	PPA0876	-	putative transposase subunit
867	 56.45	-1	952257..954596	-	779	50842363	-	PPA0877	-	UvrA-like ABC transporter
868	 53.15	-2	954589..955017	-	142	50842364	-	PPA2399	-	transcriptional repressor, MarR family
869	 60.74	0	955443..956387	-	314	50842365	-	PPA0878	-	SorC family transcriptional regulator
870	 59.92	0	956567..957559	+	330	50842366	-	PPA0879	-	putative phosphotriesterase
871	 62.39	0	957565..958218	+	217	50842367	ulaD	PPA0880	-	3-keto-L-gulonate-6-phosphate decarboxylase
872	 61.60	0	958215..959102	+	295	50842368	-	PPA0881	-	L-xylulose 5-phosphate 3-epimerase
873	 59.04	0	959190..959858	+	222	50842369	-	PPA0882	-	L-ribulose-5-phosphate 4-epimerase
874	 59.62	0	959855..960805	+	316	50842370	-	PPA0883	-	2-keto-3-deoxygluconate kinase
875	 56.73	-1	960840..962198	+	452	50842371	-	PPA0884	-	sugar transporter, permease protein
876	 62.88	0	962597..963625	+	342	50842372	-	PPA0885	-	hydroxyethylthiazole kinase
877	 63.35	+1	963450..964262	+	270	50842373	-	PPA0886	-	thiamin-phosphate pyrophosphorylase
878	 60.06	0	964375..965343	+	322	50842374	-	PPA0887	-	L-lactate dehydrogenase
879	 59.70	0	965386..967092	+	568	50842375	-	PPA0888	-	malate dehydrogenase
880	 60.90	0	967162..967716	-	184	50842376	-	PPA0889	-	putative glucoamylase S1/S2 precursor
881	 58.65	0	967856..968878	+	340	50842377	-	PPA0891	-	hypothetical protein
882	 62.23	0	968888..969946	-	352	50842378	-	PPA0892	-	mebrane associated protein, DUF125
883	 59.77	0	969866..972346	+	826	50842379	leuS	PPA0893	-	leucyl-tRNA synthetase
884	 61.85	0	972470..973321	+	283	50842380	-	PPA0894	-	ComE operon protein 1
885	 61.91	0	973308..975662	+	784	50842381	-	PPA0895	-	putative ComE operon protein 3
886	 62.57	0	975792..977501	+	569	50842382	-	PPA0896	-	putative RNA helicase
887	 59.42	0	977948..978913	+	321	50842383	-	PPA0897	-	DNA polymerase III, delta subunit
888	 61.42	0	979041..979307	-	88	50842384	-	PPA0898	-	30S ribosomal protein S20
889	 57.84	0	981470..983305	+	611	50842385	-	PPA0901	-	GTP-binding protein LepA
890	 63.00	0	983302..984309	+	335	50842386	-	PPA0902	-	O-succinylbenzoate synthase
891	 66.91	+2	984221..985837	+	538	50842387	-	PPA0903	-	menaquinone biosynthesis protein
892	 66.22	+1	985810..987165	-	451	50842388	-	PPA0904	-	isochorismate synthetase, enterochelin biosynthesis
893	 55.21	-1	987216..987407	-	63	50842389	-	PPA0905	-	hypothetical protein
894	 70.34	+2	987629..988879	-	416	50842390	-	PPA0906	-	O-succinylbenzoic acid-CoA ligase
895	 63.03	0	988821..989810	-	329	50842391	-	PPA0907	-	naphthoate synthase
896	 59.50	0	989835..990587	-	250	50842392	-	PPA0908	-	hypothetical protein
897	 56.95	0	990927..991595	+	222	50842393	-	PPA0909	-	acetyl-coenzyme A synthetase
898	 62.37	0	991632..991817	+	61	50842394	-	PPA0910	-	acetyl-CoA synthetase
899	 60.07	0	992396..993577	+	393	50842395	-	PPA0911	-	coproporphyrinogen III oxidase
900	 57.89	0	993629..994528	+	299	50842396	-	PPA0912	-	hypothetical protein
901	 58.79	0	994525..995286	+	253	50842397	-	PPA0913	-	inositol monophosphatase family protein
902	 60.46	0	995305..996093	-	262	50842398	-	PPA0914	-	putative metallo-beta-lactamase
903	 61.86	0	996120..997139	+	339	50842399	hrcA	PPA0915	-	heat-inducible transcription repressor
904	 59.54	0	997143..998321	+	392	50842400	-	PPA0916	-	chaperone protein DnaJ2
905	 61.67	0	998318..999058	+	246	50842401	-	PPA0917	-	hypothetical protein
906	 59.03	0	999077..1000123	-	348	50842402	-	PPA0918	-	putative zinc-binding sorbitol dehydrogenase
907	 59.70	0	1000152..1002059	-	635	50842403	-	PPA0919	-	PTS system, mannitol-specific IIABC component
908	 60.70	0	1002250..1002651	-	133	50842404	-	PPA0920	-	hypothetical protein
909	 61.92	0	1002813..1004963	-	716	50842405	-	PPA0921	-	ATP-dependent DNA helicase
910	 60.02	0	1005046..1006263	-	405	50842406	-	PPA0922	-	putative UDP-N-acetylglucosamine pyrophosphorylase
911	 62.38	0	1006306..1007145	-	279	50842407	-	PPA0923	-	hypothetical protein
912	 61.27	0	1007244..1008485	+	413	50842408	-	PPA0924	-	queuine/archaeosine tRNA-ribosyltransferase
913	 62.37	0	1008533..1009882	+	449	50842409	-	PPA0925	-	putative two-component system sensor kinase
914	 63.17	0	1009882..1010538	+	218	50842410	-	PPA0926	-	putative two-component response regulator
915	 62.00	0	1010623..1011543	+	306	50842411	-	PPA0927	-	ABC transporter, ATP-binding protein
916	 57.94	0	1011540..1012307	+	255	50842412	-	PPA0928	-	putative ABC transporter
917	 58.39	0	1012329..1012751	+	140	50842413	-	PPA0929	-	putative ABC transporter permease protein
918	 57.41	0	1012748..1012963	+	71	50842414	-	PPA0930	-	hypothetical protein
919	 57.88	0	1012933..1013751	-	272	50842415	-	PPA0931	-	hypothetical protein
920	 60.71	0	1013723..1014646	+	307	50842416	-	PPA0932	-	proline iminopeptidase
60.05	MEAN

3.20	STD DEV
