IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

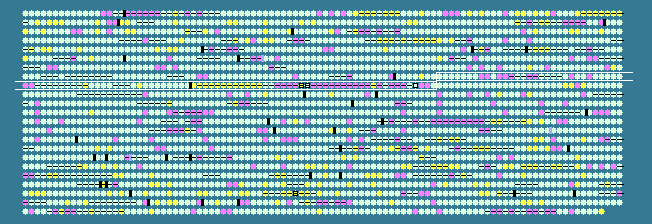

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
770	 58.12	0	856313..857716	+	467	50842266	-	PPA0779	-	putative for Fe-transport
771	 59.32	0	857622..858941	+	439	50842267	-	PPA0780	-	hemin receptor precursor
772	 58.45	0	858938..859996	+	352	50842268	-	PPA0781	-	ABC-type transporter, permease component
773	 61.15	0	859996..860775	+	259	50842269	-	PPA0782	-	ABC-type transporter, ATPase component
774	 58.95	0	860799..862508	+	569	50842270	-	PPA0783	-	ABC transporter ATP-binding protein
775	 58.05	0	862505..864175	+	556	50842271	-	PPA0784	-	ABC-type transport system, fused ATPase and permease
776	 60.63	0	864204..864899	+	231	50842272	-	PPA0785	-	dephospho-CoA kinase
777	 53.08	-2	865732..866931	+	399	50842273	-	PPA0786	-	hypothetical protein
778	 53.28	-2	867392..868213	-	273	50842274	-	PPA0787	-	magnesium-chelatase subunit ChlI
779	 58.74	0	868374..870176	-	600	50842275	-	PPA0788	-	magnesium-chelatase subunit
780	 49.16	-2	870292..870708	-	138	50842276	-	PPA0789	-	hypothetical protein
781	 56.33	-1	870744..872156	-	470	50842277	-	PPA0790	-	CobN/magnesium chelatase, putative subunit H
782	 54.74	-1	872003..874576	-	857	50842278	-	PPA0791	-	CobN/magnesium chelatase subunit
783	 57.14	0	874573..875370	-	265	50842279	-	PPA0792	-	iron(III) dicitrate transport system permease protein FecE
784	 57.20	0	875384..876196	-	270	50842280	-	PPA0793	-	iron(III) dicitrate transport system permease protein
785	 48.72	-2	876424..877203	-	259	50842281	-	PPA0794	-	periplasmic binding protein
786	 51.67	-2	877356..877595	+	79	50842282	-	PPA2406	-	hypothetical protein
787	 59.42	0	877803..878078	+	91	50842283	-	PPA0795	-	hypothetical protein
788	 58.33	0	878164..878439	-	91	50842284	-	PPA0796	-	ABC transporter ATP-binding protein
789	 59.57	0	878530..878811	-	93	50842285	-	PPA0797	-	ABC transporter ATP-binding protein
790	 59.61	0	878852..879361	-	169	50842286	-	PPA0798	-	putative permease
791	 59.38	0	879385..879864	-	159	50842287	-	PPA0799	-	hypothetical protein
792	 56.56	-1	879902..880663	-	253	50842288	-	PPA0800	-	hypothetical protein
793	 57.80	0	880966..881247	-	93	50842289	-	PPA0802	-	hypothetical protein
794	 58.12	0	881422..883527	+	701	50842290	-	PPA0803	-	excinuclease ABC subunit B
795	 56.26	-1	883718..884707	+	329	50842291	-	PPA0804	-	TerC family membrane protein
796	 58.90	0	884716..885372	-	218	50842292	-	PPA0805	-	Zn-dependent hydrolase
797	 63.44	+1	885418..886161	-	247	50842293	-	PPA0806	-	mycothiol-dependent maleylpyruvate isomerase
798	 60.10	0	886303..889272	+	989	50842294	uvrA	PPA0807	-	excinuclease ABC subunit A
799	 61.27	0	889287..889694	-	135	50842295	-	PPA0808	-	Rieske iron-sulfur protein
800	 60.51	0	889710..890456	-	248	50842296	-	PPA0809	-	putative phosphoglycerate mutase/fructose-2,6-bisphosphatase
801	 56.01	-1	890633..891796	+	387	50842297	-	PPA0810	-	hypothetical protein
802	 56.35	-1	891905..892282	+	125	50842298	-	PPA0811	-	hypothetical protein
803	 59.10	0	892433..894493	+	686	50842299	uvrC	PPA0812	-	excinuclease ABC subunit C
804	 60.50	0	894512..895387	+	291	50842300	-	PPA0813	-	hypothetical protein
805	 60.27	0	895384..896352	+	322	50842301	-	PPA0814	-	hypothetical protein
806	 61.52	0	896409..897398	+	329	50842302	-	PPA0815	-	hypothetical protein
807	 61.01	0	897632..898639	+	335	50842303	-	PPA0816	-	glyceraldehyde-3-phosphate dehydrogenase
808	 60.46	0	898762..899970	+	402	50842304	pgk	PPA0817	-	phosphoglycerate kinase
809	 60.90	0	899970..900749	+	259	50842305	tpiA	PPA0818	-	triosephosphate isomerase
810	 57.00	0	900850..901149	+	99	50842306	secG	PPA0819	-	preprotein translocase subunit SecG
811	 63.87	+1	901267..901623	+	118	50842307	-	PPA0820	-	electron transport protein
812	 60.44	0	901620..903065	+	481	50842308	-	PPA0821	-	folylpolyglutamate synthase
813	 57.62	0	903062..903448	+	128	50842309	-	PPA0822	-	hypothetical protein
814	 58.28	0	903470..903898	+	142	50842310	-	PPA0823	-	nucleoside diphosphate kinase
815	 58.12	0	903944..905896	+	650	50842311	-	PPA0824	-	Fe-S oxidoreductase family protein 2
816	 61.63	0	905899..906633	+	244	50842312	-	PPA0825	-	hypothetical protein
817	 60.84	0	906906..909530	+	874	50842313	-	PPA0826	-	putative ribonuclease
818	 60.84	0	909691..909999	+	102	50842314	rplU	PPA0827	-	50S ribosomal protein L21
819	 63.33	+1	910011..910280	+	89	50842315	rpmA	PPA0829	-	50S ribosomal protein L27
820	 65.00	+1	910531..911130	+	199	50842316	-	PPA0830	-	hypothetical protein
821	 61.08	0	911231..911839	+	202	50842317	-	PPA0831	-	TetR family transcriptional regulator
822	 60.15	0	911934..913697	+	587	50842318	-	PPA0832	-	major facilitator superfamily permease
823	 62.12	0	913800..915317	+	505	50842319	obgE	PPA0833	-	GTPase ObgE
824	 62.86	0	915250..916485	+	411	50842320	-	PPA0834	-	gamma-glutamyl kinase
825	 60.02	0	916534..917781	+	415	50842321	-	PPA0835	-	gamma-glutamyl phosphate reductase
826	 60.37	0	917747..918619	+	290	50842322	nadD	PPA0836	-	nicotinic acid mononucleotide adenylyltransferase
827	 57.78	0	918616..919020	+	134	50842323	-	PPA0837	-	hypothetical protein
828	 61.39	0	919101..919688	+	195	50842324	-	PPA0838	-	phosphoglycerate mutase/fructose-2,6-bisphosphatase
829	 67.95	+2	919867..921351	-	494	50842325	-	PPA0839	-	putative N-acetylmuramoyl-L-alanine amidase
830	 65.05	+1	921750..922058	+	102	50842326	-	PPA0840	-	hypothetical protein
831	 68.97	+2	922028..922375	+	115	50842327	-	PPA0841	-	hypothetical protein
832	 69.20	+2	922490..922726	+	78	50842328	-	PPA0842	-	hypothetical protein
833	 68.69	+2	923204..923599	-	131	50842329	-	PPA0843	-	ABC transporter ATP-binding protein fragment
834	 66.17	+1	923606..924205	-	199	50842330	-	PPA0844	-	ABC transporter ATP-binding protein fragment
835	 64.98	+1	924060..924593	-	177	50842331	-	PPA0845	-	ABC transporter ATP-binding protein fragment
836	 64.05	+1	924721..925026	+	101	50842332	-	PPA0846	-	conjugal transfer protein (TraA-like protein) fragment
837	 63.70	+1	924900..925169	+	89	50842333	-	PPA0847	-	conjugal transfer protein (TraA-like protein) fragment
838	 68.00	+2	925182..925556	+	124	50842334	-	PPA0848	-	conjugal transfer protein (TraA-like protein) fragment
839	 67.97	+2	925604..927295	+	563	50842335	-	PPA0849	-	transfer protein homolog TraA
840	 66.27	+1	927480..927977	-	165	50842336	-	PPA0850	-	putative DNA processing Smf-family protein
841	 59.95	0	928266..929873	+	535	50842337	-	PPA0851	-	hypothetical protein
842	 56.60	-1	929874..931562	+	562	50842338	-	PPA0852	-	putative ATP-dependent DNA helicase PcrA
843	 47.18	-2	932989..933183	-	64	50842339	-	PPA0853	-	hypothetical protein
844	 47.77	-2	933340..933630	-	96	50842340	-	PPA0854	-	hypothetical protein
845	 48.26	-2	933712..933912	+	66	50842341	-	PPA0855	-	hypothetical protein
846	 50.00	-2	934056..934355	-	99	50842342	-	PPA0856	-	hypothetical protein
847	 65.96	+1	935053..935337	+	94	50842343	-	PPA2354	-	putative transposase
848	 61.14	0	935472..935996	+	174	50842344	-	PPA0858	-	putative transposase subunit
849	 51.01	-2	936198..938810	+	870	50842345	-	PPA0859	-	putative lanthionine biosynthesis protein
850	 55.56	-1	938791..939744	+	317	50842346	-	PPA0860	-	putative lanthionine biosynthesis protein
851	 51.25	-2	939741..940823	+	360	50842347	-	PPA0861	-	hypothetical protein
852	 53.26	-2	940823..942142	+	439	50842348	-	PPA0862	-	hypothetical protein
853	 54.65	-1	942173..942763	+	196	50842349	-	PPA0863	-	hypothetical protein
854	 52.90	-2	942787..944355	+	522	50842350	-	PPA0864	-	hypothetical protein
855	 53.84	-1	944352..945068	+	238	50842351	-	PPA0865	-	hypothetical protein
856	 51.22	-2	945258..945503	+	81	50842352	-	PPA0866	-	hypothetical protein
857	 48.72	-2	946094..946366	-	90	50842353	-	PPA0867	-	hypothetical protein
858	 56.49	-1	946715..946999	-	94	50842354	-	PPA2400	-	hypothetical protein
859	 65.96	+1	947043..947327	-	94	50842355	-	PPA2355	-	hypothetical protein
860	 54.44	-1	947633..948139	-	168	50842356	-	PPA0869	-	transcriptional regulator
861	 58.97	0	948169..948480	-	103	50842357	-	PPA0870	-	hypothetical protein
862	 51.11	-2	948499..948768	-	89	50842358	-	PPA0871	-	hypothetical protein
863	 53.97	-1	948738..948926	-	62	50842359	-	PPA0873	-	hypothetical protein
864	 56.42	-1	949031..949723	-	230	50842360	-	PPA0874	-	hypothetical protein
865	 58.32	0	949848..951236	+	462	50842361	-	PPA0875	-	GntR family regulatory protein
866	 62.08	0	951486..951725	+	79	50842362	-	PPA0876	-	putative transposase subunit
867	 56.45	-1	952257..954596	-	779	50842363	-	PPA0877	-	UvrA-like ABC transporter
868	 53.15	-2	954589..955017	-	142	50842364	-	PPA2399	-	transcriptional repressor, MarR family
869	 60.74	0	955443..956387	-	314	50842365	-	PPA0878	-	SorC family transcriptional regulator
60.05	MEAN

3.20	STD DEV
