IslandPath Analysis: Propionibacterium acnes KPA171202

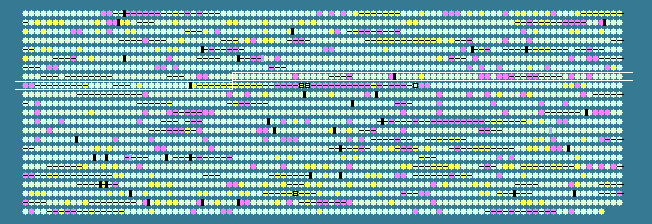

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 60.05   STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
736	 61.26	0	818098..818319	-	73	50842232	-	PPA0745	-	hypothetical protein
737	 57.72	0	818343..820556	-	737	50842233	-	PPA0746	-	putative protease
738	 62.47	0	820553..821695	-	380	50842234	-	PPA0747	-	hypothetical protein
739	 59.77	0	821776..822819	-	347	50842235	-	PPA0748	-	magnesium chelatase, subunit ChlI
740	 59.01	0	823041..823523	+	160	50842236	-	PPA0749	-	hypothetical protein
741	 60.06	0	823666..824679	+	337	50842237	-	PPA0750	-	S-adenosyl-methyltransferase MraW
742	 59.78	0	824676..825140	+	154	50842238	-	PPA0751	-	hypothetical protein
743	 59.45	0	825137..827062	+	641	50842239	-	PPA0752	-	cell division protein FtsI/penicillin-binding protein 2
744	 61.40	0	827149..828648	+	499	50842240	-	PPA0753	-	UDP-N-acetylmuramyl tripeptide synthase
745	 60.36	0	828645..830102	+	485	50842241	-	PPA0754	-	UDP-N-acetylmuramyl pentapeptide synthase
746	 55.65	-1	830099..831169	+	356	50842242	mraY	PPA0755	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
747	 61.34	0	831166..832647	+	493	50842243	murD	PPA0756	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
748	 59.11	0	832607..833929	+	440	50842244	-	PPA0757	-	cell division protein FtsW
749	 61.57	0	833972..835090	+	372	50842245	murG	PPA0758	-	N-acetylglucosaminyl transferase
750	 61.23	0	835102..836517	+	471	50842246	-	PPA0759	-	UDP-N-acetylmuramate--alanine ligase
751	 58.96	0	836517..837230	+	237	50842247	-	PPA0760	-	cell division protein FtsQ
752	 60.85	0	837353..838606	+	417	50842248	-	PPA0761	-	cell division protein FtsZ
753	 59.92	0	838608..839393	+	261	50842249	-	PPA0762	-	hypothetical protein
754	 58.57	0	839520..840038	+	172	50842250	-	PPA0763	-	hypothetical protein
755	 53.95	-1	840049..840339	+	96	50842251	-	PPA0764	-	hypothetical protein
756	 61.60	0	840492..841577	+	361	50842252	-	PPA0765	-	putative immunogenic protein antigen 84
757	 59.64	0	841780..842220	+	146	50842253	-	PPA0766	-	putative DNA-binding protein
758	 59.02	0	842184..842732	+	182	50842254	-	PPA0767	-	lipoprotein signal peptidase
759	 60.04	0	842774..843694	+	306	50842255	-	PPA0768	-	pseudouridylate synthase
760	 59.76	0	843812..845245	+	477	50842256	-	PPA0769	-	pyruvate kinase
761	 57.64	0	845527..845958	+	143	50842257	-	PPA0770	-	CrcB-like protein
762	 56.45	-1	845955..846326	+	123	50842258	-	PPA0771	-	CrcB-like protein
763	 58.61	0	846596..847228	+	210	50842259	-	PPA0772	-	putative two-component system response regulator
764	 62.08	0	847248..847661	-	137	50842260	-	PPA0773	-	ComAB protein
765	 58.73	0	847616..850411	+	931	50842261	-	PPA0774	-	DNA polymerase I
766	 60.25	0	850574..853003	-	809	50842262	-	PPA0775	-	oxidoreductase, putative D-lactate dehydrogenase
767	 64.53	+1	852949..853416	-	155	50842263	-	PPA0776	-	putative oxidoreductase
768	 56.63	-1	853496..854272	-	258	50842264	-	PPA0777	-	hypothetical protein
769	 60.32	0	854597..856093	+	498	50842265	rpsA	PPA0778	-	30S ribosomal protein S1
770	 58.12	0	856313..857716	+	467	50842266	-	PPA0779	-	putative for Fe-transport
771	 59.32	0	857622..858941	+	439	50842267	-	PPA0780	-	hemin receptor precursor
772	 58.45	0	858938..859996	+	352	50842268	-	PPA0781	-	ABC-type transporter, permease component
773	 61.15	0	859996..860775	+	259	50842269	-	PPA0782	-	ABC-type transporter, ATPase component
774	 58.95	0	860799..862508	+	569	50842270	-	PPA0783	-	ABC transporter ATP-binding protein
775	 58.05	0	862505..864175	+	556	50842271	-	PPA0784	-	ABC-type transport system, fused ATPase and permease
776	 60.63	0	864204..864899	+	231	50842272	-	PPA0785	-	dephospho-CoA kinase
777	 53.08	-2	865732..866931	+	399	50842273	-	PPA0786	-	hypothetical protein
778	 53.28	-2	867392..868213	-	273	50842274	-	PPA0787	-	magnesium-chelatase subunit ChlI
779	 58.74	0	868374..870176	-	600	50842275	-	PPA0788	-	magnesium-chelatase subunit
780	 49.16	-2	870292..870708	-	138	50842276	-	PPA0789	-	hypothetical protein
781	 56.33	-1	870744..872156	-	470	50842277	-	PPA0790	-	CobN/magnesium chelatase, putative subunit H
782	 54.74	-1	872003..874576	-	857	50842278	-	PPA0791	-	CobN/magnesium chelatase subunit
783	 57.14	0	874573..875370	-	265	50842279	-	PPA0792	-	iron(III) dicitrate transport system permease protein FecE
784	 57.20	0	875384..876196	-	270	50842280	-	PPA0793	-	iron(III) dicitrate transport system permease protein
785	 48.72	-2	876424..877203	-	259	50842281	-	PPA0794	-	periplasmic binding protein
786	 51.67	-2	877356..877595	+	79	50842282	-	PPA2406	-	hypothetical protein
787	 59.42	0	877803..878078	+	91	50842283	-	PPA0795	-	hypothetical protein
788	 58.33	0	878164..878439	-	91	50842284	-	PPA0796	-	ABC transporter ATP-binding protein
789	 59.57	0	878530..878811	-	93	50842285	-	PPA0797	-	ABC transporter ATP-binding protein
790	 59.61	0	878852..879361	-	169	50842286	-	PPA0798	-	putative permease
791	 59.38	0	879385..879864	-	159	50842287	-	PPA0799	-	hypothetical protein
792	 56.56	-1	879902..880663	-	253	50842288	-	PPA0800	-	hypothetical protein
793	 57.80	0	880966..881247	-	93	50842289	-	PPA0802	-	hypothetical protein
794	 58.12	0	881422..883527	+	701	50842290	-	PPA0803	-	excinuclease ABC subunit B
795	 56.26	-1	883718..884707	+	329	50842291	-	PPA0804	-	TerC family membrane protein
796	 58.90	0	884716..885372	-	218	50842292	-	PPA0805	-	Zn-dependent hydrolase
797	 63.44	+1	885418..886161	-	247	50842293	-	PPA0806	-	mycothiol-dependent maleylpyruvate isomerase
798	 60.10	0	886303..889272	+	989	50842294	uvrA	PPA0807	-	excinuclease ABC subunit A
799	 61.27	0	889287..889694	-	135	50842295	-	PPA0808	-	Rieske iron-sulfur protein
800	 60.51	0	889710..890456	-	248	50842296	-	PPA0809	-	putative phosphoglycerate mutase/fructose-2,6-bisphosphatase
801	 56.01	-1	890633..891796	+	387	50842297	-	PPA0810	-	hypothetical protein
802	 56.35	-1	891905..892282	+	125	50842298	-	PPA0811	-	hypothetical protein
803	 59.10	0	892433..894493	+	686	50842299	uvrC	PPA0812	-	excinuclease ABC subunit C
804	 60.50	0	894512..895387	+	291	50842300	-	PPA0813	-	hypothetical protein
805	 60.27	0	895384..896352	+	322	50842301	-	PPA0814	-	hypothetical protein
806	 61.52	0	896409..897398	+	329	50842302	-	PPA0815	-	hypothetical protein
807	 61.01	0	897632..898639	+	335	50842303	-	PPA0816	-	glyceraldehyde-3-phosphate dehydrogenase
808	 60.46	0	898762..899970	+	402	50842304	pgk	PPA0817	-	phosphoglycerate kinase
809	 60.90	0	899970..900749	+	259	50842305	tpiA	PPA0818	-	triosephosphate isomerase
810	 57.00	0	900850..901149	+	99	50842306	secG	PPA0819	-	preprotein translocase subunit SecG
811	 63.87	+1	901267..901623	+	118	50842307	-	PPA0820	-	electron transport protein
812	 60.44	0	901620..903065	+	481	50842308	-	PPA0821	-	folylpolyglutamate synthase
813	 57.62	0	903062..903448	+	128	50842309	-	PPA0822	-	hypothetical protein
814	 58.28	0	903470..903898	+	142	50842310	-	PPA0823	-	nucleoside diphosphate kinase
815	 58.12	0	903944..905896	+	650	50842311	-	PPA0824	-	Fe-S oxidoreductase family protein 2
816	 61.63	0	905899..906633	+	244	50842312	-	PPA0825	-	hypothetical protein
817	 60.84	0	906906..909530	+	874	50842313	-	PPA0826	-	putative ribonuclease
818	 60.84	0	909691..909999	+	102	50842314	rplU	PPA0827	-	50S ribosomal protein L21
819	 63.33	+1	910011..910280	+	89	50842315	rpmA	PPA0829	-	50S ribosomal protein L27
820	 65.00	+1	910531..911130	+	199	50842316	-	PPA0830	-	hypothetical protein
821	 61.08	0	911231..911839	+	202	50842317	-	PPA0831	-	TetR family transcriptional regulator
822	 60.15	0	911934..913697	+	587	50842318	-	PPA0832	-	major facilitator superfamily permease
823	 62.12	0	913800..915317	+	505	50842319	obgE	PPA0833	-	GTPase ObgE
824	 62.86	0	915250..916485	+	411	50842320	-	PPA0834	-	gamma-glutamyl kinase
825	 60.02	0	916534..917781	+	415	50842321	-	PPA0835	-	gamma-glutamyl phosphate reductase
826	 60.37	0	917747..918619	+	290	50842322	nadD	PPA0836	-	nicotinic acid mononucleotide adenylyltransferase
827	 57.78	0	918616..919020	+	134	50842323	-	PPA0837	-	hypothetical protein
828	 61.39	0	919101..919688	+	195	50842324	-	PPA0838	-	phosphoglycerate mutase/fructose-2,6-bisphosphatase
829	 67.95	+2	919867..921351	-	494	50842325	-	PPA0839	-	putative N-acetylmuramoyl-L-alanine amidase
830	 65.05	+1	921750..922058	+	102	50842326	-	PPA0840	-	hypothetical protein
831	 68.97	+2	922028..922375	+	115	50842327	-	PPA0841	-	hypothetical protein
832	 69.20	+2	922490..922726	+	78	50842328	-	PPA0842	-	hypothetical protein
833	 68.69	+2	923204..923599	-	131	50842329	-	PPA0843	-	ABC transporter ATP-binding protein fragment
834	 66.17	+1	923606..924205	-	199	50842330	-	PPA0844	-	ABC transporter ATP-binding protein fragment
835	 64.98	+1	924060..924593	-	177	50842331	-	PPA0845	-	ABC transporter ATP-binding protein fragment
60.05	MEAN

3.20	STD DEV
