IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

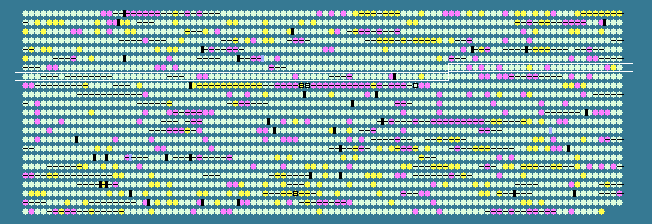

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
672	 59.10	0	746343..747545	-	400	50842168	-	PPA0681	-	hypothetical protein
673	 61.07	0	747509..749314	-	601	50842169	-	PPA0682	-	ABC transporter, ATP-binding protein
674	 61.61	0	749322..750092	-	256	50842170	-	PPA0683	-	hypothetical protein
675	 56.32	-1	750294..751985	-	563	50842171	-	PPA0684	-	sialidase B
676	 59.20	0	752060..754375	-	771	50842172	-	PPA0685	-	sialidase A precursor
677	 56.29	-1	754448..755980	-	510	50842173	-	PPA0686	-	putative sialic acid transporter
678	 58.21	0	756191..756592	+	133	50842174	-	PPA2405	-	hypothetical protein
679	 59.58	0	756689..757492	-	267	50842175	-	PPA0687	-	cAMP factor
680	 54.17	-1	758471..758662	-	63	50842176	-	PPA0688	-	hypothetical protein
681	 59.92	0	758856..759848	-	330	50842177	-	PPA0689	-	lipoyl synthase
682	 60.96	0	759859..762102	-	747	50842178	-	PPA0690	-	cation-transporting P-type ATPase A
683	 60.27	0	762099..764036	-	645	50842179	-	PPA0691	-	putative permease
684	 61.05	0	764092..764910	-	272	50842180	lipB	PPA0692	-	lipoyltransferase
685	 63.76	+1	765084..766457	-	457	50842181	-	PPA0693	-	dihydrolipoamide acyltransferase
686	 62.86	0	766618..768192	-	524	50842182	-	PPA0694	-	putative aminopeptidase
687	 60.83	0	768179..768658	+	159	50842183	-	PPA0695	-	hypothetical protein
688	 56.16	-1	768628..768846	-	72	50842184	-	PPA0696	-	hypothetical protein
689	 62.83	0	768890..769645	-	251	50842185	-	PPA0697	-	hypothetical protein
690	 60.20	0	769844..770647	+	267	50842186	-	PPA0698	-	phage shock protein A
691	 56.70	-1	770644..770934	+	96	50842187	-	PPA0699	-	hypothetical protein
692	 60.17	0	771105..771458	+	117	50842188	-	PPA0700	-	HesB protein, putative for nitrogen fixation
693	 57.87	0	771639..772547	+	302	50842189	-	PPA0701	-	cytochrome c oxidase subunit II
694	 58.12	0	772544..774262	+	572	50842190	-	PPA0702	-	cytochrome c oxidase polypeptide I
695	 61.36	0	774262..774657	+	131	50842191	-	PPA0703	-	hypothetical protein
696	 57.89	0	774709..777147	-	812	50842192	-	PPA0704	-	hypothetical protein
697	 59.32	0	777144..777701	-	185	50842193	-	PPA0705	-	putative ABC transporter ATP-binding protein
698	 54.79	-1	778612..778830	+	72	50842194	-	PPA0706	-	hypothetical protein
699	 63.58	+1	779173..779787	-	204	50842195	-	PPA0707	-	putative nucleoside-diphosphate-sugar epimerase
700	 61.05	0	779894..781354	-	486	50842196	-	PPA0708	-	inositol-5-monophosphate dehydrogenase
701	 63.21	0	781414..781731	+	105	50842197	-	PPA0709	-	putative methyltransferase
702	 59.94	0	781780..783459	-	559	50842198	-	PPA0710	-	cytochrome b subunit
703	 58.88	0	783459..784511	-	350	50842199	-	PPA0711	-	ubiquinol-cytochrome c reductase iron-sulfur subunit
704	 60.20	0	784508..785311	-	267	50842200	-	PPA0712	-	cytochrome c heme-binding subunit
705	 57.22	0	785343..785924	-	193	50842201	-	PPA0713	-	cytochrome c oxidase subunit III
706	 61.11	0	786247..786714	+	155	50842202	-	PPA0714	-	putative response regulator
707	 62.31	0	786998..787708	-	236	50842203	-	PPA0715	-	hypothetical protein
708	 60.99	0	787718..788263	-	181	50842204	-	PPA0716	-	hypothetical protein
709	 62.19	0	788491..789606	-	371	50842205	-	PPA0717	-	putative regulatory protein
710	 61.40	0	789789..790301	+	170	50842206	-	PPA0718	-	peptidyl-prolyl cis-trans isomerase A
711	 59.22	0	790419..791063	+	214	50842207	-	PPA0719	-	hypothetical protein
712	 59.83	0	790983..792884	-	633	50842208	-	PPA0720	-	hypothetical protein
713	 60.28	0	793035..794192	+	385	50842209	-	PPA0721	-	NPL/P60 family secreted protein
714	 59.85	0	794199..795269	+	356	50842210	-	PPA0722	-	glucokinase
715	 62.01	0	795274..795681	-	135	50842211	-	PPA0723	-	hypothetical protein
716	 58.73	0	795741..796496	+	251	50842212	-	PPA0724	-	putative acyltransferase
717	 60.57	0	796663..797220	+	185	50842213	-	PPA0725	-	putative acyltransferase
718	 58.84	0	797294..798712	+	472	50842214	-	PPA0726	-	phospho-2-dehydro-3-deoxyheptonate aldolase
719	 60.03	0	798816..799463	+	215	50842215	-	PPA0727	-	putative Zn-dependent hydrolase
720	 62.38	0	799479..800435	-	318	50842216	-	PPA0728	-	membrane spanning protein DUF6
721	 59.52	0	800485..801897	-	470	50842217	-	PPA0729	-	serine-threonine protein kinase
722	 58.33	0	802024..802467	+	147	50842218	-	PPA0730	-	guanyl-specific ribonuclease Sa3 precursor
723	 58.40	0	802464..802862	+	132	50842219	-	PPA0731	-	hypothetical protein
724	 63.11	0	802887..803984	-	365	50842220	-	PPA0732	-	geranylgeranyl pyrophosphate synthase
725	 62.78	0	804584..806845	-	753	50842221	-	PPA0733	-	putative helicase protein
726	 60.40	0	806892..808151	-	419	50842222	-	PPA0734	-	putative carotenoid dehydrogenase
727	 57.48	0	808110..808577	+	155	50842223	-	PPA0735	-	putative hydrolase
728	 61.44	0	808957..809415	+	152	50842224	-	PPA0737	-	18 kDa antigen 2
729	 59.30	0	809488..810858	-	456	50842225	-	PPA0738	-	gluconate permease
730	 56.25	-1	810934..811413	-	159	50842226	-	PPA0739	-	gluconokinase
731	 56.36	-1	811583..812290	+	235	50842227	-	PPA0740	-	GntR family transcriptional regulator
732	 57.76	0	812358..813188	+	276	50842228	-	PPA0741	-	putative GntR-famly transcriptional regulator
733	 61.44	0	813245..816229	-	994	50842229	-	PPA0742	-	glycine dehydrogenase
734	 59.41	0	816235..816606	-	123	50842230	-	PPA0743	-	glycine cleavage system protein H
735	 61.29	0	816646..817761	-	371	50842231	gcvT	PPA0744	-	glycine cleavage system aminomethyltransferase T
736	 61.26	0	818098..818319	-	73	50842232	-	PPA0745	-	hypothetical protein
737	 57.72	0	818343..820556	-	737	50842233	-	PPA0746	-	putative protease
738	 62.47	0	820553..821695	-	380	50842234	-	PPA0747	-	hypothetical protein
739	 59.77	0	821776..822819	-	347	50842235	-	PPA0748	-	magnesium chelatase, subunit ChlI
740	 59.01	0	823041..823523	+	160	50842236	-	PPA0749	-	hypothetical protein
741	 60.06	0	823666..824679	+	337	50842237	-	PPA0750	-	S-adenosyl-methyltransferase MraW
742	 59.78	0	824676..825140	+	154	50842238	-	PPA0751	-	hypothetical protein
743	 59.45	0	825137..827062	+	641	50842239	-	PPA0752	-	cell division protein FtsI/penicillin-binding protein 2
744	 61.40	0	827149..828648	+	499	50842240	-	PPA0753	-	UDP-N-acetylmuramyl tripeptide synthase
745	 60.36	0	828645..830102	+	485	50842241	-	PPA0754	-	UDP-N-acetylmuramyl pentapeptide synthase
746	 55.65	-1	830099..831169	+	356	50842242	mraY	PPA0755	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
747	 61.34	0	831166..832647	+	493	50842243	murD	PPA0756	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
748	 59.11	0	832607..833929	+	440	50842244	-	PPA0757	-	cell division protein FtsW
749	 61.57	0	833972..835090	+	372	50842245	murG	PPA0758	-	N-acetylglucosaminyl transferase
750	 61.23	0	835102..836517	+	471	50842246	-	PPA0759	-	UDP-N-acetylmuramate--alanine ligase
751	 58.96	0	836517..837230	+	237	50842247	-	PPA0760	-	cell division protein FtsQ
752	 60.85	0	837353..838606	+	417	50842248	-	PPA0761	-	cell division protein FtsZ
753	 59.92	0	838608..839393	+	261	50842249	-	PPA0762	-	hypothetical protein
754	 58.57	0	839520..840038	+	172	50842250	-	PPA0763	-	hypothetical protein
755	 53.95	-1	840049..840339	+	96	50842251	-	PPA0764	-	hypothetical protein
756	 61.60	0	840492..841577	+	361	50842252	-	PPA0765	-	putative immunogenic protein antigen 84
757	 59.64	0	841780..842220	+	146	50842253	-	PPA0766	-	putative DNA-binding protein
758	 59.02	0	842184..842732	+	182	50842254	-	PPA0767	-	lipoprotein signal peptidase
759	 60.04	0	842774..843694	+	306	50842255	-	PPA0768	-	pseudouridylate synthase
760	 59.76	0	843812..845245	+	477	50842256	-	PPA0769	-	pyruvate kinase
761	 57.64	0	845527..845958	+	143	50842257	-	PPA0770	-	CrcB-like protein
762	 56.45	-1	845955..846326	+	123	50842258	-	PPA0771	-	CrcB-like protein
763	 58.61	0	846596..847228	+	210	50842259	-	PPA0772	-	putative two-component system response regulator
764	 62.08	0	847248..847661	-	137	50842260	-	PPA0773	-	ComAB protein
765	 58.73	0	847616..850411	+	931	50842261	-	PPA0774	-	DNA polymerase I
766	 60.25	0	850574..853003	-	809	50842262	-	PPA0775	-	oxidoreductase, putative D-lactate dehydrogenase
767	 64.53	+1	852949..853416	-	155	50842263	-	PPA0776	-	putative oxidoreductase
768	 56.63	-1	853496..854272	-	258	50842264	-	PPA0777	-	hypothetical protein
769	 60.32	0	854597..856093	+	498	50842265	rpsA	PPA0778	-	30S ribosomal protein S1
770	 58.12	0	856313..857716	+	467	50842266	-	PPA0779	-	putative for Fe-transport
771	 59.32	0	857622..858941	+	439	50842267	-	PPA0780	-	hemin receptor precursor
60.05	MEAN

3.20	STD DEV
