IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

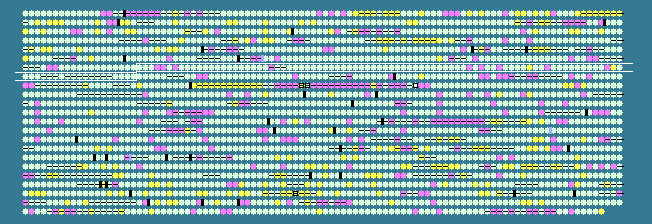

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
620	 62.09	0	695010..695948	-	312	50842116	-	PPA0629	-	putative lipoprotein
621	 61.68	0	695950..696912	-	320	50842117	-	PPA0630	-	transferase, putative tetrahydrodipicolinate N-succinyltransferase
622	 57.24	0	697007..697303	-	98	50842118	-	PPA0631	-	hypothetical protein
623	 55.79	-1	697293..698423	+	376	50842119	-	PPA0632	-	glycine amidinotransferase
624	 53.20	-2	698547..699608	+	353	50842120	-	PPA0633	-	putative permease
625	 57.95	0	699624..700919	+	431	50842121	-	PPA0634	-	proline/betaine transporter
626	 56.32	-1	700932..701540	-	202	50842122	-	PPA0635	-	putative regulator
627	 60.74	0	701664..702743	+	359	50842123	-	PPA0636	-	dipeptidase
628	 60.46	0	702788..703093	+	101	50842124	-	PPA0637	-	hypothetical protein
629	 60.71	0	703134..703301	+	55	50842125	-	PPA0638	-	hypothetical protein
630	 61.27	0	703365..704549	-	394	50842126	-	PPA0639	-	putative glycosyl transferase
631	 59.17	0	704693..705919	+	408	50842127	glgC	PPA0640	-	glucose-1-phosphate adenylyltransferase
632	 61.62	0	706002..706655	-	217	50842128	-	PPA0641	-	methyltransferase
633	 59.52	0	706725..707606	+	293	50842129	-	PPA0642	-	dihydrodipicolinate synthase
634	 57.97	0	707657..708070	+	137	50842130	-	PPA0643	-	sec-independent translocase
635	 62.10	0	708223..709797	-	524	50842131	-	PPA0644	-	endoglycoceramidase
636	 62.19	0	709853..711013	-	386	50842132	-	PPA0645	-	ATP-binding protein
637	 60.27	0	711075..711590	-	171	50842133	-	PPA0646	-	hypothetical protein
638	 62.64	0	711583..712848	-	421	50842134	-	PPA0647	-	putative magnesium (Mg2+) transporter MgtE
639	 57.45	0	712954..713463	+	169	50842135	-	PPA0648	-	hypothetical protein
640	 61.40	0	713577..714449	+	290	50842136	-	PPA0649	-	putative cytochrome oxidase assembly protein
641	 62.06	0	714480..715976	-	498	50842137	-	PPA0650	-	Xaa-Pro aminopeptidase I
642	 53.78	-1	716602..716958	+	118	50842138	-	PPA2404	-	hypothetical protein
643	 60.98	0	717501..718238	+	245	50842139	-	PPA0651	-	hypothetical protein
644	 62.14	0	718048..718599	-	183	50842140	-	PPA0652	-	hypothetical protein
645	 60.00	0	719343..719537	+	64	50842141	-	PPA0653	-	hypothetical protein
646	 60.48	0	719534..719905	+	123	50842142	-	PPA0655	-	hypothetical protein
647	 59.18	0	720198..721412	+	404	50842143	-	PPA0656	-	iron transport system substrate-binding protein
648	 62.71	0	721409..722443	+	344	50842144	-	PPA0657	-	iron transport system, permease protein
649	 61.76	0	722464..723237	+	257	50842145	-	PPA0658	-	ABC transporter, nucleotide binding/ATPase protein
650	 63.29	+1	723234..723854	+	206	50842146	-	PPA0659	-	putative NADH:ubiquinone oxidoreductase
651	 59.97	0	724101..726386	-	761	50842147	-	PPA0660	-	carbon starvation protein A
652	 60.47	0	726769..727623	-	284	50842148	-	PPA0661	-	methionine aminopeptidase
653	 57.14	0	727635..727865	-	76	50842149	-	PPA0662	-	hypothetical protein
654	 60.57	0	728027..728896	-	289	50842150	-	PPA0663	-	hypothetical protein
655	 56.86	0	728895..730301	+	468	50842151	-	PPA0664	-	glutamine synthetase
656	 60.74	0	730320..731162	-	280	50842152	-	PPA0665	-	hypothetical protein
657	 61.18	0	731253..734204	+	983	50842153	-	PPA0666	-	glutamate-ammonia-ligase adenyltransferase
658	 58.65	0	734198..735520	-	440	50842154	-	PPA0667	-	hypothetical protein
659	 63.45	+1	735527..736708	-	393	50842155	-	PPA0668	-	NIF3 (NGG1p interacting factor 3)
660	 60.10	0	736909..737958	+	349	50842156	-	PPA0669	-	hypothetical protein
661	 62.26	0	737973..738608	+	211	50842157	-	PPA0670	-	hypothetical protein
662	 59.07	0	738690..740111	-	473	50842158	-	PPA0671	-	glutamine synthetase
663	 61.97	0	740180..740647	+	155	50842159	-	PPA0672	-	hypothetical protein
664	 61.10	0	740653..741765	+	370	50842160	-	PPA0673	-	putative glycosyl transferase group 1
665	 57.14	0	741789..742397	+	202	50842161	-	PPA0674	-	DedA family protein
666	 61.12	0	742472..743860	-	462	50842162	-	PPA0675	-	PTS system, glucose-specific IIBC component
667	 60.06	0	744036..744761	+	241	50842163	-	PPA0676	-	GntR family transcriptional regulator
668	 59.44	0	744758..745006	+	82	50842164	-	PPA0677	-	PTS system, glucose-specific IIB component
669	 62.77	0	745136..745366	+	76	50842165	-	PPA0678	-	PTS system, glucose-specific IIAB fragment
670	 63.23	0	745366..745860	+	164	50842166	-	PPA0679	-	putative PTS system component IIA
671	 59.90	0	745628..746395	+	255	50842167	-	PPA0680	-	hypothetical protein
672	 59.10	0	746343..747545	-	400	50842168	-	PPA0681	-	hypothetical protein
673	 61.07	0	747509..749314	-	601	50842169	-	PPA0682	-	ABC transporter, ATP-binding protein
674	 61.61	0	749322..750092	-	256	50842170	-	PPA0683	-	hypothetical protein
675	 56.32	-1	750294..751985	-	563	50842171	-	PPA0684	-	sialidase B
676	 59.20	0	752060..754375	-	771	50842172	-	PPA0685	-	sialidase A precursor
677	 56.29	-1	754448..755980	-	510	50842173	-	PPA0686	-	putative sialic acid transporter
678	 58.21	0	756191..756592	+	133	50842174	-	PPA2405	-	hypothetical protein
679	 59.58	0	756689..757492	-	267	50842175	-	PPA0687	-	cAMP factor
680	 54.17	-1	758471..758662	-	63	50842176	-	PPA0688	-	hypothetical protein
681	 59.92	0	758856..759848	-	330	50842177	-	PPA0689	-	lipoyl synthase
682	 60.96	0	759859..762102	-	747	50842178	-	PPA0690	-	cation-transporting P-type ATPase A
683	 60.27	0	762099..764036	-	645	50842179	-	PPA0691	-	putative permease
684	 61.05	0	764092..764910	-	272	50842180	lipB	PPA0692	-	lipoyltransferase
685	 63.76	+1	765084..766457	-	457	50842181	-	PPA0693	-	dihydrolipoamide acyltransferase
686	 62.86	0	766618..768192	-	524	50842182	-	PPA0694	-	putative aminopeptidase
687	 60.83	0	768179..768658	+	159	50842183	-	PPA0695	-	hypothetical protein
688	 56.16	-1	768628..768846	-	72	50842184	-	PPA0696	-	hypothetical protein
689	 62.83	0	768890..769645	-	251	50842185	-	PPA0697	-	hypothetical protein
690	 60.20	0	769844..770647	+	267	50842186	-	PPA0698	-	phage shock protein A
691	 56.70	-1	770644..770934	+	96	50842187	-	PPA0699	-	hypothetical protein
692	 60.17	0	771105..771458	+	117	50842188	-	PPA0700	-	HesB protein, putative for nitrogen fixation
693	 57.87	0	771639..772547	+	302	50842189	-	PPA0701	-	cytochrome c oxidase subunit II
694	 58.12	0	772544..774262	+	572	50842190	-	PPA0702	-	cytochrome c oxidase polypeptide I
695	 61.36	0	774262..774657	+	131	50842191	-	PPA0703	-	hypothetical protein
696	 57.89	0	774709..777147	-	812	50842192	-	PPA0704	-	hypothetical protein
697	 59.32	0	777144..777701	-	185	50842193	-	PPA0705	-	putative ABC transporter ATP-binding protein
698	 54.79	-1	778612..778830	+	72	50842194	-	PPA0706	-	hypothetical protein
699	 63.58	+1	779173..779787	-	204	50842195	-	PPA0707	-	putative nucleoside-diphosphate-sugar epimerase
700	 61.05	0	779894..781354	-	486	50842196	-	PPA0708	-	inositol-5-monophosphate dehydrogenase
701	 63.21	0	781414..781731	+	105	50842197	-	PPA0709	-	putative methyltransferase
702	 59.94	0	781780..783459	-	559	50842198	-	PPA0710	-	cytochrome b subunit
703	 58.88	0	783459..784511	-	350	50842199	-	PPA0711	-	ubiquinol-cytochrome c reductase iron-sulfur subunit
704	 60.20	0	784508..785311	-	267	50842200	-	PPA0712	-	cytochrome c heme-binding subunit
705	 57.22	0	785343..785924	-	193	50842201	-	PPA0713	-	cytochrome c oxidase subunit III
706	 61.11	0	786247..786714	+	155	50842202	-	PPA0714	-	putative response regulator
707	 62.31	0	786998..787708	-	236	50842203	-	PPA0715	-	hypothetical protein
708	 60.99	0	787718..788263	-	181	50842204	-	PPA0716	-	hypothetical protein
709	 62.19	0	788491..789606	-	371	50842205	-	PPA0717	-	putative regulatory protein
710	 61.40	0	789789..790301	+	170	50842206	-	PPA0718	-	peptidyl-prolyl cis-trans isomerase A
711	 59.22	0	790419..791063	+	214	50842207	-	PPA0719	-	hypothetical protein
712	 59.83	0	790983..792884	-	633	50842208	-	PPA0720	-	hypothetical protein
713	 60.28	0	793035..794192	+	385	50842209	-	PPA0721	-	NPL/P60 family secreted protein
714	 59.85	0	794199..795269	+	356	50842210	-	PPA0722	-	glucokinase
715	 62.01	0	795274..795681	-	135	50842211	-	PPA0723	-	hypothetical protein
716	 58.73	0	795741..796496	+	251	50842212	-	PPA0724	-	putative acyltransferase
717	 60.57	0	796663..797220	+	185	50842213	-	PPA0725	-	putative acyltransferase
718	 58.84	0	797294..798712	+	472	50842214	-	PPA0726	-	phospho-2-dehydro-3-deoxyheptonate aldolase
719	 60.03	0	798816..799463	+	215	50842215	-	PPA0727	-	putative Zn-dependent hydrolase
60.05	MEAN

3.20	STD DEV
