IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

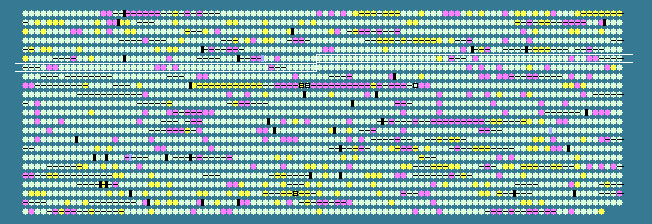

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
550	 62.60	0	620292..621275	+	327	50842046	-	PPA0560	-	hypothetical protein
551	 60.95	0	621380..621886	-	168	50842047	-	PPA0561	-	transcription elongation factor GreA
552	 63.15	0	621908..622333	-	141	50842048	-	PPA0562	-	hypothetical protein
553	 62.70	0	622629..624644	+	671	50842049	-	PPA0563	-	hypothetical protein
554	 61.56	0	624666..625487	-	273	50842050	-	PPA0564	-	undecaprenyl pyrophosphate synthase
555	 58.48	0	625632..626303	+	223	50842051	-	PPA0565	-	putative hemolysin
556	 61.11	0	626450..627799	+	449	50842052	-	PPA0566	-	ATP-binding protein
557	 60.28	0	627819..628382	+	187	50842053	-	PPA0567	-	hypothetical protein
558	 61.60	0	628420..628656	-	78	50842054	-	PPA0568	-	exodeoxyribonuclease VII small subunit
559	 63.14	0	628653..629900	-	415	50842055	xseA	PPA0569	-	exodeoxyribonuclease VII large subunit
560	 58.87	0	629981..631507	-	508	50842056	-	PPA0570	-	putative phosphoesterase
561	 60.69	0	631516..632787	-	423	50842057	-	PPA0571	-	WD40 domain-containing protein
562	 61.01	0	632907..633878	+	323	50842058	ispH	PPA0572	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
563	 63.23	0	633882..635102	-	406	50842059	-	PPA0573	-	DNA recombination protein RmuC-like protein
564	 61.62	0	635181..636467	+	428	50842060	-	PPA0574	-	putative aminopeptidase 2
565	 57.73	0	636616..637689	+	357	50842061	-	PPA0575	-	translation-associated GTPase
566	 57.32	0	637820..638557	+	245	50842062	-	PPA0576	-	hypothetical protein
567	 58.12	0	638635..639102	-	155	50842063	-	PPA0577	-	hypothetical protein
568	 61.61	0	639165..640391	-	408	50842064	-	PPA0578	-	transporter, putative fucose permease
569	 59.22	0	640458..641075	-	205	50842065	-	PPA0579	-	MarR family transcriptional regulator
570	 64.10	+1	641010..641438	+	142	50842066	-	PPA0580	-	stress-induced protein
571	 61.59	0	641558..642247	+	229	50842067	-	PPA0581	-	NonF-related protein
572	 56.34	-1	643038..644519	+	493	50842068	-	PPA0582	-	arginine/ornithine antiporter
573	 58.47	0	644650..645894	+	414	50842069	-	PPA0583	-	arginine deiminase
574	 60.20	0	645968..646972	+	334	50842070	-	PPA0584	-	ornithine carbamoyltransferase, catabolic
575	 60.71	0	646993..647898	+	301	50842071	-	PPA0585	-	carbamate kinase
576	 53.72	-1	648015..648578	+	187	50842072	-	PPA0586	-	arginine repressor
577	 61.24	0	648760..649422	+	220	50842073	-	PPA0587	-	hypothetical protein
578	 58.38	0	649446..649964	+	172	50842074	-	PPA0588	-	hypothetical protein
579	 59.55	0	649990..650958	+	322	50842075	-	PPA0589	-	oxidoreductase, putative aldo/keto reductase
580	 57.54	0	651011..651514	+	167	50842076	-	PPA0590	-	thiol peroxidase
581	 57.89	0	651675..653099	+	474	50842077	-	PPA0591	-	lysine-specific permease
582	 60.11	0	653144..654379	+	411	50842078	-	PPA0592	-	alpha-amylase 3
583	 58.78	0	654404..655570	-	388	50842079	-	PPA0593	-	UDP-glucose 6-dehydrogenase
584	 62.83	0	655713..656651	-	312	50842080	-	PPA0594	-	putative lysophospholipase
585	 61.17	0	657197..659107	+	636	50842081	-	PPA0595	-	methylmalonyl-CoA mutase small subunit
586	 60.91	0	659104..661293	+	729	50842082	-	PPA0596	-	methylmalonyl-CoA mutase
587	 59.69	0	661447..662493	+	348	50842083	-	PPA0597	-	arginine/ornithine transport system ATPase
588	 60.83	0	662715..664187	+	490	50842084	-	PPA0598	-	serine protease
589	 63.20	0	664267..664497	-	76	50842085	-	PPA0599	-	hypothetical protein
590	 58.43	0	664528..665328	-	266	50842086	-	PPA0600	-	ABC-transporter, ATPase component
591	 59.02	0	665325..665873	-	182	50842087	-	PPA0601	-	ABC-type transporter, permease component
592	 56.16	-1	665919..666251	-	110	50842088	-	PPA0602	-	hypothetical protein
593	 62.06	0	666300..667298	-	332	50842089	-	PPA0603	-	putative transcriptional regulator
594	 58.31	0	667515..668735	+	406	50842090	-	PPA0604	-	putative sugar binding protein
595	 52.16	-2	668823..669146	+	107	50842091	-	PPA2403	-	hypothetical protein
596	 53.29	-2	669182..669667	+	161	50842092	-	PPA0605	-	putative sugar transport protein
597	 57.91	0	669695..670585	+	296	50842093	-	PPA0606	-	putative transport system permease protein
598	 59.74	0	670670..672040	+	456	50842094	-	PPA0607	-	glycosyl hydrolase, putative alpha-L-fucosidase
599	 60.59	0	672188..672763	+	191	50842095	-	PPA0608	-	L-fucose isomerase
600	 61.46	0	672646..673701	+	351	50842096	-	PPA0609	-	L-fucose isomerase
601	 60.27	0	673809..674105	+	98	50842097	-	PPA0610	-	class II aldolase and adducin N-terminal domain-containing protein
602	 63.36	+1	674068..674490	-	140	50842098	-	PPA0611	-	hypothetical protein
603	 60.39	0	674491..675255	+	254	50842099	-	PPA0612	-	ABC transporter, ATP-binding protein
604	 62.16	0	675252..677426	+	724	50842100	-	PPA0613	-	putative permease
605	 56.27	-1	677448..677726	+	92	50842101	-	PPA0614	-	hypothetical protein
606	 55.91	-1	677784..678638	-	284	50842102	-	PPA0615	-	ABC-type transporter, permease components
607	 63.18	0	678653..679456	-	267	50842103	-	PPA0616	-	ABC transporter, ATP-binding protein
608	 57.95	0	679498..680415	-	305	50842104	-	PPA0617	-	solute binding protein
609	 60.14	0	680534..681085	-	183	50842105	-	PPA0618	-	hydrolase, putative isochorismatase
610	 58.20	0	681082..682545	-	487	50842106	-	PPA0619	-	transport-protein, putative permease for cytosine/purines
611	 61.03	0	682635..686093	+	1152	50842107	-	PPA0620	-	NAD-dependent aldehyde dehydrogenase
612	 62.67	0	686124..687173	-	349	50842108	-	PPA0621	-	zinc-binding dehydrogenase
613	 62.74	0	687293..689023	+	576	50842109	-	PPA0622	-	putative dihydroxyacetone (glycerone) kinase protein
614	 59.92	0	689014..689517	-	167	50842110	-	PPA0623	-	putative purine phosphoribosyltransferase
615	 59.08	0	689607..690107	-	166	50842111	-	PPA0624	-	N-acetyltransferase
616	 60.78	0	690354..692018	+	554	50842112	pntA	PPA0625	-	NAD(P) transhydrogenase subunit alpha
617	 57.45	0	692022..693443	+	473	50842113	-	PPA0626	-	NAD(P) transhydrogenase subunit beta
618	 61.37	0	693589..693909	+	106	50842114	-	PPA0627	-	ferredoxin
619	 60.96	0	693906..695009	+	367	50842115	-	PPA0628	-	N-succinyldiaminopimelate aminotransferase
620	 62.09	0	695010..695948	-	312	50842116	-	PPA0629	-	putative lipoprotein
621	 61.68	0	695950..696912	-	320	50842117	-	PPA0630	-	transferase, putative tetrahydrodipicolinate N-succinyltransferase
622	 57.24	0	697007..697303	-	98	50842118	-	PPA0631	-	hypothetical protein
623	 55.79	-1	697293..698423	+	376	50842119	-	PPA0632	-	glycine amidinotransferase
624	 53.20	-2	698547..699608	+	353	50842120	-	PPA0633	-	putative permease
625	 57.95	0	699624..700919	+	431	50842121	-	PPA0634	-	proline/betaine transporter
626	 56.32	-1	700932..701540	-	202	50842122	-	PPA0635	-	putative regulator
627	 60.74	0	701664..702743	+	359	50842123	-	PPA0636	-	dipeptidase
628	 60.46	0	702788..703093	+	101	50842124	-	PPA0637	-	hypothetical protein
629	 60.71	0	703134..703301	+	55	50842125	-	PPA0638	-	hypothetical protein
630	 61.27	0	703365..704549	-	394	50842126	-	PPA0639	-	putative glycosyl transferase
631	 59.17	0	704693..705919	+	408	50842127	glgC	PPA0640	-	glucose-1-phosphate adenylyltransferase
632	 61.62	0	706002..706655	-	217	50842128	-	PPA0641	-	methyltransferase
633	 59.52	0	706725..707606	+	293	50842129	-	PPA0642	-	dihydrodipicolinate synthase
634	 57.97	0	707657..708070	+	137	50842130	-	PPA0643	-	sec-independent translocase
635	 62.10	0	708223..709797	-	524	50842131	-	PPA0644	-	endoglycoceramidase
636	 62.19	0	709853..711013	-	386	50842132	-	PPA0645	-	ATP-binding protein
637	 60.27	0	711075..711590	-	171	50842133	-	PPA0646	-	hypothetical protein
638	 62.64	0	711583..712848	-	421	50842134	-	PPA0647	-	putative magnesium (Mg2+) transporter MgtE
639	 57.45	0	712954..713463	+	169	50842135	-	PPA0648	-	hypothetical protein
640	 61.40	0	713577..714449	+	290	50842136	-	PPA0649	-	putative cytochrome oxidase assembly protein
641	 62.06	0	714480..715976	-	498	50842137	-	PPA0650	-	Xaa-Pro aminopeptidase I
642	 53.78	-1	716602..716958	+	118	50842138	-	PPA2404	-	hypothetical protein
643	 60.98	0	717501..718238	+	245	50842139	-	PPA0651	-	hypothetical protein
644	 62.14	0	718048..718599	-	183	50842140	-	PPA0652	-	hypothetical protein
645	 60.00	0	719343..719537	+	64	50842141	-	PPA0653	-	hypothetical protein
646	 60.48	0	719534..719905	+	123	50842142	-	PPA0655	-	hypothetical protein
647	 59.18	0	720198..721412	+	404	50842143	-	PPA0656	-	iron transport system substrate-binding protein
648	 62.71	0	721409..722443	+	344	50842144	-	PPA0657	-	iron transport system, permease protein
649	 61.76	0	722464..723237	+	257	50842145	-	PPA0658	-	ABC transporter, nucleotide binding/ATPase protein
60.05	MEAN

3.20	STD DEV
