IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

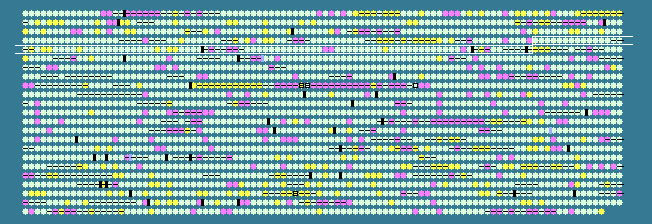

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
386	 60.61	0	445838..446794	+	318	50841882	-	PPA0399	-	sugar ABC transporter
387	 59.64	0	446796..447677	+	293	50841883	-	PPA0400	-	putative transport system permease protein
388	 59.92	0	448031..449068	+	345	50841884	tdh	PPA0402	-	L-threonine 3-dehydrogenase
389	 59.48	0	449094..450290	+	398	50841885	-	PPA0403	-	2-amino-3-ketobutyrate coenzyme A ligase
390	 58.44	0	450307..451230	-	307	50841886	-	PPA0404	-	putative substrate-binding protein
391	 60.63	0	451252..451947	-	231	50841887	-	PPA0405	-	ABC transporter-associated permease
392	 62.04	0	451944..452591	-	215	50841888	-	PPA0406	-	ABC transporter-associated permease
393	 60.45	0	452588..453424	-	278	50841889	-	PPA0407	-	putative ABC transporter ATP-binding subunit
394	 60.30	0	453574..454374	+	266	50841890	-	PPA0408	-	hypothetical protein
395	 58.33	0	454390..454761	+	123	50841891	-	PPA0409	-	hypothetical protein
396	 62.60	0	454792..455307	-	171	161621800	-	PPA0410	-	hypothetical protein
397	 61.36	0	455425..456441	+	338	50841893	-	PPA0411	-	zinc-binding dehydrogenase
398	 61.54	0	456507..457520	+	337	50841894	-	PPA0412	-	putative ABC transporter ATP-binding protein
399	 59.83	0	457517..458101	+	194	50841895	-	PPA0413	-	putative permease
400	 59.67	0	458088..458387	-	99	50841896	-	PPA0414	-	hypothetical protein
401	 62.55	0	458331..459497	+	388	50841897	-	PPA0415	-	putative sensor histidine kinase, two-component system
402	 64.09	+1	459502..460122	+	206	50841898	-	PPA0416	-	two-component system response regulator
403	 63.14	0	460395..461102	-	235	50841899	-	PPA0417	-	phosphoglycerate mutase family protein
404	 68.03	+2	461019..462047	+	342	50841900	-	PPA0418	-	cobalamin biosynthesis CobD/CbiB protein
405	 63.71	+1	462065..463519	+	484	50841901	-	PPA0419	-	cobyric acid synthase
406	 59.00	0	463550..463849	+	99	50841902	-	PPA2397	-	hypothetical protein
407	 62.57	0	463846..464601	+	251	50841903	-	PPA0420	-	tetrapyrrole methylase, putative precorrin-2 C20-methyltransferase, CbiL
408	 63.27	+1	464598..465569	+	323	50841904	-	PPA0421	-	tetrapyrrole methylase, putative precorrin-3 methylase, CbiF
409	 62.70	0	465566..468136	+	856	50841905	-	PPA0422	-	tetrapyrrole methylase, putative CbiE/G/H fusion protein
410	 64.62	+1	468133..469401	+	422	50841906	-	PPA0423	-	cobalamin synthesis protein, fusion CysG+CbiX
411	 60.67	0	469443..470309	+	288	50841907	-	PPA0424	-	hypothetical protein
412	 60.54	0	470521..470928	-	135	50841908	-	PPA2398	-	hypothetical protein
413	 63.19	0	470958..472022	+	354	50841909	-	PPA0425	-	FecCD-family membrane transport protein
414	 63.01	0	472019..472810	+	263	50841910	-	PPA0426	-	Fe uptake system permease
415	 57.61	0	472812..473882	+	356	50841911	-	PPA0427	-	putative iron transport lipoprotein
416	 58.03	0	473959..475185	-	408	50841912	-	PPA0428	-	AAA family ATPase
417	 60.09	0	475278..475931	-	217	50841913	cobH	PPA0429	-	precorrin-8X methylmutase
418	 58.77	0	476237..476920	+	227	50841914	-	PPA0430	-	cobalt transport protein CbiM
419	 59.77	0	476913..477347	+	144	50841915	-	PPA0432	-	cobalt transport protein CbiN
420	 61.58	0	477344..478189	+	281	50841916	-	PPA0433	-	cobalt transport protein CbiQ
421	 63.20	0	478186..479022	+	278	50841917	-	PPA0434	-	membrane associated cobalt transport protein CbiO
422	 62.90	0	479075..479764	+	229	50841918	-	PPA0435	-	hypothetical protein
423	 64.32	+1	479791..480387	-	198	50841919	-	PPA0436	-	precorrin 8 decarboxylase CbiT
424	 62.76	0	480617..481231	+	204	50841920	-	PPA0437	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
425	 63.86	+1	481231..483654	+	807	50841921	-	PPA0438	-	cobyrinic acid a,c-diamide synthase
426	 63.96	+1	483664..484440	+	258	50841922	-	PPA0439	-	uroporphyrinogen III methyltransferase
427	 63.35	+1	484460..485212	-	250	161621799	-	PPA0440	-	cobalt-precorrin-6x reductase
428	 62.77	0	485439..487106	+	555	50841924	-	PPA0441	-	phosphoribosyltransferase, cobalamin biosynthesis enzyme, fusion CobTU
429	 63.06	0	487055..487942	+	295	50841925	-	PPA0442	-	putative cobalamin-5-phosphate synthase, CobS
430	 61.05	0	487939..488703	+	254	50841926	-	PPA0443	-	metal binding protein
431	 57.08	0	488925..490562	-	545	50841927	-	PPA0444	-	hypothetical protein
432	 51.85	-2	490993..491181	+	62	50841928	-	PPA0445	-	hypothetical protein
433	 60.69	0	491219..492808	-	529	50841929	ulaA	PPA0446	-	ascorbate-specific PTS system enzyme IIC
434	 58.92	0	492858..493787	-	309	50841930	-	PPA0447	-	phosphotransferase system protein, mannitol/fructose-specific IIA subunit
435	 53.01	-2	494686..495183	+	165	50841931	-	PPA0448	-	hypothetical protein
436	 48.99	-2	495192..495638	+	148	50841932	-	PPA0449	-	hypothetical protein
437	 60.04	0	495789..496241	-	150	161621798	-	PPA0450	-	S-ribosylhomocysteinase
438	 60.58	0	496309..497490	-	393	50841934	-	PPA0451	-	phosphomannose isomerase
439	 62.81	0	497535..497819	-	94	50841935	-	PPA0452	-	hypothetical protein
440	 61.96	0	498152..499786	+	544	50841936	groEL	PPA0453	-	chaperonin GroEL
441	 59.42	0	499921..500997	-	358	50841937	-	PPA0454	-	transaldolase
442	 62.63	0	501099..501842	-	247	50841938	-	PPA0455	-	GntR family transcriptional regulator
443	 60.91	0	502057..503046	+	329	50841939	-	PPA0456	-	carbohydrate kinase
444	 61.38	0	502890..503930	+	346	50841940	-	PPA0457	-	hypothetical protein
445	 60.71	0	503927..504799	+	290	50841941	-	PPA0458	-	putative myo-inositol catabolism protein IolB
446	 60.51	0	504802..506700	+	632	50841942	-	PPA0459	-	thiamine pyrophosphate-requiring enzyme, putative acetolactate synthase
447	 57.78	0	506845..507159	-	104	50841943	-	PPA0460	-	hypothetical protein
448	 59.84	0	507448..508941	+	497	50841944	-	PPA0461	-	methylmalonic acid semialdehyde dehydrogenase
449	 62.59	0	509037..510017	+	326	50841945	-	PPA0462	-	LacI family transcription regulator
450	 58.77	0	510154..511368	+	404	50841946	-	PPA0463	-	dehydrogenase, putative myo-inositol 2-dehydrogenase
451	 55.26	-1	511413..512411	+	332	50841947	-	PPA0464	-	sugar phosphate isomerase/epimerase
452	 54.79	-1	512483..513349	+	288	50841948	-	PPA0465	-	myo-inositol catabolism IolH protein
453	 58.33	0	513559..514770	+	403	50841949	-	PPA0466	-	putative myo-inositol 2-dehydrogenase
454	 57.56	0	514880..516526	+	548	50841950	-	PPA0467	-	putative sugar transporter YfiG
455	 59.95	0	517136..517999	-	287	50841951	-	PPA0468	-	putative myo-inositol catabolism protein
456	 58.24	0	518116..519183	+	355	50841952	-	PPA0469	-	putative myo-inositol 2-dehydrogenase
457	 59.19	0	519116..520198	+	360	50841953	-	PPA0470	-	hypothetical protein
458	 62.07	0	520176..520871	+	231	50841954	-	PPA0471	-	putative copper homeostasis protein CutC
459	 59.40	0	520885..521889	-	334	50841955	-	PPA0472	-	hypothetical protein
460	 61.29	0	521933..524017	-	694	50841956	-	PPA0473	-	superfamily II DNA/RNA helicase
461	 63.85	+1	524223..526352	-	709	50841957	-	PPA0474	-	DeaD/DeaH box family protein
462	 62.70	0	526349..527104	-	251	50841958	-	PPA0475	-	hypothetical protein
463	 61.32	0	527278..528063	+	261	50841959	nagB	PPA0476	-	glucosamine-6-phosphate deaminase
464	 60.16	0	528210..528593	+	127	50841960	-	PPA0477	-	cold shock protein
465	 62.67	0	528593..529393	+	266	50841961	-	PPA0478	-	hypothetical protein
466	 58.61	0	529431..529703	-	90	50841962	-	PPA0479	-	hypothetical protein
467	 57.87	0	529719..531230	+	503	50841963	-	PPA0480	-	putative xanthine/uracil permease
468	 60.85	0	531205..531840	-	211	50841964	-	PPA0481	-	hypothetical protein
469	 59.24	0	532040..533062	+	340	50841965	-	PPA0482	-	hypothetical protein
470	 61.39	0	533059..534177	-	372	50841966	-	PPA0483	-	phosphoserine aminotransferase
471	 61.45	0	534270..535400	+	376	50841967	-	PPA0484	-	N-acetylglucosamine-6-phosphate deacetylase
472	 60.09	0	535554..536252	+	232	50841968	-	PPA0485	-	repressor
473	 61.77	0	536291..537352	+	353	50841969	-	PPA0486	-	hypothetical protein
474	 56.28	-1	537474..537839	+	121	50841970	-	PPA0487	-	thiol-disulfide isomerase
475	 59.25	0	538011..539627	+	538	50841971	-	PPA0488	-	sugar transporter family protein
476	 57.73	0	540108..541505	+	465	50841972	-	PPA0489	-	UTP--glucose-1-phosphate uridylyltransferase
477	 66.08	+1	541532..541873	+	113	50841973	-	PPA0490	-	hypothetical protein
478	 55.28	-1	541896..542264	-	122	50841974	-	PPA0491	-	large conductance mechanosensitive channel
479	 62.42	0	542376..543035	-	219	50841975	-	PPA0492	-	hypothetical protein
480	 58.75	0	543115..543417	-	100	50841976	-	PPA2407	-	hypothetical protein
481	 62.07	0	543495..544082	-	195	50841977	-	PPA0493	-	5-formyltetrahydrofolate cyclo-ligase
482	 62.39	0	544192..545499	+	435	50841978	-	PPA0494	-	putative molybdopterin biosynthesis enzyme
483	 61.19	0	545537..546211	+	224	50841979	-	PPA0495	-	putative ribosomal-protein-alanine acetyltransferase
484	 60.45	0	546284..547087	+	267	50841980	-	PPA0496	-	hypothetical protein
485	 60.03	0	547811..548488	-	225	50841981	-	PPA0497	-	putative component of anaerobic dehydrogenase
60.05	MEAN

3.20	STD DEV
