IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

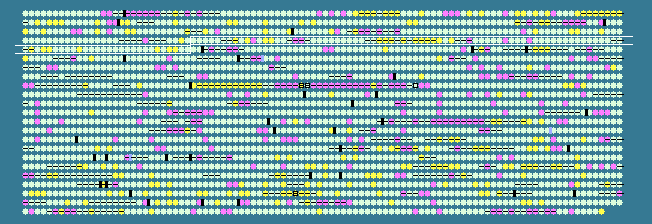

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
329	 59.22	0	389673..390599	-	308	50841825	-	PPA0339	-	phosphate transport system permease protein PstA
330	 60.30	0	390596..391600	-	334	50841826	-	PPA0340	-	putative phosphate transport system permease protein PstC
331	 60.68	0	391709..392860	-	383	50841827	-	PPA0341	-	phosphate-binding protein
332	 58.81	0	393033..393974	-	313	50841828	-	PPA0342	-	hypothetical protein
333	 61.06	0	393982..396087	-	701	50841829	-	PPA0343	-	polyphosphate kinase
334	 59.80	0	396209..396922	-	237	50841830	-	PPA0344	-	transcriptional regulatory protein
335	 61.81	0	396981..397865	+	294	50841831	-	PPA0345	-	hypothetical protein
336	 64.38	+1	397880..398317	-	145	50841832	-	PPA0346	-	D-tyrosyl-tRNA deacylase
337	 61.88	0	398513..399013	+	166	50841833	-	PPA0347	-	hypothetical protein
338	 64.23	+1	399015..399956	+	313	50841834	-	PPA0348	-	putative glycine cleavage T-protein
339	 51.88	-2	399997..401382	+	461	50841835	-	PPA0349	-	putative glycosyltransferase
340	 61.92	0	401405..402142	-	245	50841836	-	PPA0350	-	short chain dehydrogenase
341	 64.05	+1	402218..403936	-	572	50841837	-	PPA0351	-	putative phosphoenolpyruvate-protein kinase
342	 64.42	+1	403896..404162	-	88	50841838	-	PPA0352	-	phosphocarrier protein HPr
343	 58.92	0	404249..405061	+	270	50841839	-	PPA0353	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
344	 61.14	0	405058..405564	+	168	50841840	ispF	PPA0354	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
345	 57.28	0	405511..405915	-	134	50841841	-	PPA0355	-	putative PTS family protein
346	 56.46	-1	406113..406406	+	97	50841842	-	PPA0356	-	putative phosphotransferase enzyme
347	 53.91	-1	406490..406975	-	161	50841843	-	PPA0357	-	putative transcriptional regulator
348	 59.08	0	407115..407720	+	201	50841844	-	PPA0358	-	hypothetical protein
349	 59.77	0	407773..408453	-	226	50841845	-	PPA0359	-	response regulator
350	 60.32	0	408450..409631	-	393	50841846	-	PPA0360	-	putative sensor kinase
351	 59.84	0	409714..410460	+	248	50841847	-	PPA0361	-	putative phosphate transport system protein
352	 58.82	0	410606..411676	+	356	50841848	-	PPA0363	-	polysaccharide deacetylase
353	 62.13	0	411768..412517	-	249	50841849	-	PPA0364	-	phosphoglyceromutase
354	 57.95	0	412642..413100	-	152	50841850	-	PPA0365	-	putative PTS system
355	 59.52	0	413345..413638	-	97	50841851	-	PPA0366	-	putative phosphotransferase enzyme
356	 59.34	0	413845..414840	-	331	50841852	-	PPA0367	-	L-asparaginase I
357	 60.11	0	414841..416289	-	482	50841853	-	PPA0368	-	amino acid permease
358	 62.94	0	416665..418140	-	491	50841854	glyA	PPA0369	-	serine hydroxymethyltransferase
359	 63.03	0	418254..419354	-	366	50841855	-	PPA0370	-	carbohydrate kinase
360	 67.13	+2	419351..419998	-	215	50841856	-	PPA0371	-	KHG/KDPG aldolase
361	 63.58	+1	420201..420977	+	258	50841857	fabG	PPA0372	-	3-ketoacyl-(acyl-carrier-protein) reductase
362	 64.39	+1	420943..421338	+	131	50841858	-	PPA0373	-	putative oxidoreductase
363	 61.64	0	423025..423681	+	218	50841859	-	PPA0376	-	putative glycosyl hydrolase
364	 66.67	+2	423884..424591	-	235	50841860	-	PPA0377	-	hypothetical protein
365	 62.91	0	424584..425408	-	274	50841861	-	PPA0378	-	putative oxidoreductase
366	 65.36	+1	425575..425880	+	101	50841862	-	PPA0379	-	putative dehydrogenase
367	 64.95	+1	425934..428375	-	813	50841863	-	PPA0380	-	hyalorunate lyase
368	 64.26	+1	428537..429409	+	290	50841864	-	PPA0381	-	hypothetical protein
369	 64.15	+1	429195..430067	+	290	50841865	-	PPA0382	-	hypothetical protein
370	 65.52	+1	430312..431268	-	318	50841866	-	PPA0383	-	putative tRNA/rRNA methyltransferase
371	 60.08	0	431282..432754	-	490	50841867	cysS	PPA0384	-	cysteinyl-tRNA synthetase
372	 65.30	+1	432761..432979	+	72	50841868	-	PPA0385	-	hypothetical protein
373	 61.38	0	432990..434408	-	472	50841869	-	PPA0386	-	hypothetical protein
374	 57.03	0	434660..435178	+	172	50841870	-	PPA0387	-	hypothetical protein
375	 55.91	-1	435190..435375	+	61	50841871	-	PPA0388	-	hypothetical protein
376	 61.59	0	435375..435788	+	137	50841872	-	PPA0389	-	hypothetical protein
377	 59.82	0	435790..436344	+	184	50841873	-	PPA0390	-	hypothetical protein
378	 60.67	0	436341..437057	+	238	50841874	-	PPA0391	-	hypothetical protein
379	 58.68	0	437114..437689	+	191	50841875	-	PPA0392	-	putative RNA polymerase sigma factor
380	 58.67	0	437680..438204	+	174	50841876	-	PPA0393	-	hypothetical protein
381	 55.93	-1	438197..438550	+	117	50841877	-	PPA0394	-	hypothetical protein
382	 60.61	0	438616..439935	-	439	50841878	-	PPA0395	-	ABC transporter ATP-binding protein
383	 63.05	0	440439..441875	-	478	50841879	-	PPA0396	-	L-serine dehydratase
384	 63.03	0	442217..444526	+	769	50841880	-	PPA0397	-	oxidoreductase
385	 56.46	-1	444549..445841	+	430	50841881	-	PPA0398	-	putative sugar-binding protein
386	 60.61	0	445838..446794	+	318	50841882	-	PPA0399	-	sugar ABC transporter
387	 59.64	0	446796..447677	+	293	50841883	-	PPA0400	-	putative transport system permease protein
388	 59.92	0	448031..449068	+	345	50841884	tdh	PPA0402	-	L-threonine 3-dehydrogenase
389	 59.48	0	449094..450290	+	398	50841885	-	PPA0403	-	2-amino-3-ketobutyrate coenzyme A ligase
390	 58.44	0	450307..451230	-	307	50841886	-	PPA0404	-	putative substrate-binding protein
391	 60.63	0	451252..451947	-	231	50841887	-	PPA0405	-	ABC transporter-associated permease
392	 62.04	0	451944..452591	-	215	50841888	-	PPA0406	-	ABC transporter-associated permease
393	 60.45	0	452588..453424	-	278	50841889	-	PPA0407	-	putative ABC transporter ATP-binding subunit
394	 60.30	0	453574..454374	+	266	50841890	-	PPA0408	-	hypothetical protein
395	 58.33	0	454390..454761	+	123	50841891	-	PPA0409	-	hypothetical protein
396	 62.60	0	454792..455307	-	171	161621800	-	PPA0410	-	hypothetical protein
397	 61.36	0	455425..456441	+	338	50841893	-	PPA0411	-	zinc-binding dehydrogenase
398	 61.54	0	456507..457520	+	337	50841894	-	PPA0412	-	putative ABC transporter ATP-binding protein
399	 59.83	0	457517..458101	+	194	50841895	-	PPA0413	-	putative permease
400	 59.67	0	458088..458387	-	99	50841896	-	PPA0414	-	hypothetical protein
401	 62.55	0	458331..459497	+	388	50841897	-	PPA0415	-	putative sensor histidine kinase, two-component system
402	 64.09	+1	459502..460122	+	206	50841898	-	PPA0416	-	two-component system response regulator
403	 63.14	0	460395..461102	-	235	50841899	-	PPA0417	-	phosphoglycerate mutase family protein
404	 68.03	+2	461019..462047	+	342	50841900	-	PPA0418	-	cobalamin biosynthesis CobD/CbiB protein
405	 63.71	+1	462065..463519	+	484	50841901	-	PPA0419	-	cobyric acid synthase
406	 59.00	0	463550..463849	+	99	50841902	-	PPA2397	-	hypothetical protein
407	 62.57	0	463846..464601	+	251	50841903	-	PPA0420	-	tetrapyrrole methylase, putative precorrin-2 C20-methyltransferase, CbiL
408	 63.27	+1	464598..465569	+	323	50841904	-	PPA0421	-	tetrapyrrole methylase, putative precorrin-3 methylase, CbiF
409	 62.70	0	465566..468136	+	856	50841905	-	PPA0422	-	tetrapyrrole methylase, putative CbiE/G/H fusion protein
410	 64.62	+1	468133..469401	+	422	50841906	-	PPA0423	-	cobalamin synthesis protein, fusion CysG+CbiX
411	 60.67	0	469443..470309	+	288	50841907	-	PPA0424	-	hypothetical protein
412	 60.54	0	470521..470928	-	135	50841908	-	PPA2398	-	hypothetical protein
413	 63.19	0	470958..472022	+	354	50841909	-	PPA0425	-	FecCD-family membrane transport protein
414	 63.01	0	472019..472810	+	263	50841910	-	PPA0426	-	Fe uptake system permease
415	 57.61	0	472812..473882	+	356	50841911	-	PPA0427	-	putative iron transport lipoprotein
416	 58.03	0	473959..475185	-	408	50841912	-	PPA0428	-	AAA family ATPase
417	 60.09	0	475278..475931	-	217	50841913	cobH	PPA0429	-	precorrin-8X methylmutase
418	 58.77	0	476237..476920	+	227	50841914	-	PPA0430	-	cobalt transport protein CbiM
419	 59.77	0	476913..477347	+	144	50841915	-	PPA0432	-	cobalt transport protein CbiN
420	 61.58	0	477344..478189	+	281	50841916	-	PPA0433	-	cobalt transport protein CbiQ
421	 63.20	0	478186..479022	+	278	50841917	-	PPA0434	-	membrane associated cobalt transport protein CbiO
422	 62.90	0	479075..479764	+	229	50841918	-	PPA0435	-	hypothetical protein
423	 64.32	+1	479791..480387	-	198	50841919	-	PPA0436	-	precorrin 8 decarboxylase CbiT
424	 62.76	0	480617..481231	+	204	50841920	-	PPA0437	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
425	 63.86	+1	481231..483654	+	807	50841921	-	PPA0438	-	cobyrinic acid a,c-diamide synthase
426	 63.96	+1	483664..484440	+	258	50841922	-	PPA0439	-	uroporphyrinogen III methyltransferase
427	 63.35	+1	484460..485212	-	250	161621799	-	PPA0440	-	cobalt-precorrin-6x reductase
428	 62.77	0	485439..487106	+	555	50841924	-	PPA0441	-	phosphoribosyltransferase, cobalamin biosynthesis enzyme, fusion CobTU
60.05	MEAN

3.20	STD DEV
