IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

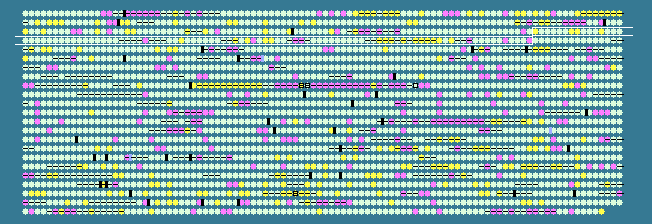

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
286	 64.35	+1	342413..342886	-	157	50841782	-	PPA0293	-	PTS system, glucose/sucrose specific IIA subunit
287	 58.57	0	342898..344577	-	559	50841783	-	PPA0294	-	PTS system sugar-specific EII component
288	 58.11	0	345249..346568	-	439	50841784	-	PPA0295	-	putative sugar transporter
289	 58.69	0	346613..347653	-	346	50841785	-	PPA0296	-	4-hydroxythreonine-4-phosphate dehydrogenase 2
290	 61.16	0	347729..349000	-	423	50841786	-	PPA0298	-	hypothetical protein
291	 60.54	0	349234..350163	-	309	50841787	-	PPA0299	-	DeoR family transcriptional regulator
292	 63.70	+1	350176..351051	-	291	50841788	-	PPA0300	-	A/G-specific adenine glycosylase
293	 64.91	+1	351044..352354	-	436	50841789	-	PPA0301	-	glutamate-1-semialdehyde 2,1-aminomutase, HemL
294	 61.89	0	352402..353448	-	348	50841790	-	PPA0302	-	delta-aminolevulinic acid dehydratase
295	 62.67	0	353478..354203	-	241	50841791	-	PPA0303	-	uroporphyrinogen-III synthase, HemD
296	 62.67	0	354200..355300	-	366	50841792	hemC	PPA0304	-	porphobilinogen deaminase
297	 64.39	+1	355251..356699	-	482	50841793	-	PPA0305	-	putative protoporphyrinogen oxidase, HemY
298	 62.45	0	356696..357976	-	426	50841794	-	PPA0306	-	uroporphyrinogen decarboxylase, HemE
299	 62.40	0	357887..359221	+	444	50841795	-	PPA0307	-	glutamyl-tRNA reductase, HemA
300	 61.94	0	359218..361269	+	683	50841796	-	PPA0308	-	ferrochelatase, HemH
301	 59.72	0	361341..361973	+	210	50841797	-	PPA0310	-	hypothetical protein
302	 59.61	0	362009..363043	-	344	50841798	-	PPA0311	-	DNA integrity scanning protein DisA
303	 61.73	0	363162..364559	-	465	50841799	-	PPA0312	-	DNA repair protein RadA
304	 58.77	0	364625..366271	-	548	50841800	-	PPA0313	-	malate dehydrogenase
305	 61.19	0	366335..366973	-	212	50841801	-	PPA0314	-	hypothetical protein
306	 57.77	0	367125..368012	+	295	50841802	-	PPA0315	-	putative AP endonuclease family protein
307	 58.97	0	368075..368971	+	298	50841803	-	PPA0316	-	putative proline dehydrogenase
308	 61.89	0	368971..369807	+	278	50841804	-	PPA0317	-	putative protease
309	 60.96	0	369582..370895	+	437	50841805	-	PPA0318	-	aspartate-semialdehyde dehydrogenase
310	 61.74	0	370892..371683	+	263	50841806	-	PPA0319	-	putative delta-1-pyrroline-5-carboxylate reductase
311	 58.82	0	371819..371920	+	33	50841807	-	PPA0320	-	hypothetical protein
312	 58.48	0	371940..372281	+	113	50841808	-	PPA0321	-	hypothetical protein
313	 60.66	0	372405..374120	+	571	50841809	-	PPA0323	-	uroporphyrinogen-III synthase, HemD
314	 61.73	0	374191..374859	+	222	50841810	-	PPA0324	-	putative phosphoglycerate mutase
315	 59.47	0	374856..375425	+	189	50841811	-	PPA0325	-	hypothetical protein
316	 60.89	0	375422..376183	+	253	50841812	-	PPA0326	-	cytochrome c biogenesis protein
317	 59.06	0	376261..377772	+	503	50841813	-	PPA0327	-	putative c-type cytochrome biogenesis protein
318	 60.88	0	377769..378650	+	293	50841814	-	PPA0328	-	putative cytochrome c biogenesis protein
319	 60.18	0	378637..380100	+	487	50841815	-	PPA0329	-	putative sigma subunit
320	 62.89	0	380112..380906	-	264	50841816	-	PPA0330	-	putative short chain dehydrogenase
321	 43.39	-2	381123..382196	-	357	50841817	-	PPA0331	-	hypothetical protein
322	 61.42	0	382407..383111	-	234	50841818	-	PPA0332	-	hypothetical protein
323	 60.46	0	383235..384635	+	466	50841819	-	PPA0333	-	mycothione/glutathione reductase
324	 59.59	0	384718..385734	-	338	50841820	-	PPA0334	-	putative ABC-type transporter, periplasmic component
325	 61.00	0	385746..386504	-	252	50841821	-	PPA0335	-	ABC-type transporter, ATPase component
326	 63.35	+1	386501..387526	-	341	50841822	-	PPA0336	-	putative permease, FecCD transport family protein
327	 63.85	+1	387764..388651	-	295	50841823	-	PPA0337	-	siderophore-interacting protein
328	 60.10	0	388878..389654	-	258	50841824	-	PPA0338	-	phosphate transport ATP-binding protein PstB
329	 59.22	0	389673..390599	-	308	50841825	-	PPA0339	-	phosphate transport system permease protein PstA
330	 60.30	0	390596..391600	-	334	50841826	-	PPA0340	-	putative phosphate transport system permease protein PstC
331	 60.68	0	391709..392860	-	383	50841827	-	PPA0341	-	phosphate-binding protein
332	 58.81	0	393033..393974	-	313	50841828	-	PPA0342	-	hypothetical protein
333	 61.06	0	393982..396087	-	701	50841829	-	PPA0343	-	polyphosphate kinase
334	 59.80	0	396209..396922	-	237	50841830	-	PPA0344	-	transcriptional regulatory protein
335	 61.81	0	396981..397865	+	294	50841831	-	PPA0345	-	hypothetical protein
336	 64.38	+1	397880..398317	-	145	50841832	-	PPA0346	-	D-tyrosyl-tRNA deacylase
337	 61.88	0	398513..399013	+	166	50841833	-	PPA0347	-	hypothetical protein
338	 64.23	+1	399015..399956	+	313	50841834	-	PPA0348	-	putative glycine cleavage T-protein
339	 51.88	-2	399997..401382	+	461	50841835	-	PPA0349	-	putative glycosyltransferase
340	 61.92	0	401405..402142	-	245	50841836	-	PPA0350	-	short chain dehydrogenase
341	 64.05	+1	402218..403936	-	572	50841837	-	PPA0351	-	putative phosphoenolpyruvate-protein kinase
342	 64.42	+1	403896..404162	-	88	50841838	-	PPA0352	-	phosphocarrier protein HPr
343	 58.92	0	404249..405061	+	270	50841839	-	PPA0353	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
344	 61.14	0	405058..405564	+	168	50841840	ispF	PPA0354	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
345	 57.28	0	405511..405915	-	134	50841841	-	PPA0355	-	putative PTS family protein
346	 56.46	-1	406113..406406	+	97	50841842	-	PPA0356	-	putative phosphotransferase enzyme
347	 53.91	-1	406490..406975	-	161	50841843	-	PPA0357	-	putative transcriptional regulator
348	 59.08	0	407115..407720	+	201	50841844	-	PPA0358	-	hypothetical protein
349	 59.77	0	407773..408453	-	226	50841845	-	PPA0359	-	response regulator
350	 60.32	0	408450..409631	-	393	50841846	-	PPA0360	-	putative sensor kinase
351	 59.84	0	409714..410460	+	248	50841847	-	PPA0361	-	putative phosphate transport system protein
352	 58.82	0	410606..411676	+	356	50841848	-	PPA0363	-	polysaccharide deacetylase
353	 62.13	0	411768..412517	-	249	50841849	-	PPA0364	-	phosphoglyceromutase
354	 57.95	0	412642..413100	-	152	50841850	-	PPA0365	-	putative PTS system
355	 59.52	0	413345..413638	-	97	50841851	-	PPA0366	-	putative phosphotransferase enzyme
356	 59.34	0	413845..414840	-	331	50841852	-	PPA0367	-	L-asparaginase I
357	 60.11	0	414841..416289	-	482	50841853	-	PPA0368	-	amino acid permease
358	 62.94	0	416665..418140	-	491	50841854	glyA	PPA0369	-	serine hydroxymethyltransferase
359	 63.03	0	418254..419354	-	366	50841855	-	PPA0370	-	carbohydrate kinase
360	 67.13	+2	419351..419998	-	215	50841856	-	PPA0371	-	KHG/KDPG aldolase
361	 63.58	+1	420201..420977	+	258	50841857	fabG	PPA0372	-	3-ketoacyl-(acyl-carrier-protein) reductase
362	 64.39	+1	420943..421338	+	131	50841858	-	PPA0373	-	putative oxidoreductase
363	 61.64	0	423025..423681	+	218	50841859	-	PPA0376	-	putative glycosyl hydrolase
364	 66.67	+2	423884..424591	-	235	50841860	-	PPA0377	-	hypothetical protein
365	 62.91	0	424584..425408	-	274	50841861	-	PPA0378	-	putative oxidoreductase
366	 65.36	+1	425575..425880	+	101	50841862	-	PPA0379	-	putative dehydrogenase
367	 64.95	+1	425934..428375	-	813	50841863	-	PPA0380	-	hyalorunate lyase
368	 64.26	+1	428537..429409	+	290	50841864	-	PPA0381	-	hypothetical protein
369	 64.15	+1	429195..430067	+	290	50841865	-	PPA0382	-	hypothetical protein
370	 65.52	+1	430312..431268	-	318	50841866	-	PPA0383	-	putative tRNA/rRNA methyltransferase
371	 60.08	0	431282..432754	-	490	50841867	cysS	PPA0384	-	cysteinyl-tRNA synthetase
372	 65.30	+1	432761..432979	+	72	50841868	-	PPA0385	-	hypothetical protein
373	 61.38	0	432990..434408	-	472	50841869	-	PPA0386	-	hypothetical protein
374	 57.03	0	434660..435178	+	172	50841870	-	PPA0387	-	hypothetical protein
375	 55.91	-1	435190..435375	+	61	50841871	-	PPA0388	-	hypothetical protein
376	 61.59	0	435375..435788	+	137	50841872	-	PPA0389	-	hypothetical protein
377	 59.82	0	435790..436344	+	184	50841873	-	PPA0390	-	hypothetical protein
378	 60.67	0	436341..437057	+	238	50841874	-	PPA0391	-	hypothetical protein
379	 58.68	0	437114..437689	+	191	50841875	-	PPA0392	-	putative RNA polymerase sigma factor
380	 58.67	0	437680..438204	+	174	50841876	-	PPA0393	-	hypothetical protein
381	 55.93	-1	438197..438550	+	117	50841877	-	PPA0394	-	hypothetical protein
382	 60.61	0	438616..439935	-	439	50841878	-	PPA0395	-	ABC transporter ATP-binding protein
383	 63.05	0	440439..441875	-	478	50841879	-	PPA0396	-	L-serine dehydratase
384	 63.03	0	442217..444526	+	769	50841880	-	PPA0397	-	oxidoreductase
385	 56.46	-1	444549..445841	+	430	50841881	-	PPA0398	-	putative sugar-binding protein
60.05	MEAN

3.20	STD DEV
