IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

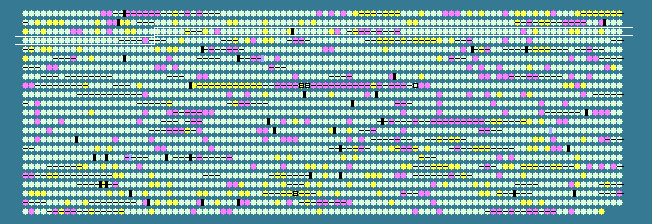

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
223	 60.34	0	279430..279966	-	178	50841719	-	PPA0226	-	hypothetical protein
224	 60.10	0	280063..281325	-	420	50841720	-	PPA0227	-	putative sodium:proton antiporter
225	 62.19	0	281493..282452	-	319	50841721	-	PPA0228	-	putative methyltransferase
226	 63.29	+1	282461..283438	+	325	50841722	-	PPA0229	-	hypothetical protein
227	 62.90	0	283435..284601	+	388	50841723	-	PPA0230	-	putative secretory protein
228	 63.55	+1	284598..285368	+	256	50841724	-	PPA0231	-	hypothetical protein
229	 62.73	0	285404..286114	+	236	50841725	-	PPA0232	-	hypothetical protein
230	 59.38	0	286323..286610	+	95	50841726	-	PPA0233	-	hypothetical protein
231	 65.40	+1	286703..287017	+	104	50841727	-	PPA0234	-	hypothetical protein
232	 61.23	0	287017..287421	+	134	50841728	-	PPA0235	-	hypothetical protein
233	 55.27	-1	287537..287773	+	78	50841729	-	PPA0236	-	hypothetical protein
234	 62.74	0	287834..290098	-	754	50841730	-	PPA0237	-	putative helicase
235	 61.92	0	290122..291639	+	505	50841731	-	PPA0238	-	putative transferase
236	 60.76	0	291732..292019	+	95	50841732	-	PPA0240	-	hypothetical protein
237	 61.83	0	292242..295031	+	929	50841733	-	PPA0241	-	DNA topoisomerase I
238	 62.63	0	295033..296520	+	495	50841734	-	PPA0242	-	hypothetical protein
239	 62.30	0	296471..297157	+	228	50841735	-	PPA0243	-	putative thymidylate kinase
240	 61.75	0	297213..298412	+	399	50841736	-	PPA0244	-	DNA polymerase III subunit delta'
241	 63.82	+1	298544..299350	+	268	50841737	-	PPA0245	-	hypothetical protein
242	 63.05	0	299425..300087	+	220	50841738	-	PPA0246	-	hypothetical protein
243	 58.94	0	300104..301786	+	560	50841739	-	PPA0247	-	putative hydrolase
244	 61.56	0	301875..302207	+	110	50841740	-	PPA0248	-	hypothetical protein
245	 64.04	+1	302241..303917	-	558	50841741	-	PPA0249	-	hypothetical protein
246	 60.89	0	304329..305678	+	449	50841742	-	PPA0250	-	putative flavin-containing amine oxidase
247	 62.68	0	305982..307010	+	342	50841743	-	PPA0251	-	hypothetical protein
248	 62.61	0	307028..307495	-	155	50841744	-	PPA0252	-	hypothetical protein
249	 63.42	+1	308567..309613	-	348	50841745	-	PPA0255	-	hypothetical protein
250	 58.93	0	309691..310323	-	210	50841746	-	PPA0256	-	inorganic pyrophosphatase
251	 60.87	0	310315..311745	+	476	50841747	-	PPA0257	-	putative carboxypeptidase
252	 67.63	+2	311745..312680	+	311	50841748	-	PPA0258	-	hypothetical protein
253	 55.68	-1	312708..313262	+	184	50841749	-	PPA0259	-	putative hypoxanthine phosphoribosyltransferase
254	 60.17	0	313404..315557	+	717	50841750	-	PPA0260	-	putative cell division protein FtsH
255	 62.85	0	315622..316197	+	191	50841751	-	PPA0261	-	GTP cyclohydrolase I
256	 64.97	+1	316270..316563	+	97	50841752	-	PPA0262	-	hypothetical protein
257	 56.19	-1	316805..317911	+	368	50841753	-	PPA0263	-	putative outer membrane protein A
258	 55.87	-1	317911..318549	+	212	50841754	-	PPA0264	-	hypothetical protein
259	 58.33	0	318444..318707	-	87	50841755	-	PPA0265	-	hypothetical protein
260	 56.13	-1	318756..319277	+	173	50841756	-	PPA0266	-	hypothetical protein
261	 62.03	0	319307..319759	+	150	50841757	-	PPA0267	-	hypothetical protein
262	 58.05	0	319949..320923	+	324	50841758	-	PPA0268	-	hypothetical protein
263	 56.49	-1	320859..321536	+	225	50841759	-	PPA0270	-	hypothetical protein
264	 61.35	0	321592..322437	+	281	50841760	-	PPA0271	-	dihydropteroate synthase
265	 60.06	0	322498..322860	+	120	50841761	-	PPA0272	-	dihydroneopterin aldolase
266	 60.93	0	322857..323414	+	185	50841762	-	PPA0273	-	putative hydroxymethyldihydropteridine pyrophosphokinase
267	 59.78	0	323411..323947	+	178	50841763	-	PPA0274	-	hypothetical protein
268	 59.88	0	324030..324707	+	225	50841764	-	PPA0275	-	hypothetical protein
269	 58.10	0	324784..325974	-	396	50841765	-	PPA0276	-	putative NADH dehydrogenase
270	 59.43	0	326113..326430	+	105	50841766	-	PPA0277	-	hypothetical protein
271	 60.75	0	326692..329226	+	844	50841767	-	PPA0278	-	Clp family ATP-binding protease
272	 61.31	0	329279..330286	-	335	50841768	-	PPA0279	-	hypothetical protein
273	 56.84	-1	330283..331269	-	328	50841769	-	PPA0280	-	membrane spanning protein
274	 60.65	0	331266..332030	-	254	50841770	-	PPA0281	-	membrane spanning protein
275	 60.57	0	332153..332923	+	256	50841771	-	PPA0282	-	hypothetical protein
276	 60.39	0	332920..333540	+	206	50841772	-	PPA0283	-	allophanate hydrolase subunit 1
277	 62.64	0	333537..334406	+	289	50841773	-	PPA0284	-	allophanate hydrolase subunit 2
278	 58.67	0	334570..336057	+	495	50841774	-	PPA0285	-	putative sugar transporter
279	 59.33	0	336125..337024	+	299	50841775	-	PPA0286	-	putative cell division inhibitor
280	 60.07	0	337021..337929	+	302	50841776	-	PPA0287	-	membrane spanning protein
281	 60.18	0	337947..338501	-	184	50841777	-	PPA0288	-	hypothetical protein
282	 63.17	0	338575..339231	-	218	50841778	-	PPA0289	-	putative two component response regulator
283	 62.12	0	339311..340543	-	410	50841779	-	PPA0290	-	putative two-component sensor kinase
284	 56.20	-1	340694..341314	+	206	50841780	-	PPA0291	-	hypothetical protein
285	 58.99	0	341497..342408	-	303	50841781	-	PPA0292	-	hypothetical protein
286	 64.35	+1	342413..342886	-	157	50841782	-	PPA0293	-	PTS system, glucose/sucrose specific IIA subunit
287	 58.57	0	342898..344577	-	559	50841783	-	PPA0294	-	PTS system sugar-specific EII component
288	 58.11	0	345249..346568	-	439	50841784	-	PPA0295	-	putative sugar transporter
289	 58.69	0	346613..347653	-	346	50841785	-	PPA0296	-	4-hydroxythreonine-4-phosphate dehydrogenase 2
290	 61.16	0	347729..349000	-	423	50841786	-	PPA0298	-	hypothetical protein
291	 60.54	0	349234..350163	-	309	50841787	-	PPA0299	-	DeoR family transcriptional regulator
292	 63.70	+1	350176..351051	-	291	50841788	-	PPA0300	-	A/G-specific adenine glycosylase
293	 64.91	+1	351044..352354	-	436	50841789	-	PPA0301	-	glutamate-1-semialdehyde 2,1-aminomutase, HemL
294	 61.89	0	352402..353448	-	348	50841790	-	PPA0302	-	delta-aminolevulinic acid dehydratase
295	 62.67	0	353478..354203	-	241	50841791	-	PPA0303	-	uroporphyrinogen-III synthase, HemD
296	 62.67	0	354200..355300	-	366	50841792	hemC	PPA0304	-	porphobilinogen deaminase
297	 64.39	+1	355251..356699	-	482	50841793	-	PPA0305	-	putative protoporphyrinogen oxidase, HemY
298	 62.45	0	356696..357976	-	426	50841794	-	PPA0306	-	uroporphyrinogen decarboxylase, HemE
299	 62.40	0	357887..359221	+	444	50841795	-	PPA0307	-	glutamyl-tRNA reductase, HemA
300	 61.94	0	359218..361269	+	683	50841796	-	PPA0308	-	ferrochelatase, HemH
301	 59.72	0	361341..361973	+	210	50841797	-	PPA0310	-	hypothetical protein
302	 59.61	0	362009..363043	-	344	50841798	-	PPA0311	-	DNA integrity scanning protein DisA
303	 61.73	0	363162..364559	-	465	50841799	-	PPA0312	-	DNA repair protein RadA
304	 58.77	0	364625..366271	-	548	50841800	-	PPA0313	-	malate dehydrogenase
305	 61.19	0	366335..366973	-	212	50841801	-	PPA0314	-	hypothetical protein
306	 57.77	0	367125..368012	+	295	50841802	-	PPA0315	-	putative AP endonuclease family protein
307	 58.97	0	368075..368971	+	298	50841803	-	PPA0316	-	putative proline dehydrogenase
308	 61.89	0	368971..369807	+	278	50841804	-	PPA0317	-	putative protease
309	 60.96	0	369582..370895	+	437	50841805	-	PPA0318	-	aspartate-semialdehyde dehydrogenase
310	 61.74	0	370892..371683	+	263	50841806	-	PPA0319	-	putative delta-1-pyrroline-5-carboxylate reductase
311	 58.82	0	371819..371920	+	33	50841807	-	PPA0320	-	hypothetical protein
312	 58.48	0	371940..372281	+	113	50841808	-	PPA0321	-	hypothetical protein
313	 60.66	0	372405..374120	+	571	50841809	-	PPA0323	-	uroporphyrinogen-III synthase, HemD
314	 61.73	0	374191..374859	+	222	50841810	-	PPA0324	-	putative phosphoglycerate mutase
315	 59.47	0	374856..375425	+	189	50841811	-	PPA0325	-	hypothetical protein
316	 60.89	0	375422..376183	+	253	50841812	-	PPA0326	-	cytochrome c biogenesis protein
317	 59.06	0	376261..377772	+	503	50841813	-	PPA0327	-	putative c-type cytochrome biogenesis protein
318	 60.88	0	377769..378650	+	293	50841814	-	PPA0328	-	putative cytochrome c biogenesis protein
319	 60.18	0	378637..380100	+	487	50841815	-	PPA0329	-	putative sigma subunit
320	 62.89	0	380112..380906	-	264	50841816	-	PPA0330	-	putative short chain dehydrogenase
321	 43.39	-2	381123..382196	-	357	50841817	-	PPA0331	-	hypothetical protein
322	 61.42	0	382407..383111	-	234	50841818	-	PPA0332	-	hypothetical protein
60.05	MEAN

3.20	STD DEV
