IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

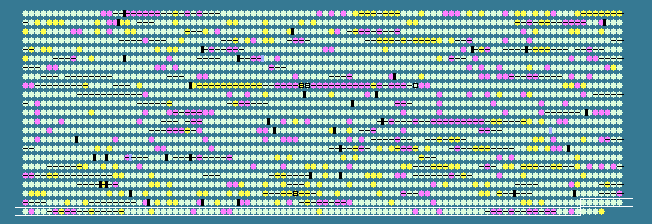

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2194	 60.34	0	2441486..2442670	+	394	50843690	-	PPA2257	-	putative DNA repair exonuclease or phosphoesterase
2195	 60.15	0	2442667..2445273	+	868	50843691	-	PPA2258	-	putative ATPase involved in DNA repair
2196	 62.14	0	2445333..2446679	-	448	50843692	-	PPA2259	-	hypothetical protein
2197	 59.26	0	2446679..2447326	-	215	50843693	-	PPA2260	-	TetR family transcriptional regulator
2198	 60.60	0	2447463..2448335	+	290	50843694	-	PPA2261	-	4-amino-4-deoxychorismate lyase
2199	 60.33	0	2448335..2448823	+	162	50843695	-	PPA2262	-	putative transcriptional regulator
2200	 59.15	0	2448836..2449234	-	132	50843696	-	PPA2263	-	hypothetical protein
2201	 60.34	0	2449264..2449800	-	178	50843697	-	PPA2264	-	hypothetical protein
2202	 56.20	-1	2449797..2450417	-	206	50843698	-	PPA2265	-	hypothetical protein
2203	 62.17	0	2450920..2452989	+	689	50843699	nadE	PPA2266	-	NAD synthetase
2204	 62.44	0	2453168..2455414	+	748	50843700	-	PPA2267	-	6-phosphofructokinase, type C
2205	 57.05	0	2455481..2456593	-	370	50843701	-	PPA2268	-	alanine dehydrogenase
2206	 54.60	-1	2456880..2458379	+	499	50843702	-	PPA2269	-	D-serine/D-alanine/glycine transporter
2207	 63.73	+1	2458479..2458682	+	67	50843703	-	PPA2374	-	hypothetical protein
2208	 56.51	-1	2458679..2458993	+	104	50843704	-	PPA2375	-	hypothetical protein
2209	 55.43	-1	2459052..2459327	+	91	50843705	-	PPA2377	-	hypothetical protein
2210	 58.73	0	2459363..2459488	+	41	50843706	-	PPA2376	-	hypothetical protein
2211	 58.18	0	2459612..2460895	+	427	50843707	-	PPA2270	-	putative secreted lipoprotein
2212	 65.53	+1	2461136..2462632	+	498	50843708	-	PPA2271	-	lipoprotein A family protein
2213	 57.89	0	2462927..2464213	+	428	50843709	-	PPA2272	-	citrate synthase 1
2214	 60.62	0	2464452..2465477	+	341	50843710	-	PPA2273	-	adenosine deaminase
2215	 57.05	0	2465524..2466636	-	370	50843711	-	PPA2274	-	alanine dehydrogenase
2216	 59.33	0	2466810..2467817	-	335	50843712	-	PPA2275	-	AsnC family transcriptional regulator
2217	 63.70	+1	2468111..2469154	+	347	50843713	-	PPA2276	-	oxidoreductase
2218	 61.21	0	2469166..2469513	+	115	50843714	-	PPA2277	-	hypothetical protein
2219	 62.80	0	2469510..2470931	+	473	50843715	-	PPA2278	-	putative threonine synthase / cystathionine beta-synthase
2220	 63.36	+1	2470931..2471353	+	140	50843716	-	PPA2279	-	D-ornithine aminomutase S component
2221	 62.92	0	2471350..2473668	+	772	50843717	-	PPA2280	-	D-ornithine aminomutase E component
2222	 64.01	+1	2473674..2475104	+	476	50843718	-	PPA2281	-	methylaspartate mutase
2223	 60.06	0	2475101..2476189	+	362	50843719	-	PPA2282	-	amino acid racemase
2224	 58.47	0	2476228..2477703	+	491	50843720	-	PPA2283	-	D-serine/D-alanine/glycine transporter
2225	 56.90	0	2478067..2479581	+	504	50843721	-	PPA2284	-	D-serine/D-alanine/glycine transporter
2226	 58.78	0	2479808..2480935	+	375	50843722	-	PPA2285	-	alanine racemase 1
2227	 58.67	0	2481125..2482549	-	474	50843723	-	PPA2286	-	phosphoglucomutase/phosphomannomutase
2228	 60.79	0	2482666..2483856	-	396	50843724	-	PPA2287	-	galactokinase
2229	 56.51	-1	2483853..2484689	-	278	50843725	-	PPA2288	-	glucose-1-phosphate thymidylyltransferase
2230	 59.66	0	2484814..2485641	+	275	50843726	-	PPA2289	-	hypothetical protein
2231	 58.33	0	2485647..2485838	-	63	50843727	-	PPA2290	-	hypothetical protein
2232	 60.21	0	2485835..2486701	-	288	50843728	-	PPA2291	-	hypothetical protein
2233	 61.27	0	2486987..2488393	+	468	50843729	fumC	PPA2292	-	fumarate hydratase
2234	 56.47	-1	2488614..2489525	-	303	50843730	-	PPA2293	-	binding-protein-dependent transport system
2235	 55.78	-1	2489527..2490435	-	302	50843731	-	PPA2294	-	binding-protein-dependent transport system
2236	 59.18	0	2490658..2491992	-	444	50843732	-	PPA2295	-	solute-binding lipoprotein
2237	 61.81	0	2492189..2493196	+	335	50843733	-	PPA2296	-	transcription regulator CelR
2238	 62.19	0	2493205..2493897	-	230	50843734	-	PPA2297	-	hypothetical protein
2239	 58.39	0	2494023..2494880	+	285	50843735	-	PPA2298	-	putative mechanosensitive ion channel
2240	 61.54	0	2495050..2496258	-	402	50843736	-	PPA2299	-	glycerate kinase
2241	 61.57	0	2496309..2496563	+	84	50843737	-	PPA2300	-	hypothetical protein
2242	 60.17	0	2496645..2498168	+	507	50843738	-	PPA2301	-	putative RNA nucleotidyltransferase
2243	 59.24	0	2498211..2500352	+	713	50843739	-	PPA2302	-	hypothetical protein
2244	 61.15	0	2500420..2502231	+	603	50843740	-	PPA2303	-	serine-threonine protein kinase
2245	 60.14	0	2502581..2504128	-	515	50843741	-	PPA2304	-	glycerol kinase 2
2246	 60.96	0	2504189..2504941	-	250	50843742	-	PPA2305	-	glycerol uptake facilitator protein
2247	 56.96	0	2505130..2506077	+	315	50843743	-	PPA2306	-	transcriptional regulator
2248	 59.03	0	2506148..2507587	-	479	50843744	-	PPA2307	-	trypsin-like serine protease
2249	 59.67	0	2507691..2508362	-	223	50843745	-	PPA2308	-	alpha-L-arabinofuranosidase
2250	 63.82	+1	2508494..2509546	+	350	50843746	-	PPA2309	-	thioredoxin reductase
2251	 60.14	0	2510029..2510916	-	295	50843747	-	PPA2310	-	putative RNA pseudouridylate synthase
2252	 60.98	0	2511243..2512490	+	415	50843748	-	PPA2311	-	putative sucrose symporter
2253	 61.72	0	2512492..2513421	+	309	50843749	-	PPA2312	-	lipase/esterase
2254	 62.79	0	2513545..2513982	-	145	50843750	-	PPA2313	-	OsmC-like protein
2255	 59.58	0	2513992..2514471	-	159	50843751	-	PPA2314	-	thioredoxin
2256	 60.49	0	2514559..2515626	-	355	50843752	-	PPA2315	-	glycerol-3-phosphate dehydrogenase [NAD(P)+]
2257	 63.13	0	2516637..2518700	-	687	50843753	-	PPA2318	-	transketolase
2258	 62.19	0	2518837..2520600	-	587	50843754	-	PPA2319	-	ribulokinase
2259	 62.56	0	2520619..2521983	-	454	50843755	-	PPA2320	-	L-arabinose utilization protein, glycerol dehydrogenase
2260	 59.25	0	2521967..2523571	-	534	50843756	-	PPA2321	-	sugar kinase, putative xylulose kinase
2261	 60.26	0	2523628..2524485	-	285	50843757	-	PPA2322	-	L-arabinose operon protein, hydrolase
2262	 60.99	0	2524508..2525653	-	381	50843758	-	PPA2323	-	hypothetical protein
2263	 59.42	0	2525731..2526213	-	160	50843759	-	PPA2324	-	ribose 5-phosphate isomerase
2264	 60.89	0	2526430..2526948	-	172	50843760	-	PPA2325	-	L-ribulose-5-phosphate 4-epimerase
2265	 62.45	0	2527000..2527806	-	268	50843761	-	PPA2326	-	DeoR family transcriptional regulator
2266	 52.98	-2	2528080..2529153	-	357	50843762	-	PPA2327	-	mannonate dehydratase
2267	 57.80	0	2529156..2530745	-	529	50843763	-	PPA2328	-	D-mannonate oxidoreductase
2268	 58.88	0	2530761..2532173	-	470	50843764	-	PPA2329	-	glucuronate isomerase
2269	 58.63	0	2532238..2533245	-	335	50843765	-	PPA2330	-	LacI family transcription regulator
2270	 55.44	-1	2533422..2534846	+	474	50843766	-	PPA2331	-	glucuronide permease
2271	 61.29	0	2534866..2537358	+	830	50843767	-	PPA2332	-	putative glucosidase
2272	 60.38	0	2537391..2539172	+	593	50843768	-	PPA2333	-	beta-D-glucuronidase
2273	 61.11	0	2539276..2542677	+	1133	50843769	-	PPA2334	-	hypothetical protein
2274	 60.79	0	2542812..2543645	+	277	50843770	-	PPA2335	-	hypothetical protein
2275	 59.10	0	2543591..2544277	-	228	50843771	-	PPA2336	-	hypothetical protein
2276	 58.87	0	2544421..2545818	+	465	50843772	-	PPA2337	-	aminotransferase
2277	 58.43	0	2546113..2547096	+	327	50843773	-	PPA2338	-	D-alanine--D-alanine ligase B
2278	 59.59	0	2547071..2547805	+	244	50843774	-	PPA2339	-	membrane-associated protein
2279	 55.67	-1	2547802..2548374	+	190	50843775	-	PPA2340	-	membrane-associated protein
2280	 54.72	-1	2548632..2549552	-	306	50843776	-	PPA2341	-	chromosome partitioning protein ParB
2281	 56.64	-1	2549555..2550541	-	328	50843777	-	PPA2342	-	chromosome partitioning protein ParA
2282	 54.05	-1	2550603..2550824	-	73	50843778	-	PPA2369	-	hypothetical protein
2283	 58.87	0	2550928..2551158	+	76	50843779	-	PPA2370	-	hypothetical protein
2284	 57.65	0	2551746..2552111	+	121	50843780	-	PPA2371	-	hypothetical protein
2285	 53.68	-1	2552108..2552338	+	76	50843781	-	PPA2343	-	hypothetical protein
2286	 54.55	-1	2552368..2552994	-	208	50843782	gidB	PPA2344	-	glucose-inhibited division protein B
2287	 59.20	0	2553440..2553640	-	66	50843783	-	PPA2345	-	hypothetical protein
2288	 51.94	-2	2553646..2554032	+	128	50843784	-	PPA2373	-	hypothetical protein
2289	 50.23	-2	2554307..2554750	+	147	50843785	-	PPA2372	-	hypothetical protein
2290	 57.05	0	2554980..2556008	-	342	50843786	-	PPA2346	-	putative alanine racemase
2291	 56.59	-1	2556010..2557101	-	363	50843787	-	PPA2347	-	FemAB family protein
2292	 56.57	-1	2557146..2557343	-	65	50843788	-	PPA2348	-	hypothetical protein
2293	 57.52	0	2557347..2557958	-	203	50843789	-	PPA2349	-	jag-like protein
60.05	MEAN

3.20	STD DEV
