IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

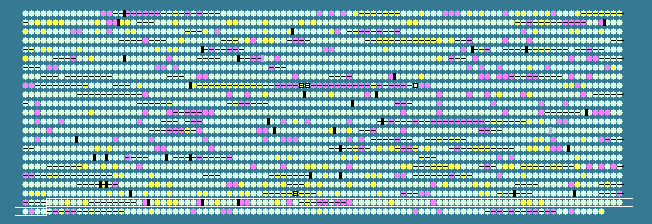

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2105	 63.12	0	2343607..2345577	-	656	50843601	-	PPA2164	-	putative beta-N-acetylglucosaminidase precursor
2106	 58.21	0	2345736..2346149	+	137	50843602	-	PPA2165	-	urocanate hydratase fragment
2107	 61.08	0	2346204..2347742	+	512	50843603	-	PPA2166	-	urocanate hydratase
2108	 64.41	+1	2347742..2348938	+	398	50843604	-	PPA2167	-	allantoate amidohydrolase
2109	 63.16	0	2348935..2350275	+	446	50843605	-	PPA2168	-	N-formimino-L-glutamate deiminase
2110	 63.22	0	2350272..2351462	+	396	50843606	-	PPA2169	-	imidazolonepropionase
2111	 65.30	+1	2351598..2353133	+	511	50843607	hutH	PPA2170	-	histidine ammonia-lyase
2112	 62.24	0	2353310..2353648	+	112	50843608	-	PPA2171	-	hypothetical protein
2113	 60.27	0	2354102..2354836	-	244	50843609	-	PPA2172	-	NAD-dependent deacetylase
2114	 63.19	0	2354839..2355558	-	239	50843610	-	PPA2173	-	hypothetical protein
2115	 61.54	0	2355632..2356879	-	415	50843611	-	PPA2174	-	proline iminopeptidase
2116	 63.08	0	2357193..2358224	+	343	50843612	-	PPA2175	-	rare lipoprotein A (RlpA) family protein
2117	 62.13	0	2358316..2359131	-	271	50843613	-	PPA2176	-	hypothetical protein
2118	 57.37	0	2359454..2359765	+	103	50843614	-	PPA2177	-	hypothetical protein
2119	 60.99	0	2359743..2360306	+	187	50843615	-	PPA2178	-	hypothetical protein
2120	 61.45	0	2360337..2361851	-	504	50843616	-	PPA2179	-	potassium/proton antiporter
2121	 55.04	-1	2361995..2362639	-	214	50843617	-	PPA2180	-	hypothetical protein
2122	 58.41	0	2362884..2364251	-	455	50843618	-	PPA2181	-	RfbX family protein involved in the export of O-antigen and teichoic acid
2123	 64.67	+1	2364248..2364697	-	149	50843619	-	PPA2182	-	putative cytidine and deoxycytidylate deaminase
2124	 57.92	0	2364734..2365465	-	243	50843620	-	PPA2183	-	hypothetical protein
2125	 63.71	+1	2365576..2366217	+	213	50843621	upp	PPA2184	-	uracil phosphoribosyltransferase
2126	 63.98	+1	2366214..2366957	+	247	50843622	-	PPA2185	-	hypothetical protein
2127	 61.49	0	2366994..2367515	-	173	50843623	-	PPA2186	-	hypothetical protein
2128	 59.05	0	2367841..2369796	+	651	50843624	-	PPA2187	-	K+ potassium transporter
2129	 62.39	0	2369851..2370552	-	233	50843625	-	PPA2188	-	glutamine amidotransferase / GMP synthase
2130	 55.66	-1	2370538..2370864	+	108	50843626	-	PPA2189	-	hypothetical protein
2131	 62.08	0	2371561..2373414	+	617	50843627	-	PPA2190	-	membrane-associated protein
2132	 63.40	+1	2373463..2374473	-	336	50843628	-	PPA2191	-	LacI family transcriptional regulator
2133	 65.37	+1	2374475..2375710	-	411	50843629	-	PPA2192	-	galactokinase
2134	 58.31	0	2375688..2377637	+	649	50843630	-	PPA2193	-	sodium:solute symporter
2135	 60.81	0	2377648..2377920	+	90	50843631	-	PPA2194	-	hypothetical protein
2136	 59.26	0	2378024..2378509	-	161	50843632	-	PPA2195	-	hypothetical protein
2137	 54.75	-1	2378865..2379779	-	304	50843633	-	PPA2198	-	hypothetical protein
2138	 55.12	-1	2379767..2380372	-	201	50843634	-	PPA2199	-	hypothetical protein
2139	 62.38	0	2380556..2381557	+	333	50843635	-	PPA2200	-	Zn-binding dehydrogenase/oxidoreductase
2140	 61.82	0	2381756..2383180	+	474	50843636	-	PPA2201	-	argininosuccinate synthase
2141	 62.78	0	2383635..2384843	+	402	50843637	-	PPA2202	-	membrane protein, putative permease
2142	 59.77	0	2384892..2387051	-	719	50843638	-	PPA2203	-	putative Na+/H+ antiporter
2143	 64.16	+1	2387400..2387957	+	185	50843639	-	PPA2204	-	hypothetical protein
2144	 61.76	0	2388012..2388785	+	257	50843640	-	PPA2205	-	HAD superfamily hydrolase
2145	 55.18	-1	2389175..2389531	+	118	50843641	-	PPA2206	-	ABC transporter, ATP-binding protein
2146	 58.11	0	2389952..2390839	+	295	50843642	-	PPA2207	-	putative ABC transporter-associated permease
2147	 63.44	+1	2390897..2391763	+	288	50843643	-	PPA2208	-	putative transcriptional regulator
2148	 63.97	+1	2391776..2392516	+	246	50843644	-	PPA2209	-	hypothetical protein
2149	 61.57	0	2392803..2394194	+	463	50843645	-	PPA2210	-	putative adhesion or S-layer protein
2150	 52.62	-2	2394342..2395829	-	495	50843646	-	PPA2211	-	purine cytosine permease-like protein
2151	 56.00	-1	2396185..2397534	-	449	50843647	-	PPA2212	-	putative electron transfer flavoprotein-quinone oxidoreductase (FixC protein)
2152	 56.88	0	2397552..2398430	-	292	50843648	-	PPA2213	-	putative electron transfer flavoprotein, carnitine metabolism (FixB protein)
2153	 56.30	-1	2398463..2399224	-	253	50843649	-	PPA2214	-	putative electron transfer flavoprotein (FixA protein)
2154	 55.10	-1	2399333..2400499	-	388	50843650	-	PPA2215	-	putative L-carnitine dehydratase
2155	 55.44	-1	2400537..2401685	-	382	50843651	-	PPA2216	-	acyl-CoA dehydrogenase
2156	 58.30	0	2401911..2402675	-	254	50843652	-	PPA2217	-	IclR family transcriptional regulator
2157	 61.31	0	2402789..2404114	-	441	50843653	-	PPA2218	-	hypothetical protein
2158	 57.80	0	2404111..2405385	-	424	50843654	-	PPA2219	-	seryl-tRNA synthetase
2159	 59.34	0	2405472..2406290	-	272	50843655	-	PPA2220	-	hypothetical protein
2160	 60.11	0	2407005..2407736	-	243	50843656	aat	PPA2221	-	leucyl/phenylalanyl-tRNA--protein transferase
2161	 59.00	0	2408177..2408437	+	86	50843657	-	PPA2222	-	hypothetical protein
2162	 66.13	+1	2408580..2408954	+	124	50843658	-	PPA2223	-	siderophore-interacting protein (fragment)
2163	 58.60	0	2409007..2409861	-	284	50843659	uppP	PPA2224	-	undecaprenyl pyrophosphate phosphatase
2164	 57.23	0	2410073..2410591	-	172	50843660	-	PPA2225	-	ferritin
2165	 60.25	0	2410922..2411560	-	212	50843661	-	PPA2226	-	hypothetical protein
2166	 61.11	0	2411883..2412332	-	149	50843662	-	PPA2227	-	50S ribosomal protein L9
2167	 60.00	0	2412346..2412585	-	79	50843663	rpsR	PPA2228	-	30S ribosomal protein S18
2168	 61.44	0	2412712..2413266	-	184	50843664	-	PPA2229	-	single-strand DNA-binding protein
2169	 54.98	-1	2413394..2413684	-	96	50843665	rpsF	PPA2230	-	30S ribosomal protein S6
2170	 61.71	0	2414206..2414568	-	120	50843666	-	PPA2231	-	hypothetical protein
2171	 61.04	0	2414767..2415228	-	153	50843667	-	PPA2232	-	PTS system, fructose/mannitol specific IIA subunit
2172	 59.49	0	2415252..2416811	-	519	50843668	-	PPA2233	-	PTS system, fructose-specific IIBC component
2173	 59.48	0	2417121..2419055	-	644	50843669	-	PPA2234	-	putative long-chain-fatty-acid--CoA ligase/synthetase
2174	 62.57	0	2419172..2419927	-	251	50843670	-	PPA2235	-	endonuclease IV
2175	 61.60	0	2420039..2420848	+	269	50843671	-	PPA2236	-	short chain dehydrogenase
2176	 61.97	0	2420850..2421701	+	283	50843672	-	PPA2237	-	putative 1-acyl-sn-glycerol-3-phosphate acyltransferase
2177	 60.25	0	2421701..2422183	+	160	50843673	-	PPA2238	-	putative transcriptional regulator
2178	 58.46	0	2422254..2423447	-	397	50843674	-	PPA2239	-	hypothetical protein
2179	 61.53	0	2423727..2425985	-	752	50843675	-	PPA2240	-	cation-transporting ATPase
2180	 61.32	0	2426174..2426566	-	130	50843676	-	PPA2242	-	putative metal-associated protein (copper chaperone)
2181	 59.40	0	2426590..2426988	-	132	50843677	-	PPA2243	-	hypothetical protein
2182	 59.84	0	2427460..2428806	+	448	50843678	-	PPA2244	-	replicative DNA helicase
2183	 60.98	0	2428857..2429858	+	333	50843679	-	PPA2245	-	zinc-binding dehydrogenase
2184	 65.09	+1	2430005..2430322	+	105	50843680	-	PPA2246	-	hypothetical protein
2185	 63.54	+1	2430319..2430894	+	191	50843681	-	PPA2247	-	3-methyladenine DNA glycosylase
2186	 59.87	0	2431221..2432471	-	416	50843682	glpC	PPA2248	-	sn-glycerol-3-phosphate dehydrogenase subunit C
2187	 63.76	+1	2432474..2433817	-	447	50843683	-	PPA2249	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
2188	 61.96	0	2433814..2435448	-	544	50843684	-	PPA2250	-	anaerobic glycerol-3-phosphate dehydrogenase subunit A
2189	 60.14	0	2435865..2436830	-	321	50843685	-	PPA2251	-	D-isomer specific 2-hydroxyacid dehydrogenase, putative D-3-phosphoglycerate dehydrogenase
2190	 60.38	0	2436888..2437412	+	174	50843686	-	PPA2252	-	MarR family transcriptional regulator
2191	 62.27	0	2437409..2439136	+	575	50843687	-	PPA2253	-	putative chloride channel
2192	 60.98	0	2439139..2440545	-	468	50843688	-	PPA2254	-	amino acid permease, putative GABA permease
2193	 59.74	0	2440661..2441194	-	177	50843689	-	PPA2256	-	MarR family transcriptional regulator
2194	 60.34	0	2441486..2442670	+	394	50843690	-	PPA2257	-	putative DNA repair exonuclease or phosphoesterase
2195	 60.15	0	2442667..2445273	+	868	50843691	-	PPA2258	-	putative ATPase involved in DNA repair
2196	 62.14	0	2445333..2446679	-	448	50843692	-	PPA2259	-	hypothetical protein
2197	 59.26	0	2446679..2447326	-	215	50843693	-	PPA2260	-	TetR family transcriptional regulator
2198	 60.60	0	2447463..2448335	+	290	50843694	-	PPA2261	-	4-amino-4-deoxychorismate lyase
2199	 60.33	0	2448335..2448823	+	162	50843695	-	PPA2262	-	putative transcriptional regulator
2200	 59.15	0	2448836..2449234	-	132	50843696	-	PPA2263	-	hypothetical protein
2201	 60.34	0	2449264..2449800	-	178	50843697	-	PPA2264	-	hypothetical protein
2202	 56.20	-1	2449797..2450417	-	206	50843698	-	PPA2265	-	hypothetical protein
2203	 62.17	0	2450920..2452989	+	689	50843699	nadE	PPA2266	-	NAD synthetase
2204	 62.44	0	2453168..2455414	+	748	50843700	-	PPA2267	-	6-phosphofructokinase, type C
60.05	MEAN

3.20	STD DEV
