IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

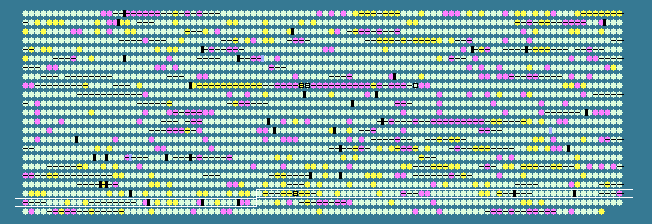

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2040	 61.22	0	2273208..2275319	+	703	50843536	-	PPA2097	-	5'-nucleotidase/2',3'-cyclic phosphodiesterase or related esterase
2041	 64.23	+1	2275533..2275778	-	81	50843537	-	PPA2098	-	ABC transporter ATP-binding protein
2042	 63.41	+1	2276025..2276300	-	91	50843538	-	PPA2099	-	ABC transporter transmembrane region
2043	 60.94	0	2276577..2276873	-	98	50843539	-	PPA2101	-	hypothetical protein
2044	 66.24	+1	2276901..2277365	-	154	50843540	-	PPA2102	-	hypothetical protein
2045	 66.17	+1	2277586..2277984	+	132	50843541	-	PPA2103	-	hypothetical protein
2046	 66.67	+2	2278033..2278341	+	102	50843542	-	PPA2104	-	putative transposase
2047	 63.73	+1	2278518..2279537	-	339	50843543	-	PPA2105	-	triacylglycerol lipase precursor
2048	 66.53	+2	2280127..2281629	+	500	50843544	-	PPA2106	-	endoglycoceramidase
2049	 62.10	0	2281998..2282435	-	145	50843545	-	PPA2107	-	hypothetical protein
2050	 64.09	+1	2282705..2283520	+	271	50843546	-	PPA2108	-	cAMP factor
2051	 61.52	0	2283696..2284472	-	258	50843547	-	PPA2109	-	hypothetical protein
2052	 63.52	+1	2284487..2284963	+	158	50843548	-	PPA2110	-	low molecular weight protein-tyrosine-phosphatase
2053	 68.40	+2	2285027..2286121	+	364	50843549	-	PPA2111	-	hypothetical protein
2054	 61.95	0	2286118..2286816	+	232	50843550	-	PPA2112	-	putative two-component response regulator
2055	 61.98	0	2286813..2288243	+	476	50843551	-	PPA2113	-	putative two-component system sensor kinase
2056	 63.04	0	2288345..2289310	+	321	50843552	-	PPA2114	-	putative asparaginase
2057	 60.50	0	2289317..2289916	-	199	50843553	-	PPA2115	-	isopentenyl-diphosphate delta-isomerase
2058	 62.73	0	2290050..2291243	+	397	50843554	-	PPA2116	-	trypsin-like serine protease
2059	 61.42	0	2291412..2291735	+	107	50843555	-	PPA2117	-	hypothetical protein
2060	 64.03	+1	2291788..2292888	+	366	50843556	-	PPA2118	-	NADH:flavin oxidoreductase
2061	 62.20	0	2292943..2293188	+	81	50843557	-	PPA2119	-	hypothetical protein
2062	 58.23	0	2293195..2294427	+	410	50843558	-	PPA2120	-	dicarboxylate transport protein / putative alpha-ketoglutarate permease
2063	 62.50	0	2294877..2297447	+	856	50843559	-	PPA2121	-	ribonucleotide-diphosphate reductase subunit alpha
2064	 55.22	-1	2297482..2298468	+	328	50843560	nrdF	PPA2122	-	ribonucleotide-diphosphate reductase subunit beta
2065	 59.62	0	2298866..2299078	+	70	50843561	-	PPA2123	-	hypothetical protein
2066	 61.13	0	2299238..2300320	+	360	50843562	-	PPA2125	-	polyphosphate glucokinase/transcriptional regulator
2067	 56.54	-1	2300494..2301105	+	203	50843563	-	PPA2126	-	hypothetical protein
2068	 51.28	-2	2301738..2301971	+	77	50843564	-	PPA2366	-	hypothetical protein
2069	 58.46	0	2302311..2303528	+	405	50843565	-	PPA2127	-	putative adhesion or S-layer protein
2070	 60.68	0	2303771..2305441	-	556	50843566	-	PPA2128	-	arginyl-tRNA synthetase
2071	 60.46	0	2305576..2306397	+	273	50843567	-	PPA2129	-	2,5-diketo-D-gluconic acid reductase A
2072	 61.28	0	2306464..2307150	-	228	50843568	-	PPA2130	-	OmpA family membrane associated protein
2073	 60.84	0	2307646..2309328	-	560	50843569	-	PPA2131	-	glucose-6-phosphate isomerase
2074	 62.97	0	2309421..2310395	+	324	50843570	-	PPA2132	-	hypothetical protein
2075	 62.91	0	2310420..2311085	-	221	50843571	-	PPA2133	-	putative aldolase
2076	 58.76	0	2311254..2311784	+	176	50843572	-	PPA2134	-	starvation-inducible DNA-binding protein or fine tangled pili major subunit
2077	 63.57	+1	2311852..2314530	+	892	50843573	-	PPA2135	-	DeaD/DeaH box helicase
2078	 63.76	+1	2314545..2315060	-	171	50843574	-	PPA2136	-	anaerobic ribonucleoside-triphosphate reductase activating protein
2079	 61.33	0	2315057..2317399	-	780	50843575	-	PPA2137	-	anaerobic ribonucleoside triphosphate reductase
2080	 63.85	+1	2317855..2318316	+	153	50843576	-	PPA2138	-	phosphatidylethanolamine-binding protein
2081	 61.03	0	2318549..2319613	+	354	50843577	-	PPA2139	-	putative serine esterase cutinase
2082	 62.23	0	2319619..2320317	-	232	50843578	-	PPA2140	-	hypothetical protein
2083	 61.34	0	2320819..2321400	+	193	50843579	-	PPA2141	-	hypothetical protein
2084	 59.36	0	2321679..2322800	+	373	50843580	-	PPA2142	-	putative lysophospholipase
2085	 59.10	0	2322990..2324483	+	497	50843581	-	PPA2143	-	hypothetical protein
2086	 62.14	0	2324480..2325340	+	286	50843582	-	PPA2144	-	hypothetical protein
2087	 60.82	0	2325337..2326260	+	307	50843583	-	PPA2145	-	mebrane protein, permease
2088	 58.80	0	2326588..2327973	+	461	50843584	-	PPA2146	-	hypothetical protein
2089	 59.78	0	2328008..2329939	-	643	50843585	-	PPA2147	-	membrane protein, MviN-like protein
2090	 60.47	0	2329842..2331116	-	424	50843586	-	PPA2148	-	aspartate kinase
2091	 59.08	0	2331304..2333847	+	847	50843587	-	PPA2149	-	penicillin-binding protein (transglycosylase/transpeptidase)
2092	 60.06	0	2333735..2334763	+	342	50843588	-	PPA2150	-	calcineurin-like phosphoesterase
2093	 59.49	0	2335002..2335670	+	222	50843589	-	PPA2151	-	putative intracellular protease / general stress protein 18
2094	 59.47	0	2335970..2337637	+	555	50843590	-	PPA2152	-	putative peptide transport system secreted peptide-binding protein
2095	 59.63	0	2337710..2338633	+	307	50843591	-	PPA2153	-	putative peptide ABC transporter, permease component
2096	 61.32	0	2338626..2339597	+	323	50843592	-	PPA2154	-	putative peptide ABC transporter, permease component
2097	 61.46	0	2339607..2340644	+	345	50843593	-	PPA2155	-	putative peptide ABC transporter, ATP-binding protein
2098	 61.21	0	2340634..2341695	+	353	50843594	-	PPA2156	-	putative peptide ABC transporter, ATP-binding protein
2099	 56.91	0	2341923..2342168	-	81	50843595	rpmE2	PPA2157	-	50S ribosomal protein L31 type B
2100	 54.85	-1	2342265..2342501	+	78	50843596	-	PPA2158	-	50S ribosomal protein L28
2101	 53.80	-1	2342501..2342671	+	56	50843597	rpmG	PPA2160	-	50S ribosomal protein L33
2102	 60.46	0	2342671..2342976	+	101	50843598	rpsN	PPA2161	-	30S ribosomal protein S14
2103	 60.23	0	2342981..2343151	+	56	50843599	rpmF	PPA2162	-	50S ribosomal protein L32
2104	 60.93	0	2343229..2343594	+	121	50843600	-	PPA2163	-	FK506-binding protein/peptidyl-prolyl cis-trans isomerase
2105	 63.12	0	2343607..2345577	-	656	50843601	-	PPA2164	-	putative beta-N-acetylglucosaminidase precursor
2106	 58.21	0	2345736..2346149	+	137	50843602	-	PPA2165	-	urocanate hydratase fragment
2107	 61.08	0	2346204..2347742	+	512	50843603	-	PPA2166	-	urocanate hydratase
2108	 64.41	+1	2347742..2348938	+	398	50843604	-	PPA2167	-	allantoate amidohydrolase
2109	 63.16	0	2348935..2350275	+	446	50843605	-	PPA2168	-	N-formimino-L-glutamate deiminase
2110	 63.22	0	2350272..2351462	+	396	50843606	-	PPA2169	-	imidazolonepropionase
2111	 65.30	+1	2351598..2353133	+	511	50843607	hutH	PPA2170	-	histidine ammonia-lyase
2112	 62.24	0	2353310..2353648	+	112	50843608	-	PPA2171	-	hypothetical protein
2113	 60.27	0	2354102..2354836	-	244	50843609	-	PPA2172	-	NAD-dependent deacetylase
2114	 63.19	0	2354839..2355558	-	239	50843610	-	PPA2173	-	hypothetical protein
2115	 61.54	0	2355632..2356879	-	415	50843611	-	PPA2174	-	proline iminopeptidase
2116	 63.08	0	2357193..2358224	+	343	50843612	-	PPA2175	-	rare lipoprotein A (RlpA) family protein
2117	 62.13	0	2358316..2359131	-	271	50843613	-	PPA2176	-	hypothetical protein
2118	 57.37	0	2359454..2359765	+	103	50843614	-	PPA2177	-	hypothetical protein
2119	 60.99	0	2359743..2360306	+	187	50843615	-	PPA2178	-	hypothetical protein
2120	 61.45	0	2360337..2361851	-	504	50843616	-	PPA2179	-	potassium/proton antiporter
2121	 55.04	-1	2361995..2362639	-	214	50843617	-	PPA2180	-	hypothetical protein
2122	 58.41	0	2362884..2364251	-	455	50843618	-	PPA2181	-	RfbX family protein involved in the export of O-antigen and teichoic acid
2123	 64.67	+1	2364248..2364697	-	149	50843619	-	PPA2182	-	putative cytidine and deoxycytidylate deaminase
2124	 57.92	0	2364734..2365465	-	243	50843620	-	PPA2183	-	hypothetical protein
2125	 63.71	+1	2365576..2366217	+	213	50843621	upp	PPA2184	-	uracil phosphoribosyltransferase
2126	 63.98	+1	2366214..2366957	+	247	50843622	-	PPA2185	-	hypothetical protein
2127	 61.49	0	2366994..2367515	-	173	50843623	-	PPA2186	-	hypothetical protein
2128	 59.05	0	2367841..2369796	+	651	50843624	-	PPA2187	-	K+ potassium transporter
2129	 62.39	0	2369851..2370552	-	233	50843625	-	PPA2188	-	glutamine amidotransferase / GMP synthase
2130	 55.66	-1	2370538..2370864	+	108	50843626	-	PPA2189	-	hypothetical protein
2131	 62.08	0	2371561..2373414	+	617	50843627	-	PPA2190	-	membrane-associated protein
2132	 63.40	+1	2373463..2374473	-	336	50843628	-	PPA2191	-	LacI family transcriptional regulator
2133	 65.37	+1	2374475..2375710	-	411	50843629	-	PPA2192	-	galactokinase
2134	 58.31	0	2375688..2377637	+	649	50843630	-	PPA2193	-	sodium:solute symporter
2135	 60.81	0	2377648..2377920	+	90	50843631	-	PPA2194	-	hypothetical protein
2136	 59.26	0	2378024..2378509	-	161	50843632	-	PPA2195	-	hypothetical protein
2137	 54.75	-1	2378865..2379779	-	304	50843633	-	PPA2198	-	hypothetical protein
2138	 55.12	-1	2379767..2380372	-	201	50843634	-	PPA2199	-	hypothetical protein
2139	 62.38	0	2380556..2381557	+	333	50843635	-	PPA2200	-	Zn-binding dehydrogenase/oxidoreductase
60.05	MEAN

3.20	STD DEV
