IslandPath Analysis: Propionibacterium acnes KPA171202

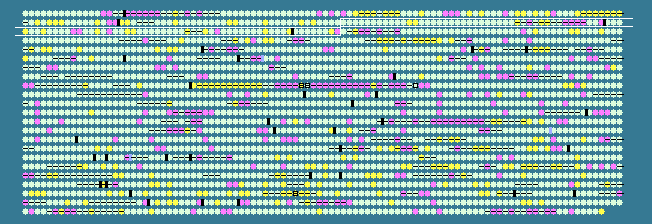

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
154	 62.77	0	192711..196325	-	1204	50841650	-	PPA0162	-	pyruvate-flavodoxin oxidoreductase
155	 63.26	+1	196341..198128	-	595	50841651	-	PPA0163	-	putative glutamate synthase (NADPH) small subunit
156	 58.40	0	198350..198724	+	124	50841652	-	PPA0164	-	hypothetical protein
157	 59.85	0	198746..199567	-	273	50841653	-	PPA0165	-	regulator protein
158	 61.57	0	199902..201590	+	562	50841654	-	PPA0166	-	putative L-lactate permease
159	 60.38	0	201645..202439	+	264	50841655	-	PPA0167	-	hypothetical protein
160	 60.94	0	202443..203978	+	511	50841656	-	PPA0168	-	putative iron-sulfur protein
161	 61.53	0	203975..204655	+	226	50841657	-	PPA0169	-	hypothetical protein
162	 61.54	0	204847..205509	+	220	50841658	-	PPA0170	-	putative ABC transporter
163	 62.11	0	205506..206735	+	409	50841659	-	PPA0171	-	hypothetical protein
164	 62.79	0	206732..207325	+	197	50841660	-	PPA0172	-	hypothetical protein
165	 65.30	+1	207350..208954	-	534	50841661	-	PPA0173	-	transport ATP-binding protein, CydCD
166	 65.27	+1	208951..210591	-	546	50841662	-	PPA0174	-	transport ATP-binding protein, CydCD
167	 62.29	0	210595..211668	-	357	50841663	-	PPA0175	-	cytochrome d ubiquinol oxidase, subunit II
168	 60.16	0	211681..213201	-	506	50841664	-	PPA0176	-	cytochrome d ubiquinol oxidase subunit I
169	 59.27	0	213336..214889	-	517	50841665	-	PPA0177	-	putative aminoacid permease
170	 58.67	0	215000..217000	-	666	50841666	-	PPA0178	-	putative ABC transporter
171	 59.47	0	216997..218733	-	578	50841667	-	PPA0179	-	ABC-type transporter
172	 56.58	-1	219005..220114	+	369	50841668	-	PPA0180	-	hypothetical protein
173	 56.76	-1	220111..220665	+	184	50841669	-	PPA2393	-	hypothetical protein
174	 61.58	0	220963..222495	+	510	50841670	lysS	PPA0181	-	lysyl-tRNA synthetase
175	 57.80	0	222534..222815	-	93	50841671	-	PPA0182	-	putative septation inhibitor protein
176	 61.13	0	222937..223767	+	276	50841672	-	PPA0183	-	membrane spanning protein DUF881
177	 61.51	0	223855..225753	-	632	50841673	-	PPA0184	-	putative serine/threonine protein kinase
178	 59.10	0	225800..227227	-	475	50841674	-	PPA0185	-	putative penicillin-binding protein
179	 59.34	0	227224..228615	-	463	50841675	-	PPA0186	-	putative cell division protein
180	 60.15	0	228612..230099	-	495	50841676	-	PPA0187	-	putative protein phosphatase
181	 59.51	0	230103..230591	-	162	50841677	-	PPA0188	-	hypothetical protein
182	 61.01	0	230594..231283	-	229	50841678	-	PPA0189	-	hypothetical protein
183	 65.52	+1	231455..232498	-	347	50841679	-	PPA0190	-	hypothetical protein
184	 62.31	0	232572..233534	-	320	50841680	-	PPA0191	-	hypothetical protein
185	 55.70	-1	234127..234828	-	233	50841681	-	PPA0192	-	hypothetical protein
186	 58.33	0	234838..235749	-	303	50841682	-	PPA0193	-	hypothetical protein
187	 63.90	+1	235924..236754	-	276	50841683	-	PPA0194	-	putative RHS related protein
188	 64.22	+1	236696..237961	-	421	50841684	-	PPA0195	-	putative RHS-family protein
189	 63.09	0	237966..239921	-	651	50841685	-	PPA0196	-	RHS-family protein
190	 57.61	0	240186..241112	+	308	50841686	-	PPA0197	-	hypothetical protein
191	 53.70	-1	241522..242385	+	287	50841687	-	PPA0198	-	hypothetical protein
192	 45.19	-2	243319..243765	-	148	50841688	-	PPA2367	-	hypothetical protein
193	 52.36	-2	243747..244361	-	204	50841689	-	PPA2368	-	hypothetical protein
194	 44.74	-2	244591..245037	-	148	50841690	-	PPA2394	-	hypothetical protein
195	 60.06	0	245019..247880	-	953	50841691	-	PPA0199	-	RHS-family protein
196	 60.22	0	247886..250678	-	930	50841692	-	PPA0200	-	RHS-family protein
197	 53.94	-1	250798..251520	-	240	50841693	-	PPA0201	-	hypothetical protein
198	 63.11	0	251890..252255	-	121	50841694	-	PPA0202	-	putative heat shock protein
199	 59.79	0	252517..252894	+	125	50841695	-	PPA0203	-	hypothetical protein
200	 63.34	+1	253133..255835	+	900	161621801	-	PPA0204	-	DNA polymerase III subunits gamma and tau
201	 63.58	+1	255945..256268	+	107	50841697	-	PPA0205	-	hypothetical protein
202	 59.24	0	256299..256904	+	201	50841698	-	PPA0206	-	putative recombination protein RecR
203	 59.03	0	257012..257587	+	191	50841699	-	PPA0207	-	transcriptional regulator
204	 63.98	+1	257593..258375	+	260	50841700	-	PPA0208	-	ABC transporter ATP-binding protein
205	 61.67	0	258375..261014	+	879	50841701	-	PPA0209	-	putative permease
206	 63.45	+1	261018..262853	-	611	50841702	-	PPA0210	-	membrane spanning protein
207	 61.92	0	262964..263764	+	266	50841703	-	PPA0211	-	putative hydrolase
208	 62.96	0	263774..264583	+	269	50841704	-	PPA0212	-	putative hydrolase
209	 55.67	-1	264701..265600	+	299	50841705	-	PPA0213	-	putative ABC transporter
210	 53.90	-1	265597..266802	+	401	50841706	-	PPA0214	-	hypothetical protein
211	 57.70	0	266814..267404	+	196	50841707	-	PPA0215	-	hypothetical protein
212	 61.61	0	268050..271394	+	1114	50841708	ileS	PPA0216	-	isoleucyl-tRNA synthetase
213	 63.93	+1	271509..272459	-	316	50841709	-	PPA0217	-	membrane associated protein
214	 62.99	0	272440..272847	-	135	50841710	-	PPA2396	-	hypothetical protein
215	 50.56	-2	272911..274326	-	471	50841711	-	PPA0218	-	putative transport protein
216	 60.04	0	274536..275456	-	306	50841712	-	PPA0219	-	putative oxidoreductase
217	 60.67	0	275563..275862	+	99	50841713	-	PPA0220	-	putative regulatory protein
218	 63.60	+1	276029..276484	+	151	50841714	-	PPA0221	-	putative translation initiation inhibitor
219	 63.68	+1	276567..277268	-	233	50841715	-	PPA0222	-	putative transcriptional regulator
220	 62.46	0	277186..278112	+	308	50841716	-	PPA0223	-	putative endonuclease III
221	 62.07	0	278109..278696	+	195	50841717	-	PPA0224	-	hypothetical protein
222	 62.86	0	278693..279349	+	218	50841718	-	PPA0225	-	putative NTP pyrophosphohydrolase
223	 60.34	0	279430..279966	-	178	50841719	-	PPA0226	-	hypothetical protein
224	 60.10	0	280063..281325	-	420	50841720	-	PPA0227	-	putative sodium:proton antiporter
225	 62.19	0	281493..282452	-	319	50841721	-	PPA0228	-	putative methyltransferase
226	 63.29	+1	282461..283438	+	325	50841722	-	PPA0229	-	hypothetical protein
227	 62.90	0	283435..284601	+	388	50841723	-	PPA0230	-	putative secretory protein
228	 63.55	+1	284598..285368	+	256	50841724	-	PPA0231	-	hypothetical protein
229	 62.73	0	285404..286114	+	236	50841725	-	PPA0232	-	hypothetical protein
230	 59.38	0	286323..286610	+	95	50841726	-	PPA0233	-	hypothetical protein
231	 65.40	+1	286703..287017	+	104	50841727	-	PPA0234	-	hypothetical protein
232	 61.23	0	287017..287421	+	134	50841728	-	PPA0235	-	hypothetical protein
233	 55.27	-1	287537..287773	+	78	50841729	-	PPA0236	-	hypothetical protein
234	 62.74	0	287834..290098	-	754	50841730	-	PPA0237	-	putative helicase
235	 61.92	0	290122..291639	+	505	50841731	-	PPA0238	-	putative transferase
236	 60.76	0	291732..292019	+	95	50841732	-	PPA0240	-	hypothetical protein
237	 61.83	0	292242..295031	+	929	50841733	-	PPA0241	-	DNA topoisomerase I
238	 62.63	0	295033..296520	+	495	50841734	-	PPA0242	-	hypothetical protein
239	 62.30	0	296471..297157	+	228	50841735	-	PPA0243	-	putative thymidylate kinase
240	 61.75	0	297213..298412	+	399	50841736	-	PPA0244	-	DNA polymerase III subunit delta'
241	 63.82	+1	298544..299350	+	268	50841737	-	PPA0245	-	hypothetical protein
242	 63.05	0	299425..300087	+	220	50841738	-	PPA0246	-	hypothetical protein
243	 58.94	0	300104..301786	+	560	50841739	-	PPA0247	-	putative hydrolase
244	 61.56	0	301875..302207	+	110	50841740	-	PPA0248	-	hypothetical protein
245	 64.04	+1	302241..303917	-	558	50841741	-	PPA0249	-	hypothetical protein
246	 60.89	0	304329..305678	+	449	50841742	-	PPA0250	-	putative flavin-containing amine oxidase
247	 62.68	0	305982..307010	+	342	50841743	-	PPA0251	-	hypothetical protein
248	 62.61	0	307028..307495	-	155	50841744	-	PPA0252	-	hypothetical protein
249	 63.42	+1	308567..309613	-	348	50841745	-	PPA0255	-	hypothetical protein
250	 58.93	0	309691..310323	-	210	50841746	-	PPA0256	-	inorganic pyrophosphatase
251	 60.87	0	310315..311745	+	476	50841747	-	PPA0257	-	putative carboxypeptidase
252	 67.63	+2	311745..312680	+	311	50841748	-	PPA0258	-	hypothetical protein
253	 55.68	-1	312708..313262	+	184	50841749	-	PPA0259	-	putative hypoxanthine phosphoribosyltransferase
60.05	MEAN

3.20	STD DEV
