IslandPath Analysis: Propionibacterium acnes KPA171202

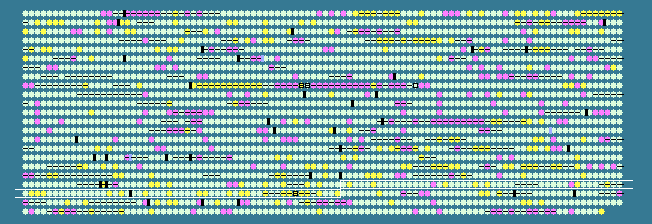

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1954	 59.59	0	2177147..2177683	+	178	50843450	-	PPA2004	-	hypothetical protein
1955	 64.46	+1	2177840..2178202	-	120	50843451	-	PPA2005	-	biotin carboxyl carrier protein of methylmalonyl-CoA carboxyl-transferase (transcarboxylase, 1.3S subunit)
1956	 61.32	0	2178218..2178460	-	80	50843452	-	PPA2006	-	C-terminal fragment of methylmalonyl-CoA carboxyltransferase
1957	 61.59	0	2178487..2180061	-	524	50843453	-	PPA2007	-	methylmalonyl-CoA carboxyltransferase
1958	 61.04	0	2180077..2181570	-	497	50843454	-	PPA2008	-	oxaloacetate decarboxylase
1959	 63.87	+1	2181891..2183249	-	452	50843455	-	PPA2009	-	putative aerotaxis sensor receptor
1960	 57.19	0	2183676..2184002	+	108	50843456	-	PPA2010	-	hypothetical protein
1961	 59.45	0	2184062..2185087	-	341	50843457	-	PPA2011	-	fructose-bisphosphate aldolase
1962	 59.39	0	2185198..2185788	-	196	50843458	-	PPA2012	-	hypothetical protein
1963	 58.38	0	2185822..2186412	-	196	50843459	-	PPA2013	-	rRNA methylase (SpoU family protein)
1964	 57.61	0	2186460..2187254	+	264	50843460	-	PPA2014	-	DedA family membrane protein
1965	 59.52	0	2187292..2187837	-	181	50843461	-	PPA2015	-	hypothetical protein
1966	 63.43	+1	2187940..2188743	-	267	50843462	-	PPA2016	-	hypothetical protein
1967	 58.24	0	2188740..2189783	-	347	50843463	-	PPA2017	-	periplasmic binding protein of proline/glycine betaine transport system
1968	 62.70	0	2189897..2190274	+	125	50843464	-	PPA2018	-	putative preprotein translocase subunit
1969	 55.49	-1	2190460..2191971	-	503	50843465	-	PPA2020	-	transporter permease
1970	 62.00	0	2192122..2194695	-	857	50843466	-	PPA2021	-	ATP-dependent protease (Clp chaperone)
1971	 63.87	+1	2194985..2196343	+	452	50843467	-	PPA2022	-	branched-chain amino acid transport permease
1972	 59.11	0	2196350..2197024	-	224	50843468	-	PPA2023	-	hypothetical protein
1973	 57.10	0	2197178..2198086	-	302	50843469	-	PPA2024	-	fructose-1,6-bisphosphate aldolase
1974	 61.29	0	2198152..2198820	-	222	50843470	-	PPA2025	-	hypothetical protein
1975	 61.63	0	2198718..2199929	-	403	50843471	-	PPA2026	-	manganese transport protein
1976	 63.62	+1	2200064..2201341	+	425	50843472	-	PPA2027	-	putative two component sensor kinase
1977	 63.41	+1	2201372..2202046	+	224	50843473	-	PPA2028	-	putative two-component response regulator
1978	 63.54	+1	2202191..2202925	+	244	50843474	-	PPA2030	-	ABC transporter ATP-binding protein
1979	 62.21	0	2202922..2205345	+	807	50843475	-	PPA2031	-	ABC transporter associated permease
1980	 63.08	0	2205381..2205854	-	157	50843476	-	PPA2032	-	MutT/NUDIX family protein
1981	 60.71	0	2205917..2207275	+	452	50843477	-	PPA2033	-	aromatic amino acid transport permease AroP
1982	 61.15	0	2207318..2208895	-	525	50843478	-	PPA2034	-	membrane protein (putative permease)
1983	 61.11	0	2209096..2210139	-	347	50843479	-	PPA2035	-	putative zinc-binding dehydrogenase
1984	 60.14	0	2210243..2211100	-	285	50843480	-	PPA2036	-	lipase/acylhydrolase
1985	 60.17	0	2211255..2211716	-	153	50843481	-	PPA2037	-	putative heat shock transcriptional regulator
1986	 62.12	0	2211718..2212860	-	380	50843482	-	PPA2038	-	chaperone protein DnaJ
1987	 61.86	0	2212934..2213599	-	221	50843483	-	PPA2039	-	molecular chaperone GrpE (heat shock protein)
1988	 62.03	0	2213684..2215537	-	617	50843484	dnaK	PPA2040	-	molecular chaperone DnaK
1989	 60.26	0	2215797..2216030	-	77	50843485	-	PPA2041	-	hypothetical protein
1990	 60.21	0	2216027..2217172	-	381	50843486	-	PPA2042	-	putative low-affinity phosphate transport protein
1991	 59.15	0	2217596..2218327	+	243	50843487	-	PPA2043	-	putative two-component system response regulator
1992	 55.71	-1	2218834..2219043	-	69	50843488	-	PPA2044	-	hypothetical protein
1993	 63.56	+1	2219066..2219740	+	224	50843489	-	PPA2045	-	deoxyribose-phosphate aldolase
1994	 60.63	0	2219764..2220492	-	242	50843490	-	PPA2046	-	hypothetical protein
1995	 62.76	0	2220639..2221814	-	391	50843491	-	PPA2047	-	hypothetical protein
1996	 60.86	0	2221987..2224638	-	883	50843492	-	PPA2048	-	pyruvate phosphate dikinase
1997	 61.92	0	2224977..2225861	-	294	50843493	-	PPA2049	-	hypothetical protein
1998	 63.88	+1	2226037..2227041	+	334	50843494	-	PPA2050	-	hypothetical protein
1999	 62.12	0	2227121..2227978	+	285	50843495	-	PPA2051	-	putative phosphoserine phosphatase
2000	 60.86	0	2227981..2228790	+	269	50843496	-	PPA2052	-	hypothetical protein
2001	 60.92	0	2229068..2230582	+	504	50843497	-	PPA2053	-	coenzyme A transferase (putative succinyl-CoA or butyryl-CoA:coenzyme A transferase)
2002	 67.09	+2	2230797..2232197	-	466	50843498	-	PPA2054	-	amidase
2003	 65.17	+1	2232222..2233223	-	333	50843499	-	PPA2055	-	LacI family transcription regulator
2004	 64.20	+1	2233261..2234598	-	445	50843500	-	PPA2056	-	beta-glucanase
2005	 61.31	0	2235065..2236876	+	603	50843501	-	PPA2057	-	alpha-galactosidase
2006	 58.96	0	2236873..2238183	+	436	50843502	-	PPA2058	-	putative secreted sugar-binding protein
2007	 59.14	0	2238189..2239091	+	300	50843503	-	PPA2059	-	binding-protein-dependent transport system permease
2008	 57.60	0	2239088..2239903	+	271	50843504	-	PPA2060	-	binding-protein-dependent transport system permease
2009	 61.01	0	2239956..2241476	-	506	50843505	-	PPA2061	-	hypothetical protein
2010	 60.13	0	2241476..2242669	-	397	50843506	-	PPA2062	-	ROK family transcriptional regulator
2011	 56.76	-1	2242860..2244656	+	598	50843507	-	PPA2063	-	putative peptide-binding transport protein
2012	 57.81	0	2244772..2245731	+	319	50843508	-	PPA2064	-	dipeptide transport system permease protein DppB
2013	 60.93	0	2245728..2246669	+	313	50843509	-	PPA2065	-	dipeptide transport system permease protein DppC
2014	 58.54	0	2246671..2248725	+	684	50843510	-	PPA2066	-	ATP-binding protein of dipeptide ABC transporter
2015	 63.79	+1	2248722..2249660	+	312	50843511	-	PPA2359	-	putative transcriptional repressor protein
2016	 60.34	0	2249642..2250952	+	436	50843512	-	PPA2070	-	alpha-L-fucosidase precursor
2017	 66.50	+2	2251258..2251869	+	203	50843513	-	PPA2071	-	hypothetical protein
2018	 59.22	0	2251942..2252196	-	84	50843514	-	PPA2072	-	hypothetical protein
2019	 58.97	0	2252307..2252696	-	129	50843515	-	PPA2073	-	hypothetical protein
2020	 57.02	0	2252693..2252920	-	75	50843516	-	PPA2075	-	hypothetical protein
2021	 64.29	+1	2253365..2254330	-	321	50843517	-	PPA2076	-	inosine-uridine preferring nucleoside hydrolase
2022	 59.91	0	2254400..2255035	-	211	50843518	-	PPA2077	-	TetR family transcriptional regulator
2023	 61.86	0	2255035..2255700	-	221	50843519	-	PPA2078	-	ABC transporter, ATP-binding protein
2024	 63.04	0	2255891..2256745	-	284	50843520	-	PPA2081	-	ABC transporter, putative permease
2025	 63.93	+1	2256742..2258607	-	621	50843521	-	PPA2082	-	ABC transporter ATP-binding protein
2026	 60.27	0	2258604..2259197	-	197	50843522	-	PPA2083	-	putative permease
2027	 62.04	0	2259194..2260726	-	510	50843523	-	PPA2084	-	ABC transporter ATP-binding protein (putative cobalt transport system)
2028	 60.44	0	2260723..2261541	-	272	50843524	-	PPA2085	-	ABC transporter associated permease (putative cobalt transport system)
2029	 62.09	0	2261655..2262113	+	152	50843525	-	PPA2086	-	hypothetical protein
2030	 63.81	+1	2262351..2262665	+	104	50843526	-	PPA2087	-	hypothetical protein
2031	 64.33	+1	2262771..2263454	+	227	50843527	-	PPA2088	-	hypothetical protein
2032	 59.86	0	2263539..2264243	-	234	50843528	-	PPA2089	-	hypothetical protein
2033	 60.09	0	2264240..2265607	-	455	50843529	-	PPA2090	-	ABC transporter permease
2034	 59.46	0	2265607..2266341	-	244	50843530	-	PPA2091	-	ABC transporter ATP-binding protein
2035	 64.61	+1	2266523..2267932	-	469	50843531	-	PPA2092	-	dihydrolipoamide acetyltransferase component of pyruvate dehydrogenase complex
2036	 63.08	0	2267950..2268954	-	334	50843532	-	PPA2093	-	pyruvate dehydrogenase E1 component, beta subunit
2037	 63.70	+1	2268954..2270099	-	381	50843533	-	PPA2094	-	pyruvate dehydrogenase E1 component, alpha subunit
2038	 64.26	+1	2270288..2271658	+	456	50843534	-	PPA2095	-	protoporphyrinogen oxidase
2039	 62.37	0	2271658..2272938	+	426	50843535	-	PPA2096	-	molybdenum cofactor biosynthesis enzyme/coproporphyrinogen III oxidase
2040	 61.22	0	2273208..2275319	+	703	50843536	-	PPA2097	-	5'-nucleotidase/2',3'-cyclic phosphodiesterase or related esterase
2041	 64.23	+1	2275533..2275778	-	81	50843537	-	PPA2098	-	ABC transporter ATP-binding protein
2042	 63.41	+1	2276025..2276300	-	91	50843538	-	PPA2099	-	ABC transporter transmembrane region
2043	 60.94	0	2276577..2276873	-	98	50843539	-	PPA2101	-	hypothetical protein
2044	 66.24	+1	2276901..2277365	-	154	50843540	-	PPA2102	-	hypothetical protein
2045	 66.17	+1	2277586..2277984	+	132	50843541	-	PPA2103	-	hypothetical protein
2046	 66.67	+2	2278033..2278341	+	102	50843542	-	PPA2104	-	putative transposase
2047	 63.73	+1	2278518..2279537	-	339	50843543	-	PPA2105	-	triacylglycerol lipase precursor
2048	 66.53	+2	2280127..2281629	+	500	50843544	-	PPA2106	-	endoglycoceramidase
2049	 62.10	0	2281998..2282435	-	145	50843545	-	PPA2107	-	hypothetical protein
2050	 64.09	+1	2282705..2283520	+	271	50843546	-	PPA2108	-	cAMP factor
2051	 61.52	0	2283696..2284472	-	258	50843547	-	PPA2109	-	hypothetical protein
2052	 63.52	+1	2284487..2284963	+	158	50843548	-	PPA2110	-	low molecular weight protein-tyrosine-phosphatase
2053	 68.40	+2	2285027..2286121	+	364	50843549	-	PPA2111	-	hypothetical protein
60.05	MEAN

3.20	STD DEV
