IslandPath Analysis: Propionibacterium acnes KPA171202

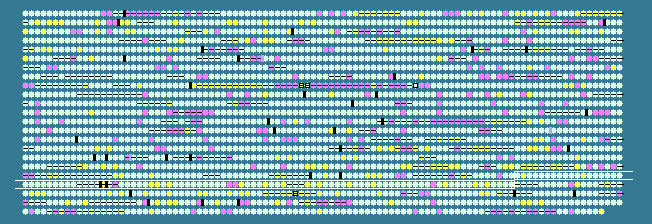

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1883	 60.24	0	2088769..2090091	-	440	50843379	-	PPA1929	-	NADH dehydrogenase subunit H
1884	 63.80	+1	2090088..2092526	-	812	50843380	-	PPA1930	-	NADH dehydrogenase subunit G
1885	 61.42	0	2092523..2093857	-	444	50843381	-	PPA1931	-	NADH dehydrogenase I chain F
1886	 60.56	0	2093854..2094639	-	261	50843382	-	PPA1932	-	NADH dehydrogenase subunit E
1887	 59.22	0	2094636..2095937	-	433	50843383	-	PPA1933	-	NADH dehydrogenase subunit D
1888	 62.79	0	2095937..2096761	-	274	50843384	-	PPA1934	-	NADH dehydrogenase subunit C
1889	 62.37	0	2096758..2097315	-	185	50843385	-	PPA1935	-	NADH dehydrogenase subunit B
1890	 56.67	-1	2097409..2097768	-	119	50843386	-	PPA1936	-	NADH dehydrogenase subunit A
1891	 60.73	0	2097889..2099151	-	420	50843387	-	PPA1938	-	putative electron transfer oxidoreductase
1892	 61.93	0	2099382..2099867	+	161	50843388	-	PPA1939	-	hypothetical protein
1893	 60.53	0	2099944..2101230	+	428	50843389	-	PPA1940	-	menaquinone-specific isochorismate synthase
1894	 63.79	+1	2101296..2103032	-	578	50843390	-	PPA1941	-	ABC transporter permease
1895	 59.69	0	2103029..2103673	-	214	50843391	-	PPA1942	-	ABC transporter ATP-binding protein
1896	 61.79	0	2103936..2104694	+	252	161621790	ubiE	PPA1943	-	ubiquinone/menaquinone biosynthesis methyltransferase
1897	 61.02	0	2104691..2106514	+	607	50843393	-	PPA1944	-	hypothetical protein
1898	 62.23	0	2106470..2107348	-	292	50843394	-	PPA1945	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
1899	 61.38	0	2107548..2108834	+	428	50843395	-	PPA1946	-	membrane protein, putative permease
1900	 60.45	0	2108896..2109924	+	342	50843396	-	PPA1947	-	hypothetical protein
1901	 62.48	0	2109924..2110568	+	214	50843397	-	PPA1948	-	hypothetical protein
1902	 59.62	0	2110561..2110986	+	141	50843398	-	PPA1949	-	PTS protein, putative dihydroxyacetone kinase phosphotransfer protein
1903	 62.96	0	2111070..2111528	-	152	50843399	-	PPA1950	-	deoxycytidylate deaminase
1904	 58.76	0	2111614..2112549	-	311	50843400	-	PPA1951	-	Co/Zn/Cd cation transporter
1905	 61.08	0	2112772..2113737	+	321	50843401	-	PPA1952	-	L-lactate dehydrogenase
1906	 60.08	0	2113770..2115272	+	500	50843402	-	PPA1953	-	patatin-like phospholipase
1907	 58.85	0	2115351..2116169	-	272	50843403	-	PPA1954	-	sugar phosphatase/hydrolase
1908	 61.87	0	2116246..2118102	-	618	50843404	-	PPA1955	-	hypothetical protein
1909	 62.43	0	2118266..2119399	-	377	50843405	-	PPA1957	-	ROK family transcriptional regulator
1910	 62.73	0	2119541..2121193	+	550	50843406	-	PPA1958	-	hypothetical protein
1911	 58.55	0	2121190..2122125	+	311	50843407	-	PPA1959	-	binding-protein-dependent transport permease
1912	 57.61	0	2122118..2123044	+	308	50843408	-	PPA1960	-	binding-protein-dependent transport permease
1913	 57.90	0	2123055..2124377	+	440	50843409	-	PPA1961	-	sugar-binding periplasmic protein
1914	 64.10	+1	2125018..2126265	+	415	50843410	-	PPA1962	-	putative cell wall-associated hydrolase
1915	 58.58	0	2127186..2128112	-	308	50843411	-	PPA1964	-	binding-protein-dependent transport permease
1916	 56.08	-1	2128112..2129008	-	298	50843412	-	PPA1965	-	binding-protein-dependent transport permease
1917	 59.02	0	2129137..2130444	-	435	50843413	-	PPA1966	-	extracellular solute-binding protein
1918	 60.08	0	2130592..2131548	-	318	50843414	-	PPA1967	-	putative lysophospholipase
1919	 58.43	0	2131564..2131818	-	84	50843415	-	PPA1968	-	hypothetical protein
1920	 62.08	0	2131903..2132970	-	355	50843416	-	PPA1969	-	phosphoribosylaminoimidazole synthetase
1921	 62.30	0	2132967..2134454	-	495	50843417	-	PPA1970	-	amidophosphoribosyltransferase
1922	 65.06	+1	2134549..2135793	-	414	50843418	-	PPA1971	-	hypothetical protein
1923	 64.36	+1	2135978..2137321	-	447	50843419	-	PPA1972	-	hypothetical protein
1924	 61.33	0	2137463..2138230	-	255	50843420	-	PPA1973	-	stomatin/prohibitin-like protein
1925	 64.54	+1	2138227..2139024	-	265	50843421	-	PPA1974	-	hypothetical protein
1926	 59.68	0	2139021..2141267	-	748	50843422	-	PPA1975	-	nitric-oxide reductase subunit B
1927	 62.21	0	2141513..2143600	+	695	50843423	-	PPA1976	-	para-aminobenzoate synthase
1928	 62.67	0	2143587..2145839	-	750	50843424	-	PPA1977	-	phosphoribosylformylglycinamidine synthase II
1929	 61.94	0	2146030..2147277	+	415	50843425	-	PPA1978	-	major facilitator superfamily permease
1930	 61.03	0	2147287..2149821	-	844	50843426	-	PPA1979	-	aminopeptidase N
1931	 60.50	0	2149968..2150405	-	145	50843427	-	PPA1980	-	hypothetical protein
1932	 62.69	0	2150707..2152113	+	468	50843428	-	PPA1981	-	pyridine nucleotide-disulphide oxidoreductase
1933	 61.99	0	2152186..2153661	-	491	50843429	-	PPA1982	-	acid phosphatase
1934	 57.90	0	2154378..2156441	+	687	50843430	-	PPA1983	-	hypothetical protein
1935	 49.10	-2	2156438..2156995	+	185	50843431	-	PPA1984	-	protein associated to putative adhesion protein
1936	 51.90	-2	2156999..2157235	+	78	50843432	-	PPA1985	-	hypothetical protein
1937	 64.35	+1	2157242..2158321	+	359	50843433	-	PPA1986	-	BadF/BadG/BcrA/BcrD ATPase family protein
1938	 60.89	0	2158399..2159073	-	224	50843434	-	PPA1987	-	phosphoribosylformylglycinamidine synthase subunit I
1939	 61.30	0	2159076..2160341	-	421	50843435	-	PPA1988	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1940	 60.46	0	2160476..2161039	+	187	50843436	-	PPA1989	-	alkyl hydroperoxide reductase C22 protein
1941	 63.56	+1	2160996..2162702	+	568	50843437	-	PPA1990	-	alkyl hydroperoxide reductase subunit F
1942	 63.17	0	2162709..2163653	+	314	50843438	-	PPA1991	-	oxidative stress transcriptional regulatory protein
1943	 59.48	0	2163687..2165120	-	477	50843439	-	PPA1992	-	adenylosuccinate lyase
1944	 64.17	+1	2165117..2166436	-	439	50843440	-	PPA1993	-	phosphoribosylamine-glycine ligase
1945	 59.83	0	2166495..2167781	-	428	50843441	-	PPA1994	-	adenylosuccinate synthetase
1946	 61.86	0	2167949..2168926	-	325	50843442	-	PPA1995	-	hypothetical protein
1947	 61.90	0	2168978..2169712	+	244	50843443	-	PPA1996	-	GntR family transcriptional regulator
1948	 65.07	+1	2169837..2170526	-	229	50843444	-	PPA1997	-	N-acetylmannosamine-6-phosphate 2-epimerase
1949	 62.87	0	2170559..2171479	-	306	50843445	-	PPA1998	-	dihydrodipicolinate synthase
1950	 65.45	+1	2171527..2172429	-	300	50843446	-	PPA1999	-	hypothetical protein
1951	 58.26	0	2172454..2174058	-	534	50843447	-	PPA2000	-	putative sialic acid transporter
1952	 60.61	0	2174186..2174713	-	175	50843448	-	PPA2002	-	hypothetical protein
1953	 61.30	0	2175111..2176973	+	620	50843449	-	PPA2003	-	GTPase
1954	 59.59	0	2177147..2177683	+	178	50843450	-	PPA2004	-	hypothetical protein
1955	 64.46	+1	2177840..2178202	-	120	50843451	-	PPA2005	-	biotin carboxyl carrier protein of methylmalonyl-CoA carboxyl-transferase (transcarboxylase, 1.3S subunit)
1956	 61.32	0	2178218..2178460	-	80	50843452	-	PPA2006	-	C-terminal fragment of methylmalonyl-CoA carboxyltransferase
1957	 61.59	0	2178487..2180061	-	524	50843453	-	PPA2007	-	methylmalonyl-CoA carboxyltransferase
1958	 61.04	0	2180077..2181570	-	497	50843454	-	PPA2008	-	oxaloacetate decarboxylase
1959	 63.87	+1	2181891..2183249	-	452	50843455	-	PPA2009	-	putative aerotaxis sensor receptor
1960	 57.19	0	2183676..2184002	+	108	50843456	-	PPA2010	-	hypothetical protein
1961	 59.45	0	2184062..2185087	-	341	50843457	-	PPA2011	-	fructose-bisphosphate aldolase
1962	 59.39	0	2185198..2185788	-	196	50843458	-	PPA2012	-	hypothetical protein
1963	 58.38	0	2185822..2186412	-	196	50843459	-	PPA2013	-	rRNA methylase (SpoU family protein)
1964	 57.61	0	2186460..2187254	+	264	50843460	-	PPA2014	-	DedA family membrane protein
1965	 59.52	0	2187292..2187837	-	181	50843461	-	PPA2015	-	hypothetical protein
1966	 63.43	+1	2187940..2188743	-	267	50843462	-	PPA2016	-	hypothetical protein
1967	 58.24	0	2188740..2189783	-	347	50843463	-	PPA2017	-	periplasmic binding protein of proline/glycine betaine transport system
1968	 62.70	0	2189897..2190274	+	125	50843464	-	PPA2018	-	putative preprotein translocase subunit
1969	 55.49	-1	2190460..2191971	-	503	50843465	-	PPA2020	-	transporter permease
1970	 62.00	0	2192122..2194695	-	857	50843466	-	PPA2021	-	ATP-dependent protease (Clp chaperone)
1971	 63.87	+1	2194985..2196343	+	452	50843467	-	PPA2022	-	branched-chain amino acid transport permease
1972	 59.11	0	2196350..2197024	-	224	50843468	-	PPA2023	-	hypothetical protein
1973	 57.10	0	2197178..2198086	-	302	50843469	-	PPA2024	-	fructose-1,6-bisphosphate aldolase
1974	 61.29	0	2198152..2198820	-	222	50843470	-	PPA2025	-	hypothetical protein
1975	 61.63	0	2198718..2199929	-	403	50843471	-	PPA2026	-	manganese transport protein
1976	 63.62	+1	2200064..2201341	+	425	50843472	-	PPA2027	-	putative two component sensor kinase
1977	 63.41	+1	2201372..2202046	+	224	50843473	-	PPA2028	-	putative two-component response regulator
1978	 63.54	+1	2202191..2202925	+	244	50843474	-	PPA2030	-	ABC transporter ATP-binding protein
1979	 62.21	0	2202922..2205345	+	807	50843475	-	PPA2031	-	ABC transporter associated permease
1980	 63.08	0	2205381..2205854	-	157	50843476	-	PPA2032	-	MutT/NUDIX family protein
1981	 60.71	0	2205917..2207275	+	452	50843477	-	PPA2033	-	aromatic amino acid transport permease AroP
1982	 61.15	0	2207318..2208895	-	525	50843478	-	PPA2034	-	membrane protein (putative permease)
60.05	MEAN

3.20	STD DEV
