IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

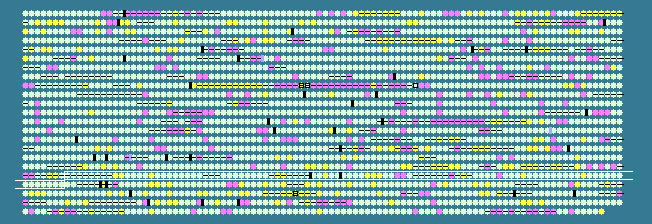

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1808	 61.27	0	2009444..2009851	-	135	50843304	rpsH	PPA1848	-	30S ribosomal protein S8
1809	 61.83	0	2010011..2010196	-	61	50843305	rpsN	PPA1849	-	30S ribosomal protein S14
1810	 59.56	0	2010204..2010836	-	210	50843306	rplE	PPA1850	-	50S ribosomal protein L5
1811	 62.60	0	2010833..2011201	-	122	50843307	-	PPA1851	-	50S ribosomal protein L24
1812	 61.52	0	2011202..2011570	-	122	50843308	-	PPA1852	-	50S ribosomal protein L14
1813	 60.07	0	2012167..2012439	-	90	50843309	-	PPA1853	-	30S ribosomal protein S17
1814	 58.97	0	2012442..2012675	-	77	50843310	-	PPA1855	-	50S ribosomal protein L29
1815	 60.00	0	2012675..2013094	-	139	50843311	rplP	PPA1856	-	50S ribosomal protein L16
1816	 64.94	+1	2013096..2013905	-	269	50843312	rpsC	PPA1857	-	30S ribosomal protein S3
1817	 63.64	+1	2013907..2014368	-	153	50843313	-	PPA1858	-	50S ribosomal protein L22
1818	 61.35	0	2014386..2014667	-	93	50843314	-	PPA1859	-	30S ribosomal protein S19
1819	 62.96	0	2014683..2015519	-	278	50843315	rplB	PPA1860	-	50S ribosomal protein L2
1820	 59.22	0	2015546..2015854	-	102	50843316	rplW	PPA1861	-	50S ribosomal protein L23
1821	 62.36	0	2015851..2016756	-	301	50843317	-	PPA1862	-	50S ribosomal protein L4
1822	 65.33	+1	2016753..2017424	-	223	50843318	-	PPA1863	-	50S ribosomal protein L3
1823	 62.50	0	2017436..2017747	-	103	50843319	rpsJ	PPA1865	-	30S ribosomal protein S10
1824	 62.39	0	2018260..2020221	+	653	50843320	-	PPA1866	-	8-amino-7-oxononanoate synthase
1825	 60.50	0	2020202..2021434	-	410	50843321	-	PPA1867	-	hypothetical protein
1826	 59.09	0	2021552..2021881	-	109	50843322	-	PPA1868	-	hypothetical protein
1827	 57.83	0	2021881..2023374	-	497	50843323	-	PPA1869	-	glutamyl-tRNA synthetase
1828	 60.54	0	2023428..2025125	+	565	50843324	-	PPA1870	-	glutaminyl-tRNA synthetase
1829	 59.53	0	2025228..2027174	+	648	50843325	-	PPA1871	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
1830	 58.63	0	2027181..2029046	+	621	50843326	-	PPA1872	-	membrane-spanning protein
1831	 61.73	0	2029170..2030363	-	397	50843327	tuf	PPA1873	-	elongation factor Tu
1832	 60.37	0	2030632..2033934	-	1100	50843328	-	PPA1874	-	hypothetical protein
1833	 59.89	0	2034125..2036218	-	697	50843329	-	PPA1875	-	elongation factor G
1834	 61.57	0	2036351..2036821	-	156	50843330	-	PPA1876	-	30S ribosomal protein S7
1835	 62.42	0	2036363..2037352	+	329	50843331	-	PPA1877	-	hypothetical protein
1836	 63.17	0	2036825..2037196	-	123	161621792	rpsL	PPA1878	-	30S ribosomal protein S12
1837	 61.21	0	2037511..2038041	-	176	50843333	-	PPA1879	-	hypothetical protein
1838	 57.11	0	2038194..2039093	-	299	50843334	-	PPA1880	-	putative adhesion or S-layer protein
1839	 59.42	0	2039396..2039809	-	137	50843335	-	PPA1881	-	hypothetical protein
1840	 57.21	0	2039927..2040973	-	348	50843336	-	PPA1882	-	hypothetical protein
1841	 60.18	0	2041158..2045039	-	1293	50843337	-	PPA1883	-	DNA-directed RNA polymerase subunit beta'
1842	 59.71	0	2045208..2048687	-	1159	50843338	rpoB	PPA1884	-	DNA-directed RNA polymerase subunit beta
1843	 63.87	+1	2048986..2049378	-	130	50843339	rplL	PPA1885	-	50S ribosomal protein L7/L12
1844	 64.23	+1	2049392..2050006	-	204	161621791	rplJ	PPA1887	-	50S ribosomal protein L10
1845	 60.94	0	2050434..2051132	-	232	50843341	rplA	PPA1889	-	50S ribosomal protein L1
1846	 59.03	0	2051222..2051653	-	143	50843342	-	PPA1890	-	50S ribosomal protein L11
1847	 57.13	0	2051783..2052694	-	303	50843343	-	PPA1891	-	transcription antitermination protein NusG
1848	 60.22	0	2052718..2053368	-	216	50843344	-	PPA1892	-	putative SecE/Sec61-gamma subunit of protein translocation complex
1849	 59.40	0	2053818..2055083	-	421	50843345	-	PPA1893	-	aminotransferase
1850	 62.42	0	2055187..2056317	-	376	50843346	murB	PPA1894	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1851	 64.75	+1	2056314..2056730	-	138	50843347	-	PPA1895	-	MaoC family protein
1852	 58.97	0	2056727..2057155	-	142	50843348	-	PPA1896	-	hypothetical protein
1853	 61.99	0	2057300..2057470	-	56	50843349	rpmG	PPA1897	-	50S ribosomal protein L33
1854	 62.98	0	2058192..2059085	+	297	50843350	-	PPA1898	-	exodeoxyribonuclease III
1855	 62.35	0	2059087..2060013	-	308	50843351	-	PPA1899	-	enoyl-CoA hydratase/isomerase family protein
1856	 60.59	0	2060119..2061699	-	526	50843352	-	PPA1900	-	hypothetical protein
1857	 60.52	0	2061696..2062004	-	102	50843353	-	PPA1901	-	NADH dehydrogenase subunit
1858	 64.62	+1	2062001..2062585	-	194	50843354	-	PPA1902	-	NADH dehydrogenase subunit
1859	 64.66	+1	2062582..2062980	-	132	50843355	-	PPA1903	-	NADH dehydrogenase subunit
1860	 64.01	+1	2063178..2065100	+	640	50843356	-	PPA1904	-	pyruvate:ferredoxin oxidoreductase (alpha subunit)
1861	 62.71	0	2065102..2066187	+	361	50843357	-	PPA1905	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1862	 57.90	0	2066712..2068775	+	687	50843358	-	PPA1906	-	hypothetical protein
1863	 48.09	-2	2068772..2069347	+	191	50843359	-	PPA1907	-	protein associated to putative adhesion protein
1864	 51.26	-2	2069415..2070011	+	198	50843360	-	PPA1908	-	protein associated to putative adhesion protein
1865	 61.52	0	2070668..2072650	+	660	50843361	-	PPA1909	-	M13 family metallopeptidase
1866	 59.40	0	2072718..2073941	-	407	50843362	-	PPA1910	-	ABC transporter permease
1867	 61.93	0	2073938..2074507	-	189	50843363	-	PPA1911	-	ABC transporter, ATP-binding
1868	 57.96	0	2074564..2075493	-	309	50843364	-	PPA1913	-	hypothetical protein
1869	 57.20	0	2075659..2075901	+	80	50843365	-	PPA1914	-	hypothetical protein
1870	 58.88	0	2075901..2076722	+	273	50843366	-	PPA1915	-	ABC transporter, ATP-binding protein
1871	 59.72	0	2076719..2078230	+	503	50843367	-	PPA1916	-	ABC transporter permease
1872	 55.13	-1	2078227..2078538	+	103	50843368	-	PPA1917	-	hypothetical protein
1873	 59.72	0	2078618..2079049	+	143	50843369	-	PPA1918	-	hypothetical protein
1874	 63.74	+1	2079066..2079986	-	306	50843370	-	PPA1919	-	citrate lyase beta chain
1875	 61.17	0	2080022..2080804	-	260	50843371	-	PPA1920	-	precorrin 6A synthase
1876	 61.95	0	2080835..2081809	-	324	50843372	-	PPA1921	-	heptaprenyl diphosphate synthase component II
1877	 62.71	0	2082002..2083618	-	538	50843373	-	PPA1922	-	NADH dehydrogenase subunit N
1878	 60.71	0	2083615..2085108	-	497	50843374	-	PPA1923	-	NADH dehydrogenase subunit M
1879	 60.04	0	2085126..2087012	-	628	50843375	-	PPA1924	-	NADH dehydrogenase subunit L
1880	 56.33	-1	2087023..2087322	-	99	50843376	-	PPA1925	-	NADH dehydrogenase subunit K
1881	 60.12	0	2087319..2088173	-	284	50843377	-	PPA1926	-	NADH dehydrogenase subunit J
1882	 60.64	0	2088173..2088769	-	198	50843378	-	PPA1928	-	NADH dehydrogenase subunit I
1883	 60.24	0	2088769..2090091	-	440	50843379	-	PPA1929	-	NADH dehydrogenase subunit H
1884	 63.80	+1	2090088..2092526	-	812	50843380	-	PPA1930	-	NADH dehydrogenase subunit G
1885	 61.42	0	2092523..2093857	-	444	50843381	-	PPA1931	-	NADH dehydrogenase I chain F
1886	 60.56	0	2093854..2094639	-	261	50843382	-	PPA1932	-	NADH dehydrogenase subunit E
1887	 59.22	0	2094636..2095937	-	433	50843383	-	PPA1933	-	NADH dehydrogenase subunit D
1888	 62.79	0	2095937..2096761	-	274	50843384	-	PPA1934	-	NADH dehydrogenase subunit C
1889	 62.37	0	2096758..2097315	-	185	50843385	-	PPA1935	-	NADH dehydrogenase subunit B
1890	 56.67	-1	2097409..2097768	-	119	50843386	-	PPA1936	-	NADH dehydrogenase subunit A
1891	 60.73	0	2097889..2099151	-	420	50843387	-	PPA1938	-	putative electron transfer oxidoreductase
1892	 61.93	0	2099382..2099867	+	161	50843388	-	PPA1939	-	hypothetical protein
1893	 60.53	0	2099944..2101230	+	428	50843389	-	PPA1940	-	menaquinone-specific isochorismate synthase
1894	 63.79	+1	2101296..2103032	-	578	50843390	-	PPA1941	-	ABC transporter permease
1895	 59.69	0	2103029..2103673	-	214	50843391	-	PPA1942	-	ABC transporter ATP-binding protein
1896	 61.79	0	2103936..2104694	+	252	161621790	ubiE	PPA1943	-	ubiquinone/menaquinone biosynthesis methyltransferase
1897	 61.02	0	2104691..2106514	+	607	50843393	-	PPA1944	-	hypothetical protein
1898	 62.23	0	2106470..2107348	-	292	50843394	-	PPA1945	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
1899	 61.38	0	2107548..2108834	+	428	50843395	-	PPA1946	-	membrane protein, putative permease
1900	 60.45	0	2108896..2109924	+	342	50843396	-	PPA1947	-	hypothetical protein
1901	 62.48	0	2109924..2110568	+	214	50843397	-	PPA1948	-	hypothetical protein
1902	 59.62	0	2110561..2110986	+	141	50843398	-	PPA1949	-	PTS protein, putative dihydroxyacetone kinase phosphotransfer protein
1903	 62.96	0	2111070..2111528	-	152	50843399	-	PPA1950	-	deoxycytidylate deaminase
1904	 58.76	0	2111614..2112549	-	311	50843400	-	PPA1951	-	Co/Zn/Cd cation transporter
1905	 61.08	0	2112772..2113737	+	321	50843401	-	PPA1952	-	L-lactate dehydrogenase
1906	 60.08	0	2113770..2115272	+	500	50843402	-	PPA1953	-	patatin-like phospholipase
1907	 58.85	0	2115351..2116169	-	272	50843403	-	PPA1954	-	sugar phosphatase/hydrolase
60.05	MEAN

3.20	STD DEV
