IslandPath Analysis: Propionibacterium acnes KPA171202

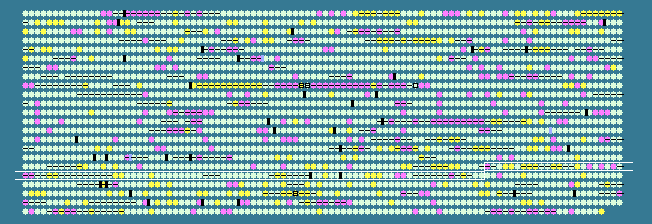

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1778	 54.34	-1	1982509..1983003	+	164	50843274	-	PPA2364	-	hypothetical protein
1779	 58.25	0	1983161..1983778	+	205	50843275	-	PPA1818	-	superoxide dismutase [Mn/Fe]
1780	 61.52	0	1984010..1984534	+	174	50843276	-	PPA1819	-	beta-galactosidase
1781	 64.58	+1	1984531..1988787	+	1418	50843277	-	PPA1820	-	beta-galactosidase fused to beta-N-acetylhexosaminidase
1782	 65.25	+1	1989016..1990425	+	469	50843278	-	PPA1821	-	putative sialidase
1783	 60.12	0	1990761..1992134	+	457	50843279	-	PPA1822	-	organic anion transporter family protein
1784	 63.67	+1	1992150..1992782	-	210	50843280	-	PPA1823	-	hypothetical protein
1785	 64.37	+1	1992782..1993999	-	405	50843281	-	PPA1824	-	glycosyl transferase
1786	 64.99	+1	1994109..1994645	-	178	50843282	-	PPA1825	-	50S ribosomal protein L17
1787	 60.18	0	1994948..1995964	-	338	50843283	-	PPA1826	-	DNA-directed RNA polymerase subunit alpha
1788	 60.56	0	1996210..1996815	-	201	50843284	rpsD	PPA1827	-	30S ribosomal protein S4
1789	 63.73	+1	1996846..1997253	-	135	50843285	-	PPA1828	-	30S ribosomal protein S11
1790	 64.25	+1	1997325..1997696	-	123	50843286	rpsM	PPA1829	-	30S ribosomal protein S13
1791	 57.89	0	1998075..1998188	-	37	50843287	rpmJ	PPA1831	-	50S ribosomal protein L36
1792	 58.11	0	1998267..1998488	-	73	50843288	-	PPA1832	-	translation initiation factor IF-1
1793	 63.57	+1	1998703..1999542	-	279	50843289	-	PPA1833	-	methionine aminopeptidase
1794	 60.00	0	1999544..2000113	-	189	50843290	adk	PPA1834	-	adenylate kinase
1795	 56.29	-1	2000110..2001429	-	439	50843291	secY	PPA1835	-	preprotein translocase subunit SecY
1796	 60.25	0	2001599..2002237	+	212	50843292	-	PPA1836	-	hypothetical protein
1797	 54.92	-1	2002227..2003435	-	402	50843293	-	PPA1837	-	membrane protein, putative permease
1798	 57.23	0	2003493..2003651	-	52	50843294	-	PPA1838	-	hypothetical protein
1799	 53.95	-1	2003665..2004411	-	248	50843295	-	PPA1839	-	glycerophosphoryl diester phosphodiesterase
1800	 58.10	0	2004533..2006236	-	567	50843296	-	PPA1840	-	extracellular solute-binding transport protein, putative oligopeptide-binding protein
1801	 55.42	-1	2006430..2006678	-	82	50843297	-	PPA1841	-	hypothetical protein
1802	 55.44	-1	2006718..2007002	-	94	50843298	-	PPA2365	-	hypothetical protein
1803	 59.41	0	2007192..2007632	-	146	50843299	rplO	PPA1842	-	50S ribosomal protein L15
1804	 59.02	0	2007634..2007816	-	60	50843300	rpmD	PPA1843	-	50S ribosomal protein L30
1805	 64.66	+1	2007816..2008463	-	215	50843301	rpsE	PPA1844	-	30S ribosomal protein S5
1806	 64.06	+1	2008488..2008871	-	127	50843302	-	PPA1845	-	50S ribosomal protein L18
1807	 59.85	0	2008873..2009415	-	180	50843303	rplF	PPA1846	-	50S ribosomal protein L6
1808	 61.27	0	2009444..2009851	-	135	50843304	rpsH	PPA1848	-	30S ribosomal protein S8
1809	 61.83	0	2010011..2010196	-	61	50843305	rpsN	PPA1849	-	30S ribosomal protein S14
1810	 59.56	0	2010204..2010836	-	210	50843306	rplE	PPA1850	-	50S ribosomal protein L5
1811	 62.60	0	2010833..2011201	-	122	50843307	-	PPA1851	-	50S ribosomal protein L24
1812	 61.52	0	2011202..2011570	-	122	50843308	-	PPA1852	-	50S ribosomal protein L14
1813	 60.07	0	2012167..2012439	-	90	50843309	-	PPA1853	-	30S ribosomal protein S17
1814	 58.97	0	2012442..2012675	-	77	50843310	-	PPA1855	-	50S ribosomal protein L29
1815	 60.00	0	2012675..2013094	-	139	50843311	rplP	PPA1856	-	50S ribosomal protein L16
1816	 64.94	+1	2013096..2013905	-	269	50843312	rpsC	PPA1857	-	30S ribosomal protein S3
1817	 63.64	+1	2013907..2014368	-	153	50843313	-	PPA1858	-	50S ribosomal protein L22
1818	 61.35	0	2014386..2014667	-	93	50843314	-	PPA1859	-	30S ribosomal protein S19
1819	 62.96	0	2014683..2015519	-	278	50843315	rplB	PPA1860	-	50S ribosomal protein L2
1820	 59.22	0	2015546..2015854	-	102	50843316	rplW	PPA1861	-	50S ribosomal protein L23
1821	 62.36	0	2015851..2016756	-	301	50843317	-	PPA1862	-	50S ribosomal protein L4
1822	 65.33	+1	2016753..2017424	-	223	50843318	-	PPA1863	-	50S ribosomal protein L3
1823	 62.50	0	2017436..2017747	-	103	50843319	rpsJ	PPA1865	-	30S ribosomal protein S10
1824	 62.39	0	2018260..2020221	+	653	50843320	-	PPA1866	-	8-amino-7-oxononanoate synthase
1825	 60.50	0	2020202..2021434	-	410	50843321	-	PPA1867	-	hypothetical protein
1826	 59.09	0	2021552..2021881	-	109	50843322	-	PPA1868	-	hypothetical protein
1827	 57.83	0	2021881..2023374	-	497	50843323	-	PPA1869	-	glutamyl-tRNA synthetase
1828	 60.54	0	2023428..2025125	+	565	50843324	-	PPA1870	-	glutaminyl-tRNA synthetase
1829	 59.53	0	2025228..2027174	+	648	50843325	-	PPA1871	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
1830	 58.63	0	2027181..2029046	+	621	50843326	-	PPA1872	-	membrane-spanning protein
1831	 61.73	0	2029170..2030363	-	397	50843327	tuf	PPA1873	-	elongation factor Tu
1832	 60.37	0	2030632..2033934	-	1100	50843328	-	PPA1874	-	hypothetical protein
1833	 59.89	0	2034125..2036218	-	697	50843329	-	PPA1875	-	elongation factor G
1834	 61.57	0	2036351..2036821	-	156	50843330	-	PPA1876	-	30S ribosomal protein S7
1835	 62.42	0	2036363..2037352	+	329	50843331	-	PPA1877	-	hypothetical protein
1836	 63.17	0	2036825..2037196	-	123	161621792	rpsL	PPA1878	-	30S ribosomal protein S12
1837	 61.21	0	2037511..2038041	-	176	50843333	-	PPA1879	-	hypothetical protein
1838	 57.11	0	2038194..2039093	-	299	50843334	-	PPA1880	-	putative adhesion or S-layer protein
1839	 59.42	0	2039396..2039809	-	137	50843335	-	PPA1881	-	hypothetical protein
1840	 57.21	0	2039927..2040973	-	348	50843336	-	PPA1882	-	hypothetical protein
1841	 60.18	0	2041158..2045039	-	1293	50843337	-	PPA1883	-	DNA-directed RNA polymerase subunit beta'
1842	 59.71	0	2045208..2048687	-	1159	50843338	rpoB	PPA1884	-	DNA-directed RNA polymerase subunit beta
1843	 63.87	+1	2048986..2049378	-	130	50843339	rplL	PPA1885	-	50S ribosomal protein L7/L12
1844	 64.23	+1	2049392..2050006	-	204	161621791	rplJ	PPA1887	-	50S ribosomal protein L10
1845	 60.94	0	2050434..2051132	-	232	50843341	rplA	PPA1889	-	50S ribosomal protein L1
1846	 59.03	0	2051222..2051653	-	143	50843342	-	PPA1890	-	50S ribosomal protein L11
1847	 57.13	0	2051783..2052694	-	303	50843343	-	PPA1891	-	transcription antitermination protein NusG
1848	 60.22	0	2052718..2053368	-	216	50843344	-	PPA1892	-	putative SecE/Sec61-gamma subunit of protein translocation complex
1849	 59.40	0	2053818..2055083	-	421	50843345	-	PPA1893	-	aminotransferase
1850	 62.42	0	2055187..2056317	-	376	50843346	murB	PPA1894	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1851	 64.75	+1	2056314..2056730	-	138	50843347	-	PPA1895	-	MaoC family protein
1852	 58.97	0	2056727..2057155	-	142	50843348	-	PPA1896	-	hypothetical protein
1853	 61.99	0	2057300..2057470	-	56	50843349	rpmG	PPA1897	-	50S ribosomal protein L33
1854	 62.98	0	2058192..2059085	+	297	50843350	-	PPA1898	-	exodeoxyribonuclease III
1855	 62.35	0	2059087..2060013	-	308	50843351	-	PPA1899	-	enoyl-CoA hydratase/isomerase family protein
1856	 60.59	0	2060119..2061699	-	526	50843352	-	PPA1900	-	hypothetical protein
1857	 60.52	0	2061696..2062004	-	102	50843353	-	PPA1901	-	NADH dehydrogenase subunit
1858	 64.62	+1	2062001..2062585	-	194	50843354	-	PPA1902	-	NADH dehydrogenase subunit
1859	 64.66	+1	2062582..2062980	-	132	50843355	-	PPA1903	-	NADH dehydrogenase subunit
1860	 64.01	+1	2063178..2065100	+	640	50843356	-	PPA1904	-	pyruvate:ferredoxin oxidoreductase (alpha subunit)
1861	 62.71	0	2065102..2066187	+	361	50843357	-	PPA1905	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1862	 57.90	0	2066712..2068775	+	687	50843358	-	PPA1906	-	hypothetical protein
1863	 48.09	-2	2068772..2069347	+	191	50843359	-	PPA1907	-	protein associated to putative adhesion protein
1864	 51.26	-2	2069415..2070011	+	198	50843360	-	PPA1908	-	protein associated to putative adhesion protein
1865	 61.52	0	2070668..2072650	+	660	50843361	-	PPA1909	-	M13 family metallopeptidase
1866	 59.40	0	2072718..2073941	-	407	50843362	-	PPA1910	-	ABC transporter permease
1867	 61.93	0	2073938..2074507	-	189	50843363	-	PPA1911	-	ABC transporter, ATP-binding
1868	 57.96	0	2074564..2075493	-	309	50843364	-	PPA1913	-	hypothetical protein
1869	 57.20	0	2075659..2075901	+	80	50843365	-	PPA1914	-	hypothetical protein
1870	 58.88	0	2075901..2076722	+	273	50843366	-	PPA1915	-	ABC transporter, ATP-binding protein
1871	 59.72	0	2076719..2078230	+	503	50843367	-	PPA1916	-	ABC transporter permease
1872	 55.13	-1	2078227..2078538	+	103	50843368	-	PPA1917	-	hypothetical protein
1873	 59.72	0	2078618..2079049	+	143	50843369	-	PPA1918	-	hypothetical protein
1874	 63.74	+1	2079066..2079986	-	306	50843370	-	PPA1919	-	citrate lyase beta chain
1875	 61.17	0	2080022..2080804	-	260	50843371	-	PPA1920	-	precorrin 6A synthase
1876	 61.95	0	2080835..2081809	-	324	50843372	-	PPA1921	-	heptaprenyl diphosphate synthase component II
1877	 62.71	0	2082002..2083618	-	538	50843373	-	PPA1922	-	NADH dehydrogenase subunit N
60.05	MEAN

3.20	STD DEV
