IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

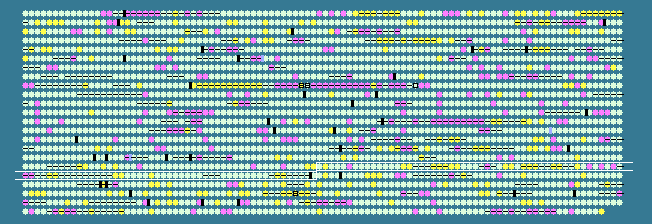

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1750	 63.17	0	1948947..1949660	+	237	50843246	-	PPA1786	-	hypothetical protein
1751	 64.00	+1	1949670..1951772	-	700	50843247	-	PPA1787	-	ATP-dependent RNA helicase
1752	 63.03	0	1951787..1951951	+	54	50843248	-	PPA1788	-	hypothetical protein
1753	 57.18	0	1952124..1954463	-	779	50843249	-	PPA1789	-	putative ABC transporter-associated permease
1754	 57.09	0	1954463..1955203	-	246	50843250	-	PPA1790	-	ABC transporter ATP-binding protein
1755	 51.85	-2	1955197..1955682	-	161	50843251	-	PPA2362	-	hypothetical protein
1756	 60.71	0	1955838..1956929	+	363	50843252	-	PPA1791	-	glycosyl transferase
1757	 61.96	0	1956973..1958418	-	481	50843253	-	PPA1792	-	hypothetical protein
1758	 60.68	0	1958509..1958892	-	127	50843254	acpS	PPA1793	-	4'-phosphopantetheinyl transferase
1759	 60.50	0	1958978..1960891	-	637	50843255	-	PPA1794	-	D-fructose-6-phosphate amidotransferase
1760	 58.63	0	1961005..1962024	+	339	50843256	-	PPA1796	-	triacylglycerol lipase precursor
1761	 60.98	0	1963291..1964274	+	327	50843257	-	PPA1799	-	pantothenate kinase
1762	 62.81	0	1964319..1964966	-	215	50843258	-	PPA1800	-	hypothetical protein
1763	 60.61	0	1965078..1966430	-	450	50843259	-	PPA1801	-	phosphoglucomutase/phosphomannomutase
1764	 64.94	+1	1966656..1967177	-	173	50843260	rpsI	PPA1802	-	30S ribosomal protein S9
1765	 63.96	+1	1967200..1967643	-	147	50843261	rplM	PPA1803	-	50S ribosomal protein L13
1766	 62.79	0	1967907..1971155	-	1082	50843262	-	PPA1805	-	endo-beta-N-acetylglucosaminidase family protein
1767	 62.91	0	1971306..1972211	+	301	50843263	-	PPA1806	-	hypothetical protein
1768	 59.52	0	1972331..1972624	-	97	50843264	-	PPA1807	-	hypothetical protein
1769	 65.40	+1	1972797..1973741	+	314	50843265	-	PPA1808	-	methyltransferase
1770	 66.90	+2	1973738..1974577	+	279	50843266	truA	PPA1809	-	tRNA pseudouridine synthase A
1771	 63.93	+1	1974574..1975194	+	206	50843267	-	PPA1810	-	hypothetical protein
1772	 64.37	+1	1975263..1976525	+	420	50843268	-	PPA1812	-	ABC transporter-associated permease
1773	 64.86	+1	1976522..1978177	+	551	50843269	-	PPA1813	-	ABC transporter, ATP-binding protein
1774	 61.55	0	1978174..1978935	+	253	50843270	-	PPA1814	-	putative ABC transporter-associated permease
1775	 61.42	0	1978988..1979749	-	253	50843271	fabG	PPA1815	-	3-ketoacyl-(acyl-carrier-protein) reductase
1776	 63.51	+1	1979842..1981455	-	537	50843272	-	PPA1816	-	ABC transporter associated permease
1777	 62.95	0	1981437..1982270	-	277	50843273	-	PPA1817	-	ABC transporter ATP-binding protein
1778	 54.34	-1	1982509..1983003	+	164	50843274	-	PPA2364	-	hypothetical protein
1779	 58.25	0	1983161..1983778	+	205	50843275	-	PPA1818	-	superoxide dismutase [Mn/Fe]
1780	 61.52	0	1984010..1984534	+	174	50843276	-	PPA1819	-	beta-galactosidase
1781	 64.58	+1	1984531..1988787	+	1418	50843277	-	PPA1820	-	beta-galactosidase fused to beta-N-acetylhexosaminidase
1782	 65.25	+1	1989016..1990425	+	469	50843278	-	PPA1821	-	putative sialidase
1783	 60.12	0	1990761..1992134	+	457	50843279	-	PPA1822	-	organic anion transporter family protein
1784	 63.67	+1	1992150..1992782	-	210	50843280	-	PPA1823	-	hypothetical protein
1785	 64.37	+1	1992782..1993999	-	405	50843281	-	PPA1824	-	glycosyl transferase
1786	 64.99	+1	1994109..1994645	-	178	50843282	-	PPA1825	-	50S ribosomal protein L17
1787	 60.18	0	1994948..1995964	-	338	50843283	-	PPA1826	-	DNA-directed RNA polymerase subunit alpha
1788	 60.56	0	1996210..1996815	-	201	50843284	rpsD	PPA1827	-	30S ribosomal protein S4
1789	 63.73	+1	1996846..1997253	-	135	50843285	-	PPA1828	-	30S ribosomal protein S11
1790	 64.25	+1	1997325..1997696	-	123	50843286	rpsM	PPA1829	-	30S ribosomal protein S13
1791	 57.89	0	1998075..1998188	-	37	50843287	rpmJ	PPA1831	-	50S ribosomal protein L36
1792	 58.11	0	1998267..1998488	-	73	50843288	-	PPA1832	-	translation initiation factor IF-1
1793	 63.57	+1	1998703..1999542	-	279	50843289	-	PPA1833	-	methionine aminopeptidase
1794	 60.00	0	1999544..2000113	-	189	50843290	adk	PPA1834	-	adenylate kinase
1795	 56.29	-1	2000110..2001429	-	439	50843291	secY	PPA1835	-	preprotein translocase subunit SecY
1796	 60.25	0	2001599..2002237	+	212	50843292	-	PPA1836	-	hypothetical protein
1797	 54.92	-1	2002227..2003435	-	402	50843293	-	PPA1837	-	membrane protein, putative permease
1798	 57.23	0	2003493..2003651	-	52	50843294	-	PPA1838	-	hypothetical protein
1799	 53.95	-1	2003665..2004411	-	248	50843295	-	PPA1839	-	glycerophosphoryl diester phosphodiesterase
1800	 58.10	0	2004533..2006236	-	567	50843296	-	PPA1840	-	extracellular solute-binding transport protein, putative oligopeptide-binding protein
1801	 55.42	-1	2006430..2006678	-	82	50843297	-	PPA1841	-	hypothetical protein
1802	 55.44	-1	2006718..2007002	-	94	50843298	-	PPA2365	-	hypothetical protein
1803	 59.41	0	2007192..2007632	-	146	50843299	rplO	PPA1842	-	50S ribosomal protein L15
1804	 59.02	0	2007634..2007816	-	60	50843300	rpmD	PPA1843	-	50S ribosomal protein L30
1805	 64.66	+1	2007816..2008463	-	215	50843301	rpsE	PPA1844	-	30S ribosomal protein S5
1806	 64.06	+1	2008488..2008871	-	127	50843302	-	PPA1845	-	50S ribosomal protein L18
1807	 59.85	0	2008873..2009415	-	180	50843303	rplF	PPA1846	-	50S ribosomal protein L6
1808	 61.27	0	2009444..2009851	-	135	50843304	rpsH	PPA1848	-	30S ribosomal protein S8
1809	 61.83	0	2010011..2010196	-	61	50843305	rpsN	PPA1849	-	30S ribosomal protein S14
1810	 59.56	0	2010204..2010836	-	210	50843306	rplE	PPA1850	-	50S ribosomal protein L5
1811	 62.60	0	2010833..2011201	-	122	50843307	-	PPA1851	-	50S ribosomal protein L24
1812	 61.52	0	2011202..2011570	-	122	50843308	-	PPA1852	-	50S ribosomal protein L14
1813	 60.07	0	2012167..2012439	-	90	50843309	-	PPA1853	-	30S ribosomal protein S17
1814	 58.97	0	2012442..2012675	-	77	50843310	-	PPA1855	-	50S ribosomal protein L29
1815	 60.00	0	2012675..2013094	-	139	50843311	rplP	PPA1856	-	50S ribosomal protein L16
1816	 64.94	+1	2013096..2013905	-	269	50843312	rpsC	PPA1857	-	30S ribosomal protein S3
1817	 63.64	+1	2013907..2014368	-	153	50843313	-	PPA1858	-	50S ribosomal protein L22
1818	 61.35	0	2014386..2014667	-	93	50843314	-	PPA1859	-	30S ribosomal protein S19
1819	 62.96	0	2014683..2015519	-	278	50843315	rplB	PPA1860	-	50S ribosomal protein L2
1820	 59.22	0	2015546..2015854	-	102	50843316	rplW	PPA1861	-	50S ribosomal protein L23
1821	 62.36	0	2015851..2016756	-	301	50843317	-	PPA1862	-	50S ribosomal protein L4
1822	 65.33	+1	2016753..2017424	-	223	50843318	-	PPA1863	-	50S ribosomal protein L3
1823	 62.50	0	2017436..2017747	-	103	50843319	rpsJ	PPA1865	-	30S ribosomal protein S10
1824	 62.39	0	2018260..2020221	+	653	50843320	-	PPA1866	-	8-amino-7-oxononanoate synthase
1825	 60.50	0	2020202..2021434	-	410	50843321	-	PPA1867	-	hypothetical protein
1826	 59.09	0	2021552..2021881	-	109	50843322	-	PPA1868	-	hypothetical protein
1827	 57.83	0	2021881..2023374	-	497	50843323	-	PPA1869	-	glutamyl-tRNA synthetase
1828	 60.54	0	2023428..2025125	+	565	50843324	-	PPA1870	-	glutaminyl-tRNA synthetase
1829	 59.53	0	2025228..2027174	+	648	50843325	-	PPA1871	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
1830	 58.63	0	2027181..2029046	+	621	50843326	-	PPA1872	-	membrane-spanning protein
1831	 61.73	0	2029170..2030363	-	397	50843327	tuf	PPA1873	-	elongation factor Tu
1832	 60.37	0	2030632..2033934	-	1100	50843328	-	PPA1874	-	hypothetical protein
1833	 59.89	0	2034125..2036218	-	697	50843329	-	PPA1875	-	elongation factor G
1834	 61.57	0	2036351..2036821	-	156	50843330	-	PPA1876	-	30S ribosomal protein S7
1835	 62.42	0	2036363..2037352	+	329	50843331	-	PPA1877	-	hypothetical protein
1836	 63.17	0	2036825..2037196	-	123	161621792	rpsL	PPA1878	-	30S ribosomal protein S12
1837	 61.21	0	2037511..2038041	-	176	50843333	-	PPA1879	-	hypothetical protein
1838	 57.11	0	2038194..2039093	-	299	50843334	-	PPA1880	-	putative adhesion or S-layer protein
1839	 59.42	0	2039396..2039809	-	137	50843335	-	PPA1881	-	hypothetical protein
1840	 57.21	0	2039927..2040973	-	348	50843336	-	PPA1882	-	hypothetical protein
1841	 60.18	0	2041158..2045039	-	1293	50843337	-	PPA1883	-	DNA-directed RNA polymerase subunit beta'
1842	 59.71	0	2045208..2048687	-	1159	50843338	rpoB	PPA1884	-	DNA-directed RNA polymerase subunit beta
1843	 63.87	+1	2048986..2049378	-	130	50843339	rplL	PPA1885	-	50S ribosomal protein L7/L12
1844	 64.23	+1	2049392..2050006	-	204	161621791	rplJ	PPA1887	-	50S ribosomal protein L10
1845	 60.94	0	2050434..2051132	-	232	50843341	rplA	PPA1889	-	50S ribosomal protein L1
1846	 59.03	0	2051222..2051653	-	143	50843342	-	PPA1890	-	50S ribosomal protein L11
1847	 57.13	0	2051783..2052694	-	303	50843343	-	PPA1891	-	transcription antitermination protein NusG
1848	 60.22	0	2052718..2053368	-	216	50843344	-	PPA1892	-	putative SecE/Sec61-gamma subunit of protein translocation complex
1849	 59.40	0	2053818..2055083	-	421	50843345	-	PPA1893	-	aminotransferase
60.05	MEAN

3.20	STD DEV
