IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

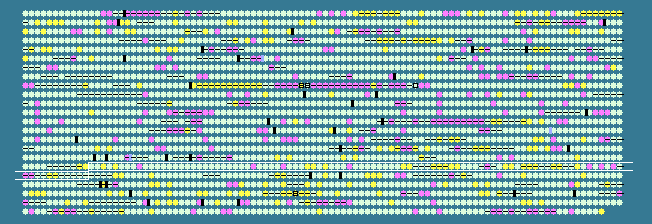

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1712	 61.38	0	1909522..1910145	-	207	50843208	purN	PPA1748	-	phosphoribosylglycinamide formyltransferase
1713	 62.28	0	1910170..1910670	-	166	50843209	ribH	PPA1749	-	riboflavin synthase subunit beta
1714	 64.62	+1	1910667..1911983	-	438	50843210	-	PPA1750	-	riboflavin biosynthesis protein RibA
1715	 61.67	0	1911977..1912576	-	199	50843211	-	PPA1751	-	riboflavin synthase subunit alpha
1716	 66.37	+1	1912584..1913579	-	331	50843212	-	PPA1752	-	riboflavin biosynthesis protein RibD
1717	 61.85	0	1913865..1915358	-	497	50843213	-	PPA1753	-	hypothetical protein
1718	 62.64	0	1915508..1916401	-	297	50843214	-	PPA1754	-	succinyl-CoA synthetase subunit alpha
1719	 62.24	0	1916405..1917580	-	391	50843215	sucC	PPA1755	-	succinyl-CoA synthetase subunit beta
1720	 55.73	-1	1917807..1920239	-	810	50843216	-	PPA1756	-	ATP-dependent DNA helicase
1721	 61.22	0	1920236..1920547	-	103	50843217	-	PPA1757	-	hypothetical protein
1722	 57.11	0	1920676..1921638	+	320	50843218	-	PPA1758	-	outer membrane lipoprotein
1723	 59.47	0	1921670..1922767	+	365	50843219	-	PPA1759	-	ABC transporter ATP-binding protein
1724	 59.48	0	1922767..1923420	+	217	50843220	-	PPA1760	-	ABC transporter associated permease
1725	 58.79	0	1923523..1924791	+	422	50843221	-	PPA1761	-	cardiolipin synthetase
1726	 57.20	0	1924939..1925202	+	87	50843222	-	PPA1762	-	hypothetical protein
1727	 61.75	0	1925432..1925716	+	94	50843223	-	PPA1763	-	hypothetical protein
1728	 60.95	0	1925968..1927560	-	530	50843224	guaA	PPA1764	-	bifunctional GMP synthase/glutamine amidotransferase protein
1729	 63.35	+1	1927718..1928290	+	190	50843225	-	PPA1765	-	serine acetyltransferase
1730	 61.78	0	1928299..1928646	-	115	50843226	-	PPA1766	-	chorismate mutase
1731	 63.32	+1	1928704..1929807	-	367	50843227	-	PPA1767	-	inositol-5-monophosphate dehydrogenase
1732	 59.93	0	1929841..1931355	-	504	50843228	-	PPA1768	-	IMP dehydrogenase / GMP reductase
1733	 61.33	0	1931453..1932895	-	480	50843229	-	PPA1769	-	hypothetical protein
1734	 58.97	0	1933262..1935016	+	584	50843230	-	PPA1770	-	sodium:alanine symporter family protein
1735	 58.55	0	1935137..1935826	-	229	50843231	-	PPA1771	-	hypothetical protein
1736	 62.16	0	1936034..1937629	-	531	50843232	groEL	PPA1772	-	chaperonin GroEL
1737	 63.30	+1	1937641..1937937	-	98	50843233	-	PPA1773	-	10 kDa chaperonin
1738	 57.81	0	1938143..1939147	-	334	50843234	-	PPA1774	-	hypothetical protein
1739	 55.85	-1	1939267..1940061	-	264	50843235	-	PPA1775	-	hypothetical protein
1740	 60.17	0	1940066..1941265	-	399	50843236	-	PPA1776	-	hypothetical protein
1741	 58.02	0	1941294..1941941	+	215	50843237	-	PPA1777	-	hypothetical protein
1742	 61.35	0	1941968..1942720	-	250	50843238	-	PPA1778	-	Fe(III) dicitrate ABC transporter, ATP-binding protein
1743	 60.55	0	1942717..1943811	-	364	50843239	-	PPA1779	-	Fe(III) dicitrate ABC transporter, permease
1744	 53.76	-1	1943819..1944988	-	389	50843240	-	PPA1780	-	periplasmic binding protein
1745	 59.96	0	1945114..1945605	-	163	50843241	-	PPA1781	-	putative 7,8-dihydro-8-oxoguanine-triphosphatase
1746	 63.41	+1	1945719..1946762	-	347	50843242	-	PPA1782	-	putative O-sialoglycoprotein endopeptidase
1747	 62.82	0	1946755..1947222	-	155	50843243	-	PPA1783	-	ribosomal-protein-alanine acetyltransferase
1748	 64.84	+1	1947219..1947875	-	218	50843244	-	PPA1784	-	M22 family peptidase
1749	 63.98	+1	1947875..1948768	-	297	50843245	-	PPA1785	-	nucleotide-binding protein (P-loop hydrolase)
1750	 63.17	0	1948947..1949660	+	237	50843246	-	PPA1786	-	hypothetical protein
1751	 64.00	+1	1949670..1951772	-	700	50843247	-	PPA1787	-	ATP-dependent RNA helicase
1752	 63.03	0	1951787..1951951	+	54	50843248	-	PPA1788	-	hypothetical protein
1753	 57.18	0	1952124..1954463	-	779	50843249	-	PPA1789	-	putative ABC transporter-associated permease
1754	 57.09	0	1954463..1955203	-	246	50843250	-	PPA1790	-	ABC transporter ATP-binding protein
1755	 51.85	-2	1955197..1955682	-	161	50843251	-	PPA2362	-	hypothetical protein
1756	 60.71	0	1955838..1956929	+	363	50843252	-	PPA1791	-	glycosyl transferase
1757	 61.96	0	1956973..1958418	-	481	50843253	-	PPA1792	-	hypothetical protein
1758	 60.68	0	1958509..1958892	-	127	50843254	acpS	PPA1793	-	4'-phosphopantetheinyl transferase
1759	 60.50	0	1958978..1960891	-	637	50843255	-	PPA1794	-	D-fructose-6-phosphate amidotransferase
1760	 58.63	0	1961005..1962024	+	339	50843256	-	PPA1796	-	triacylglycerol lipase precursor
1761	 60.98	0	1963291..1964274	+	327	50843257	-	PPA1799	-	pantothenate kinase
1762	 62.81	0	1964319..1964966	-	215	50843258	-	PPA1800	-	hypothetical protein
1763	 60.61	0	1965078..1966430	-	450	50843259	-	PPA1801	-	phosphoglucomutase/phosphomannomutase
1764	 64.94	+1	1966656..1967177	-	173	50843260	rpsI	PPA1802	-	30S ribosomal protein S9
1765	 63.96	+1	1967200..1967643	-	147	50843261	rplM	PPA1803	-	50S ribosomal protein L13
1766	 62.79	0	1967907..1971155	-	1082	50843262	-	PPA1805	-	endo-beta-N-acetylglucosaminidase family protein
1767	 62.91	0	1971306..1972211	+	301	50843263	-	PPA1806	-	hypothetical protein
1768	 59.52	0	1972331..1972624	-	97	50843264	-	PPA1807	-	hypothetical protein
1769	 65.40	+1	1972797..1973741	+	314	50843265	-	PPA1808	-	methyltransferase
1770	 66.90	+2	1973738..1974577	+	279	50843266	truA	PPA1809	-	tRNA pseudouridine synthase A
1771	 63.93	+1	1974574..1975194	+	206	50843267	-	PPA1810	-	hypothetical protein
1772	 64.37	+1	1975263..1976525	+	420	50843268	-	PPA1812	-	ABC transporter-associated permease
1773	 64.86	+1	1976522..1978177	+	551	50843269	-	PPA1813	-	ABC transporter, ATP-binding protein
1774	 61.55	0	1978174..1978935	+	253	50843270	-	PPA1814	-	putative ABC transporter-associated permease
1775	 61.42	0	1978988..1979749	-	253	50843271	fabG	PPA1815	-	3-ketoacyl-(acyl-carrier-protein) reductase
1776	 63.51	+1	1979842..1981455	-	537	50843272	-	PPA1816	-	ABC transporter associated permease
1777	 62.95	0	1981437..1982270	-	277	50843273	-	PPA1817	-	ABC transporter ATP-binding protein
1778	 54.34	-1	1982509..1983003	+	164	50843274	-	PPA2364	-	hypothetical protein
1779	 58.25	0	1983161..1983778	+	205	50843275	-	PPA1818	-	superoxide dismutase [Mn/Fe]
1780	 61.52	0	1984010..1984534	+	174	50843276	-	PPA1819	-	beta-galactosidase
1781	 64.58	+1	1984531..1988787	+	1418	50843277	-	PPA1820	-	beta-galactosidase fused to beta-N-acetylhexosaminidase
1782	 65.25	+1	1989016..1990425	+	469	50843278	-	PPA1821	-	putative sialidase
1783	 60.12	0	1990761..1992134	+	457	50843279	-	PPA1822	-	organic anion transporter family protein
1784	 63.67	+1	1992150..1992782	-	210	50843280	-	PPA1823	-	hypothetical protein
1785	 64.37	+1	1992782..1993999	-	405	50843281	-	PPA1824	-	glycosyl transferase
1786	 64.99	+1	1994109..1994645	-	178	50843282	-	PPA1825	-	50S ribosomal protein L17
1787	 60.18	0	1994948..1995964	-	338	50843283	-	PPA1826	-	DNA-directed RNA polymerase subunit alpha
1788	 60.56	0	1996210..1996815	-	201	50843284	rpsD	PPA1827	-	30S ribosomal protein S4
1789	 63.73	+1	1996846..1997253	-	135	50843285	-	PPA1828	-	30S ribosomal protein S11
1790	 64.25	+1	1997325..1997696	-	123	50843286	rpsM	PPA1829	-	30S ribosomal protein S13
1791	 57.89	0	1998075..1998188	-	37	50843287	rpmJ	PPA1831	-	50S ribosomal protein L36
1792	 58.11	0	1998267..1998488	-	73	50843288	-	PPA1832	-	translation initiation factor IF-1
1793	 63.57	+1	1998703..1999542	-	279	50843289	-	PPA1833	-	methionine aminopeptidase
1794	 60.00	0	1999544..2000113	-	189	50843290	adk	PPA1834	-	adenylate kinase
1795	 56.29	-1	2000110..2001429	-	439	50843291	secY	PPA1835	-	preprotein translocase subunit SecY
1796	 60.25	0	2001599..2002237	+	212	50843292	-	PPA1836	-	hypothetical protein
1797	 54.92	-1	2002227..2003435	-	402	50843293	-	PPA1837	-	membrane protein, putative permease
1798	 57.23	0	2003493..2003651	-	52	50843294	-	PPA1838	-	hypothetical protein
1799	 53.95	-1	2003665..2004411	-	248	50843295	-	PPA1839	-	glycerophosphoryl diester phosphodiesterase
1800	 58.10	0	2004533..2006236	-	567	50843296	-	PPA1840	-	extracellular solute-binding transport protein, putative oligopeptide-binding protein
1801	 55.42	-1	2006430..2006678	-	82	50843297	-	PPA1841	-	hypothetical protein
1802	 55.44	-1	2006718..2007002	-	94	50843298	-	PPA2365	-	hypothetical protein
1803	 59.41	0	2007192..2007632	-	146	50843299	rplO	PPA1842	-	50S ribosomal protein L15
1804	 59.02	0	2007634..2007816	-	60	50843300	rpmD	PPA1843	-	50S ribosomal protein L30
1805	 64.66	+1	2007816..2008463	-	215	50843301	rpsE	PPA1844	-	30S ribosomal protein S5
1806	 64.06	+1	2008488..2008871	-	127	50843302	-	PPA1845	-	50S ribosomal protein L18
1807	 59.85	0	2008873..2009415	-	180	50843303	rplF	PPA1846	-	50S ribosomal protein L6
1808	 61.27	0	2009444..2009851	-	135	50843304	rpsH	PPA1848	-	30S ribosomal protein S8
1809	 61.83	0	2010011..2010196	-	61	50843305	rpsN	PPA1849	-	30S ribosomal protein S14
1810	 59.56	0	2010204..2010836	-	210	50843306	rplE	PPA1850	-	50S ribosomal protein L5
1811	 62.60	0	2010833..2011201	-	122	50843307	-	PPA1851	-	50S ribosomal protein L24
60.05	MEAN

3.20	STD DEV
