IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

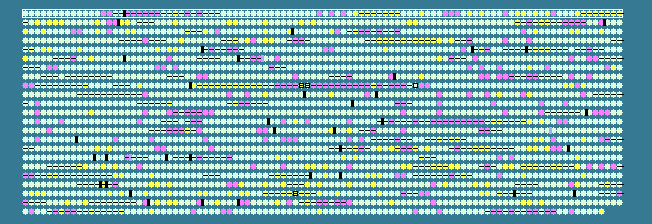

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 56.95	0	245..1747	+	500	50841497	-	PPA0001	-	chromosomal replication initiator protein DnaA
2	 58.48	0	2219..3379	+	386	161621802	-	PPA0002	-	DNA polymerase III subunit beta
3	 60.91	0	3666..4169	+	167	50841499	-	PPA0003	-	hypothetical protein
4	 59.58	0	4227..5411	+	394	50841500	recF	PPA0004	-	recombination protein F
5	 61.08	0	5389..5997	+	202	50841501	-	PPA0005	-	hypothetical protein
6	 58.59	0	8304..9491	+	395	50841502	-	PPA0008	-	mannose-6-phosphate isomerase
7	 59.86	0	9733..11805	+	690	50841503	gyrB	PPA0009	-	DNA gyrase subunit B
8	 61.02	0	11847..14522	+	891	50841504	-	PPA0010	-	DNA gyrase subunit A
9	 58.61	0	14515..15147	+	210	50841505	-	PPA0011	-	hypothetical protein
10	 61.82	0	15246..16214	-	322	50841506	-	PPA0012	-	L-lactate dehydrogenase
11	 57.44	0	16412..16606	+	64	50841507	-	PPA0013	-	hypothetical protein
12	 59.23	0	16732..17739	+	335	50841508	-	PPA0014	-	putative transcriptional regulator
13	 58.96	0	17736..19241	+	501	50841509	-	PPA0015	-	ABC transporter protein
14	 54.19	-1	19324..20301	+	325	50841510	-	PPA0016	-	ribose ABC transporter
15	 55.94	-1	20350..21291	+	313	50841511	-	PPA0017	-	periplasmic sugar-binding protein
16	 61.94	0	21288..22217	+	309	50841512	-	PPA0018	-	sugar kinase
17	 57.81	0	22214..22597	+	127	50841513	-	PPA0019	-	D-ribose pyranase
18	 54.81	-1	22780..23049	+	89	50841514	-	PPA0020	-	hypothetical protein
19	 51.15	-2	23201..23677	-	158	50841515	-	PPA0021	-	PTS system, galactitol-specific IIA component
20	 54.18	-1	23734..24990	-	418	50841516	-	PPA0022	-	PTS system, galactitol-specific IIC component
21	 53.47	-2	25011..25313	-	100	50841517	-	PPA0023	-	PTS system, galactitol-specific IIB component
22	 55.99	-1	25303..25686	-	127	50841518	-	PPA0025	-	alcohol dehydrogenase
23	 47.72	-2	28427..28711	-	94	50841519	-	PPA2391	-	hypothetical protein
24	 59.84	0	28718..29083	-	121	50841520	-	PPA2390	-	hypothetical protein
25	 63.24	0	29313..29984	-	223	50841521	-	PPA0029	-	hypothetical protein
26	 66.84	+2	30008..30586	-	192	50841522	-	PPA0030	-	putative phosphatase
27	 62.19	0	30784..31542	+	252	50841523	-	PPA0031	-	transcriptional regulator
28	 53.66	-1	31730..32152	+	140	50841524	-	PPA2392	-	hypothetical protein
29	 57.18	0	32158..32895	-	245	50841525	-	PPA0032	-	hypothetical protein
30	 52.22	-2	32889..33428	-	179	50841526	-	PPA0033	-	hypothetical protein
31	 62.42	0	33561..34619	+	352	50841527	-	PPA0034	-	putative aminotransferase
32	 61.55	0	35552..36118	+	188	50841528	-	PPA0037	-	acetyltransferase
33	 61.21	0	36132..36791	+	219	50841529	-	PPA0038	-	hypothetical protein
34	 61.50	0	37044..37682	+	212	50841530	-	PPA0039	-	hypothetical protein
35	 61.66	0	37682..38500	+	272	50841531	-	PPA0040	-	hypothetical protein
36	 61.19	0	38497..39975	+	492	50841532	-	PPA0041	-	secretion system protein
37	 61.79	0	39966..40847	+	293	50841533	-	PPA0042	-	membrane spanning protein
38	 61.35	0	40840..41742	+	300	50841534	-	PPA0043	-	membrane associated protein
39	 60.18	0	41739..42401	+	220	50841535	-	PPA0044	-	hypothetical protein
40	 61.37	0	42398..42907	+	169	50841536	-	PPA0046	-	hypothetical protein
41	 62.76	0	42904..45666	+	920	50841537	-	PPA0047	-	hypothetical protein
42	 60.86	0	45713..47125	-	470	50841538	-	PPA0048	-	hypothetical protein
43	 60.82	0	47426..49135	+	569	50841539	-	PPA0049	-	formate--tetrahydrofolate ligase
44	 60.63	0	49241..49654	+	137	50841540	-	PPA0050	-	hypothetical protein
45	 58.19	0	49651..50181	-	176	50841541	-	PPA0051	-	hypothetical protein
46	 61.19	0	50197..50871	-	224	50841542	-	PPA0052	-	hypothetical protein
47	 59.95	0	51068..53539	-	823	50841543	-	PPA0053	-	ABC transporter associated permease
48	 60.97	0	53539..54573	-	344	50841544	-	PPA0054	-	ABC transporter ATP-binding protein
49	 60.43	0	54681..55337	-	218	50841545	-	PPA0055	-	two-component response regulator
50	 55.23	-1	55356..55967	-	203	50841546	-	PPA0056	-	hypothetical protein
51	 57.64	0	56040..56870	-	276	50841547	-	PPA0057	-	sugar transport permease BglB
52	 54.96	-1	56867..57763	-	298	50841548	-	PPA0058	-	transport permease
53	 61.38	0	57848..59152	-	434	50841549	-	PPA0059	-	sugar-binding protein
54	 55.21	-1	59132..59323	+	63	50841550	-	PPA2395	-	hypothetical protein
55	 61.14	0	59565..60251	+	228	50841551	-	PPA0060	-	DeoR family transcriptional regulator
56	 63.64	+1	60248..61636	+	462	50841552	-	PPA0061	-	putative glucosidase
57	 63.69	+1	61629..64757	+	1042	50841553	-	PPA0062	-	glycosyl hydrolase
58	 66.67	+2	64754..65809	+	351	50841554	-	PPA0063	-	hypothetical protein
59	 63.88	+1	65803..66447	+	214	50841555	-	PPA0064	-	putative hydrolase
60	 63.50	+1	66444..67739	+	431	50841556	-	PPA0065	-	hypothetical protein
61	 64.39	+1	67723..69261	-	512	50841557	-	PPA0066	-	glycosyl hydrolase
62	 64.21	+1	69367..70302	+	311	50841558	-	PPA0067	-	putative carbohydrate kinase
63	 63.97	+1	70321..71691	-	456	50841559	-	PPA0068	-	putative two component sensor kinase
64	 59.09	0	71871..72860	+	329	50841560	-	PPA0069	-	UDP-glucose 4-epimerase
65	 61.52	0	72933..73748	-	271	50841561	-	PPA0070	-	transcriptional regulator
66	 62.82	0	73685..76414	+	909	50841562	-	PPA0071	-	putative membrane transport protein
67	 64.77	+1	76411..78780	+	789	50841563	-	PPA0072	-	membrane associated protein
68	 61.76	0	78966..80411	-	481	50841564	-	PPA0073	-	hypothetical protein
69	 61.81	0	80414..81175	-	253	50841565	-	PPA0074	-	ABC transporter, ATP-binding protein
70	 58.06	0	81438..82250	+	270	50841566	-	PPA0075	-	hypothetical protein
71	 49.36	-2	82471..83481	+	336	50841567	-	PPA0076	-	periplasmic binding protein
72	 54.94	-1	83628..84650	+	340	50841568	-	PPA0077	-	ABC transporter
73	 53.65	-2	84643..85410	+	255	50841569	-	PPA0078	-	permease
74	 61.52	0	85493..86950	+	485	50841570	-	PPA0079	-	aldehyde dehydrogenase
75	 63.95	+1	86995..88281	+	428	50841571	-	PPA0080	-	chloride channel protein
76	 58.39	0	88336..90702	+	788	50841572	-	PPA0081	-	carbohydrate phosphorylase
77	 65.25	+1	91144..91779	-	211	50841573	-	PPA0082	-	hypothetical protein
78	 63.28	+1	91967..94183	-	738	50841574	-	PPA0083	-	hypothetical protein
79	 63.45	+1	94313..95524	-	403	50841575	-	PPA0084	-	ROK family transcriptional regulator
80	 58.71	0	95889..97232	+	447	50841576	-	PPA0085	-	periplasmic protein
81	 56.52	-1	97276..98211	+	311	50841577	-	PPA0086	-	putative permease protein
82	 59.86	0	98211..99092	+	293	50841578	-	PPA0087	-	permease protein
83	 65.95	+1	99230..100351	+	373	50841579	-	PPA0088	-	putative transcriptional regulator
84	 64.70	+1	100341..102530	+	729	50841580	-	PPA0089	-	glycosyl hydrolase family protein
85	 61.21	0	102809..104017	+	402	50841581	pfkA	PPA0090	-	6-phosphofructokinase
86	 65.12	+1	104055..104636	-	193	50841582	-	PPA0091	-	putative regulatory protein
87	 62.62	0	104633..107374	-	913	50841583	-	PPA0092	-	hypothetical protein
88	 64.81	+1	107367..108500	-	377	50841584	-	PPA0093	-	hypothetical protein
89	 53.84	-1	108930..110402	+	490	50841585	aspA	PPA0094	-	aspartate ammonia-lyase
90	 58.12	0	110409..111707	+	432	50841586	-	PPA0095	-	anaerobic C4-dicarboxylate transporter
91	 57.73	0	111808..112098	-	96	50841587	-	PPA0096	-	hypothetical protein
92	 59.37	0	112227..113678	+	483	50841588	-	PPA0097	-	catalase
93	 66.67	+2	113716..115461	-	581	50841589	-	PPA0098	-	ABC transporter
94	 67.12	+2	115458..117224	-	588	50841590	-	PPA0099	-	ABC transporter
95	 65.15	+1	117221..118207	-	328	50841591	-	PPA0100	-	magnesium-chelatase subunit ChlI
96	 66.82	+2	118209..120173	-	654	50841592	-	PPA0101	-	magnesium-chelatase 67 kDa subunit
97	 65.52	+1	120173..124195	-	1340	50841593	-	PPA0102	-	cobalamin biosynthesis protein CobN
98	 66.85	+2	124075..125169	-	364	50841594	-	PPA0103	-	radical SAM superfamily protein
99	 67.47	+2	125166..126167	-	333	50841595	-	PPA0104	-	ABC transporter
100	 65.18	+1	126164..127303	-	379	50841596	-	PPA0105	-	transporter (putative iron (III) permease)
60.05	MEAN

3.20	STD DEV
