IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

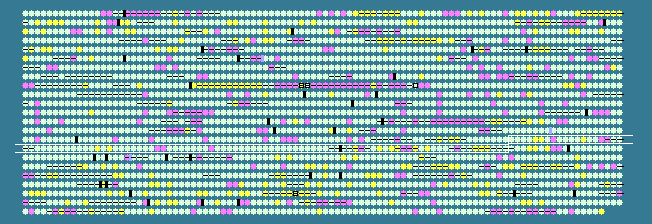

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1482	 61.60	0	1620551..1623193	+	880	50842978	-	PPA1500	-	hypothetical protein
1483	 59.38	0	1623190..1624713	+	507	50842979	-	PPA1501	-	periplasmic solute binding protein
1484	 58.65	0	1624734..1625744	+	336	50842980	-	PPA1502	-	hypothetical protein
1485	 63.46	+1	1625813..1626499	+	228	50842981	-	PPA1503	-	ABC transporter ATP-binding protein
1486	 65.18	+1	1626512..1627450	+	312	50842982	-	PPA1504	-	ABC transporter ATP-binding protein
1487	 66.90	+2	1627444..1628289	-	281	50842983	-	PPA1505	-	acetyltransferase family protein
1488	 59.41	0	1628291..1629433	-	380	50842984	ispG	PPA1506	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1489	 55.42	-1	1629620..1630339	-	239	50842985	-	PPA1507	-	putative transcriptional regulator
1490	 62.08	0	1630453..1630953	-	166	50842986	-	PPA1508	-	putative nuclease
1491	 59.25	0	1631256..1632536	-	426	50842987	-	PPA1509	-	membrane-spanning metalloprotease
1492	 61.52	0	1632533..1633756	-	407	50842988	-	PPA1510	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1493	 61.91	0	1633766..1635217	+	483	50842989	-	PPA1511	-	putative 6-aminohexanoate-dimer hydrolase
1494	 64.38	+1	1635214..1636305	+	363	50842990	-	PPA1512	-	hypothetical protein
1495	 59.04	0	1636283..1637620	-	445	50842991	-	PPA1513	-	glutamate dehydrogenase
1496	 62.15	0	1637705..1638922	-	405	50842992	-	PPA1514	-	hypothetical protein
1497	 54.84	-1	1638995..1639645	-	216	50842993	-	PPA1515	-	hypothetical protein
1498	 50.62	-2	1639639..1639800	-	53	50842994	-	PPA1516	-	hypothetical protein
1499	 59.61	0	1639896..1640759	-	287	50842995	-	PPA1517	-	phosphatidate cytidylyltransferase
1500	 56.58	-1	1640771..1641325	-	184	50842996	-	PPA1518	-	ribosome recycling factor
1501	 58.68	0	1641358..1642071	-	237	50842997	pyrH	PPA1519	-	uridylate kinase
1502	 60.89	0	1642256..1643068	-	270	50842998	tsf	PPA1520	-	elongation factor Ts
1503	 60.56	0	1643103..1643954	-	283	50842999	rpsB	PPA1521	-	30S ribosomal protein S2
1504	 63.40	+1	1644242..1645189	+	315	50843000	xerC	PPA1522	-	site-specific tyrosine recombinase XerC
1505	 62.19	0	1645109..1645867	-	252	50843001	-	PPA1523	-	membrane spanning protein
1506	 62.42	0	1646015..1647097	+	360	50843002	-	PPA1524	-	hypothetical protein
1507	 62.19	0	1647164..1647766	+	200	50843003	-	PPA1525	-	polypeptide deformylase
1508	 62.96	0	1647773..1648582	-	269	50843004	-	PPA1526	-	rRNA methylase family protein
1509	 57.95	0	1648615..1649601	+	328	50843005	-	PPA1527	-	sodium/bile acid symporter family protein
1510	 61.92	0	1649799..1650767	-	322	50843006	-	PPA1528	-	hypothetical protein
1511	 58.55	0	1651047..1651514	-	155	50843007	-	PPA1529	-	hypothetical protein
1512	 60.18	0	1651541..1652326	-	261	50843008	-	PPA1530	-	ABC transporter ATP-binding protein
1513	 65.58	+1	1652440..1653174	+	244	50843009	-	PPA1531	-	hypothetical protein
1514	 60.59	0	1653180..1653953	-	257	50843010	-	PPA1532	-	enoyl-(acyl carrier protein) reductase
1515	 64.58	+1	1653994..1654713	-	239	50843011	-	PPA1533	-	3-oxoacyl-[acyl-carrier protein] reductase
1516	 61.16	0	1654792..1655136	+	114	50843012	-	PPA1534	-	hypothetical protein
1517	 59.85	0	1655239..1656045	+	268	50843013	-	PPA1535	-	membrane spanning protein
1518	 61.19	0	1656042..1656863	+	273	50843014	-	PPA1536	-	putative resistance protein
1519	 61.08	0	1656892..1657446	-	184	50843015	-	PPA1537	-	hypothetical protein
1520	 60.79	0	1657516..1659114	-	532	50843016	-	PPA1538	-	ABC transporter ATP binding protein
1521	 59.44	0	1659173..1659670	-	165	50843017	-	PPA1539	-	acetyltransferase family protein
1522	 56.80	-1	1659596..1660051	+	151	50843018	-	PPA1540	-	hypothetical protein
1523	 52.10	-2	1662579..1662935	-	118	50843019	-	PPA1543	-	hypothetical protein
1524	 54.53	-1	1662935..1663420	-	161	50843020	-	PPA1544	-	hypothetical protein
1525	 60.95	0	1663417..1664658	-	413	50843021	-	PPA1545	-	putative cysteine desulfurase
1526	 60.03	0	1664661..1665428	-	255	50843022	-	PPA1546	-	ABC transporter ATP-binding protein
1527	 60.19	0	1665435..1665758	-	107	50843023	-	PPA1547	-	putative dioxygenase ferredoxin subunit
1528	 62.20	0	1665758..1667032	-	424	50843024	-	PPA1548	-	hypothetical protein
1529	 59.28	0	1667019..1668467	-	482	50843025	-	PPA1549	-	hypothetical protein
1530	 61.31	0	1668464..1669228	-	254	50843026	-	PPA1550	-	ArsR family transcriptional regulator
1531	 58.77	0	1669544..1670809	+	421	50843027	-	PPA1552	-	putative periplasmic maltose-binding protein
1532	 56.45	-1	1670910..1672514	+	534	50843028	-	PPA1553	-	maltose transport system permease protein MalF
1533	 58.28	0	1672514..1673419	+	301	50843029	-	PPA1554	-	maltose transport system permease protein MalG
1534	 60.87	0	1673445..1674530	+	361	50843030	-	PPA1555	-	MalR repressor protein
1535	 58.05	0	1674674..1677157	+	827	50843031	hppA	PPA1556	-	membrane-bound proton-translocating pyrophosphatase
1536	 60.80	0	1677186..1677935	+	249	50843032	-	PPA1557	-	ABC transporter ATP-binding protein
1537	 61.05	0	1677937..1678701	+	254	50843033	-	PPA1558	-	putative ABC transporter-associated permease
1538	 60.32	0	1678515..1679585	+	356	50843034	-	PPA1559	-	hypothetical protein
1539	 61.10	0	1679681..1681189	-	502	50843035	-	PPA1560	-	sialidase precursor
1540	 56.76	-1	1681304..1682413	-	369	50843036	-	PPA1561	-	membrane protein, putative heme O synthase
1541	 58.29	0	1682542..1684116	+	524	50843037	-	PPA1563	-	glucose-6-phosphate 1-dehydrogenase
1542	 62.49	0	1684126..1685058	+	310	50843038	-	PPA1564	-	hypothetical protein
1543	 59.73	0	1685055..1685789	+	244	50843039	-	PPA1565	-	6-phosphogluconolactonase
1544	 61.21	0	1686138..1686632	+	164	50843040	-	PPA1566	-	hypothetical protein
1545	 58.02	0	1686718..1687515	+	265	50843041	-	PPA1567	-	hypothetical protein
1546	 61.92	0	1687656..1690268	+	870	50843042	valS	PPA1568	-	valyl-tRNA synthetase
1547	 61.35	0	1690506..1694471	+	1321	50843043	-	PPA1569	-	hypothetical protein
1548	 62.20	0	1694589..1697924	-	1111	50843044	-	PPA1570	-	tricorn protease
1549	 58.45	0	1697985..1699274	-	429	50843045	clpX	PPA1571	-	ATP-dependent protease ATP-binding subunit
1550	 59.19	0	1699463..1700224	-	253	50843046	-	PPA1572	-	ATP-dependent Clp protease proteolytic subunit 2
1551	 58.69	0	1700160..1700798	-	212	50843047	-	PPA1573	-	ATP-dependent Clp protease proteolytic subunit 1
1552	 56.76	-1	1700874..1702175	-	433	50843048	-	PPA1574	-	hypothetical protein
1553	 59.89	0	1702280..1703872	-	530	50843049	tig	PPA1575	-	trigger factor
1554	 57.92	0	1704361..1704909	+	182	50843050	-	PPA2360	-	hypothetical protein
1555	 62.36	0	1704973..1707849	+	958	50843051	-	PPA1577	-	putative helicase
1556	 64.34	+1	1707836..1708264	+	142	50843052	-	PPA1578	-	hypothetical protein
1557	 50.64	-2	1708330..1708953	+	207	50843053	-	PPA1579	-	S51 family peptidase
1558	 62.35	0	1710571..1710894	-	107	50843054	-	PPA1583	-	hypothetical protein
1559	 63.33	+1	1711024..1711293	-	89	50843055	-	PPA1584	-	hypothetical protein
1560	 63.67	+1	1711359..1712093	-	244	50843056	-	PPA1585	-	phage-associated protein
1561	 61.39	0	1712135..1713385	-	416	50843057	-	PPA1586	-	ParB family DNA methylase
1562	 66.08	+1	1713357..1714547	-	396	50843058	-	PPA1587	-	S-adenosylmethionine synthetase
1563	 64.92	+1	1714632..1715204	-	190	50843059	-	PPA1589	-	hypothetical protein
1564	 54.74	-1	1715266..1716078	+	270	50843060	-	PPA1590	-	hypothetical protein
1565	 52.54	-2	1716068..1718509	-	813	50843061	-	PPA1591	-	hypothetical protein
1566	 67.46	+2	1718901..1719278	-	125	50843062	-	PPA1592	-	phage associated protein
1567	 62.99	0	1719434..1719895	-	153	50843063	-	PPA1593	-	phage-associated protein
1568	 63.69	+1	1719886..1721262	-	458	50843064	-	PPA1594	-	phage-associated protein
1569	 62.37	0	1721243..1721521	-	92	50843065	-	PPA1595	-	hypothetical protein
1570	 63.30	+1	1721656..1723914	-	752	50843066	-	PPA1596	-	phage-associated protein
1571	 60.05	0	1723911..1724348	-	145	50843067	-	PPA1597	-	hypothetical protein
1572	 59.97	0	1724348..1725109	-	253	50843068	-	PPA1598	-	Bro family antirepressor
1573	 55.56	-1	1725426..1726343	+	305	50843069	-	PPA1599	-	phage-related protein
1574	 58.08	0	1728384..1728581	-	65	50843070	-	PPA1602	-	hypothetical protein
1575	 62.82	0	1728594..1729139	-	181	50843071	-	PPA1603	-	phage-associated protein
1576	 64.65	+1	1729145..1730287	-	380	50843072	-	PPA1604	-	phage-associated protein
1577	 69.62	+2	1730280..1730855	-	191	50843073	-	PPA1605	-	phage-associated protein
1578	 65.66	+1	1730957..1731550	-	197	50843074	-	PPA1606	-	phage-associated protein
1579	 60.68	0	1732056..1733057	+	333	50843075	-	PPA1607	-	phage-associated protein
1580	 60.63	0	1733057..1733503	+	148	50843076	-	PPA1608	-	phage-associated protein
1581	 58.13	0	1733500..1735374	+	624	50843077	-	PPA1609	-	phage-associated protein
60.05	MEAN

3.20	STD DEV
