IslandPath Analysis: Propionibacterium acnes KPA171202

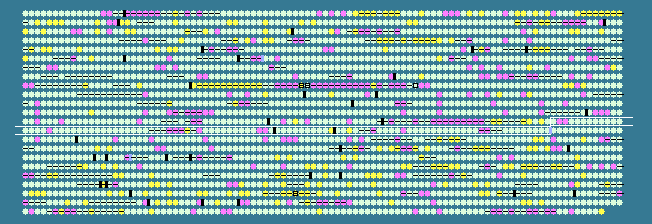

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1289	 61.43	0	1413304..1413666	+	120	50842785	-	PPA1305	-	hypothetical protein
1290	 49.54	-2	1413774..1413989	-	71	50842786	-	PPA1306	-	hypothetical protein
1291	 50.34	-2	1413971..1414564	+	197	50842787	-	PPA1307	-	hypothetical protein
1292	 59.90	0	1414846..1415436	-	196	50842788	-	PPA1308	-	putative universal stress protein UspA
1293	 59.67	0	1415507..1416049	-	180	50842789	-	PPA1309	-	hypothetical protein
1294	 58.27	0	1416067..1417245	-	392	50842790	-	PPA1310	-	protease
1295	 60.79	0	1417302..1418663	+	453	50842791	-	PPA1311	-	hypothetical protein
1296	 58.00	0	1418651..1419319	-	222	50842792	-	PPA1312	-	metal-dependent hydrolase
1297	 59.04	0	1419406..1420362	+	318	50842793	-	PPA1313	-	hypothetical protein
1298	 58.23	0	1420308..1422428	-	706	50842794	-	PPA1314	-	putative DNA helicase II-like protein
1299	 59.49	0	1422553..1425702	+	1049	50842795	-	PPA1315	-	exodeoxyribonuclease V gamma chain
1300	 58.14	0	1425699..1428935	+	1078	50842796	-	PPA1316	-	exodeoxyribonuclease V beta chain
1301	 59.25	0	1428928..1430814	+	628	50842797	-	PPA1317	-	exonuclease V, alpha chain
1302	 60.56	0	1430845..1431597	-	250	50842798	-	PPA1318	-	NADH pyrophosphatase
1303	 58.96	0	1431788..1435006	-	1072	50842799	-	PPA1319	-	putative ATP-dependent DNA helicase
1304	 59.42	0	1435003..1438188	-	1061	50842800	-	PPA1320	-	putative ATP-dependent DNA helicase
1305	 55.93	-1	1438257..1438433	-	58	50842801	-	PPA1321	-	hypothetical protein
1306	 59.59	0	1438455..1439231	+	258	50842802	-	PPA1322	-	protein phosphatase
1307	 57.89	0	1439333..1439560	+	75	50842803	-	PPA1323	-	putative ATP-binding protein
1308	 58.20	0	1439601..1440167	-	188	50842804	-	PPA1324	-	hypothetical protein
1309	 60.38	0	1440298..1441983	+	561	50842805	-	PPA1325	-	putative ATP-dependent RNA helicase
1310	 58.65	0	1442125..1443633	+	502	50842806	-	PPA1326	-	L-asparagine permease
1311	 58.61	0	1443697..1444788	-	363	50842807	-	PPA1327	-	tryptophanyl-tRNA synthetase
1312	 59.35	0	1444933..1445793	-	286	50842808	-	PPA1328	-	metal-dependent phosphoesterase
1313	 57.88	0	1445790..1450409	-	1539	50842809	-	PPA1329	-	NAD-glutamate dehydrogenase
1314	 57.81	0	1450552..1451025	+	157	50842810	-	PPA1330	-	hypothetical protein
1315	 57.83	0	1451058..1451555	-	165	50842811	-	PPA1331	-	hypothetical protein
1316	 56.99	0	1451445..1452260	+	271	50842812	-	PPA1332	-	hypothetical protein
1317	 58.68	0	1452303..1455008	-	901	50842813	-	PPA1333	-	preprotein translocase subunit SecA
1318	 59.04	0	1455267..1455935	-	222	50842814	-	PPA1334	-	putative ribosomal S30AE, sigma 54 modulation protein
1319	 63.12	0	1456097..1456744	-	215	50842815	-	PPA1335	-	putative amidophosphoribosyltransferase
1320	 62.67	0	1456786..1458561	-	591	50842816	-	PPA1336	-	membrane spanning lipoprotein
1321	 60.89	0	1458558..1460306	-	582	50842817	-	PPA1337	-	signal transduction histidine kinase
1322	 59.35	0	1460153..1460863	-	236	50842818	-	PPA1338	-	putative response regulator
1323	 59.76	0	1460928..1461506	-	192	50842819	-	PPA1339	-	hypothetical protein
1324	 58.62	0	1462006..1462863	-	285	50842820	-	PPA1340	-	cAMP factor
1325	 49.07	-2	1462890..1463321	+	143	50842821	-	PPA2385	-	hypothetical protein
1326	 54.52	-1	1463260..1463646	+	128	50842822	-	PPA2386	-	hypothetical protein
1327	 54.26	-1	1463646..1463927	+	93	50842823	-	PPA2387	-	hypothetical protein
1328	 65.73	+1	1464348..1464560	-	70	50842824	-	PPA1341	-	hypothetical protein
1329	 58.15	0	1465049..1465588	+	179	50842825	-	PPA1342	-	hypothetical protein
1330	 51.34	-2	1466262..1466522	+	86	50842826	-	PPA2388	-	hypothetical protein
1331	 57.45	0	1466728..1467237	+	169	50842827	-	PPA2389	-	hypothetical protein
1332	 60.20	0	1467947..1468549	-	200	50842828	-	PPA1344	-	hypothetical protein
1333	 58.48	0	1468648..1469172	-	174	50842829	-	PPA1345	-	hypothetical protein
1334	 61.05	0	1469169..1470629	-	486	50842830	-	PPA1346	-	argininosuccinate lyase
1335	 58.31	0	1470717..1471913	-	398	50842831	-	PPA1347	-	acetylornithine aminotransferase
1336	 57.02	0	1471924..1472856	-	310	50842832	-	PPA1348	-	acetylglutamate kinase
1337	 59.01	0	1472853..1473662	-	269	50842833	argJ	PPA1349	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1338	 58.76	0	1473674..1474798	-	374	50842834	-	PPA1350	-	N-acetyl-gamma-glutamyl-phosphate reductase
1339	 60.46	0	1474828..1475310	-	160	50842835	smpB	PPA1351	-	SsrA-binding protein
1340	 55.48	-1	1475356..1476258	-	300	50842836	-	PPA1352	-	cell division protein
1341	 56.19	-1	1476292..1476978	-	228	50842837	-	PPA1353	-	cell division ATP-binding protein
1342	 58.18	0	1476990..1478096	-	368	50842838	prfB	PPA1354	-	peptide chain release factor 2
1343	 57.52	0	1478410..1479120	+	236	50842839	-	PPA1355	-	hypothetical protein
1344	 59.17	0	1479182..1481782	-	866	50842840	-	PPA1356	-	FtsK/SpoIIIE protein
1345	 63.34	+1	1481873..1482835	-	320	50842841	-	PPA1357	-	thiamine monophosphate kinase
1346	 60.96	0	1482878..1483333	+	151	50842842	-	PPA1358	-	hypothetical protein
1347	 57.74	0	1483346..1484443	-	365	50842843	-	PPA1359	-	D-alanine--D-alanine ligase
1348	 61.78	0	1484492..1485268	-	258	50842844	-	PPA1360	-	putative acyltransferase
1349	 57.83	0	1485368..1485763	-	131	50842845	-	PPA1361	-	3-isopropylmalate dehydratase small subunit fragment
1350	 60.29	0	1485769..1486176	-	135	50842846	-	PPA1362	-	3-isopropylmalate dehydratase large subunit fragment
1351	 60.71	0	1486204..1486539	-	111	50842847	-	PPA1363	-	3-isopropylmalate dehydratase large subunit fragment
1352	 64.03	+1	1486763..1487482	+	239	50842848	-	PPA1364	-	putative transcriptional regulator
1353	 60.53	0	1487983..1488927	-	314	50842849	-	PPA1365	-	hypothetical protein
1354	 58.18	0	1488927..1489727	-	266	50842850	-	PPA1366	-	putative 2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
1355	 64.42	+1	1489808..1491097	+	429	50842851	deoA	PPA1367	-	thymidine phosphorylase
1356	 59.62	0	1491137..1492228	-	363	50842852	-	PPA1368	-	branched-chain amino acid aminotransferase
1357	 62.00	0	1493176..1493754	+	192	50842853	-	PPA1371	-	putative transferase
1358	 58.50	0	1493821..1494849	-	342	50842854	-	PPA1372	-	ketol-acid reductoisomerase
1359	 55.28	-1	1495026..1495271	-	81	50842855	-	PPA1373	-	acetolactate synthase small subunit fragment
1360	 57.89	0	1495322..1495549	-	75	50842856	-	PPA1374	-	acetolactate synthase large subunit fragment
1361	 58.88	0	1495957..1496367	-	136	50842857	-	PPA1375	-	putative cell-cycle regulation histidine triad protein
1362	 61.11	0	1496412..1497167	-	251	50842858	-	PPA1376	-	imidazole glycerol phosphate synthase subunit HisF
1363	 60.78	0	1497223..1499976	-	917	50842859	-	PPA1377	-	superfamily II RNA helicase
1364	 53.31	-2	1500158..1500943	-	261	50842860	-	PPA1378	-	Sec-independent protein translocase protein TatC-like protein
1365	 57.20	0	1501031..1501294	-	87	50842861	-	PPA1379	-	hypothetical protein
1366	 56.86	0	1501359..1501562	-	67	50842862	-	PPA1380	-	hypothetical protein
1367	 61.61	0	1501562..1502530	-	322	50842863	-	PPA1381	-	regulatory protein
1368	 61.99	0	1502527..1503489	-	320	50842864	-	PPA1382	-	DeoR family transcriptional regulator
1369	 63.51	+1	1503535..1504578	+	347	50842865	-	PPA1383	-	glutamyl-tRNA synthetase
1370	 57.24	0	1504621..1505745	-	374	50842866	-	PPA1384	-	putative peptidyl-prolyl cis-trans isomerase
1371	 59.89	0	1505705..1506442	-	245	50842867	-	PPA1385	-	ribosomal large subunit pseudouridine synthase B
1372	 59.02	0	1506460..1506825	-	121	50842868	-	PPA1386	-	hypothetical protein
1373	 59.81	0	1506810..1507757	-	315	50842869	-	PPA1387	-	chromosome partitioning protein
1374	 61.35	0	1507819..1508739	-	306	50842870	xerD	PPA1388	-	site-specific tyrosine recombinase XerD
1375	 61.36	0	1508736..1509395	-	219	50842871	-	PPA1389	-	putative ADP-ribose pyrophosphatase
1376	 61.99	0	1509392..1511080	-	562	50842872	-	PPA1390	-	CTP synthetase
1377	 51.90	-2	1511253..1511462	-	69	50842873	-	PPA1391	-	hypothetical protein
1378	 54.11	-1	1511466..1511672	-	68	50842874	-	PPA1392	-	hypothetical protein
1379	 56.76	-1	1511609..1511830	-	73	50842875	-	PPA1393	-	hypothetical protein
1380	 62.08	0	1511846..1513525	-	559	50842876	-	PPA1394	-	DNA repair protein RecN
1381	 60.82	0	1513522..1514478	-	318	50842877	ppnK	PPA1395	-	inorganic polyphosphate/ATP-NAD kinase
1382	 58.56	0	1514497..1515273	-	258	50842878	-	PPA1396	-	putative cytotoxin/hemolysin
1383	 57.69	0	1515285..1515440	-	51	50842879	-	PPA1397	-	hypothetical protein
1384	 57.35	0	1515544..1516176	-	210	50842880	-	PPA1398	-	cobalt permease or related transporter
1385	 58.25	0	1516173..1517123	-	316	50842881	-	PPA1399	-	ABC-type transporter, ATPase component
1386	 58.77	0	1516922..1517491	-	189	50842882	-	PPA1400	-	BioY family protein
1387	 59.86	0	1517562..1518560	-	332	50842883	-	PPA1401	-	putative hydrolase
1388	 61.75	0	1518557..1519735	-	392	50842884	-	PPA1402	-	hypothetical protein
60.05	MEAN

3.20	STD DEV
