IslandPath Analysis: Propionibacterium acnes KPA171202

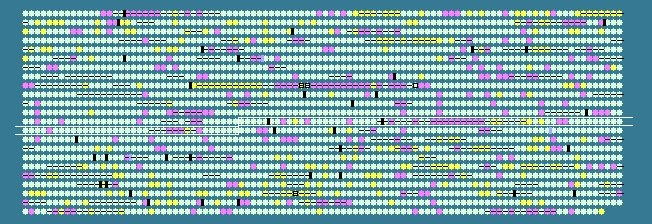

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1237	 58.31	0	1357490..1359391	-	633	50842733	rho	PPA1254	-	transcription termination factor Rho
1238	 61.28	0	1359690..1360580	-	296	50842734	-	PPA1256	-	homoserine kinase
1239	 59.29	0	1360591..1361661	-	356	50842735	-	PPA1257	-	threonine synthase
1240	 60.48	0	1361664..1362989	-	441	50842736	-	PPA1258	-	homoserine dehydrogenase
1241	 59.75	0	1363060..1364490	-	476	50842737	-	PPA1259	-	diaminopimelate decarboxylase
1242	 60.36	0	1364738..1366054	+	438	50842738	-	PPA1260	-	hypothetical protein
1243	 59.07	0	1366241..1369951	+	1236	50842739	kgd	PPA1261	-	alpha-ketoglutarate decarboxylase
1244	 55.90	-1	1370000..1370194	+	64	50842740	-	PPA1262	-	hypothetical protein
1245	 58.90	0	1370249..1370647	-	132	50842741	-	PPA1263	-	hypothetical protein
1246	 63.62	+1	1370755..1371180	+	141	50842742	-	PPA1264	-	transcription factor WhiB3
1247	 58.20	0	1371210..1372685	-	491	50842743	-	PPA1265	-	sensory transduction histidine kinase
1248	 55.43	-1	1373028..1373294	-	88	50842744	-	PPA2382	-	putative anti-sigma factor
1249	 58.55	0	1373291..1373968	-	225	50842745	-	PPA1266	-	RNA polymerase sigma factor RpoE
1250	 61.31	0	1373997..1374818	+	273	50842746	-	PPA1267	-	hypothetical protein
1251	 61.16	0	1374808..1376097	+	429	50842747	-	PPA1268	-	3-phosphoshikimate 1-carboxyvinyltransferase
1252	 61.08	0	1376099..1377100	+	333	50842748	-	PPA1269	-	putative GTPase
1253	 59.41	0	1377519..1378331	-	270	50842749	-	PPA1270	-	carboxypeptidase-related protein
1254	 61.63	0	1378433..1379326	+	297	50842750	-	PPA1271	-	putative inositol monophosphatase
1255	 55.26	-1	1379370..1380623	-	417	50842751	-	PPA1272	-	D-3-phosphoglycerate dehydrogenase
1256	 58.65	0	1380607..1381392	-	261	50842752	-	PPA1273	-	dipeptide ABC transporter ATP-binding
1257	 59.51	0	1381392..1382201	-	269	50842753	-	PPA1274	-	putative ATP-binding ABC transporter protein
1258	 60.02	0	1382201..1383013	-	270	50842754	-	PPA1275	-	permease protein of oligopeptide ABC transporter
1259	 58.59	0	1383010..1383987	-	325	50842755	-	PPA1276	-	ABC transporter permease protein
1260	 59.01	0	1383984..1385471	-	495	50842756	-	PPA1277	-	ABC transporter, substrate binding protein
1261	 57.48	0	1386164..1386718	+	184	50842757	-	PPA2384	-	hypothetical protein
1262	 52.02	-2	1387357..1387752	+	131	50842758	-	PPA2383	-	hypothetical protein
1263	 60.39	0	1388098..1388511	-	137	50842759	-	PPA1278	-	hypothetical protein
1264	 58.53	0	1388712..1388969	-	85	50842760	-	PPA1279	-	hypothetical protein
1265	 57.66	0	1388966..1389631	-	221	50842761	-	PPA1280	-	plasmid partition protein ParA
1266	 49.88	-2	1389906..1390727	-	273	50842762	-	PPA1281	-	hypothetical protein
1267	 61.74	0	1390884..1391147	+	87	50842763	-	PPA1282	-	hypothetical protein
1268	 60.42	0	1391140..1391379	-	79	50842764	-	PPA1283	-	hypothetical protein
1269	 47.99	-2	1392027..1393247	-	406	50842765	-	PPA1284	-	hypothetical protein
1270	 45.03	-2	1393836..1395143	-	435	50842766	-	PPA1285	-	putative biotin carboxylase
1271	 49.02	-2	1395130..1395843	-	237	50842767	-	PPA1286	-	putative thioesterase
1272	 49.25	-2	1395840..1397579	-	579	50842768	-	PPA1287	-	non-ribosomal peptide synthetase
1273	 46.01	-2	1397602..1400898	-	1098	50842769	-	PPA1288	-	surfactin synthetase subunit 1
1274	 45.76	-2	1400906..1401895	-	329	50842770	-	PPA1289	-	cysteine synthase/ornithine cyclodeaminase
1275	 45.31	-2	1401896..1402897	-	333	50842771	-	PPA1290	-	cystathionine beta-synthase
1276	 51.03	-2	1403184..1403912	+	242	50842772	-	PPA1291	-	biosurfactants production protein
1277	 45.74	-2	1404008..1404700	-	230	50842773	-	PPA1292	-	putative transcriptional regulator
1278	 62.28	0	1405625..1406422	-	265	50842774	-	PPA1293	-	putative ribonuclease E
1279	 63.91	+1	1406415..1408121	-	568	50842775	-	PPA1294	-	hypothetical protein
1280	 65.13	+1	1408118..1408639	-	173	50842776	-	PPA1295	-	hypothetical protein
1281	 63.00	0	1408709..1409308	-	199	50842777	-	PPA1296	-	putative permease
1282	 63.10	0	1409266..1410051	-	261	50842778	-	PPA1297	-	hypothetical protein
1283	 63.20	0	1409552..1410157	+	201	50842779	-	PPA1298	-	hypothetical protein
1284	 66.49	+2	1410174..1410755	+	193	50842780	-	PPA1299	-	hypothetical protein
1285	 65.46	+1	1410818..1411315	+	165	50842781	-	PPA1300	-	hypothetical protein
1286	 60.97	0	1411519..1412097	+	192	50842782	-	PPA1301	-	hypothetical protein
1287	 65.77	+1	1412132..1412353	-	73	50842783	-	PPA1303	-	hypothetical protein
1288	 58.28	0	1412439..1412951	-	170	50842784	-	PPA1304	-	hypothetical protein
1289	 61.43	0	1413304..1413666	+	120	50842785	-	PPA1305	-	hypothetical protein
1290	 49.54	-2	1413774..1413989	-	71	50842786	-	PPA1306	-	hypothetical protein
1291	 50.34	-2	1413971..1414564	+	197	50842787	-	PPA1307	-	hypothetical protein
1292	 59.90	0	1414846..1415436	-	196	50842788	-	PPA1308	-	putative universal stress protein UspA
1293	 59.67	0	1415507..1416049	-	180	50842789	-	PPA1309	-	hypothetical protein
1294	 58.27	0	1416067..1417245	-	392	50842790	-	PPA1310	-	protease
1295	 60.79	0	1417302..1418663	+	453	50842791	-	PPA1311	-	hypothetical protein
1296	 58.00	0	1418651..1419319	-	222	50842792	-	PPA1312	-	metal-dependent hydrolase
1297	 59.04	0	1419406..1420362	+	318	50842793	-	PPA1313	-	hypothetical protein
1298	 58.23	0	1420308..1422428	-	706	50842794	-	PPA1314	-	putative DNA helicase II-like protein
1299	 59.49	0	1422553..1425702	+	1049	50842795	-	PPA1315	-	exodeoxyribonuclease V gamma chain
1300	 58.14	0	1425699..1428935	+	1078	50842796	-	PPA1316	-	exodeoxyribonuclease V beta chain
1301	 59.25	0	1428928..1430814	+	628	50842797	-	PPA1317	-	exonuclease V, alpha chain
1302	 60.56	0	1430845..1431597	-	250	50842798	-	PPA1318	-	NADH pyrophosphatase
1303	 58.96	0	1431788..1435006	-	1072	50842799	-	PPA1319	-	putative ATP-dependent DNA helicase
1304	 59.42	0	1435003..1438188	-	1061	50842800	-	PPA1320	-	putative ATP-dependent DNA helicase
1305	 55.93	-1	1438257..1438433	-	58	50842801	-	PPA1321	-	hypothetical protein
1306	 59.59	0	1438455..1439231	+	258	50842802	-	PPA1322	-	protein phosphatase
1307	 57.89	0	1439333..1439560	+	75	50842803	-	PPA1323	-	putative ATP-binding protein
1308	 58.20	0	1439601..1440167	-	188	50842804	-	PPA1324	-	hypothetical protein
1309	 60.38	0	1440298..1441983	+	561	50842805	-	PPA1325	-	putative ATP-dependent RNA helicase
1310	 58.65	0	1442125..1443633	+	502	50842806	-	PPA1326	-	L-asparagine permease
1311	 58.61	0	1443697..1444788	-	363	50842807	-	PPA1327	-	tryptophanyl-tRNA synthetase
1312	 59.35	0	1444933..1445793	-	286	50842808	-	PPA1328	-	metal-dependent phosphoesterase
1313	 57.88	0	1445790..1450409	-	1539	50842809	-	PPA1329	-	NAD-glutamate dehydrogenase
1314	 57.81	0	1450552..1451025	+	157	50842810	-	PPA1330	-	hypothetical protein
1315	 57.83	0	1451058..1451555	-	165	50842811	-	PPA1331	-	hypothetical protein
1316	 56.99	0	1451445..1452260	+	271	50842812	-	PPA1332	-	hypothetical protein
1317	 58.68	0	1452303..1455008	-	901	50842813	-	PPA1333	-	preprotein translocase subunit SecA
1318	 59.04	0	1455267..1455935	-	222	50842814	-	PPA1334	-	putative ribosomal S30AE, sigma 54 modulation protein
1319	 63.12	0	1456097..1456744	-	215	50842815	-	PPA1335	-	putative amidophosphoribosyltransferase
1320	 62.67	0	1456786..1458561	-	591	50842816	-	PPA1336	-	membrane spanning lipoprotein
1321	 60.89	0	1458558..1460306	-	582	50842817	-	PPA1337	-	signal transduction histidine kinase
1322	 59.35	0	1460153..1460863	-	236	50842818	-	PPA1338	-	putative response regulator
1323	 59.76	0	1460928..1461506	-	192	50842819	-	PPA1339	-	hypothetical protein
1324	 58.62	0	1462006..1462863	-	285	50842820	-	PPA1340	-	cAMP factor
1325	 49.07	-2	1462890..1463321	+	143	50842821	-	PPA2385	-	hypothetical protein
1326	 54.52	-1	1463260..1463646	+	128	50842822	-	PPA2386	-	hypothetical protein
1327	 54.26	-1	1463646..1463927	+	93	50842823	-	PPA2387	-	hypothetical protein
1328	 65.73	+1	1464348..1464560	-	70	50842824	-	PPA1341	-	hypothetical protein
1329	 58.15	0	1465049..1465588	+	179	50842825	-	PPA1342	-	hypothetical protein
1330	 51.34	-2	1466262..1466522	+	86	50842826	-	PPA2388	-	hypothetical protein
1331	 57.45	0	1466728..1467237	+	169	50842827	-	PPA2389	-	hypothetical protein
1332	 60.20	0	1467947..1468549	-	200	50842828	-	PPA1344	-	hypothetical protein
1333	 58.48	0	1468648..1469172	-	174	50842829	-	PPA1345	-	hypothetical protein
1334	 61.05	0	1469169..1470629	-	486	50842830	-	PPA1346	-	argininosuccinate lyase
1335	 58.31	0	1470717..1471913	-	398	50842831	-	PPA1347	-	acetylornithine aminotransferase
1336	 57.02	0	1471924..1472856	-	310	50842832	-	PPA1348	-	acetylglutamate kinase
60.05	MEAN

3.20	STD DEV
