IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

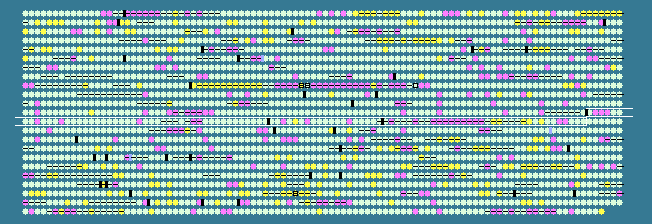

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1195	 60.58	0	1319378..1319689	-	103	50842691	-	PPA2381	-	hypothetical protein
1196	 55.85	-1	1319703..1320617	-	304	50842692	-	PPA1211	-	ribokinase family sugar kinase
1197	 56.15	-1	1320619..1321692	-	357	50842693	-	PPA1212	-	hypothetical protein
1198	 53.42	-2	1321679..1323112	-	477	50842694	-	PPA1213	-	L-fucose permease
1199	 61.01	0	1323109..1323762	-	217	50842695	-	PPA1214	-	deoxyribose-phosphate aldolase
1200	 58.16	0	1323864..1325003	-	379	50842696	-	PPA1215	-	sugar-binding domain-containing protein
1201	 58.17	0	1325051..1325839	+	262	50842697	-	PPA1216	-	HAD superfamily hydrolase
1202	 58.29	0	1325850..1327067	-	405	50842698	-	PPA1217	-	4-hydroxybutyrate coenzyme A transferase
1203	 56.27	-1	1327111..1328370	+	419	50842699	-	PPA1218	-	homoserine acetyltransferase
1204	 57.72	0	1328367..1328858	+	163	50842700	-	PPA1220	-	AsnC family transcriptional regulator
1205	 60.19	0	1328855..1330444	+	529	50842701	-	PPA1221	-	apolipoprotein N-acyltransferase
1206	 59.58	0	1330425..1331243	+	272	50842702	-	PPA1222	-	glycosyl transferase
1207	 55.26	-1	1331298..1331630	-	110	50842703	-	PPA1223	-	hypothetical protein
1208	 58.95	0	1331792..1332517	-	241	50842704	-	PPA1224	-	putative glycerophosphoryl diester phosphodiesterase
1209	 62.91	0	1332641..1333519	+	292	50842705	-	PPA1225	-	pyridoxamine kinase
1210	 58.89	0	1333456..1335102	-	548	50842706	-	PPA1226	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1211	 58.90	0	1335132..1336535	+	467	50842707	-	PPA1227	-	dihydrolipoamide dehydrogenase
1212	 60.53	0	1336629..1337540	-	303	50842708	-	PPA1228	-	cation-efflux transport protein
1213	 57.86	0	1337537..1337956	-	139	50842709	-	PPA1229	-	putative transcription regulator
1214	 56.73	-1	1338171..1338905	-	244	50842710	-	PPA1230	-	hypothetical protein
1215	 57.84	0	1339073..1339876	-	267	50842711	-	PPA1231	-	cAMP factor
1216	 57.04	0	1340258..1340683	-	141	50842712	-	PPA1232	-	hypothetical protein
1217	 59.57	0	1340864..1342060	-	398	50842713	-	PPA1233	-	putative multidrug-efflux transporter protein
1218	 57.54	0	1342319..1342888	+	189	50842714	-	PPA1234	-	hypothetical protein
1219	 61.77	0	1342891..1343727	+	278	50842715	-	PPA1235	-	uracil-DNA glycosylase
1220	 55.11	-1	1343890..1344555	+	221	50842716	-	PPA1236	-	cobalamin adenosyltransferase
1221	 58.91	0	1344556..1345032	-	158	50842717	-	PPA1237	-	putative secreted protein
1222	 60.09	0	1345182..1345622	-	146	50842718	-	PPA1238	-	ATP synthase epsilon chain
1223	 59.52	0	1345628..1347082	-	484	50842719	-	PPA1239	-	F0F1 ATP synthase subunit beta
1224	 57.46	0	1347094..1348038	-	314	50842720	-	PPA1240	-	ATP synthase gamma chain
1225	 58.42	0	1348042..1349679	-	545	50842721	-	PPA1241	-	F0F1 ATP synthase subunit alpha
1226	 61.74	0	1349733..1350524	-	263	50842722	-	PPA1242	-	ATP synthase delta chain
1227	 61.62	0	1350521..1351075	-	184	50842723	-	PPA1243	-	F0F1 ATP synthase subunit B
1228	 61.26	0	1351086..1351307	-	73	50842724	-	PPA1244	-	ATP synthase C chain
1229	 52.64	-2	1351398..1352174	-	258	50842725	-	PPA1245	-	ATP synthase A chain
1230	 56.47	-1	1352171..1352425	-	84	50842726	-	PPA1246	-	hypothetical protein
1231	 60.00	0	1352464..1352958	-	164	50842727	-	PPA1247	-	putative cyanate permease
1232	 57.25	0	1353115..1354218	-	367	50842728	-	PPA1248	-	putative undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
1233	 58.77	0	1354227..1355150	-	307	50842729	-	PPA1249	-	SUA5 related protein
1234	 59.93	0	1355083..1355958	-	291	50842730	-	PPA1250	-	putative methylase
1235	 58.38	0	1355958..1357043	-	361	50842731	-	PPA1252	-	peptide chain release factor 1
1236	 57.14	0	1357165..1357374	-	69	50842732	rpmE	PPA1253	-	50S ribosomal protein L31
1237	 58.31	0	1357490..1359391	-	633	50842733	rho	PPA1254	-	transcription termination factor Rho
1238	 61.28	0	1359690..1360580	-	296	50842734	-	PPA1256	-	homoserine kinase
1239	 59.29	0	1360591..1361661	-	356	50842735	-	PPA1257	-	threonine synthase
1240	 60.48	0	1361664..1362989	-	441	50842736	-	PPA1258	-	homoserine dehydrogenase
1241	 59.75	0	1363060..1364490	-	476	50842737	-	PPA1259	-	diaminopimelate decarboxylase
1242	 60.36	0	1364738..1366054	+	438	50842738	-	PPA1260	-	hypothetical protein
1243	 59.07	0	1366241..1369951	+	1236	50842739	kgd	PPA1261	-	alpha-ketoglutarate decarboxylase
1244	 55.90	-1	1370000..1370194	+	64	50842740	-	PPA1262	-	hypothetical protein
1245	 58.90	0	1370249..1370647	-	132	50842741	-	PPA1263	-	hypothetical protein
1246	 63.62	+1	1370755..1371180	+	141	50842742	-	PPA1264	-	transcription factor WhiB3
1247	 58.20	0	1371210..1372685	-	491	50842743	-	PPA1265	-	sensory transduction histidine kinase
1248	 55.43	-1	1373028..1373294	-	88	50842744	-	PPA2382	-	putative anti-sigma factor
1249	 58.55	0	1373291..1373968	-	225	50842745	-	PPA1266	-	RNA polymerase sigma factor RpoE
1250	 61.31	0	1373997..1374818	+	273	50842746	-	PPA1267	-	hypothetical protein
1251	 61.16	0	1374808..1376097	+	429	50842747	-	PPA1268	-	3-phosphoshikimate 1-carboxyvinyltransferase
1252	 61.08	0	1376099..1377100	+	333	50842748	-	PPA1269	-	putative GTPase
1253	 59.41	0	1377519..1378331	-	270	50842749	-	PPA1270	-	carboxypeptidase-related protein
1254	 61.63	0	1378433..1379326	+	297	50842750	-	PPA1271	-	putative inositol monophosphatase
1255	 55.26	-1	1379370..1380623	-	417	50842751	-	PPA1272	-	D-3-phosphoglycerate dehydrogenase
1256	 58.65	0	1380607..1381392	-	261	50842752	-	PPA1273	-	dipeptide ABC transporter ATP-binding
1257	 59.51	0	1381392..1382201	-	269	50842753	-	PPA1274	-	putative ATP-binding ABC transporter protein
1258	 60.02	0	1382201..1383013	-	270	50842754	-	PPA1275	-	permease protein of oligopeptide ABC transporter
1259	 58.59	0	1383010..1383987	-	325	50842755	-	PPA1276	-	ABC transporter permease protein
1260	 59.01	0	1383984..1385471	-	495	50842756	-	PPA1277	-	ABC transporter, substrate binding protein
1261	 57.48	0	1386164..1386718	+	184	50842757	-	PPA2384	-	hypothetical protein
1262	 52.02	-2	1387357..1387752	+	131	50842758	-	PPA2383	-	hypothetical protein
1263	 60.39	0	1388098..1388511	-	137	50842759	-	PPA1278	-	hypothetical protein
1264	 58.53	0	1388712..1388969	-	85	50842760	-	PPA1279	-	hypothetical protein
1265	 57.66	0	1388966..1389631	-	221	50842761	-	PPA1280	-	plasmid partition protein ParA
1266	 49.88	-2	1389906..1390727	-	273	50842762	-	PPA1281	-	hypothetical protein
1267	 61.74	0	1390884..1391147	+	87	50842763	-	PPA1282	-	hypothetical protein
1268	 60.42	0	1391140..1391379	-	79	50842764	-	PPA1283	-	hypothetical protein
1269	 47.99	-2	1392027..1393247	-	406	50842765	-	PPA1284	-	hypothetical protein
1270	 45.03	-2	1393836..1395143	-	435	50842766	-	PPA1285	-	putative biotin carboxylase
1271	 49.02	-2	1395130..1395843	-	237	50842767	-	PPA1286	-	putative thioesterase
1272	 49.25	-2	1395840..1397579	-	579	50842768	-	PPA1287	-	non-ribosomal peptide synthetase
1273	 46.01	-2	1397602..1400898	-	1098	50842769	-	PPA1288	-	surfactin synthetase subunit 1
1274	 45.76	-2	1400906..1401895	-	329	50842770	-	PPA1289	-	cysteine synthase/ornithine cyclodeaminase
1275	 45.31	-2	1401896..1402897	-	333	50842771	-	PPA1290	-	cystathionine beta-synthase
1276	 51.03	-2	1403184..1403912	+	242	50842772	-	PPA1291	-	biosurfactants production protein
1277	 45.74	-2	1404008..1404700	-	230	50842773	-	PPA1292	-	putative transcriptional regulator
1278	 62.28	0	1405625..1406422	-	265	50842774	-	PPA1293	-	putative ribonuclease E
1279	 63.91	+1	1406415..1408121	-	568	50842775	-	PPA1294	-	hypothetical protein
1280	 65.13	+1	1408118..1408639	-	173	50842776	-	PPA1295	-	hypothetical protein
1281	 63.00	0	1408709..1409308	-	199	50842777	-	PPA1296	-	putative permease
1282	 63.10	0	1409266..1410051	-	261	50842778	-	PPA1297	-	hypothetical protein
1283	 63.20	0	1409552..1410157	+	201	50842779	-	PPA1298	-	hypothetical protein
1284	 66.49	+2	1410174..1410755	+	193	50842780	-	PPA1299	-	hypothetical protein
1285	 65.46	+1	1410818..1411315	+	165	50842781	-	PPA1300	-	hypothetical protein
1286	 60.97	0	1411519..1412097	+	192	50842782	-	PPA1301	-	hypothetical protein
1287	 65.77	+1	1412132..1412353	-	73	50842783	-	PPA1303	-	hypothetical protein
1288	 58.28	0	1412439..1412951	-	170	50842784	-	PPA1304	-	hypothetical protein
1289	 61.43	0	1413304..1413666	+	120	50842785	-	PPA1305	-	hypothetical protein
1290	 49.54	-2	1413774..1413989	-	71	50842786	-	PPA1306	-	hypothetical protein
1291	 50.34	-2	1413971..1414564	+	197	50842787	-	PPA1307	-	hypothetical protein
1292	 59.90	0	1414846..1415436	-	196	50842788	-	PPA1308	-	putative universal stress protein UspA
1293	 59.67	0	1415507..1416049	-	180	50842789	-	PPA1309	-	hypothetical protein
1294	 58.27	0	1416067..1417245	-	392	50842790	-	PPA1310	-	protease
60.05	MEAN

3.20	STD DEV
