IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

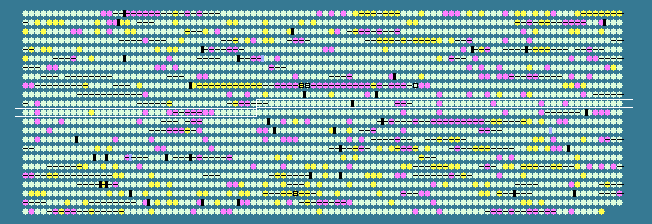

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1040	 61.66	0	1146822..1147280	+	152	50842536	-	PPA1054	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1041	 59.59	0	1147324..1148058	+	244	50842537	-	PPA1055	-	hypothetical protein
1042	 59.29	0	1148061..1148453	+	130	50842538	-	PPA1056	-	hypothetical protein
1043	 58.33	0	1148534..1149193	-	219	50842539	-	PPA1057	-	Trk system potassium uptake protein
1044	 58.70	0	1149234..1149911	-	225	50842540	-	PPA1058	-	Trk system potassium uptake protein TrkA
1045	 56.94	0	1150080..1152104	+	674	50842541	-	PPA1059	-	amino acid permease
1046	 60.74	0	1152135..1153316	+	393	50842542	-	PPA1060	-	SAM-dependent methyltransferase related to tRNA
1047	 59.24	0	1153711..1156377	+	888	50842543	-	PPA1061	-	aconitate hydratase
1048	 58.43	0	1156678..1158582	+	634	50842544	-	PPA1062	-	1-deoxy-D-xylulose-5-phosphate synthase
1049	 61.74	0	1158598..1159836	-	412	50842545	-	PPA1063	-	ribonuclease D
1050	 59.47	0	1159833..1160402	-	189	50842546	-	PPA1064	-	hypothetical protein
1051	 58.61	0	1160521..1160967	-	148	50842547	-	PPA1065	-	peptide methionine sulfoxide reductase MsrB
1052	 62.92	0	1161158..1161931	-	257	50842548	-	PPA1066	-	hypothetical protein
1053	 60.39	0	1162195..1162863	-	222	50842549	-	PPA1067	-	hypothetical protein
1054	 58.90	0	1163084..1164460	+	458	50842550	tnaA	PPA1068	-	tryptophanase
1055	 57.25	0	1164465..1165919	+	484	50842551	-	PPA1069	-	aromatic amino acid transport protein
1056	 58.00	0	1168051..1169112	+	353	50842552	-	PPA1072	-	Zn-dependent alcohol dehydrogenase
1057	 60.55	0	1169261..1170601	+	446	50842553	-	PPA1073	-	putative two-component system sensor kinase
1058	 59.76	0	1171319..1173373	+	684	50842554	thrS	PPA1076	-	threonyl-tRNA synthetase
1059	 60.67	0	1172709..1173926	+	405	50842555	-	PPA1077	-	putative HIT family protein
1060	 60.42	0	1173919..1174542	+	207	50842556	-	PPA1078	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1061	 58.41	0	1174588..1175241	+	217	50842557	-	PPA1079	-	putative CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyl-transferase
1062	 60.29	0	1175238..1176005	+	255	50842558	-	PPA1080	-	membrane associated protein
1063	 55.56	-1	1176048..1176380	+	110	50842559	-	PPA1081	-	small basic protein
1064	 56.44	-1	1176373..1177125	+	250	50842560	-	PPA1082	-	hypothetical protein
1065	 58.52	0	1177190..1177594	+	134	50842561	-	PPA1083	-	putative glycine cleavage system H protein
1066	 58.72	0	1177591..1178169	+	192	50842562	-	PPA1084	-	putative signal transduction protein GarA
1067	 57.14	0	1178169..1178882	+	237	50842563	-	PPA1085	-	regulatory protein
1068	 59.17	0	1178913..1179392	+	159	50842564	-	PPA1086	-	hypothetical protein
1069	 60.20	0	1179574..1180161	+	195	50842565	-	PPA1087	-	transcriptional regulator
1070	 56.40	-1	1180269..1181525	+	418	50842566	-	PPA1088	-	putative tRNA-processing ribonuclease
1071	 57.64	0	1181756..1182907	+	383	50842567	-	PPA1089	-	putative oxalate/formate-specific permease
1072	 60.17	0	1182988..1184187	-	399	50842568	-	PPA1090	-	pyrophosphate--fructose-6-phosphate 1-phosphotransferase
1073	 60.11	0	1184237..1184785	+	182	50842569	-	PPA1091	-	hypothetical protein
1074	 57.55	0	1184764..1185432	+	222	50842570	-	PPA1092	-	Sua5/YciO/YrdC domain-containing protein
1075	 60.26	0	1185480..1186181	+	233	50842571	-	PPA1093	-	5`-methylthioadenosine/S-adenosylhomocysteine nuclosidase
1076	 62.15	0	1186190..1187119	-	309	50842572	-	PPA1094	-	hypothetical protein
1077	 63.13	0	1187146..1187796	-	216	50842573	-	PPA1095	-	hypothetical protein
1078	 59.09	0	1187793..1189547	-	584	50842574	-	PPA1096	-	membrane spanning protein
1079	 54.49	-1	1189544..1189699	-	51	50842575	-	PPA1097	-	hypothetical protein
1080	 58.50	0	1189749..1190360	-	203	50842576	-	PPA1098	-	molecular chaperone
1081	 58.80	0	1190396..1191412	-	338	50842577	-	PPA1099	-	hypothetical protein
1082	 59.72	0	1191527..1192303	+	258	50842578	-	PPA1100	-	peptidyl-prolyl cis-trans isomerase B
1083	 58.61	0	1192307..1193125	-	272	50842579	-	PPA1101	-	putative esterase/lipase YbfF
1084	 58.27	0	1193412..1194209	+	265	50842580	-	PPA1102	-	hypothetical protein
1085	 60.99	0	1194273..1195610	-	445	50842581	-	PPA1103	-	putative adhesion/surface protein
1086	 58.61	0	1195744..1196202	-	152	50842582	-	PPA1104	-	methylmalonyl CoA epimerase
1087	 55.91	-1	1196568..1196846	+	92	50842583	-	PPA2380	-	hypothetical protein
1088	 59.31	0	1196836..1198467	-	543	50842584	-	PPA1105	-	phosphoglucomutase
1089	 61.78	0	1198591..1199532	+	313	50842585	-	PPA1106	-	putative thioredoxin
1090	 61.29	0	1199728..1200471	+	247	50842586	-	PPA1107	-	haloacid dehalogenase-like hydrolase
1091	 56.46	-1	1200468..1202975	+	835	50842587	-	PPA1108	-	trehalose phosphorylase
1092	 60.51	0	1203075..1205120	-	681	50842588	-	PPA1109	-	phosphoenolpyruvate sugar phosphotransferase
1093	 60.88	0	1205389..1206183	-	264	50842589	-	PPA1110	-	putative pyrophosphohydrolase
1094	 59.02	0	1206207..1208141	-	644	50842590	-	PPA1111	-	glycogen branching enzyme
1095	 60.43	0	1208220..1209518	-	432	50842591	-	PPA1112	-	hypothetical protein
1096	 58.12	0	1209515..1211362	-	615	50842592	-	PPA1113	-	trehalose synthase
1097	 60.27	0	1211284..1213410	-	708	50842593	-	PPA1114	-	putative alpha-amylase
1098	 59.22	0	1213662..1215782	-	706	50842594	-	PPA1115	-	putative glycogen debranching enzyme
1099	 62.46	0	1215939..1217078	+	379	50842595	-	PPA1116	-	aminotransferase class V, putative cysteine desulfurase
1100	 60.22	0	1217168..1218268	+	366	50842596	trmU	PPA1117	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1101	 61.90	0	1218265..1219251	+	328	50842597	-	PPA1118	-	putative B12 independent methionine synthase
1102	 58.22	0	1219262..1219474	+	70	50842598	-	PPA1119	-	hypothetical protein
1103	 54.78	-1	1219500..1220012	-	170	50842599	-	PPA1120	-	hypothetical protein
1104	 58.53	0	1220019..1220768	-	249	50842600	-	PPA1121	-	hypothetical protein
1105	 61.42	0	1220772..1221095	+	107	50842601	-	PPA1122	-	glutamyl-tRNA(Gln) amidotransferase subunit C
1106	 61.16	0	1221092..1222597	+	501	50842602	gatA	PPA1123	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1107	 59.91	0	1222594..1224087	+	497	50842603	gatB	PPA1124	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1108	 63.05	0	1224110..1224745	-	211	50842604	-	PPA1125	-	hypothetical protein
1109	 60.05	0	1224834..1225211	+	125	50842605	hisI	PPA1126	-	phosphoribosyl-AMP cyclohydrolase
1110	 60.06	0	1225208..1225525	+	105	50842606	-	PPA1127	-	hypothetical protein
1111	 59.86	0	1225522..1226211	+	229	50842607	-	PPA1128	-	hypothetical protein
1112	 63.89	+1	1226325..1226540	+	71	50842608	-	PPA1129	-	hypothetical protein
1113	 57.55	0	1226541..1227341	+	266	50842609	-	PPA1130	-	indole-3-glycerol phosphate synthase 1
1114	 60.94	0	1227369..1228625	+	418	50842610	-	PPA1131	-	tryptophan synthase subunit beta
1115	 63.05	0	1228622..1229119	+	165	50842611	-	PPA1132	-	tryptophan synthase alpha chain
1116	 58.25	0	1229065..1229955	+	296	50842612	-	PPA1133	-	prolipoprotein diacylglyceryl transferase
1117	 59.14	0	1230077..1234594	+	1505	50842613	-	PPA1134	-	large subunit of NADH-dependent glutamate synthase
1118	 59.20	0	1234587..1236059	+	490	50842614	-	PPA1135	-	glutamate synthase small subunit
1119	 62.73	0	1236096..1236425	+	109	50842615	-	PPA1136	-	hypothetical protein
1120	 59.86	0	1236477..1238549	+	690	50842616	-	PPA1137	-	hypothetical protein
1121	 55.56	-1	1238728..1239123	-	131	50842617	-	PPA1138	-	hypothetical protein
1122	 58.33	0	1239148..1239375	-	75	50842618	-	PPA1139	-	hypothetical protein
1123	 58.88	0	1239385..1240257	-	290	50842619	-	PPA1140	-	putative transcriptional regulator
1124	 60.98	0	1240383..1241297	+	304	50842620	murQ	PPA1141	-	N-acetylmuramic acid-6-phosphate etherase
1125	 55.64	-1	1241275..1242834	+	519	50842621	-	PPA1142	-	PTS system, sucrose-specific IIBC component
1126	 54.28	-1	1242841..1243284	+	147	50842622	-	PPA1143	-	hypothetical protein
1127	 58.44	0	1243274..1244209	+	311	50842623	-	PPA1144	-	putative N-acetylglucosamine kinase
1128	 55.72	-1	1244212..1245216	+	334	50842624	-	PPA1145	-	hypothetical protein
1129	 48.08	-2	1245213..1246643	+	476	50842625	-	PPA1146	-	beta-glucosidase
1130	 52.88	-2	1246671..1246982	+	103	50842626	-	PPA1147	-	PTS system, lichenan-specific IIB component
1131	 49.80	-2	1246988..1248256	+	422	50842627	-	PPA1148	-	PTS system, cellobiose-specific IIC component
1132	 52.34	-2	1248298..1248618	+	106	50842628	-	PPA1149	-	PTS cellobiose-specific component IIA
1133	 59.54	0	1249066..1249416	+	116	50842629	-	PPA2379	-	hypothetical protein
1134	 57.96	0	1249423..1253085	+	1220	50842630	dnaE	PPA1150	-	DNA polymerase III subunit alpha
1135	 61.44	0	1253082..1253636	+	184	50842631	-	PPA1151	-	hypothetical protein
1136	 61.97	0	1253641..1254960	+	439	50842632	hisD	PPA1152	-	histidinol dehydrogenase
1137	 60.33	0	1254957..1256123	+	388	50842633	-	PPA1153	-	histidinol-phosphate aminotransferase
1138	 58.45	0	1256120..1256740	+	206	50842634	-	PPA1154	-	imidazoleglycerol-phosphate dehydratase
1139	 59.33	0	1256697..1257350	+	217	50842635	hisH	PPA1155	-	imidazole glycerol phosphate synthase subunit HisH
60.05	MEAN

3.20	STD DEV
