IslandPathversion 1.0

IslandPath Analysis: Polynucleobacter sp. QLW-P1DMWA-1

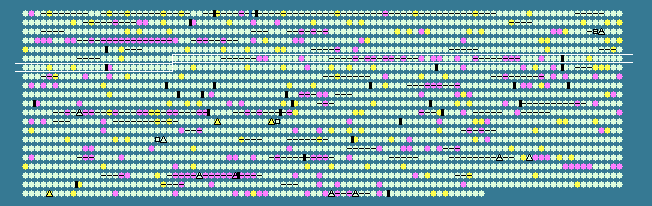

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.00 STD DEV: 2.74
Polynucleobacter sp. QLW-P1DMWA-1, complete genome - 1..2159490
2077 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
526	 46.54	0	518644..519726	+	360	145588715	-	Pnuc_0528	-	TRAP dicarboxylate transporter- DctP subunit
527	 47.33	0	519840..521111	+	423	145588716	-	Pnuc_0529	-	putative manganese transport protein
528	 42.88	0	521137..521922	+	261	145588717	-	Pnuc_0530	-	hypothetical protein
529	 46.70	0	521919..522584	-	221	145588718	-	Pnuc_0531	-	phospholipase/carboxylesterase
530	 43.86	0	522799..523026	+	75	145588719	-	Pnuc_0532	-	hypothetical protein
531	 44.53	0	523027..523401	+	124	145588720	-	Pnuc_0533	-	hypothetical protein
532	 42.72	0	523906..524214	+	102	145588721	-	Pnuc_0534	-	hypothetical protein
533	 45.78	0	524211..525938	+	575	145588722	-	Pnuc_0535	-	SSS family solute/sodium (Na+) symporter
534	 43.84	0	526008..526664	-	218	145588723	-	Pnuc_0536	-	DNA polymerase III subunit epsilon
535	 43.28	0	526661..528490	-	609	145588724	-	Pnuc_0537	-	CBS domain-containing protein
536	 42.11	-1	528595..529392	-	265	145588725	-	Pnuc_0538	-	hypothetical protein
537	 47.10	0	529470..530348	-	292	145588726	-	Pnuc_0539	-	Citryl-CoA lyase
538	 44.64	0	530493..533180	-	895	145588727	-	Pnuc_0540	-	GCN5-related N-acetyltransferase
539	 41.71	-1	533585..534193	+	202	145588728	-	Pnuc_0541	-	glutathione S-transferase domain-containing protein
540	 40.76	-1	534279..534749	+	156	145588729	-	Pnuc_0542	-	hypothetical protein
541	 41.37	-1	534811..535731	+	306	145588730	-	Pnuc_0543	-	protein tyrosine/serine phosphatase
542	 43.65	0	535807..536184	+	125	145588731	-	Pnuc_0544	-	hypothetical protein
543	 43.70	0	536303..537730	+	475	145588732	-	Pnuc_0545	-	putative cytochrome c1 signal peptide protein
544	 44.93	0	537748..538497	+	249	145588733	-	Pnuc_0546	-	cytochrome c, class I
545	 42.64	0	538550..539269	-	239	145588734	-	Pnuc_0547	-	phytochelatin synthase, putative
546	 41.58	-1	539411..539968	+	185	145588735	-	Pnuc_0548	-	hypothetical protein
547	 41.01	-1	540045..540578	+	177	145588736	-	Pnuc_0549	-	hypothetical protein
548	 44.57	0	540684..541982	+	432	145588737	-	Pnuc_0550	-	secretory lipase
549	 47.13	0	542060..542494	-	144	145588738	-	Pnuc_0551	-	hypothetical protein
550	 43.99	0	542685..543998	+	437	145588739	-	Pnuc_0552	-	Cl- channel, voltage-gated family protein
551	 45.18	0	544093..545823	+	576	145588740	-	Pnuc_0553	-	thiamine pyrophosphate binding domain-containing protein
552	 48.29	+1	546274..546594	+	106	145588741	-	Pnuc_0554	-	hypothetical protein
553	 43.14	0	546612..547835	-	407	145588742	-	Pnuc_0555	-	cytochrome c, class I
554	 42.69	0	547934..548371	+	145	145588743	-	Pnuc_0556	-	DoxX family protein
555	 43.46	0	548422..548826	+	134	145588744	-	Pnuc_0557	-	hypothetical protein
556	 39.08	-2	549480..549914	-	144	145588745	-	Pnuc_0558	-	hypothetical protein
557	 45.03	0	550161..550904	+	247	145588746	-	Pnuc_0559	-	putative transmembrane protein
558	 36.62	-2	550908..551120	+	70	145588747	-	Pnuc_0560	-	hypothetical protein
559	 39.95	-1	551164..551541	-	125	145588748	-	Pnuc_0561	-	hypothetical protein
560	 43.50	0	552152..552859	-	235	145588749	-	Pnuc_0562	-	hypothetical protein
561	 39.53	-1	552863..554638	-	591	145588750	-	Pnuc_0563	-	integral membrane sensor hybrid histidine kinase
562	 40.74	-1	554642..555235	-	197	145588751	-	Pnuc_0564	-	two component LuxR family transcriptional regulator
563	 45.07	0	555476..555850	+	124	145588752	-	Pnuc_0565	-	hypothetical protein
564	 40.94	-1	555893..556234	+	113	145588753	-	Pnuc_0566	-	hypothetical protein
565	 42.17	-1	556249..556599	-	116	145588754	-	Pnuc_0567	-	hypothetical protein
566	 42.71	0	556608..558014	-	468	145588755	-	Pnuc_0568	-	hypothetical protein
567	 40.22	-1	558101..559102	-	333	145588756	-	Pnuc_0569	-	GCN5-related N-acetyltransferase
568	 45.82	0	559406..560302	+	298	145588757	-	Pnuc_0570	-	cation diffusion facilitator family transporter
569	 40.66	-1	560317..561189	-	290	145588758	-	Pnuc_0571	-	beta-lactamase domain-containing protein
570	 41.07	-1	561331..561963	-	210	145588759	-	Pnuc_0572	-	methyltransferase type 11
571	 43.57	0	562389..563072	+	227	145588760	-	Pnuc_0573	-	multiple antibiotic resistance (MarC)-related protein
572	 42.01	-1	564209..565303	+	364	145588761	-	Pnuc_0575	-	choloylglycine hydrolase
573	 39.21	-2	565656..566438	+	260	145588762	-	Pnuc_0576	-	hypothetical protein
574	 43.59	0	566657..568294	-	545	145588763	-	Pnuc_0578	-	amidohydrolase 3
575	 42.65	0	568314..569150	-	278	145588764	-	Pnuc_0579	-	hypothetical protein
576	 40.21	-1	569312..569791	+	159	145588765	-	Pnuc_0580	-	hypothetical protein
577	 43.56	0	570029..570331	-	100	145588766	-	Pnuc_0581	-	hypothetical protein
578	 43.65	0	570332..571000	-	222	145588767	-	Pnuc_0582	-	hypothetical protein
579	 47.62	0	571145..571585	+	146	145588768	-	Pnuc_0583	-	hypothetical protein
580	 42.41	0	571594..572166	+	190	145588769	-	Pnuc_0584	-	ECF subfamily RNA polymerase sigma-24 factor
581	 39.37	-2	572144..572458	+	104	145588770	-	Pnuc_0585	-	hypothetical protein
582	 38.73	-2	573052..573255	+	67	145588771	-	Pnuc_0586	-	cold-shock DNA-binding domain-containing protein
583	 40.23	-1	573341..573601	+	86	145588772	-	Pnuc_0587	-	translation initiation factor IF-1
584	 44.99	0	574169..574906	+	245	145588773	-	Pnuc_0588	-	hypothetical protein
585	 43.82	0	574917..575669	+	250	145588774	-	Pnuc_0589	-	hypothetical protein
586	 43.43	0	575942..576139	-	65	145588775	-	Pnuc_0590	-	hypothetical protein
587	 41.23	-1	576142..576660	-	172	145588776	-	Pnuc_0591	-	hypothetical protein
588	 44.85	0	577031..578011	-	326	145588777	-	Pnuc_0592	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
589	 45.65	0	578094..579035	-	313	145588778	-	Pnuc_0593	-	2-keto-3-deoxygluconate permease
590	 44.78	0	579331..580230	+	299	145588779	-	Pnuc_0594	-	2-hydroxy-3-oxopropionate reductase
591	 46.55	0	580610..581956	-	448	145588780	-	Pnuc_0595	-	N-acetylmuramoyl-L-alanine amidase
592	 44.07	0	581960..582490	-	176	145588781	-	Pnuc_0596	-	hypothetical protein
593	 46.76	0	582533..583627	+	364	145588782	-	Pnuc_0597	-	putative iron-sulfur cluster binding protein
594	 47.33	0	583670..584455	+	261	145588783	-	Pnuc_0598	-	AzlC family protein
595	 49.00	+1	584455..584805	+	116	145588784	-	Pnuc_0599	-	hypothetical protein
596	 47.11	0	584847..587924	-	1025	145588785	-	Pnuc_0600	-	FAD linked oxidase domain-containing protein
597	 46.93	0	587921..588604	-	227	145588786	-	Pnuc_0601	-	GntR family transcriptional regulator
598	 47.26	0	588807..589991	+	394	145588787	-	Pnuc_0602	-	Serine--glyoxylate transaminase
599	 45.59	0	590124..590531	+	135	145588788	-	Pnuc_0603	-	hypothetical protein
600	 47.82	+1	590538..591959	+	473	145588789	-	Pnuc_0604	-	DEAD/DEAH box helicase domain-containing protein
601	 48.48	+1	591970..592920	-	316	145588790	-	Pnuc_0605	-	glutamate--tRNA ligase
602	 47.22	0	592924..596538	+	1204	145588791	-	Pnuc_0606	-	DNA polymerase III, alpha subunit
603	 46.43	0	596560..597720	-	386	145588792	-	Pnuc_0607	-	glycosyl transferase family protein
604	 45.12	0	597723..598511	-	262	145588793	-	Pnuc_0608	-	glycosyl transferase family protein
605	 49.87	+1	598508..599269	-	253	145588794	-	Pnuc_0609	-	glycosyl transferase family protein
606	 44.39	0	599280..601043	+	587	145588795	-	Pnuc_0610	-	lipid A ABC exporter, fused ATPase and inner membrane subunits MsbA
607	 45.97	0	601068..602531	-	487	145588796	-	Pnuc_0611	-	ribonuclease
608	 48.01	+1	602528..603154	-	208	145588797	-	Pnuc_0612	-	maf protein
609	 50.00	+1	603147..603590	-	147	145588798	-	Pnuc_0613	-	hypothetical protein
610	 46.92	0	603621..604010	-	129	145588799	-	Pnuc_0614	-	iojap-like protein
611	 44.35	0	604058..604747	-	229	145588800	-	Pnuc_0615	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
612	 46.30	0	604744..605676	-	310	145588801	-	Pnuc_0616	-	coproporphyrinogen III oxidase
613	 48.36	+1	605692..606969	-	425	145588802	-	Pnuc_0617	-	phosphoribosylamine--glycine ligase
614	 46.39	0	606999..607718	-	239	145588803	-	Pnuc_0618	-	hypothetical protein
615	 38.75	-2	608060..608872	+	270	145588804	-	Pnuc_0619	-	hypothetical protein
616	 47.03	0	608903..609844	-	313	145588805	-	Pnuc_0620	-	transcriptional regulator CysB-like protein
617	 45.11	0	609908..611062	-	384	145588806	-	Pnuc_0621	-	permease YjgP/YjgQ family protein
618	 45.16	0	611059..612174	-	371	145588807	-	Pnuc_0622	-	permease YjgP/YjgQ family protein
619	 46.06	0	612335..613945	+	536	145588808	-	Pnuc_0623	-	leucyl aminopeptidase
620	 47.01	0	613949..614416	+	155	145588809	-	Pnuc_0624	-	DNA polymerase III chi subunit, HolC
621	 46.69	0	614445..615230	+	261	145588810	-	Pnuc_0625	-	prolipoprotein diacylglyceryl transferase
622	 44.99	0	615242..616150	+	302	145588811	-	Pnuc_0626	-	LysR family transcriptional regulator
623	 45.98	0	616283..617587	+	434	145588812	-	Pnuc_0627	-	malonyl-CoA decarboxylase
624	 43.96	0	617727..618761	+	344	145588813	-	Pnuc_0628	-	TRAP dicarboxylate transporter- DctP subunit
625	 43.15	0	618793..619281	+	162	145588814	-	Pnuc_0629	-	tripartite ATP-independent periplasmic transporter DctQ
45.00	MEAN

2.74	STD DEV
