IslandPathversion 1.0

IslandPath Analysis: Polynucleobacter sp. QLW-P1DMWA-1

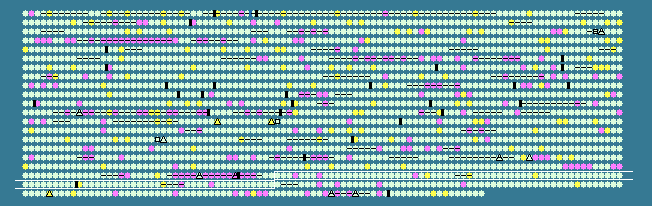

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.00 STD DEV: 2.74
Polynucleobacter sp. QLW-P1DMWA-1, complete genome - 1..2159490
2077 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1843	 45.90	0	1928818..1929342	-	174	145590032	-	Pnuc_1852	-	hexapaptide repeat-containing transferase
1844	 44.90	0	1929593..1929955	+	120	145590033	-	Pnuc_1854	-	hypothetical protein
1845	 46.18	0	1930000..1930287	+	95	145590034	-	Pnuc_1855	-	hypothetical protein
1846	 39.49	-2	1930332..1930721	-	129	145590035	-	Pnuc_1856	-	OsmC family protein
1847	 46.47	0	1930759..1931169	-	136	145590036	-	Pnuc_1857	-	rhodanese domain-containing protein
1848	 43.86	0	1931228..1932490	+	420	145590037	-	Pnuc_1858	-	hypothetical protein
1849	 44.84	0	1932558..1933904	+	448	145590038	-	Pnuc_1859	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1850	 39.32	-2	1933894..1934361	+	155	145590039	-	Pnuc_1860	-	hypothetical protein
1851	 46.67	0	1934416..1935255	+	279	145590040	-	Pnuc_1861	-	CBS domain-containing protein
1852	 43.25	0	1935264..1936775	+	503	145590041	-	Pnuc_1862	-	apolipoprotein N-acyltransferase
1853	 44.97	0	1936836..1937720	+	294	145590042	glyQ	Pnuc_1863	-	glycyl-tRNA synthetase subunit alpha
1854	 44.93	0	1937752..1939890	+	712	145590043	glyS	Pnuc_1864	-	glycyl-tRNA synthetase subunit beta
1855	 44.85	0	1939887..1940459	+	190	145590044	-	Pnuc_1865	-	histidinol-phosphate phosphatase family protein
1856	 42.99	0	1940467..1941201	+	244	145590045	-	Pnuc_1866	-	phospholipid/glycerol acyltransferase
1857	 43.11	0	1941219..1941995	-	258	145590046	-	Pnuc_1867	-	dimethyladenosine transferase
1858	 44.25	0	1941999..1943006	-	335	145590047	-	Pnuc_1868	-	4-hydroxythreonine-4-phosphate dehydrogenase
1859	 43.78	0	1942981..1944435	-	484	145590048	-	Pnuc_1869	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1860	 46.02	0	1944435..1946885	-	816	145590049	-	Pnuc_1870	-	organic solvent tolerance protein
1861	 42.42	0	1946988..1947989	+	333	145590050	-	Pnuc_1871	-	aminoglycoside phosphotransferase
1862	 45.15	0	1948003..1948713	+	236	145590051	-	Pnuc_1872	-	nucleotidyl transferase
1863	 45.61	0	1948700..1950076	+	458	145590052	-	Pnuc_1873	-	peptidase M24
1864	 45.34	0	1950092..1951249	+	385	145590053	-	Pnuc_1874	-	UbiH/UbiF/VisC/COQ6 family ubiquinone biosynthesis hydroxylase
1865	 46.51	0	1951402..1952418	+	338	145590054	-	Pnuc_1875	-	nifR3 family TIM-barrel protein
1866	 38.33	-2	1952469..1952708	+	79	145590055	-	Pnuc_1876	-	Fis family transcriptional regulator
1867	 45.86	0	1952753..1954333	+	526	145590056	purH	Pnuc_1877	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1868	 51.64	+2	1954340..1954858	+	172	145590057	-	Pnuc_1878	-	crossover junction endodeoxyribonuclease RuvC
1869	 46.39	0	1954888..1955469	+	193	145590058	-	Pnuc_1879	-	Holliday junction DNA helicase RuvA
1870	 48.09	+1	1955487..1956557	+	356	145590059	ruvB	Pnuc_1880	-	Holliday junction DNA helicase B
1871	 46.15	0	1956573..1957805	-	410	145590060	-	Pnuc_1881	-	tyrosyl-tRNA synthetase
1872	 45.92	0	1957882..1959009	+	375	145590061	anmK	Pnuc_1882	-	anhydro-N-acetylmuramic acid kinase
1873	 44.80	0	1959022..1959396	-	124	145590062	-	Pnuc_1883	-	iron-sulfur cluster assembly accessory protein
1874	 47.12	0	1959465..1960523	-	352	145590063	argC	Pnuc_1884	-	N-acetyl-gamma-glutamyl-phosphate reductase
1875	 49.00	+1	1960636..1961037	-	133	145590064	-	Pnuc_1885	-	ribosomal protein S9
1876	 47.55	0	1961047..1961475	-	142	145590065	rplM	Pnuc_1886	-	50S ribosomal protein L13
1877	 48.46	+1	1961885..1962307	+	140	145590066	-	Pnuc_1887	-	OsmC family protein
1878	 44.38	0	1962672..1963730	-	352	145590067	-	Pnuc_1888	-	dihydroorotase
1879	 45.75	0	1963732..1965084	-	450	145590068	-	Pnuc_1889	-	hydroxypyruvate reductase
1880	 44.96	0	1965094..1966917	-	607	145590069	-	Pnuc_1890	-	ABC transporter related
1881	 41.83	-1	1966927..1967385	-	152	145590070	-	Pnuc_1891	-	NUDIX hydrolase
1882	 46.28	0	1967417..1969216	-	599	145590071	-	Pnuc_1892	-	aspartyl-tRNA synthetase
1883	 44.04	0	1969233..1969886	-	217	145590072	-	Pnuc_1893	-	hypothetical protein
1884	 46.12	0	1969939..1971525	-	528	145590073	-	Pnuc_1894	-	2-polyprenylphenol 6-hydroxylase
1885	 44.28	0	1971529..1972149	-	206	145590074	-	Pnuc_1895	-	hypothetical protein
1886	 48.79	+1	1972203..1973114	-	303	145590075	-	Pnuc_1896	-	import inner membrane translocase, subunit Tim44
1887	 45.56	0	1973182..1973925	-	247	145590076	-	Pnuc_1897	-	ubiquinone/menaquinone biosynthesis methyltransferase
1888	 42.89	0	1973925..1974311	-	128	145590077	-	Pnuc_1898	-	hypothetical protein
1889	 45.91	0	1974311..1978150	-	1279	145590078	-	Pnuc_1899	-	FAD linked oxidase domain-containing protein
1890	 46.09	0	1978285..1979805	+	506	145590079	-	Pnuc_1900	-	threonine dehydratase, biosynthetic
1891	 47.06	0	1979817..1980734	+	305	145590080	-	Pnuc_1901	-	5-nucleotidase
1892	 46.26	0	1980752..1981579	+	275	145590081	queF	Pnuc_1902	-	7-cyano-7-deazaguanine reductase
1893	 47.15	0	1981652..1982107	-	151	145590082	-	Pnuc_1903	-	single-strand binding protein
1894	 46.67	0	1982189..1983373	-	394	145590083	-	Pnuc_1904	-	major facilitator transporter
1895	 45.59	0	1983411..1986299	+	962	145590084	-	Pnuc_1905	-	excinuclease ABC, A subunit
1896	 46.29	0	1986328..1988310	-	660	145590085	-	Pnuc_1906	-	potassium efflux system protein
1897	 47.83	+1	1988322..1989314	+	330	145590086	-	Pnuc_1907	-	KpsF/GutQ family protein
1898	 42.93	0	1989344..1989916	+	190	145590087	-	Pnuc_1908	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
1899	 44.39	0	1989920..1990561	+	213	145590088	-	Pnuc_1909	-	hypothetical protein
1900	 45.72	0	1990563..1991135	+	190	145590089	-	Pnuc_1910	-	OstA family protein
1901	 47.01	0	1991132..1991899	+	255	145590090	-	Pnuc_1911	-	ABC transporter related
1902	 44.44	0	1992082..1992405	+	107	145590091	-	Pnuc_1912	-	sigma 54 modulation protein/ribosomal protein S30EA
1903	 48.48	+1	1992439..1992900	+	153	145590092	-	Pnuc_1913	-	putative PTS IIA-like nitrogen-regulatory protein PtsN
1904	 47.01	0	1992897..1993883	+	328	145590093	-	Pnuc_1914	-	HPr kinase/phosphorylase
1905	 44.00	0	1993887..1994777	+	296	145590094	-	Pnuc_1915	-	hypothetical protein
1906	 45.20	0	1994722..1995867	-	381	145590095	-	Pnuc_1916	-	A/G-specific adenine glycosylase
1907	 45.16	0	1995852..1996688	-	278	145590096	-	Pnuc_1917	-	formamidopyrimidine-DNA glycosylase
1908	 44.71	0	1996724..1998208	+	494	145590097	-	Pnuc_1918	-	outer membrane lipoprotein LolB
1909	 44.29	0	1998201..1999085	+	294	145590098	-	Pnuc_1919	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
1910	 49.38	+1	1999222..2000187	+	321	145590099	-	Pnuc_1920	-	ribose-phosphate pyrophosphokinase
1911	 47.51	0	2000323..2000964	+	213	145590100	-	Pnuc_1921	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
1912	 45.18	0	2001050..2001640	+	196	145590101	-	Pnuc_1922	-	aminoacyl-tRNA hydrolase
1913	 43.45	0	2001646..2001912	-	88	145590102	-	Pnuc_1923	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1914	 44.78	0	2001930..2002427	-	165	145590103	coaD	Pnuc_1924	-	phosphopantetheine adenylyltransferase
1915	 46.70	0	2002464..2003054	-	196	145590104	-	Pnuc_1925	-	putative methyltransferase
1916	 44.39	0	2003074..2004411	-	445	145590105	-	Pnuc_1926	-	peptidase M16 domain-containing protein
1917	 44.59	0	2004411..2005778	-	455	145590106	-	Pnuc_1927	-	peptidase M16 domain-containing protein
1918	 46.91	0	2005842..2006732	+	296	145590107	-	Pnuc_1928	-	signal recognition particle-docking protein FtsY
1919	 47.96	+1	2006825..2007754	+	309	145590108	-	Pnuc_1929	-	RNA polymerase, sigma 32 subunit, RpoH
1920	 44.84	0	2007776..2008366	-	196	145590109	-	Pnuc_1930	-	electron transport protein SCO1/SenC
1921	 46.53	0	2008368..2009261	-	297	145590110	-	Pnuc_1931	-	protoheme IX farnesyltransferase
1922	 45.09	0	2009258..2010388	-	376	145590111	-	Pnuc_1932	-	cytochrome oxidase assembly
1923	 46.88	0	2010388..2011044	-	218	145590112	-	Pnuc_1933	-	putative transmembrane protein
1924	 50.21	+1	2011047..2011769	-	240	145590113	-	Pnuc_1934	-	SURF1 family protein
1925	 42.72	0	2011856..2012068	+	70	145590114	-	Pnuc_1935	-	hypothetical protein
1926	 45.85	0	2012121..2012975	-	284	145590115	-	Pnuc_1936	-	cytochrome c oxidase, subunit III
1927	 39.39	-2	2013005..2013202	-	65	145590116	-	Pnuc_1937	-	putative transmembrane protein
1928	 41.75	-1	2013211..2013792	-	193	145590117	-	Pnuc_1938	-	cytochrome c oxidase assembly protein CtaG/Cox11
1929	 46.14	0	2013920..2015551	-	543	145590118	-	Pnuc_1939	-	cytochrome-c oxidase
1930	 44.21	0	2015592..2016749	-	385	145590119	-	Pnuc_1940	-	cytochrome c oxidase, subunit II
1931	 43.39	0	2016930..2017685	-	251	145590120	-	Pnuc_1941	-	methyltransferase type 11
1932	 41.13	-1	2017754..2018497	+	247	145590121	-	Pnuc_1942	-	phosphoribosyltransferase
1933	 45.01	0	2018516..2018986	+	156	145590122	-	Pnuc_1943	-	RNA methyltransferase
1934	 47.02	0	2019002..2020024	-	340	145590123	-	Pnuc_1944	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
1935	 42.53	0	2020049..2020570	-	173	145590124	-	Pnuc_1945	-	protein-export protein SecB
1936	 42.35	0	2020595..2020849	-	84	145590125	-	Pnuc_1946	-	glutaredoxin 3
1937	 47.83	+1	2020860..2021273	-	137	145590126	-	Pnuc_1947	-	rhodanese domain-containing protein
1938	 43.04	0	2021296..2021985	+	229	145590127	-	Pnuc_1948	-	phosphoglycerate mutase 1 family protein
1939	 43.65	0	2021999..2023432	+	477	145590128	-	Pnuc_1949	-	carboxyl-terminal protease
1940	 45.68	0	2023459..2024211	+	250	145590129	-	Pnuc_1950	-	UBA/THIF-type NAD/FAD binding protein
1941	 44.98	0	2024216..2025967	-	583	145590130	-	Pnuc_1951	-	phosphoenolpyruvate-protein phosphotransferase
1942	 45.93	0	2025970..2026239	-	89	145590131	-	Pnuc_1952	-	phosphotransferase system, phosphocarrier protein HPr
45.00	MEAN

2.74	STD DEV
