IslandPathversion 1.0

IslandPath Analysis: Polynucleobacter sp. QLW-P1DMWA-1

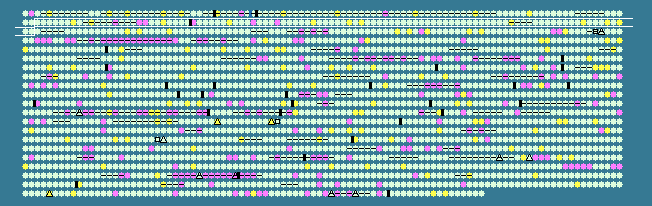

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.00 STD DEV: 2.74
Polynucleobacter sp. QLW-P1DMWA-1, complete genome - 1..2159490
2077 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
103	 42.59	0	99681..100469	+	262	145588292	-	Pnuc_0103	-	ABC-2 type transporter
104	 42.17	-1	100490..100738	+	82	145588293	-	Pnuc_0104	-	BolA family protein
105	 47.69	0	100781..102055	+	424	145588294	-	Pnuc_0105	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
106	 43.54	0	102076..102702	+	208	145588295	hisG	Pnuc_0106	-	ATP phosphoribosyltransferase catalytic subunit
107	 47.32	0	102737..104059	+	440	145588296	-	Pnuc_0107	-	histidinol dehydrogenase
108	 45.41	0	104079..105146	-	355	145588297	-	Pnuc_0108	-	histidinol-phosphate aminotransferase
109	 49.32	+1	105260..105847	+	195	145588298	-	Pnuc_0109	-	imidazoleglycerol-phosphate dehydratase
110	 45.55	0	105895..106557	+	220	145588299	-	Pnuc_0110	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
111	 46.59	0	106577..107338	+	253	145588300	-	Pnuc_0111	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
112	 50.07	+1	107338..108096	+	252	145588301	-	Pnuc_0112	-	imidazoleglycerol phosphate synthase, cyclase subunit
113	 48.07	+1	108139..108552	+	137	145588302	-	Pnuc_0113	-	phosphoribosyl-AMP cyclohydrolase
114	 47.76	+1	108585..108986	+	133	145588303	-	Pnuc_0114	-	phosphoribosyl-ATP pyrophosphohydrolase
115	 45.66	0	109013..109369	+	118	145588304	-	Pnuc_0115	-	histidine triad (HIT) protein
116	 39.19	-2	109386..109607	+	73	145588305	-	Pnuc_0116	-	twin arginine-targeting protein translocase
117	 46.96	0	109645..110121	+	158	145588306	tatB	Pnuc_0117	-	sec-independent translocase
118	 44.14	0	110140..110916	+	258	145588307	-	Pnuc_0118	-	Sec-independent protein translocase, TatC subunit
119	 44.94	0	112570..113844	+	424	145588308	-	Pnuc_0120	-	porin
120	 41.29	-1	113982..116180	+	732	145588309	-	Pnuc_0121	-	TPR repeat-containing protein
121	 39.84	-1	116170..118152	-	660	145588310	-	Pnuc_0122	-	TPR repeat-containing protein
122	 43.31	0	118149..119321	-	390	145588311	-	Pnuc_0123	-	peptidase S1 and S6, chymotrypsin/Hap
123	 45.63	0	119344..119766	-	140	145588312	-	Pnuc_0124	-	large conductance mechanosensitive channel protein
124	 52.24	+2	119904..120506	+	200	145588313	-	Pnuc_0125	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
125	 44.11	0	120517..121917	+	466	145588314	-	Pnuc_0126	-	cytochrome b/b6 domain-containing protein
126	 45.35	0	121951..122724	+	257	145588315	-	Pnuc_0127	-	cytochrome c1
127	 42.97	0	122834..123445	+	203	145588316	-	Pnuc_0128	-	glutathione S-transferase domain-containing protein
128	 43.87	0	123474..123881	+	135	145588317	-	Pnuc_0129	-	stringent starvation protein B
129	 39.41	-2	124186..124761	+	191	145588318	-	Pnuc_0130	-	TPR domain-containing protein
130	 44.44	0	124781..126121	-	446	145588319	-	Pnuc_0131	-	general substrate transporter
131	 41.88	-1	126296..126880	+	194	145588320	-	Pnuc_0132	-	phasin family protein
132	 45.02	0	126974..128248	-	424	145588321	-	Pnuc_0133	-	hypothetical protein
133	 42.72	0	128262..128570	-	102	145588322	-	Pnuc_0134	-	glutaredoxin-like protein
134	 45.54	0	128668..129519	-	283	145588323	-	Pnuc_0135	-	HemK family modification methylase
135	 48.52	+1	129527..130606	-	359	145588324	-	Pnuc_0136	-	peptide chain release factor 1
136	 47.38	0	130607..131923	-	438	145588325	-	Pnuc_0137	-	shikimate/quinate 5-dehydrogenase
137	 45.91	0	132189..132983	-	264	145588326	-	Pnuc_0138	-	uracil-DNA glycosylase superfamily protein
138	 44.59	0	132983..134767	-	594	145588327	-	Pnuc_0139	-	peptidase M61 domain-containing protein
139	 40.90	-1	134779..135492	-	237	145588328	-	Pnuc_0140	-	putative thiol:disulfide interchange protein
140	 48.08	+1	135485..136759	-	424	145588329	-	Pnuc_0141	-	UbiH/UbiF/VisC/COQ6 family ubiquinone biosynthesis hydroxylase
141	 47.49	0	136800..137894	+	364	145588330	-	Pnuc_0142	-	GTP-binding protein YchF
142	 43.30	0	137967..138317	-	116	145588331	-	Pnuc_0143	-	hypothetical protein
143	 40.35	-1	138429..138998	+	189	145588332	-	Pnuc_0144	-	hypothetical protein
144	 44.53	0	138979..139782	-	267	145588333	-	Pnuc_0145	-	indole-3-glycerol-phosphate synthase
145	 47.95	+1	139792..140817	-	341	145588334	-	Pnuc_0146	-	anthranilate phosphoribosyltransferase
146	 44.09	0	140826..141392	-	188	145588335	-	Pnuc_0147	-	glutamine amidotransferase of anthranilate synthase
147	 46.15	0	141376..142881	-	501	145588336	-	Pnuc_0148	-	anthranilate synthase component I
148	 48.07	+1	142881..143606	-	241	145588337	-	Pnuc_0149	-	ribulose-phosphate 3-epimerase
149	 51.73	+2	143656..144030	+	124	145588338	apaG	Pnuc_0150	-	ApaG
150	 47.87	+1	144169..145296	+	375	145588339	-	Pnuc_0151	-	MltA domain-containing protein
151	 47.86	+1	145299..146489	-	396	145588340	-	Pnuc_0152	-	amidohydrolase
152	 43.51	0	146548..147264	-	238	145588341	-	Pnuc_0153	-	dethiobiotin synthase
153	 44.42	0	147261..148496	-	411	145588342	-	Pnuc_0154	-	8-amino-7-oxononanoate synthase
154	 44.99	0	148493..149908	-	471	145588343	-	Pnuc_0155	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
155	 50.10	+1	149930..150967	+	345	145588344	-	Pnuc_0156	-	biotin synthase
156	 46.98	0	150979..151608	+	209	145588345	-	Pnuc_0157	-	putative ubiquinone biosynthesis protein
157	 49.07	+1	151901..152332	+	143	145588346	-	Pnuc_0158	-	cell division protein MraZ
158	 46.48	0	152345..153295	+	316	145588347	-	Pnuc_0159	-	S-adenosyl-methyltransferase MraW
159	 45.32	0	153292..153558	+	88	145588348	-	Pnuc_0160	-	cell division protein FtsL
160	 46.76	0	153555..155327	+	590	145588349	-	Pnuc_0161	-	peptidoglycan glycosyltransferase
161	 45.07	0	155324..156874	+	516	145588350	-	Pnuc_0162	-	UDP-N-acetylmuramyl-tripeptide synthetase
162	 43.78	0	156874..158319	+	481	145588351	-	Pnuc_0163	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
163	 43.08	0	158310..159479	+	389	145588352	-	Pnuc_0164	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
164	 44.98	0	159494..161116	+	540	145588353	-	Pnuc_0165	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
165	 45.68	0	161113..162384	+	423	145588354	-	Pnuc_0166	-	cell division protein FtsW
166	 45.16	0	162381..163454	+	357	145588355	-	Pnuc_0167	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
167	 45.86	0	163451..164887	+	478	145588356	murC	Pnuc_0168	-	UDP-N-acetylmuramate--L-alanine ligase
168	 45.86	0	164880..165893	+	337	145588357	-	Pnuc_0169	-	D-alanine--D-alanine ligase
169	 45.34	0	165890..166747	+	285	145588358	-	Pnuc_0170	-	polypeptide-transport-associated domain-containing protein
170	 46.67	0	166757..167986	+	409	145588359	-	Pnuc_0171	-	cell division protein FtsA
171	 47.05	0	168035..169375	+	446	145588360	-	Pnuc_0172	-	cell division protein FtsZ
172	 43.31	0	169488..169988	+	166	145588361	-	Pnuc_0173	-	redoxin domain-containing protein
173	 44.70	0	170020..170934	+	304	145588362	lpxC	Pnuc_0174	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
174	 48.19	+1	170956..171453	-	165	145588363	-	Pnuc_0175	-	hypothetical protein
175	 46.31	0	171507..174272	+	921	145588364	-	Pnuc_0176	-	preprotein translocase, SecA subunit
176	 46.84	0	174442..174900	+	152	145588365	-	Pnuc_0177	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
177	 47.46	0	174912..177035	+	707	145588366	-	Pnuc_0178	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
178	 48.14	+1	177114..178349	+	411	145588367	-	Pnuc_0179	-	arginine biosynthesis bifunctional protein ArgJ
179	 44.64	0	178364..179221	+	285	145588368	-	Pnuc_0180	-	hypothetical protein
180	 47.72	0	179231..179647	+	138	145588369	-	Pnuc_0181	-	NUDIX hydrolase
181	 42.23	-1	179644..180396	-	250	145588370	-	Pnuc_0182	-	hypothetical protein
182	 48.79	+1	180408..181028	-	206	145588371	-	Pnuc_0183	-	dephospho-CoA kinase
183	 42.91	0	181049..181549	-	166	145588372	-	Pnuc_0184	-	peptidase A24A, prepilin type IV
184	 42.60	0	181549..182595	-	348	145588373	-	Pnuc_0185	-	type II secretion system protein
185	 47.65	0	182586..183668	-	360	145588374	-	Pnuc_0186	-	type II secretion system protein E
186	 43.64	0	183665..184954	-	429	145588375	-	Pnuc_0187	-	hypothetical protein
187	 45.83	0	185033..185584	+	183	145588376	-	Pnuc_0188	-	methylated-DNA--protein-cysteine methyltransferase
188	 42.93	0	185581..186570	-	329	145588377	-	Pnuc_0189	-	squalene/phytoene synthase
189	 45.76	0	186678..188093	+	471	145588378	-	Pnuc_0190	-	Na+/solute symporter
190	 46.57	0	188199..189218	+	339	145588379	-	Pnuc_0191	-	2-dehydropantoate 2-reductase
191	 44.40	0	189313..190080	-	255	145588380	-	Pnuc_0192	-	fumarylacetoacetate (FAA) hydrolase
192	 47.96	+1	190112..191116	-	334	145588381	-	Pnuc_0193	-	farnesyltranstransferase
193	 45.83	0	191192..191503	+	103	145588382	-	Pnuc_0194	-	ribosomal protein L21
194	 48.66	+1	191523..191783	+	86	145588383	rpmA	Pnuc_0195	-	50S ribosomal protein L27
195	 47.75	+1	191872..192960	+	362	145588384	obgE	Pnuc_0196	-	GTPase ObgE
196	 45.72	0	192986..193768	+	260	145588385	-	Pnuc_0197	-	glutamate 5-kinase
197	 44.33	0	193755..194327	-	190	145588386	-	Pnuc_0198	-	putative lipoprotein
198	 50.83	+2	194329..194928	-	199	145588387	-	Pnuc_0199	-	NUDIX hydrolase
199	 47.96	+1	194977..196719	+	580	145588388	-	Pnuc_0200	-	prolyl-tRNA synthetase
200	 49.02	+1	196755..198137	-	460	145588389	-	Pnuc_0201	-	signal recognition particle protein
201	 44.64	0	198158..199006	+	282	145588390	-	Pnuc_0202	-	cytochrome c assembly protein
202	 43.95	0	199139..199816	+	225	145588391	-	Pnuc_0203	-	N-acetyl-anhydromuranmyl-L-alanine amidase
45.00	MEAN

2.74	STD DEV
