IslandPath Analysis: Polaromonas naphthalenivorans CJ2

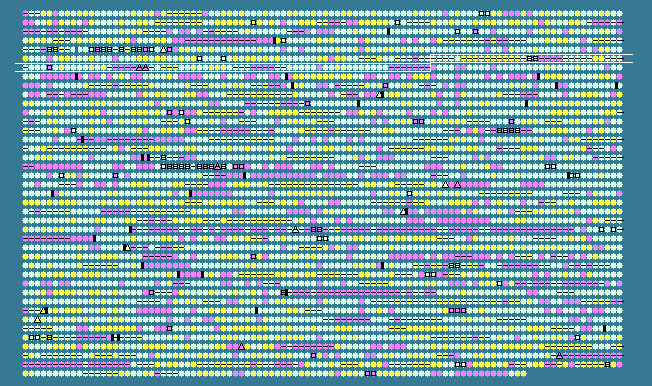

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
569	 63.37	0	612254..613768	+	504	121603488	-	Pnap_0576	-	hypothetical protein
570	 64.28	0	613798..614886	+	362	121603489	-	Pnap_0577	-	nitrate/sulfonate/bicarbonate ABC transporter periplasmic ligand-binding protein
571	 63.66	0	614962..615825	+	287	121603490	-	Pnap_0578	-	binding-protein-dependent transport systems inner membrane component
572	 65.69	0	615843..616661	+	272	121603491	-	Pnap_0579	-	binding-protein-dependent transport systems inner membrane component
573	 65.41	0	616721..617518	+	265	121603492	-	Pnap_0580	-	ABC transporter related
574	 66.40	0	617587..618333	+	248	121603493	-	Pnap_0581	-	hypothetical protein
575	 68.61	+1	618504..619172	-	222	121603494	-	Pnap_0582	-	TPR repeat-containing protein
576	 66.92	0	619169..619570	-	133	121603495	-	Pnap_0583	-	cytochrome C biogenesis protein
577	 62.69	0	619563..620090	-	175	121603496	-	Pnap_0584	-	periplasmic protein thiol--disulphide oxidoreductase DsbE
578	 67.97	0	620099..622096	-	665	121603497	-	Pnap_0585	-	cytochrome c-type biogenesis protein CcmF
579	 66.44	0	622093..622542	-	149	121603498	-	Pnap_0586	-	CcmE/CycJ protein
580	 67.30	0	622718..623506	-	262	121603499	-	Pnap_0587	-	heme exporter protein CcmC
581	 68.91	+1	623530..624198	-	222	121603500	-	Pnap_0588	-	heme exporter protein CcmB
582	 72.25	+1	624192..624836	-	214	121603501	-	Pnap_0589	-	heme exporter protein CcmA
583	 67.17	0	624830..625630	-	266	121603502	-	Pnap_0590	-	cytochrome B561
584	 63.87	0	625646..626110	-	154	121603503	-	Pnap_0591	-	hypothetical protein
585	 60.11	0	626748..627113	-	121	121603504	-	Pnap_0593	-	transposase, IS4 family protein
586	 61.65	0	627285..628640	-	451	121603505	-	Pnap_0594	-	putative transposase
587	 50.62	-2	628997..629239	+	80	121603506	-	Pnap_0595	-	phage tail collar domain-containing protein
588	 52.48	-1	629270..629572	-	100	121603507	-	Pnap_0596	-	hypothetical protein
589	 57.27	-1	629705..630034	+	109	121603508	-	Pnap_0597	-	hypothetical protein
590	 58.48	0	630162..631676	+	504	121603509	-	Pnap_0598	-	FAD linked oxidase domain-containing protein
591	 64.42	0	631708..632685	-	325	121603510	-	Pnap_0599	-	hypothetical protein
592	 64.48	0	632717..633355	-	212	121603511	-	Pnap_0600	-	dimethylmenaquinone methyltransferase
593	 65.63	0	633394..634260	-	288	121603512	-	Pnap_0601	-	6-phosphogluconate dehydrogenase, NAD-binding
594	 63.50	0	634463..635125	+	220	121603513	-	Pnap_0602	-	GntR family transcriptional regulator
595	 65.60	0	635157..635624	-	155	121603514	-	Pnap_0603	-	MarR family transcriptional regulator
596	 69.19	+1	635771..636760	-	329	121603515	-	Pnap_0604	-	hypothetical protein
597	 69.09	+1	637033..637815	-	260	121603516	-	Pnap_0605	-	enoyl-CoA hydratase
598	 61.99	0	637966..638841	+	291	121603517	-	Pnap_0606	-	amidohydrolase 2
599	 65.81	0	638908..639954	-	348	121603518	-	Pnap_0607	-	helix-turn-helix domain-containing protein
600	 62.13	0	640253..641245	+	330	121603519	-	Pnap_0608	-	hypothetical protein
601	 64.05	0	641306..642568	+	420	121603520	-	Pnap_0609	-	major facilitator superfamily transporter
602	 65.63	0	642669..644111	+	480	121603521	-	Pnap_0610	-	aldehyde dehydrogenase
603	 60.72	0	644191..645636	+	481	121603522	-	Pnap_0611	-	carotenoid oxygenase
604	 60.76	0	645800..647002	-	400	121603523	-	Pnap_0612	-	branched-chain amino acid ABC transporter periplasmic substrate-binding protein
605	 56.55	-1	647219..648454	-	411	121603524	-	Pnap_0613	-	IS605 family transposase OrfB
606	 62.55	0	648849..649673	+	274	121603525	-	Pnap_0614	-	glyoxalase/bleomycin resistance protein/dioxygenase
607	 66.41	0	649701..650486	+	261	121603526	-	Pnap_0615	-	helix-turn-helix, type 11 domain-containing protein
608	 64.54	0	650483..652225	+	580	121603527	-	Pnap_0616	-	3-(3-hydroxyphenyl)propionate hydroxylase
609	 63.45	0	652245..653270	+	341	121603528	-	Pnap_0617	-	hypothetical protein
610	 63.96	0	653369..654217	+	282	121603529	-	Pnap_0618	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
611	 66.18	0	654289..656124	-	611	121603530	-	Pnap_0619	-	putative flavoprotein involved in K+ transport
612	 71.87	+1	656373..658334	-	653	121603531	-	Pnap_0620	-	Fis family GAF modulated sigma54 specific transcriptional regulator
613	 63.12	0	658482..658904	-	140	121603532	-	Pnap_0621	-	HxlR family transcriptional regulator
614	 67.95	0	658994..659848	+	284	121603533	-	Pnap_0622	-	NmrA family protein
615	 62.86	0	660162..660608	+	148	121603534	-	Pnap_0623	-	DNA/RNA endonuclease G NUC1-like protein
616	 49.31	-2	660757..661482	+	241	121603535	-	Pnap_0624	-	deoxyribonuclease I
617	 50.99	-2	661587..662594	-	335	121603536	-	Pnap_0625	-	hypothetical protein
618	 35.06	-2	662650..663111	-	153	121603537	-	Pnap_0626	-	hypothetical protein
619	 57.18	-1	663151..663846	-	231	121603538	-	Pnap_0627	-	hypothetical protein
620	 55.32	-1	663843..667040	-	1065	121603539	-	Pnap_0628	-	phage integrase family protein
621	 58.28	0	667037..668359	-	440	121603540	-	Pnap_0629	-	phage integrase family protein
622	 63.16	0	668680..669192	+	170	121603541	-	Pnap_0630	-	DNA/RNA non-specific endonuclease
623	 60.24	0	669209..669457	+	82	121603542	-	Pnap_0631	-	hypothetical protein
624	 68.33	+1	669441..670280	-	279	121603543	-	Pnap_0632	-	hypothetical protein
625	 68.94	+1	670342..672060	-	572	121603544	-	Pnap_0633	-	sodium/hydrogen exchanger
626	 69.74	+1	672039..673535	-	498	121603545	-	Pnap_0634	-	hypothetical protein
627	 61.90	0	673732..673983	+	83	121603546	-	Pnap_0635	-	transglycosylase-associated protein
628	 65.29	0	674080..674805	+	241	121603547	-	Pnap_0636	-	exsB protein
629	 68.28	+1	674809..676419	-	536	121603548	-	Pnap_0637	-	protein of unknown function DUF894, DitE
630	 63.72	0	676432..678264	-	610	121603549	-	Pnap_0638	-	ABC transporter
631	 66.06	0	678287..679267	-	326	121603550	-	Pnap_0639	-	5-nucleotidase
632	 66.85	0	679304..679858	-	184	121603551	-	Pnap_0640	-	phosphoglycerate mutase
633	 66.79	0	679863..680699	-	278	121603552	-	Pnap_0641	-	cobalamin-5-phosphate synthase CobS
634	 68.47	+1	680708..681760	-	350	121603553	-	Pnap_0642	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
635	 64.23	0	681723..681968	-	81	121603554	-	Pnap_0643	-	hypothetical protein
636	 63.94	0	681977..683626	-	549	121603555	-	Pnap_0644	-	threonine dehydratase
637	 63.62	0	683953..684411	+	152	121603556	-	Pnap_0645	-	OsmC family protein
638	 65.87	0	684425..685054	-	209	121603557	-	Pnap_0646	-	putative ubiquinone biosynthesis protein
639	 59.18	0	685250..686545	-	431	121603558	-	Pnap_0647	-	outer membrane protein (porin)-like protein
640	 43.79	-2	686561..686914	+	117	121603559	-	Pnap_0648	-	hypothetical protein
641	 54.69	-1	687116..688150	+	344	121603560	-	Pnap_0649	-	porin
642	 55.68	-1	688495..689604	+	369	121603561	-	Pnap_0650	-	porin
643	 62.95	0	689844..691187	+	447	121603562	-	Pnap_0651	-	amidohydrolase
644	 63.83	0	691329..692174	-	281	121603563	-	Pnap_0652	-	RpiR family transcriptional regulator
645	 63.89	0	692176..693687	-	503	121603564	-	Pnap_0653	-	glucose-6-phosphate 1-dehydrogenase
646	 62.13	0	693791..694738	+	315	121603565	-	Pnap_0654	-	transaldolase B
647	 63.41	0	694761..696326	+	521	121603566	-	Pnap_0655	-	glucose-6-phosphate isomerase
648	 60.30	0	696423..696752	+	109	121603567	-	Pnap_0656	-	hypothetical protein
649	 60.79	0	696891..698540	-	549	121603568	groEL	Pnap_0657	-	chaperonin GroEL
650	 54.64	-1	698644..698934	-	96	121603569	-	Pnap_0658	-	chaperonin Cpn10
651	 63.32	0	699292..699978	+	228	121603570	-	Pnap_0659	-	hypothetical protein
652	 63.05	0	700053..701240	-	395	121603571	-	Pnap_0660	-	S-adenosylmethionine synthetase
653	 67.73	0	701410..702258	+	282	121603572	-	Pnap_0661	-	lipid A biosynthesis acyltransferase
654	 65.66	0	702255..703151	+	298	121603573	-	Pnap_0662	-	lipid A biosynthesis acyltransferase
655	 62.95	0	703264..704043	-	259	121603574	-	Pnap_0663	-	GTP-binding protein, HSR1-related
656	 61.95	0	704244..704921	+	225	121603575	-	Pnap_0664	-	cytochrome c, class I
657	 61.96	0	705119..707347	+	742	121603576	-	Pnap_0665	-	ResB family protein
658	 62.00	0	707344..708735	+	463	121603577	-	Pnap_0666	-	cytochrome c assembly protein
659	 61.16	0	708811..709809	+	332	121603578	-	Pnap_0667	-	putative sulfite oxidase subunit YedY
660	 61.06	0	709809..710468	+	219	121603579	-	Pnap_0668	-	ferric reductase domain-containing protein
661	 62.00	0	710569..711855	-	428	121603580	-	Pnap_0669	-	diaminopimelate decarboxylase
662	 53.56	-1	712198..712548	+	116	121603581	-	Pnap_0670	-	frataxin family protein
663	 57.40	-1	712620..715037	-	805	121603582	-	Pnap_0671	-	1A family penicillin-binding protein
664	 52.59	-1	715297..716376	+	359	121603583	-	Pnap_0672	-	type IV pilus assembly protein PilM
665	 50.61	-2	716487..716978	+	163	121603584	-	Pnap_0673	-	fimbrial assembly family protein
666	 51.41	-2	717000..717674	+	224	121603585	-	Pnap_0674	-	pilus assembly protein, PilO
667	 55.80	-1	717671..718222	+	183	121603586	-	Pnap_0675	-	pilus assembly protein, PilQ
668	 55.21	-1	718219..720357	+	712	121603587	-	Pnap_0676	-	type IV pilus secretin PilQ
62.80	MEAN

5.38	STD DEV
