IslandPathversion 1.0

IslandPath Analysis: Polaromonas naphthalenivorans CJ2

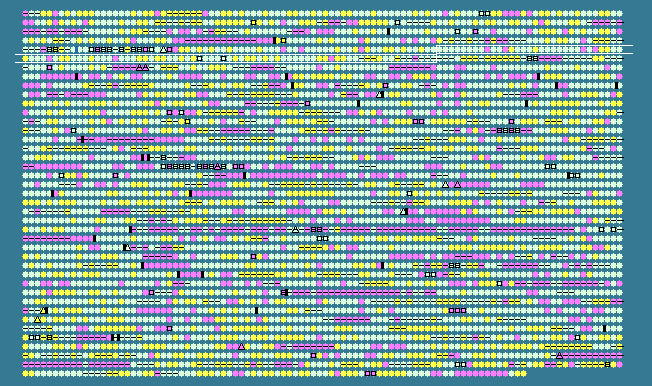

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
470	 64.98	0	495411..497423	+	670	121603389	-	Pnap_0475	-	carbamoyl-phosphate synthase L chain, ATP-binding
471	 66.24	0	497441..498370	+	309	121603390	-	Pnap_0476	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
472	 63.54	0	498375..499301	+	308	121603391	-	Pnap_0477	-	pyruvate carboxyltransferase
473	 65.47	0	499301..500053	+	250	121603392	-	Pnap_0478	-	YbaK/prolyl-tRNA synthetase associated region
474	 64.35	0	500050..500739	+	229	121603393	-	Pnap_0479	-	DSBA oxidoreductase
475	 63.82	0	500800..502626	+	608	121603394	-	Pnap_0480	-	cyclic nucleotide-binding protein
476	 64.40	0	502623..503285	+	220	121603395	-	Pnap_0481	-	DNA polymerase III subunit epsilon
477	 62.15	0	503441..503794	+	117	121603396	-	Pnap_0482	-	transport-associated
478	 55.08	-1	505881..506234	-	117	121603397	-	Pnap_0484	-	hypothetical protein
479	 60.82	0	506556..508214	+	552	121603398	-	Pnap_0485	-	major facilitator superfamily transporter
480	 61.90	0	508230..508733	+	167	121603399	-	Pnap_0486	-	hypothetical protein
481	 58.51	0	508744..509847	-	367	121603400	-	Pnap_0487	-	extracellular ligand-binding receptor
482	 67.07	0	510042..515939	+	1965	121603401	-	Pnap_0488	-	excinuclease ABC, A subunit
483	 62.28	0	516348..517784	+	478	121603402	-	Pnap_0489	-	S-adenosyl-L-homocysteine hydrolase
484	 65.00	0	517927..519003	+	358	121603403	-	Pnap_0490	-	ribosomal RNA methyltransferase RrmJ/FtsJ
485	 63.78	0	519013..519843	+	276	121603404	-	Pnap_0491	-	5,10-methylenetetrahydrofolate reductase
486	 70.01	+1	519843..520559	+	238	121603405	-	Pnap_0492	-	rare lipoprotein A
487	 62.82	0	520730..521353	+	207	121603406	-	Pnap_0493	-	hypothetical protein
488	 62.99	0	521356..522768	+	470	121603407	-	Pnap_0494	-	cytochrome bd ubiquinol oxidase, subunit I
489	 64.63	0	522761..523792	+	343	121603408	-	Pnap_0495	-	cytochrome bd ubiquinol oxidase, subunit II
490	 63.64	0	523803..524825	-	340	121603409	-	Pnap_0496	-	hypothetical protein
491	 65.60	0	524874..526469	-	531	121603410	-	Pnap_0497	-	regulator of RNA terminal phosphate cyclase
492	 62.80	0	526614..527906	+	430	121603411	-	Pnap_0498	-	hypothetical protein
493	 64.57	0	527926..529023	+	365	121603412	-	Pnap_0499	-	RNA-3'-phosphate cyclase
494	 56.08	-1	529265..529708	+	147	121603413	rplM	Pnap_0500	-	50S ribosomal protein L13
495	 60.81	0	529705..530097	+	130	121603414	-	Pnap_0501	-	ribosomal protein S9
496	 57.38	-1	530261..530626	+	121	121603415	-	Pnap_0502	-	iron-sulfur cluster insertion protein ErpA
497	 67.38	0	530809..533061	+	750	121603416	-	Pnap_0503	-	helicase c2
498	 66.40	0	533105..534244	-	379	121603417	anmK	Pnap_0504	-	anhydro-N-acetylmuramic acid kinase
499	 65.59	0	534281..535678	-	465	121603418	-	Pnap_0505	-	peptidase M23B
500	 63.58	0	535905..537137	+	410	121603419	-	Pnap_0506	-	tyrosyl-tRNA synthetase
501	 68.39	+1	537151..537615	+	154	121603420	-	Pnap_0507	-	D-tyrosyl-tRNA deacylase
502	 62.72	0	537696..538151	-	151	121603421	-	Pnap_0508	-	hypothetical protein
503	 65.51	0	538141..539178	-	345	121603422	-	Pnap_0509	-	PhoH family protein
504	 64.94	0	539239..539817	+	192	121603423	ruvA	Pnap_0510	-	Holliday junction DNA helicase motor protein
505	 46.17	-2	539830..540756	+	308	121603424	-	Pnap_0511	-	hypothetical protein
506	 65.36	0	540753..541823	+	356	121603425	ruvB	Pnap_0512	-	Holliday junction DNA helicase B
507	 67.34	0	542006..543196	-	396	121603426	-	Pnap_0513	-	putative threonine aldolase
508	 69.04	+1	543224..543898	-	224	121603427	-	Pnap_0514	-	phosphoglycerate mutase
509	 66.19	0	543948..544574	-	208	121603428	-	Pnap_0515	-	hypothetical protein
510	 60.74	0	544596..545540	-	314	121603429	-	Pnap_0516	-	PP-loop domain-containing protein
511	 59.60	0	545546..545998	-	150	121603430	-	Pnap_0517	-	dihydroneopterin aldolase
512	 68.10	0	545995..546762	-	255	121603431	-	Pnap_0518	-	short-chain dehydrogenase/reductase SDR
513	 65.85	0	546835..547941	+	368	121603432	-	Pnap_0519	-	hypothetical protein
514	 59.50	0	548057..548335	+	92	121603433	-	Pnap_0520	-	hypothetical protein
515	 64.93	0	548332..549600	+	422	121603434	-	Pnap_0521	-	HipA domain-containing protein
516	 56.41	-1	549611..549805	+	64	121603435	-	Pnap_0522	-	hypothetical protein
517	 60.46	0	549995..551251	+	418	121603436	-	Pnap_0523	-	extracellular solute-binding protein
518	 65.44	0	551295..552680	-	461	121603437	-	Pnap_0524	-	alpha,alpha-trehalose-phosphate synthase (UDP-forming)
519	 65.51	0	552677..554497	-	606	121603438	-	Pnap_0525	-	glycoside hydrolase 15-related
520	 69.10	+1	554494..555273	-	259	121603439	-	Pnap_0526	-	HAD family hydrolase
521	 67.92	0	555398..557479	-	693	121603440	-	Pnap_0527	-	lytic transglycosylase, catalytic
522	 64.32	0	557489..558127	+	212	121603441	-	Pnap_0528	-	5-formyltetrahydrofolate cyclo-ligase
523	 66.67	0	558214..559257	-	347	121603442	-	Pnap_0529	-	LysR family transcriptional regulator
524	 71.43	+1	559331..559792	+	153	121603443	-	Pnap_0530	-	hypothetical protein
525	 64.44	0	559817..560221	-	134	121603444	-	Pnap_0531	-	BLUF domain-containing protein
526	 64.26	0	560234..561064	+	276	121603445	-	Pnap_0532	-	cyclic nucleotide-binding protein
527	 68.64	+1	561187..562608	+	473	121603446	-	Pnap_0533	-	UDP-N-acetylglucosamine pyrophosphorylase
528	 61.90	0	563289..563771	-	160	121603447	-	Pnap_0535	-	AsnC family transcriptional regulator
529	 66.72	0	563910..565766	+	618	121603448	-	Pnap_0536	-	D-fructose-6-phosphate amidotransferase
530	 61.17	0	565874..566455	-	193	121603449	-	Pnap_0537	-	transposase, IS4 family protein
531	 61.84	0	566895..567371	+	158	121603450	-	Pnap_0538	-	rhodanese domain-containing protein
532	 65.91	0	567423..568349	+	308	121603451	-	Pnap_0539	-	Serine O-acetyltransferase
533	 61.17	0	568346..568618	+	90	121603452	-	Pnap_0540	-	helix-turn-helix domain-containing protein
534	 61.73	0	568766..570121	-	451	121603453	-	Pnap_0541	-	putative transposase
535	 61.11	0	570177..571058	+	293	121603454	-	Pnap_0542	-	hypothetical protein
536	 67.30	0	571073..573112	+	679	121603455	-	Pnap_0543	-	SufS subfamily cysteine desulfurase
537	 65.07	0	573413..574417	+	334	121603456	-	Pnap_0544	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
538	 68.49	+1	574425..575354	+	309	121603457	-	Pnap_0545	-	binding-protein-dependent transport systems inner membrane component
539	 66.67	0	575351..576088	+	245	121603458	-	Pnap_0546	-	ABC transporter related
540	 61.71	0	576594..577703	+	369	121603459	-	Pnap_0547	-	luciferase family protein
541	 69.31	+1	577720..578931	+	403	121603460	-	Pnap_0548	-	long-chain-fatty-acid--CoA ligase-related protein
542	 64.04	0	578946..579743	+	265	121603461	-	Pnap_0549	-	ABC transporter related
543	 66.89	0	579765..580646	+	293	121603462	-	Pnap_0550	-	inner-membrane translocator
544	 63.58	0	580659..581726	+	355	121603463	-	Pnap_0551	-	inner-membrane translocator
545	 62.90	0	581780..583105	+	441	121603464	-	Pnap_0552	-	hypothetical protein
546	 66.18	0	583193..584434	+	413	121603465	-	Pnap_0553	-	acyl-CoA dehydrogenase type 2
547	 65.47	0	584498..585751	+	417	121603466	-	Pnap_0554	-	acyl-CoA dehydrogenase type 2
548	 65.35	0	586010..586771	+	253	121603467	-	Pnap_0555	-	ABC transporter related
549	 65.13	0	586812..587915	-	367	121603468	-	Pnap_0556	-	response regulator receiver protein
550	 66.84	0	587932..589119	-	395	121603469	-	Pnap_0557	-	acyl-CoA dehydrogenase type 2
551	 66.67	0	589201..589761	-	186	121603470	-	Pnap_0558	-	FMN reductase
552	 54.79	-1	589793..590053	+	86	121603471	-	Pnap_0559	-	hypothetical protein
553	 67.98	0	590500..591714	+	404	121603472	-	Pnap_0560	-	alkanesulfonate monooxygenase
554	 66.43	0	591711..592562	+	283	121603473	-	Pnap_0561	-	amidohydrolase 2
555	 63.84	0	592589..593578	+	329	121603474	-	Pnap_0562	-	cysteine synthase A
556	 59.94	0	593702..594727	+	341	121603475	-	Pnap_0563	-	sulfate ABC transporter, periplasmic sulfate-binding protein
557	 65.31	0	594770..595945	+	391	121603476	-	Pnap_0564	-	sigma-54 dependent trancsriptional regulator
558	 69.42	+1	596039..598219	+	726	121603477	-	Pnap_0565	-	thiol:disulfide interchange protein, putative
559	 71.58	+1	598299..599864	-	521	121603478	-	Pnap_0566	-	RND efflux system outer membrane lipoprotein
560	 69.57	+1	599861..601135	-	424	121603479	-	Pnap_0567	-	RND family efflux transporter MFP subunit
561	 65.98	0	601160..604357	-	1065	121603480	-	Pnap_0568	-	acriflavin resistance protein
562	 63.73	0	604587..605063	-	158	121603481	-	Pnap_0569	-	cytochrome c, class II
563	 67.36	0	605150..606154	-	334	121603482	-	Pnap_0570	-	SMP-30/gluconolaconase/LRE domain-containing protein
564	 63.55	0	606183..606791	-	202	121603483	-	Pnap_0571	-	redoxin domain-containing protein
565	 66.08	0	606823..607506	-	227	121603484	-	Pnap_0572	-	cytochrome c, class I
566	 59.18	0	607522..607935	-	137	121603485	-	Pnap_0573	-	hypothetical protein
567	 65.70	0	607966..609417	-	483	121603486	-	Pnap_0574	-	hypothetical protein
568	 63.64	0	609455..611803	-	782	121603487	-	Pnap_0575	-	hypothetical protein
569	 63.37	0	612254..613768	+	504	121603488	-	Pnap_0576	-	hypothetical protein
62.80	MEAN

5.38	STD DEV
